500850-TX - Overview

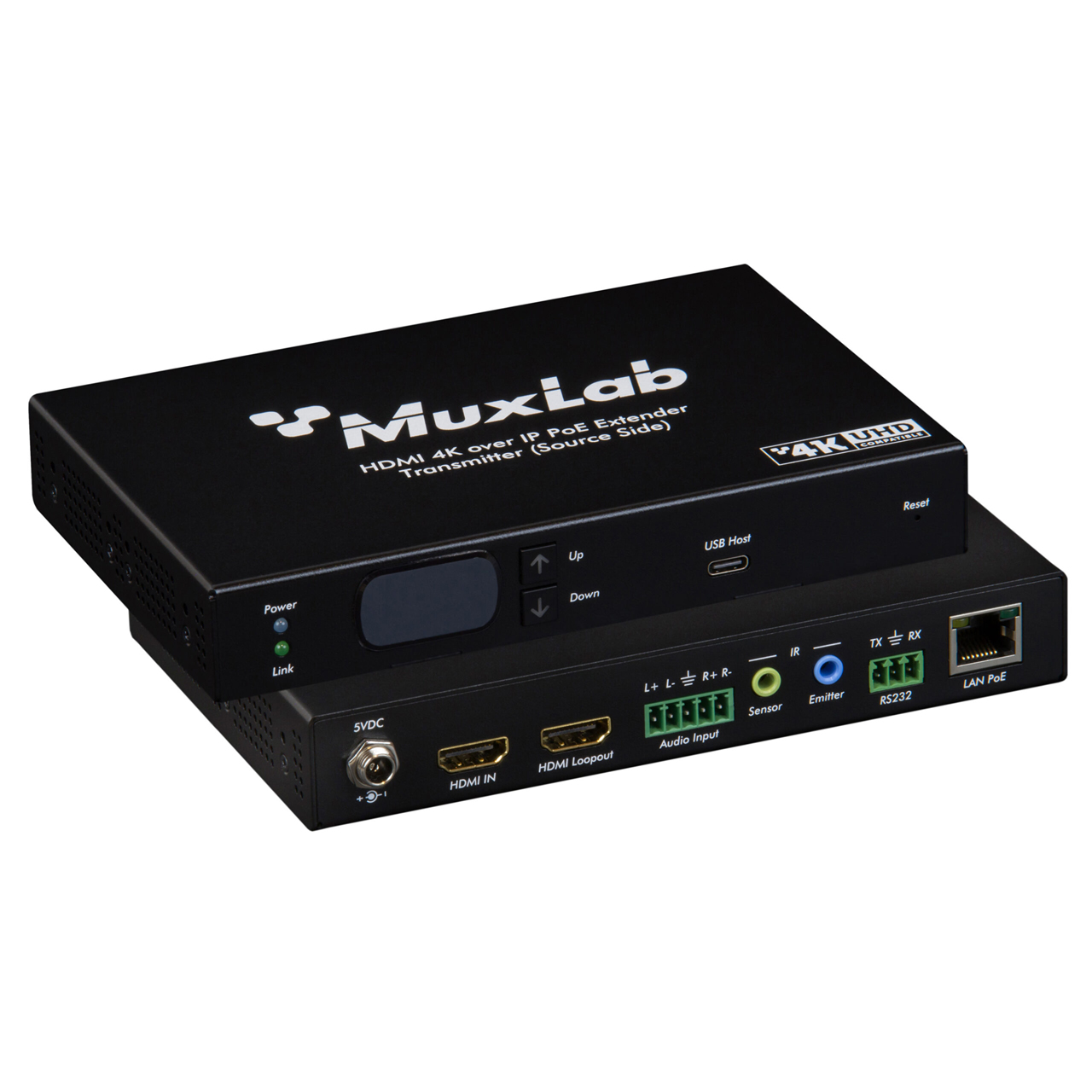

The MuxLab 500850 KVM HDMI over IP PoE Extender Deluxe, 4K/30 allows HDMI & USB equipment to be connected up to 330ft (100m) over an Ethernet LAN, supports HDMI up to 4K @ 30Hz (4:4:4)and 4K @ 60Hz (4:2:0) via Cat5e/6 cable in multiple point-to-point and point-to-multipoint configurations. The Transmitter (500850-TX) and Receiver (500850-RX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch.

The Transmitter terminates to a computer server/workstation via an HDMI & USB port, The Receiver terminates to an HDMI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad, storage device, etc., via a 4 port USB hub. In addition, The Transmitter features an HDMI loop out for connecting a local TV and the Receiver features an HDMI input for connecting a local video source.

  • Features:

    • Supports HDMI up to 4K @ 30Hz (4:4:4) and4K @ 60Hz (4:2:0)
    • Up to 330ft (100m) over Cat5e/6
    • One operator can manage multiple servers/workstations
    • Receiver side includes a 4-port USB hub for KVM applications
    • HDMI loop out on TX
    • HDMI local input on RX (model 500850-RX)
    • 100 channel selector

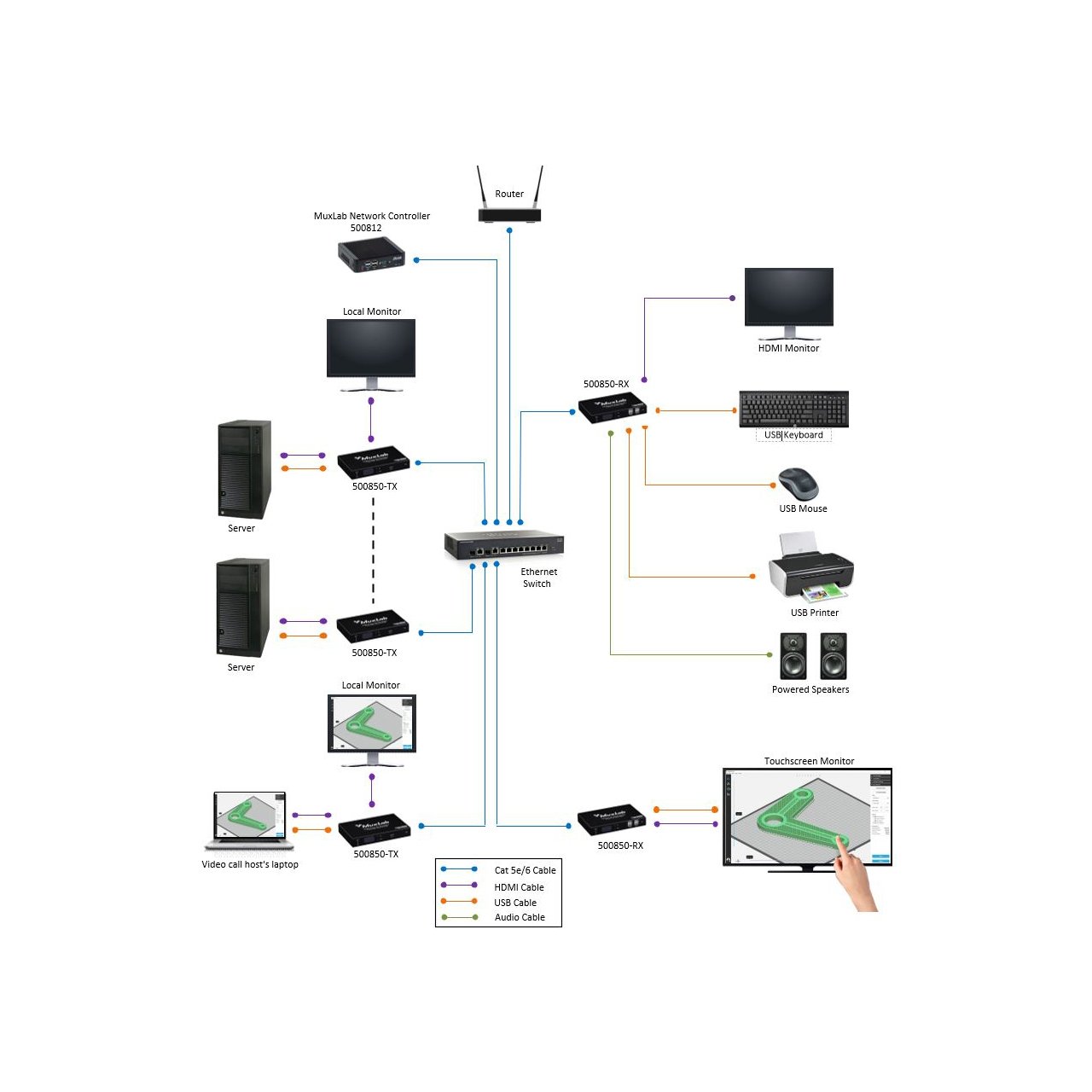

    • Supports multiple point-to-point, and point-to-multipoint applications
    • Supports PoE powered
    • Supports balanced/unbalanced audioinsert (TX), and balanced/unbalancedaudio extract (RX)


  • Specifications:

    • Environment: HDMI 2.0a
    • HDCP Compliance: HDCP 1.4, HDCP 2.2
    • Bandwidth (HDMI): 297 MHz
    • Video Resolution: Up to 4K/30Hz (4:4:4) or 4K/60Hz (4:2:0)
    • Compression: JPEG 2000
    • Maximum Distance (Cat5e/6): 330' (100m)
    • Latency (Typical One Frame): 16ms for 60Hz, 33ms for 30Hz
    • Bandwidth: Up to 500
    • Network Requirement: 1000BaseT with PoE
    • HDR Color: HDR10
    • RS-232: Up to 115k Baud
    • IR: Bi-Directional

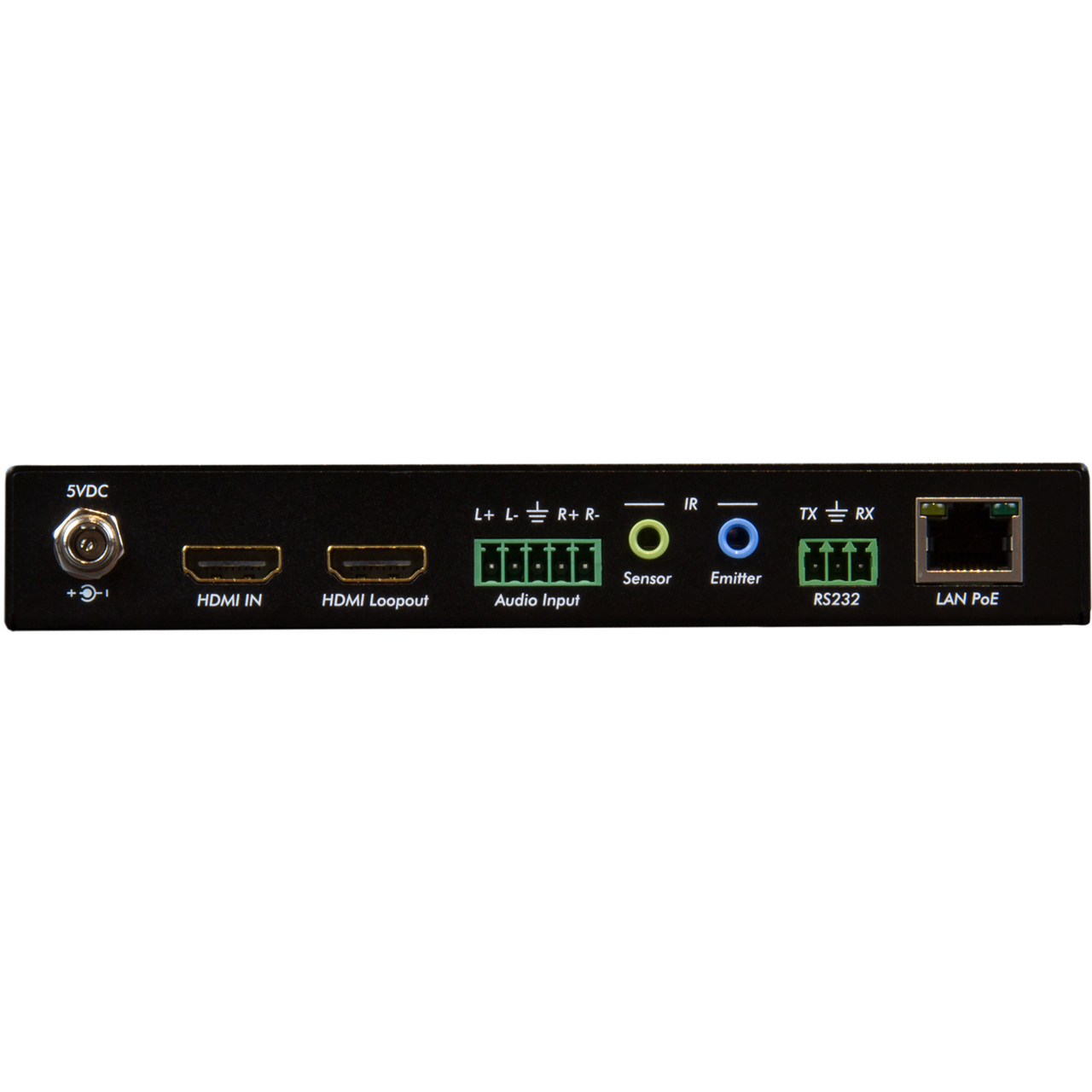

    • Transmitter Input:
      - 1x HDMI IN (Type A, 19-pin female)
      - 1x Audio Input (5-pin-3.81mm Phoenix jack)
    • Transmitter Output:
      - 1xHDMI Loopout (Type A, 19-pin female)
      - 1xEthernet LAN port (RJ45, 8-pin connector)

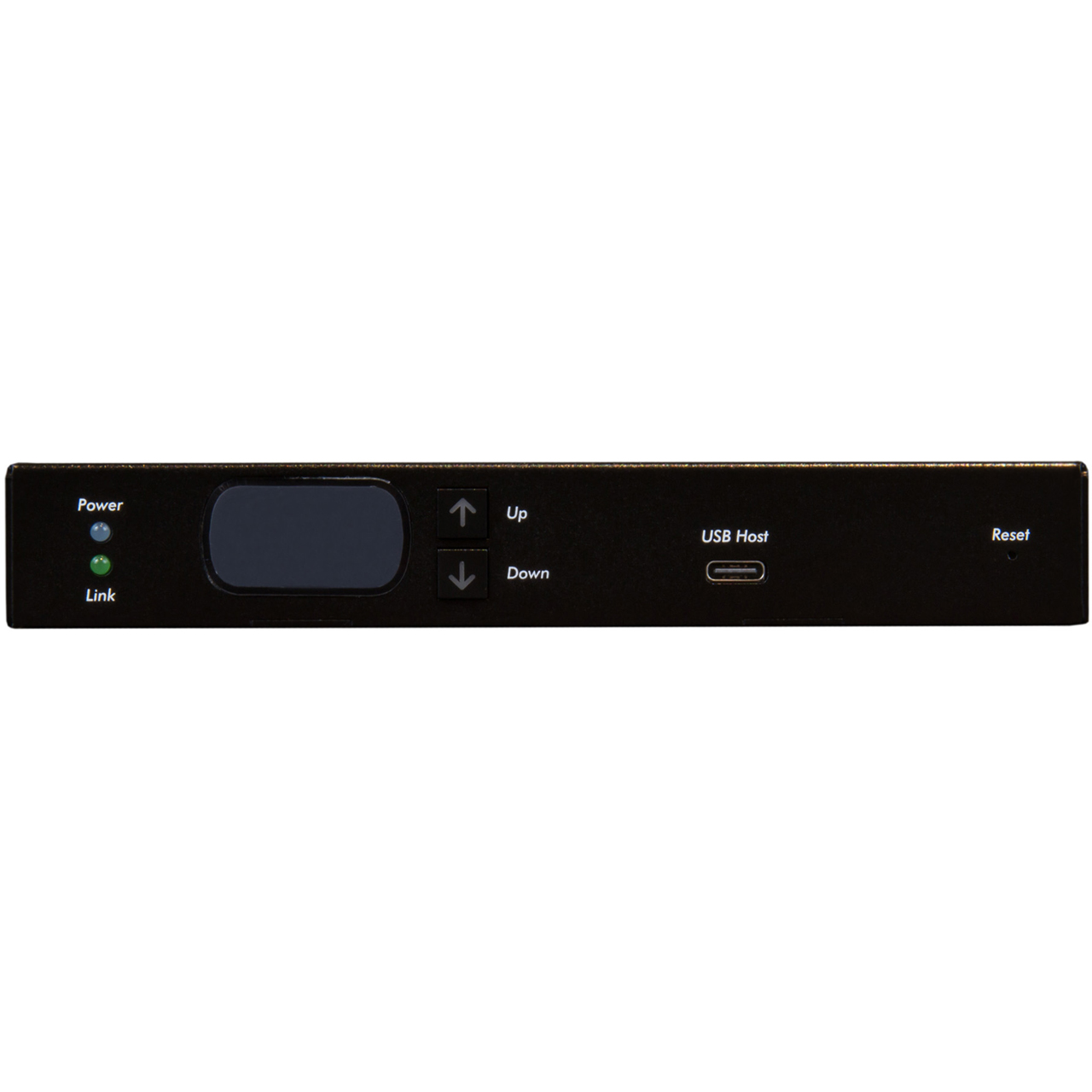

    • Transmitter Controls:
      - 1x IR Sensor (3.5mm Stereo Mini-jack)
      - 1x IR Emitter (3.5mm Stereo Mini-jack)
      - 1x RS-232 (3-pin-3.81mm Phoenix jack)
      - 1x USB HOST (USB Type C)
    • Housing: Black Metal Enclosure
    • Dimensions: 6.42" 4.21" x 0.91" (163mm x 107mm x 23mm)
    • Weight: 17.12oz (485.3g)
    • Power Consumption: 5 Watt
    • PoE Standard: IEEE 802.3af
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (non-condensing)


  • Item Includes:

    • 1x KVM HDMI over IP PoE Extender Deluxe, 4K30 (Transmitter)
    • 1x IR Sensor
    • 1x IR Emitter
    • 1x User manual (available via download)


  • Warranty:

    • 3 Year Warranty


  • Applications

    :

    • KVM /AV Systems
    • Classroom training systems
    • Digital signage
    • Boardroom systems
    • Collaborative PC systems
    • Medical information systems


  • GTIN:

    0627699908501
