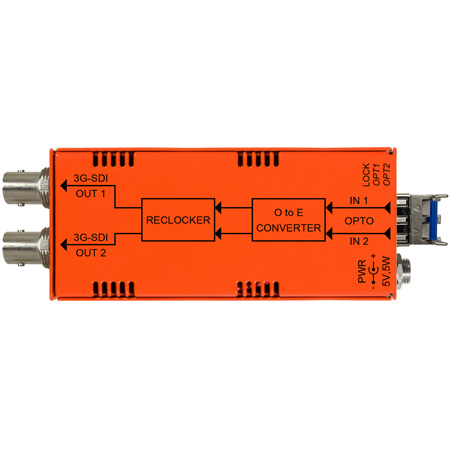

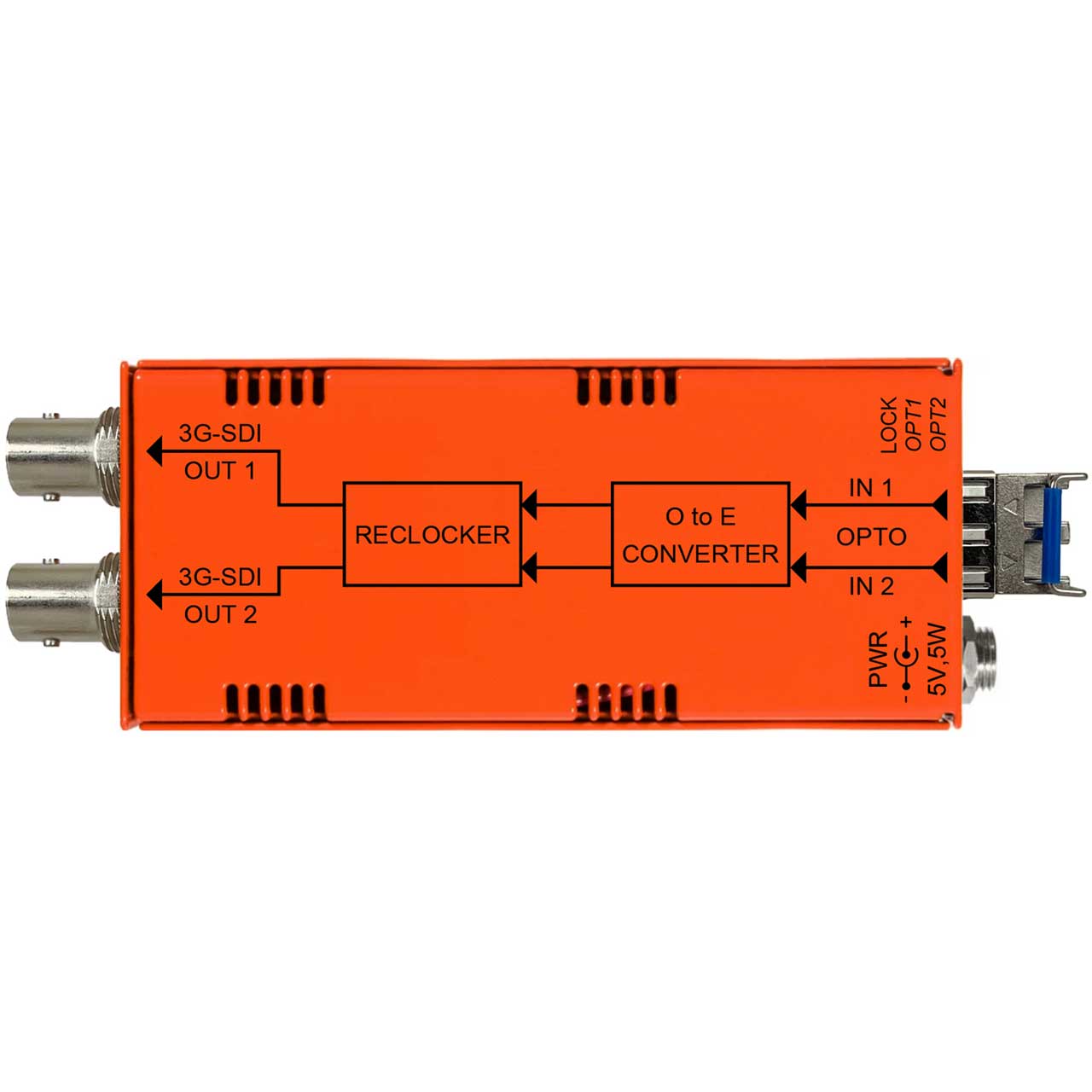

The NBX-2RX-3G-LC from MultiDyne provides a miniature solution to receive two 3G/HD/SD-SDI signals over single-mode fiber optic cable using LC connectors at distances up to 10km.

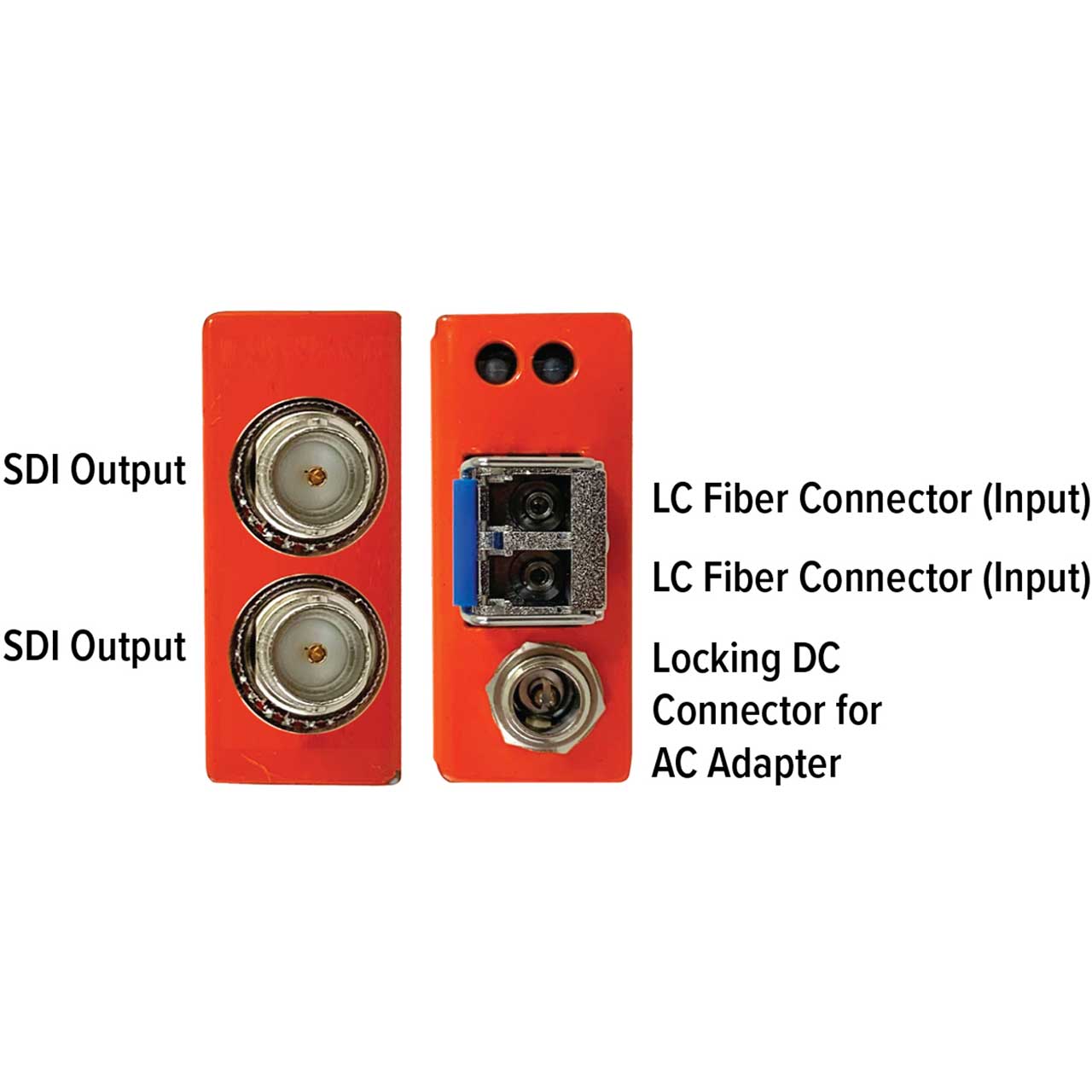

The NBX-2RX-3G-LC provides two SDI fiber optic inputs on LC connectors with a wavelength range of 1270 nm to 1610 n to 1610 nm and offers one output to each SDI signal on a 75 Ohm BNC connector.
The NBX-2RX-3G-LC provides reclocking on both of the outgoing SDI signals on the BNC connectors. Dual Color LED indicators to provide a GREEN status indication to show that the reclockers are locked to valid SDI signals or a RED status indication to show a valid SDI signal is not present.
Power to the NBX-2RX-3G-LC is provided by an external AC adapter with a locking DC connector supplied with the module.
Applications
Live BroadcastArenas and StadiumsShared Control RoomsCampus Facilities
