NTI ST-C6HD-HDBT HDMI HDBase-T Extender with IR via One CATx to 600 Feet

ST-C6HD-HDBT - Overview

• Features:

  • Transmits an uncompressed high speed HDMI signal over one CAT6a/7 solid cable.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200
  • Extend up to 450 feet with solid CAT5e/6 cable
  • Extend up to 600 feet with solid CAT6a/7 cable (23 AWG)
  • Extend up to 5,600 feet when combined with NTI's ST-FOHD-LC HDMI Extender via Fiber Optic Cable

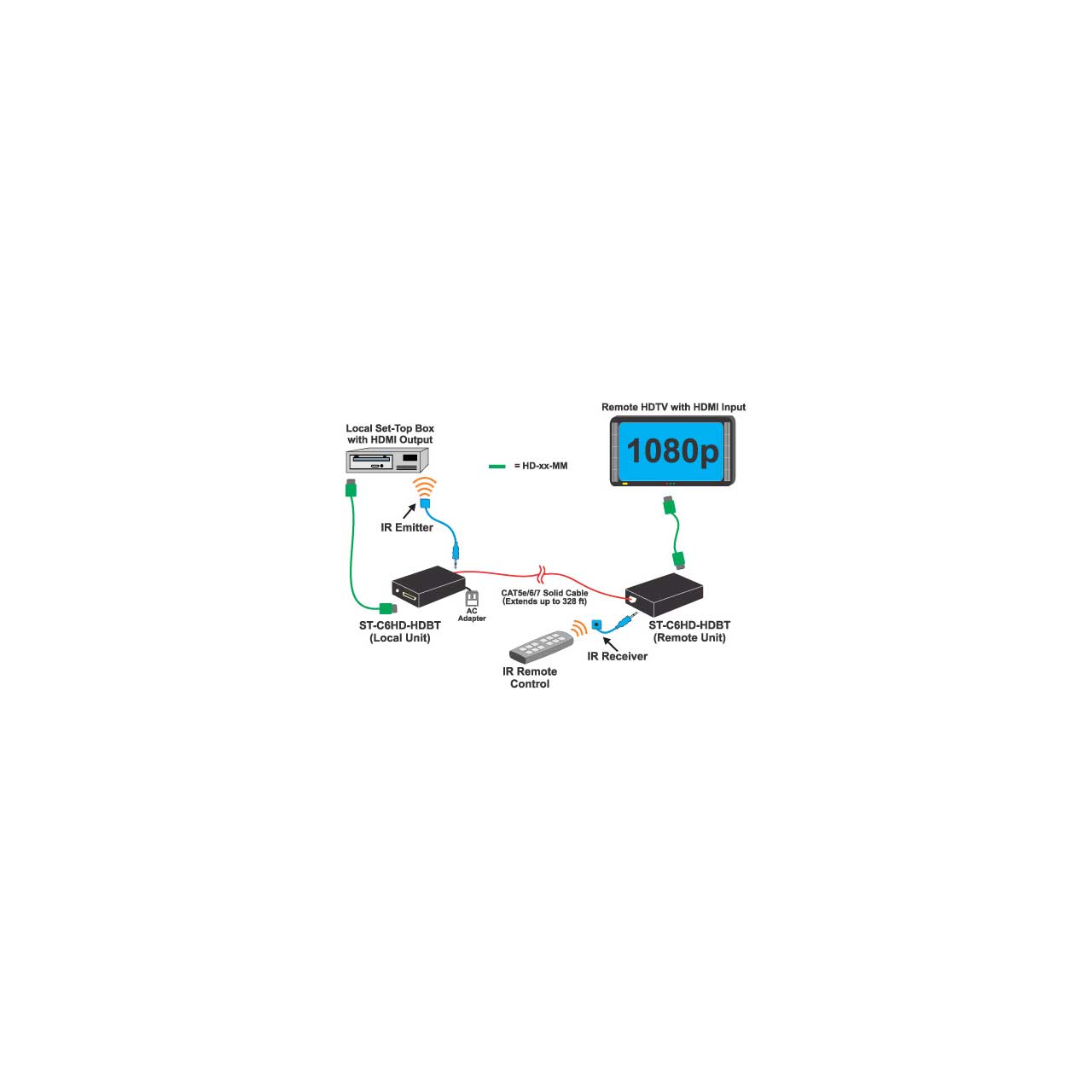

  • Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control
  • Only one power supply is necessary to power both the local and remote units
  • HDMI features supported: x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
  • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
  • Bandwidth up to 154 MHz (3.76 Gbps)
  • Support for CEC (consumer electronic control) compatible devices
  • Lip Sync
  • HDCP compliant
  • Supports the DDC2B protocol


• Specifications:

  • Local Unit
  • Compatible with a computer or HDTV video source with HDMI output.
  • ST-C6HD-HDBT: one female HDMI connector; one female 3.5mm port for IR emitter (included); one female RJ45 port for sending/receiving high definition video, audio, IR, and DDC signals.

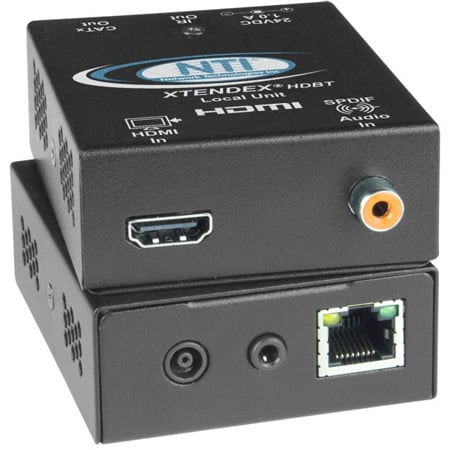

  • ST-C6HD-DA-HDBT: one female HDMI connector; one female 3.5mm port for IR emitter (included); one RCA jack for SPDIF digital audio; one female RJ45 port for sending/receiving high definition video, audio, IR, and DDC signals.

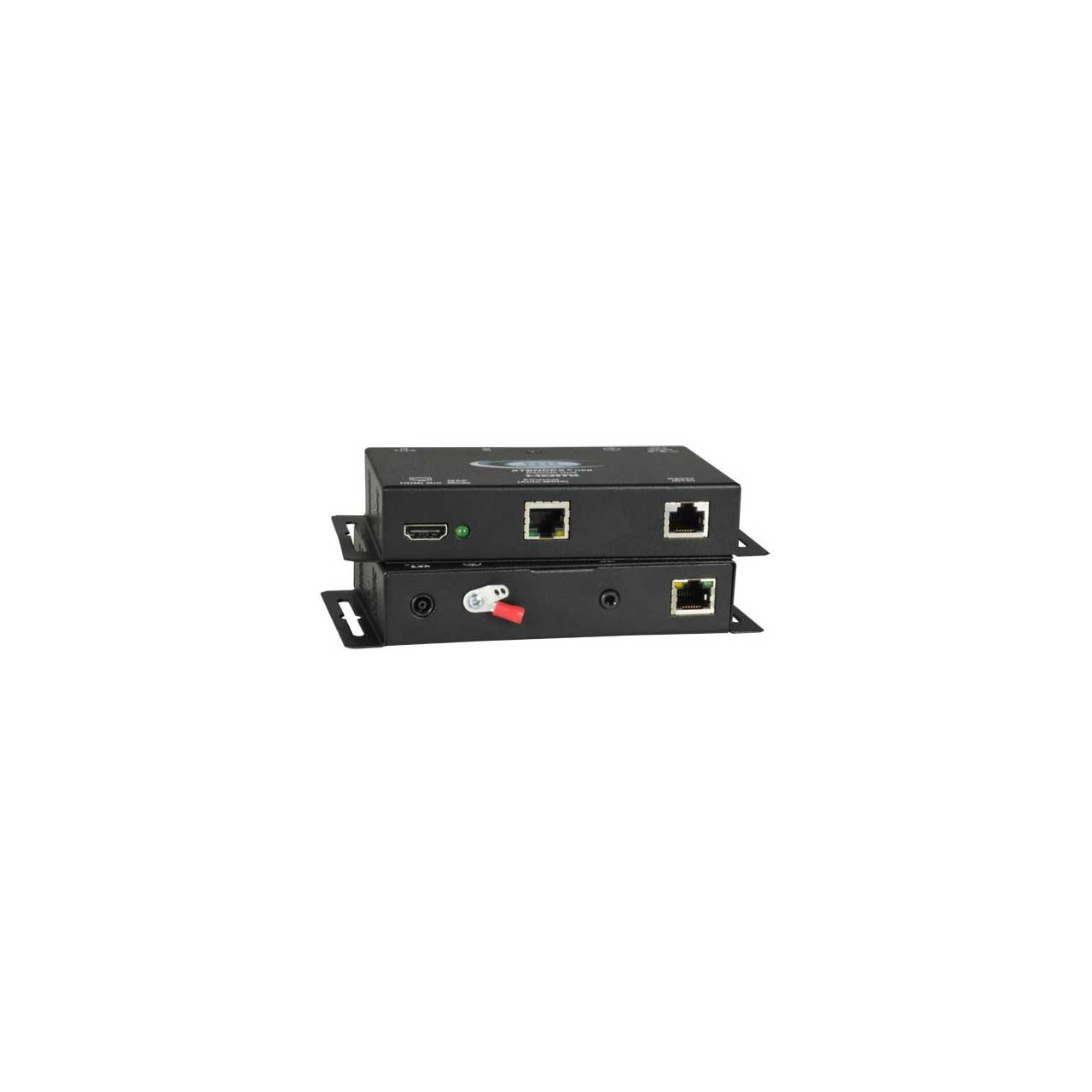

  • ST-C6HDE-HDBT: one female HDMI connector; one female 3.5mm port for IR emitter (included); one female RJ45 port for RS232; one female RJ45 100BaseT Ethernet port for connecting network device such as a 100Base-T router, hub, or smart Blu-Ray player; one female RJ45 port for sending/receiving HD video, audio, IR, DDC, Ethernet, and RS232 signals.

    Remote Unit
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
  • ST-C6HD-HDBT: one female HDMI connector; one female 3.5mm port for IR receiver (included); one female RJ45 port for sending/receiving high definition video, audio, IR, and DDC signals.
  • ST-C6HD-DA-HDBT: one female HDMI connector; one female 3.5mm port for IR receiver (included); one RCA jack for SPDIF digital audio; one female RJ45 port for sending/receiving high definition video, audio, IR, and DDC signals.
  • ST-C6HDE-HDBT: one female HDMI connector; one female 3.5mm port for IR receiver (included); one female RJ45 port for RS232; one female RJ45 100BaseT Ethernet port for connecting network device such as a 100Base-T router, hub, or smart TV; one female RJ45 port for sending/receiving HD video, audio, IR, DDC, Ethernet, and RS232 signals.

    Dimensions
  • ST-C6HD-HDBT and ST-C6HD-DA-HDBT WxDxH (in): 2.54x3.08x1.08
  • ST-C6HDE-HDBT (in): 6.06x3.05x1.08

    Power
  • Powered from a single power supply attached to either the local or remote unit.
  • Local or remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)

    Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating/storage relative humidity: 17 to 90% non-condensing RH.

    Max Distance
  • 450 feet (137 meters) over CAT5e/6 cable.
  • 600 feet (183 meters) over CAT6a/7 cable (23 AWG).

    Cables
  • Use HD-xx-MM cable to connect an HDMI source or display.
  • Use DVI-HD-xx-MM cable to connect a DVI source or display.
  • Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
  • CAT5e/6 solid: up to 450 feet.
  • CAT6a/7 solid (23 AWG): up to 600 feet.


• GTIN:

  0796168576289
