Rean NYS207 1/4 Inch TS Right Angle Plug

ITEM #: NYS207 MFG #: NYS207

Primary Image
Rean
Free Shipping with $49 Minimum Order

List Price:

$2.33

Our Price:

$1.39

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NYS207 - Overview

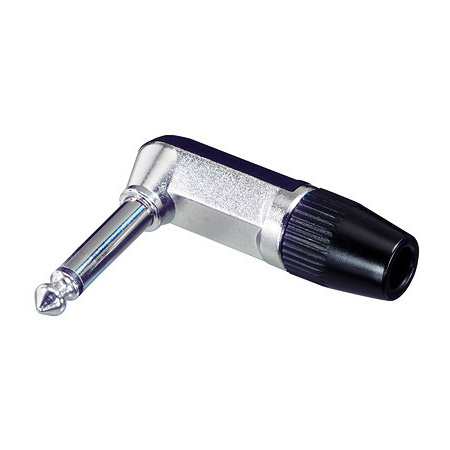

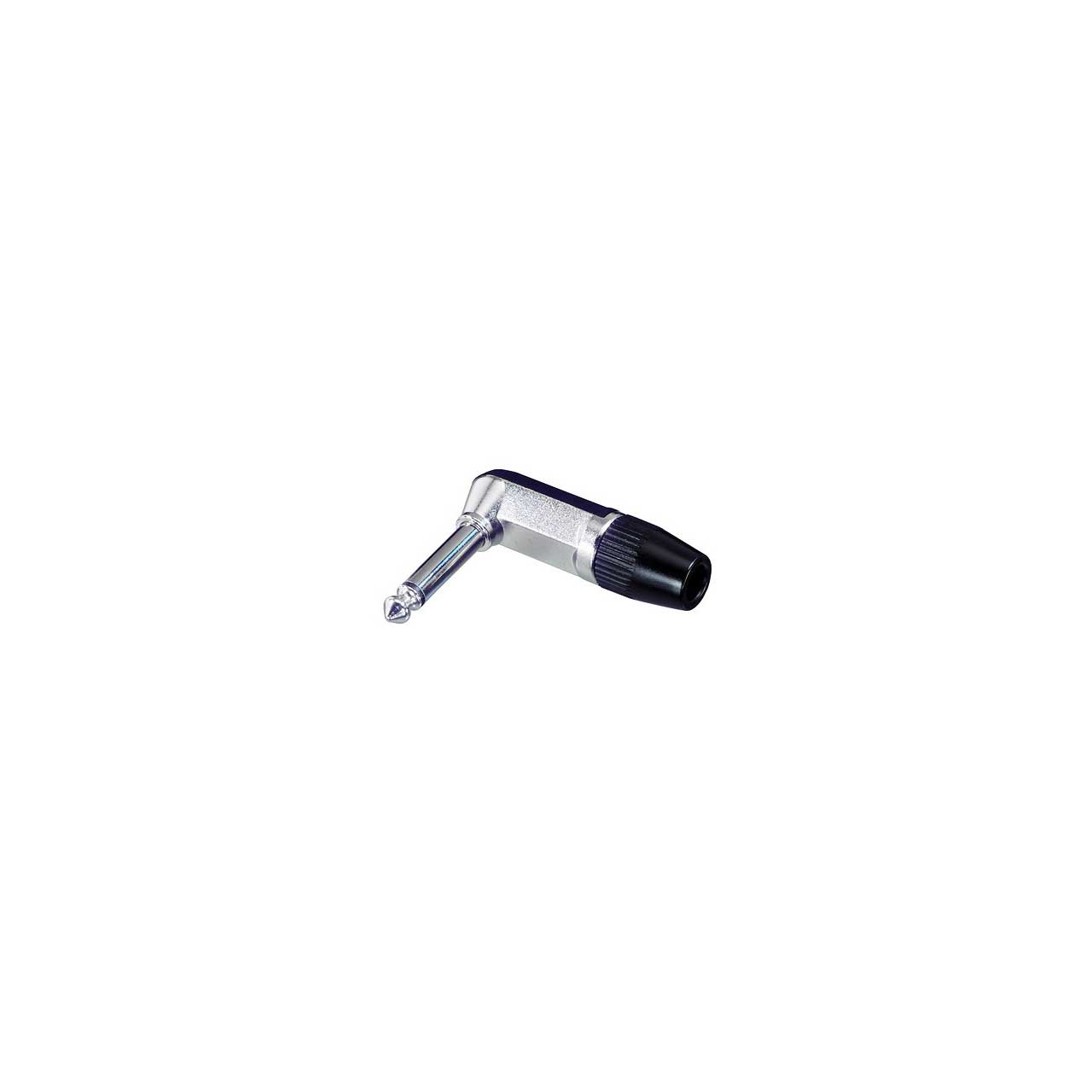

The Rean NYS207 is a right angle 1/4 inch TS plug with metal housing and plastic bushing.

  • Specifications:

    • Electrical
    • Contact Resistance: < 10 mΩ
    • Dielectric Strength: 0,5 kVdc
    • Rated Current Per Contact: Depends on mated connector A

      Mechanical
    • Cable O.D.: ≤ 6 mm
    • Lifetime: 1000 mating cycles
    • Wire Size: 24 AWG
    • RW / Straight: No

      Material
    • Bushing: POM
    • Contact Plating: 2 Ým Ni
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Shell: Zinc Diecast (ZnAl4Cu1), PA 6 30 % GR
    • Strain Relief: CRIMP type snce plated

      Environmental
    • Solderability: Complies with IEC 68-2-20
    • Temperature Range: -4°F - 158°F (-20°C to +70°C)


  • GTIN:

    7613187010286
