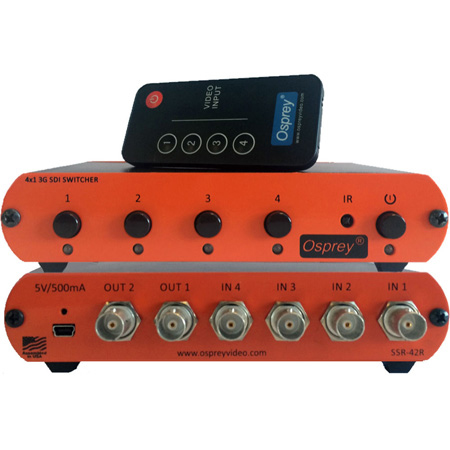

Osprey SSR-42R 4x1 3G/HD/SD/SD SDI & DVB-ASI Video Switcher with Reclocking & USB Power Option

ITEM #: OSP-SSR-42R MFG #: 97-30001

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OSP-SSR-42R

97-30001 - Overview

This Osprey 4 to 1 Switcher with Automatic Input Detection will accept four inputs up to 3G SDI as well as DVB-ASI. The selected channel will be passed directly to two reclocked parallel outputs. Channel selection by push buttons on the unit or with the supplied IR remote control.

  • Features:

    • Video Inputs: 4x 3G/HD/SD SDI and DVB-ASI with embedded Audio
    • Video Outputs: 2x Parallel 3G/HD/SD SDI and DVB-ASI with embedded Audio
    • LED indication for Power, Signal Lock and Channel Select
    • Included Accessories: USB Wall Power Supply, Lockable USB Power Cable, Remote Control
    • Size: 150 x 100 x 30mm (including BNC's)
    • 5V Power Consumption ~ 2.5W


  • Specifications:

    • Standards Compliance: SMPTE 259M, SMPTE 292, SMPTE 344M, SMPTE 424M, DVB-ASI
    • Video Inputs: 4x 3G/HD/SD SDI and DVB-ASI with embedded Audio
    • Video Outputs: 2x Parallel 3G/HD/SD SDI and DVB-ASI with embedded Audio
    • Reclocking: YES
    • Cable Equalization: (Belden 1694A) 150m at 3G, 200m at HD, 400m at SD
    • LED indicators: Power, Signal Lock, Channel Select
    • Video Connectors: BNC x 6
    • Power Connector: Locking Mini B USB
    • Power: +5 VDC @ ~2.5W May be powered by USB charger, PC or portable battery pack (not included)


  • Item Includes:

    • 4:1 Switcher
    • Remote Control
    • Locking USB cable
    • USB Power Supply


  • Warranty:

    • 1 Year


  • GTIN:

    0850189006474
