Panasonic AW-RP60GJ Compact Remote PTZ Camera Controller with PoE and 3.5-Inch LCD GUI Monitor

ITEM #: PAN-AW-RP60GJ MFG #: AW-RP60GJ

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PAN-AW-RP60GJ

AW-RP60GJ - Overview

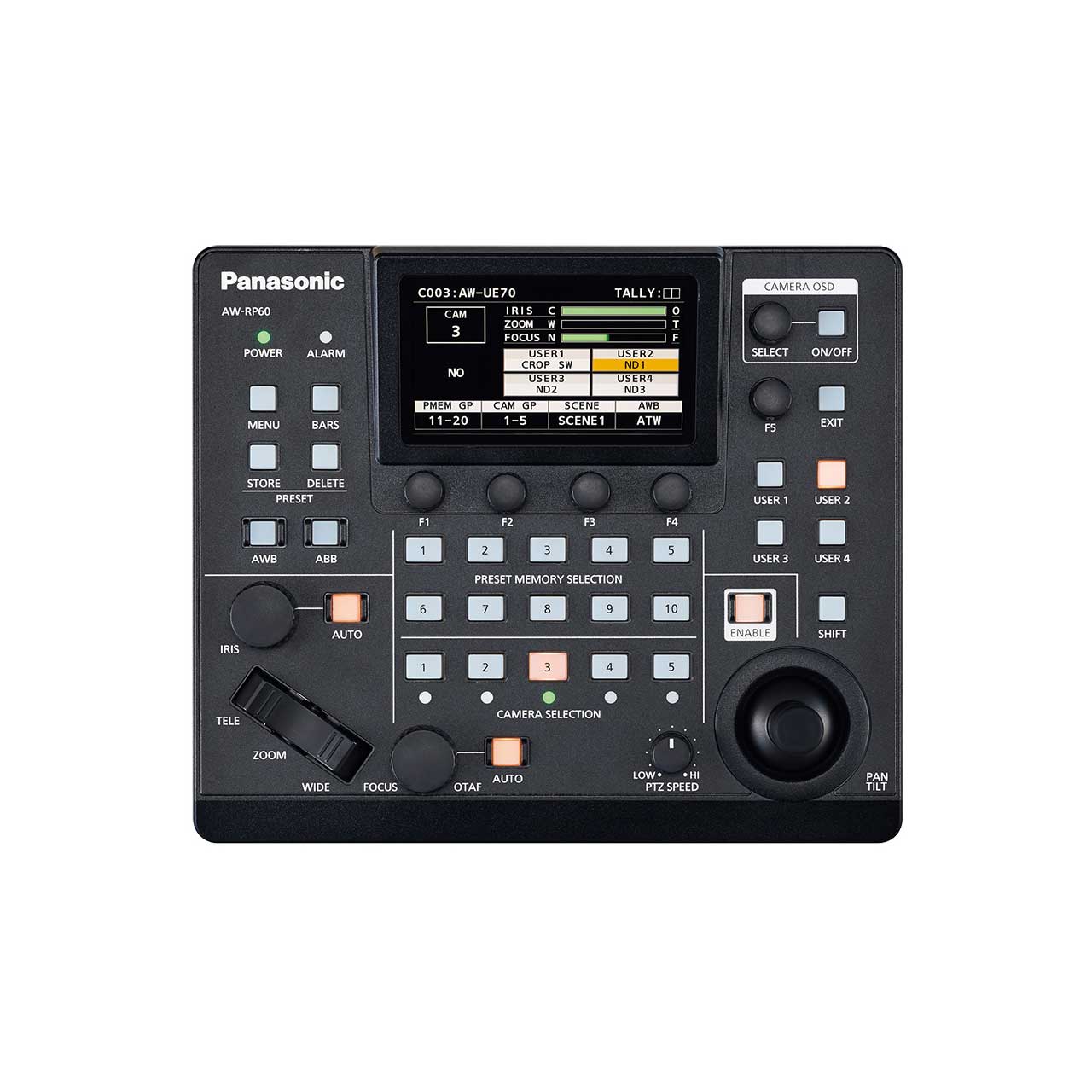

The Panasonic AW-RP60GJ is equipped with a 3.5-type LCD screen to deliver a GUI menu where the information you need is provided at a glance for intuitive and quick camera control.

The new joystick supports smooth pan and tilt operations and ensures accurate capture of your target image. The grip of joystick is approximately 1.5 times larger than previous model AW-RP50, realizing more stable operation.

The controller is equipped with four user assignable buttons, to which up to eight functions* of your choice can be assigned. Each preset name can also be customized with a PC tool. These flexible features of the controller make it perfect for use in a wide range of environments, from lectures and corporate seminars to live streaming and broadcasting at amusement facilities.

PoE support enables power supply and camera control to be delivered via a single Ethernet cable. In addition to camera control operation, gamma, white balance and other color adjustment functions can be performed, making advanced camera adjustments possible.

  • Features:

    • Equipped with a 3.5-type LCD screen
    • New Joystick with enhanced operability
    • Flexible customization features
    • PoE support/Advanced camera adjustment

  • Specifications:

    • General
    • Power Requirements: 12 V DC (10.8 V to 13.2 V)
    • PoE: IEEE802.3af standard: 42 V to 57 V DC (Camera Input)
    • Current Consumption: 0.9 A (XLR connector input), 0.3 A (PoE power supply)
    • Mass: 3.31Lbs (1.5kg)
    • Dimensions (WxHxD): 8 x 3 x 6" (210 x 92 x 177mm) (excluding protrusions)
    • Display: 3.5-type liquid crystal (QHD 960 x 540)

      Connection Specifications
    • No. of Connectable Cameras: 200 (IP), 5 (RS422) *Up to 100 for cameras other than the AW-UE150
    • Remote Camera Selection: 5 (6 to 200 controlled from the LCD)
    • No. of Camera Groups: 20 (10 units/group)
    • No. of Memory Presets: 100
