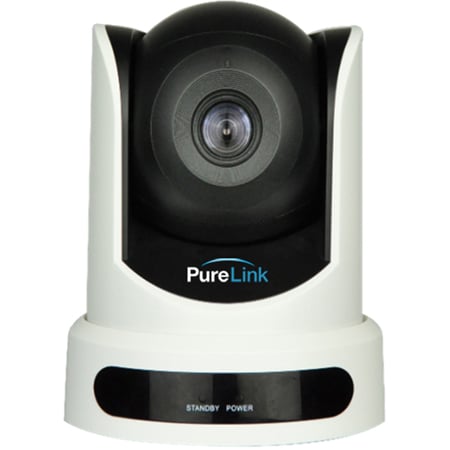

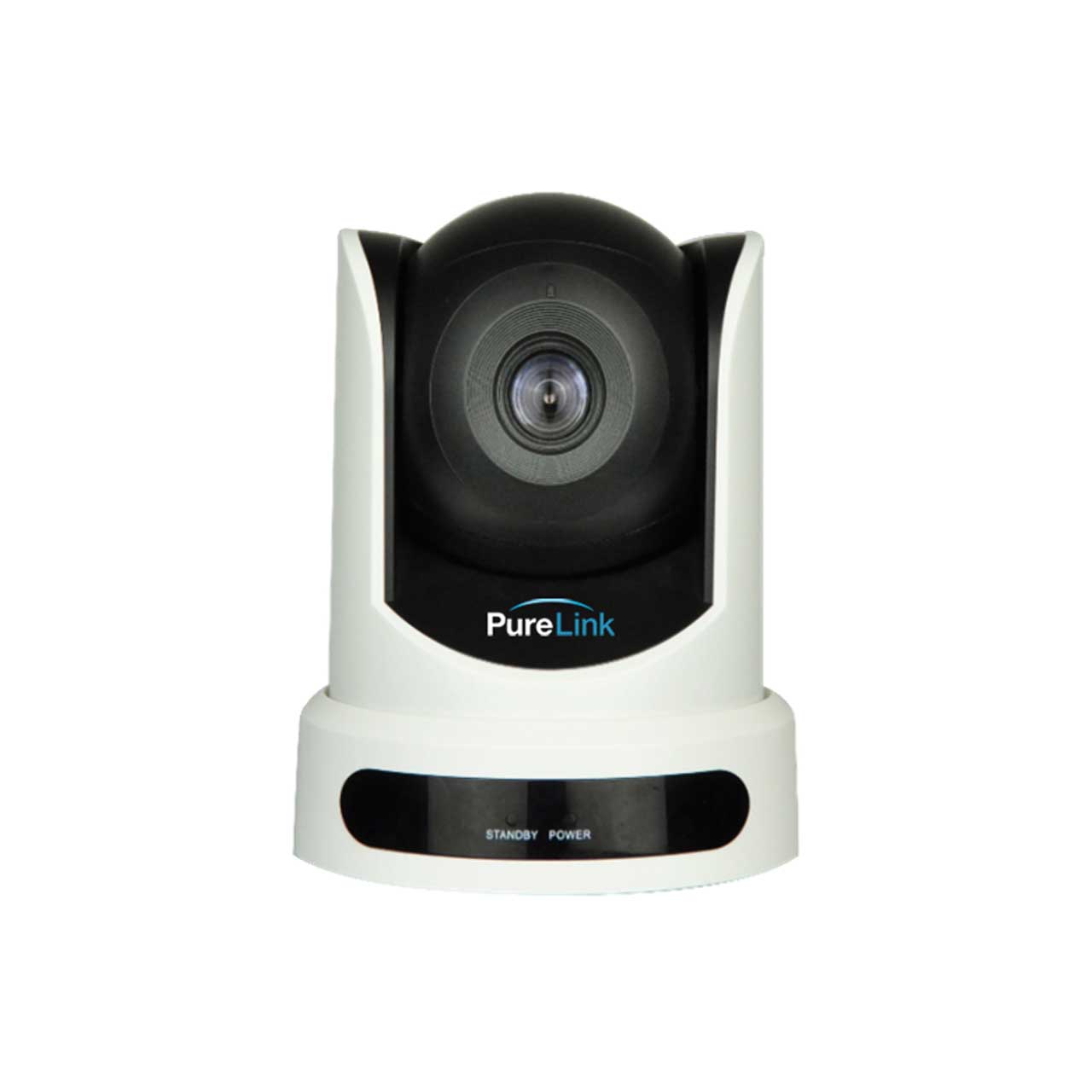

PureLink VIP-CAM-10-10x-USB2 PTZ USB 2.0 Camera - 10X Optics - Full HD

VIP-CAM-10-10X-USB2 - Overview

• Features:

  • Full-featured USB 2.0 interface
  • 1080p Full HD
  • CMOS image sensor for superior low light image quality
  • Controlled using VISCA/PELCO via RS-232 or remote control
  • H.264 Slice/ H.264 SVC encoding support
  • 10 programmable presets


• Specifications:

  • Technical Specifications - Camera
  • Image Sensor: 1/2.7" CMOS, Effective Pixel: 2.07M
  • Supported Resolutions: Resolutions up to 1080p
  • Lens: 10x optical zoom, f5.13mm ~ 46.3mm, F1.8 ~ F2.8
  • Digital Zoom: 16x
  • Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON)
  • Shutter Speed: 1/30s ~ 1/10000s
  • White Balance: Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
  • S/N rate: ≥55dB
  • Tilt Speed: 2.7 ~ 31.5/s
  • Noise Reduction: 2D & 3D digital noise reduction
  • Video Format: H.264 AVC: max to 1080P@30fps
  • H.264 SVC: max to 1080P@30fps
  • MJPEG: max to 1080P@30fps
  • Scanning Mode: Progressive
  • Backlight Compensation: Supported
  • Color System / Compression: YUV 4:2:2 / H.264 / MJPEG
  • ETC: Image Freeze - Supported
  • Horizontal Angle of View: 53.6° ~ 6.41°
  • Vertical Angle of View: 31.7° ~ 3.61°
  • Horizontal Rotation Range: ±170°
  • H & V Flip: Supported
  • Preset Accuracy: 0.1°

    Pan & Tilt
  • Pan Speed: 2.7° ~ 35.7°/s.
  • Tilt Speed: 2.7 ~ 31.5/s
  • Preset Number: 10 programmable presets

    Interface
  • Audio Port: (1) 3.5mm Audio Interface [Line In]
  • UVC Protocol: UVC 1.1~ 1.5
  • UVC PTZ Control: Supported
  • Operate System: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
  • USB Interface: (1) USB 2.0 [Type B female]
  • Audio on USB: Supported
  • Communication Interface: (1) RS-232 In [8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P]

    General
  • Power Supply: DC 12V
  • Power Consumption: 12W (Max)
  • Operating Temperature: 14° to 104°F (-10° to 40°C)
  • Storage Temperature: -40° to 140°F (-40° to 60°C)
  • Current Consumption: 1.0A (Max)
  • MBTF: >30,000 hours


• Warranty:

  • 3-Year Limited Warranty
