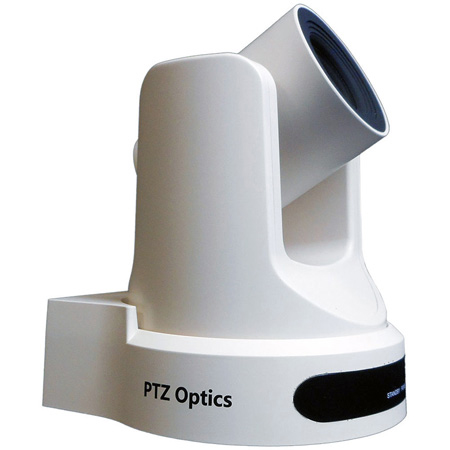

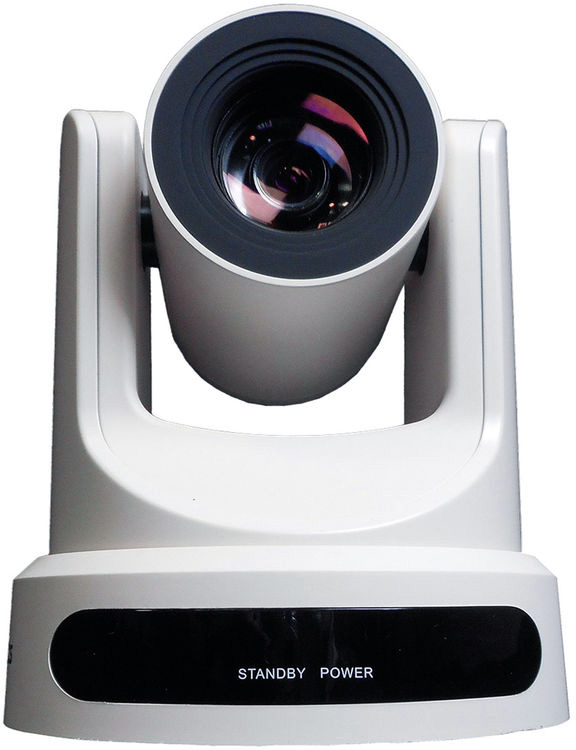

PTZOptics 1080p 20X Optical Zoom PTZ Camera with USB 3.0 & IP Network - White

PT20X-USB-WH-G2 - Overview

• Features:

  • RTMP & RTSP IP streaming


• Specifications:

  • Camera & Lens
  • Video Sensor: 1/2.7 inch CMOS, 2.12 Mega Pixels
  • Frame Rates: 1080p/60, 50, 30 & 25, 1080i/60 & 50, 720p/60, 50, 30 & 25
  • Frame Rates: (CVBS) 576i/30, 480i/30
  • Focal Length: 20x, F4.42mm-132.6mm, F1.8-F2.8
  • Lens Zoom: 20x
  • Field of View: 60.7°
  • Min Lux: 0.5 Lux at F1.8, AGC ON
  • Shutter Speed: 1/30s - 1/10000s
  • SNR: ≥55dB
  • Horizontal Angle of View: 3.36° (tele) to 60.7° (wide)
  • Vertical Angle of View: 1.89° (tele) to 34.1°(wide)
  • Working Environment Specifications: Indoor
  • Pan Movement: ±170°
  • Tilt Rotation Up: 90°, Down: 30°
  • Presets: 10 via IR (255 via Serial or IP)

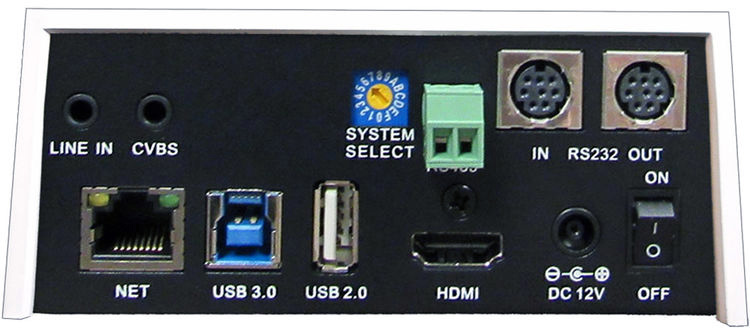

  • Rear Board
  • Video Output: HDMI, USB 3.0, IP Streaming, CVBS
  • Network Interface: RJ45
  • Audio Interface: Line In, 3.5mm (USB & IP Stream Only)
  • Communication: RS-232, RS-485, PELCO-D/P, UVC 1.5
  • Baud Rate: 2400/4800/9600 bits
  • Power Supply: JEITA type Power Adapter (DC IN 12V)
  • 3G-SDI Interface: BNC - 75 Ohm, Female
  • USB 3.0 Interface: USB 3.0 (Requires Quad Core Processor)
  • USB 2.0 Interface: Future Use

    Physical
  • Power Supply: 12W (Max)
  • Input Voltage: 12V DC (10.8 - 13.0V DC) or PoE 802.3af
  • Dimension (in.): 5.6 W x 6.5 H x 6.7 D (7.8H max w/ Tilt)
  • Dimensions (mm): 142 W x 164 H x 169 D (198H max w/ Tilt)
  • Box Dimensions: 9 inch x 9 inch x 10 inch (229 mm x 254 mm x 229 mm)
  • Camera Weight: 3.10 lbs. (1.41 kg)
  • Boxed Weight: 5.4 lbs. (2.45 kg)


• Item Includes:

  • 20X Zoom USB 3.0 Camera
  • Power Adapter + Cord
  • USB 3.0 Cable
  • IR Remote Control
  • RS-232C Cable
  • User Manual


• Warranty:

  • 5 Years


• GTIN:

  0737993159100
