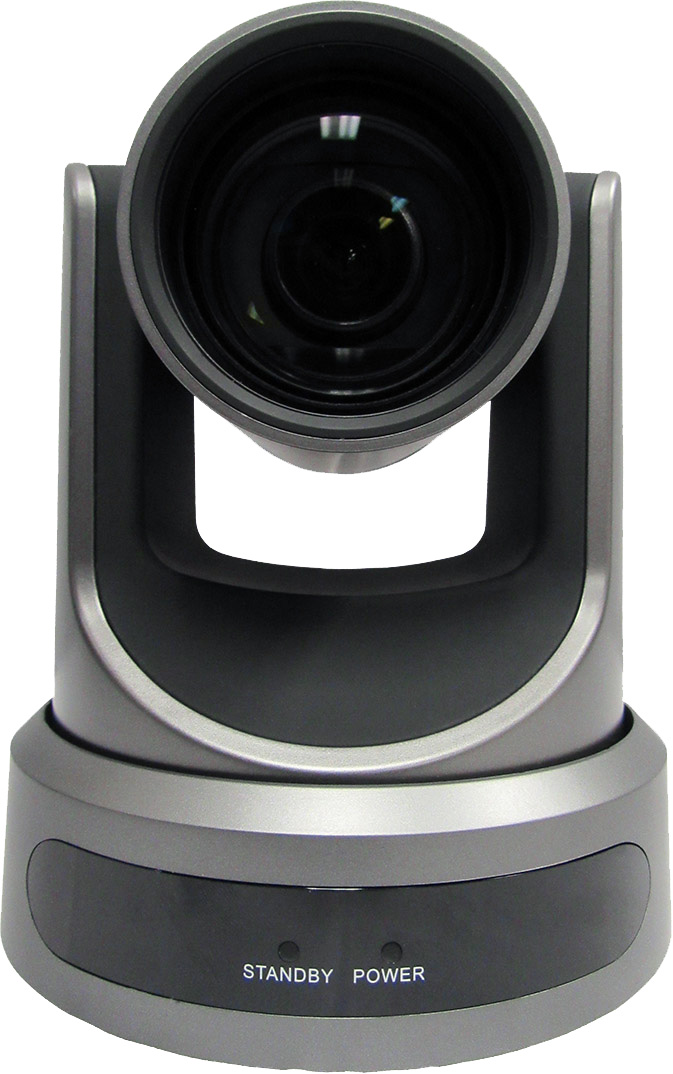

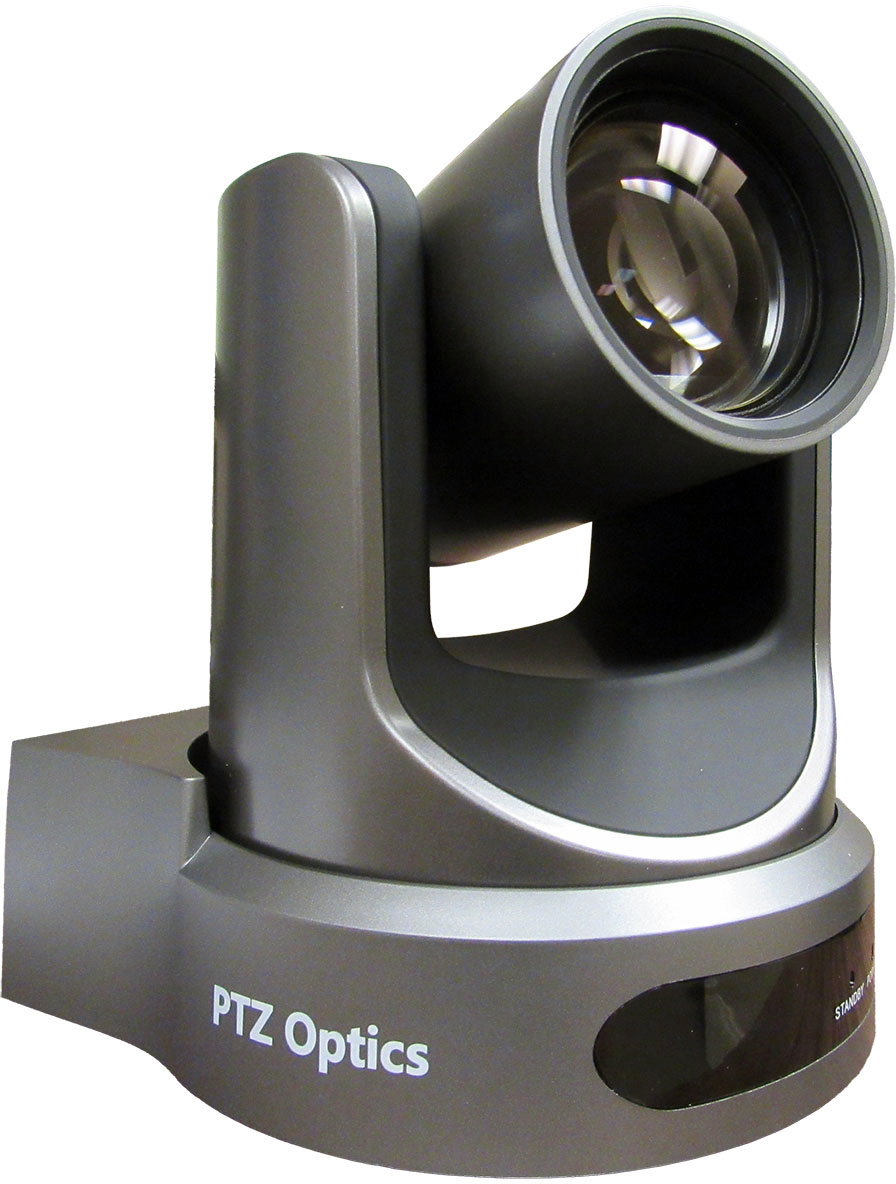

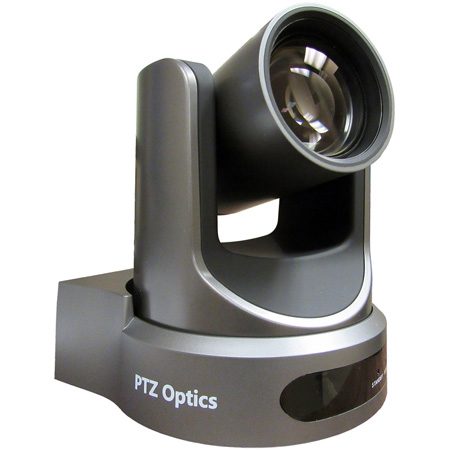

PTZOptics PT30X-SDI-GY-G2 PTZ Camera 30X Optical Zoom - 3G-SDI HDMI CVBS IP Streaming 1080p - Gray

ITEM #: PTZ-PT30XSDIGYG2 MFG #: PT30X-SDI-GY-G2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PTZ-PT30XSDIGYG2

PT30X-SDI-GY-G2 - Overview

The PTZOptics PT30X-SDI-GY-G2 is a 1080p camera with 30X optical zoom for capturing HD images at long distances. With support for 3G-SDI, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications.

  • Features:

    • 60.7 degree wide-angle lens
    • High performance in low light scenarios with Wide Dynamic Range
    • Full 1920x1080p HD Resolutions up to 60 frames per second
    • 2D and 3D noise reduction with our latest "low noise CMOS sensor"
    • RS232 & RS485 (Serial), and IP (LAN/WAN) control
    • H.264, H.265, & MJPEG streaming over RJ-45 LAN port
    • HDMI, 3G-SDI, & IP streaming (all 3 simultaneously)
    • PoE (Power over Ethernet) or 12VDC
    • RTMP & RTSP IP streaming


  • Specifications:

    • Camera & Lens
    • Video Sensor: 1/2.7 inch CMOS, 2.07 Mega Pixels
    • Frame Rates: 1080p/60, 50, 30 & 25, 1080i/60 & 50, 720p/60, 50, 30 & 25
    • Frame Rates: (CVBS) 576i/30, 480i/30
    • Focal Length: 30x, F4.42mm-132.6mm, F1.8-F2.8
    • Lens Zoom: 30x
    • Field of View: 60.7°
    • Min Lux: 0.5 Lux at F1.8, AGC ON
    • Shutter Speed: 1/30s - 1/10000s
    • SNR: ≥55dB
    • Horizontal Angle of View: 2.28° (tele) to 60.7° (wide)
    • Vertical Angle of View: 1.28° (tele) to 34.1°(wide)
    • Working Environment Specifications: Indoor
    • Pan Movement: ±170°
    • Tilt Rotation Up: 90°, Down: 30°
    • Presets: 10 via IR (255 via Serial or IP)

    • Rear Board
    • Video Output: HDMI, 3G-SDI, IP, CVBS
    • Network Interface: RJ45
    • Audio Interface: Line In, 3.5mm (HDMI & IP Stream Only)
    • Communication: RS-232, RS485, PELCO-D/P, NDI
    • Baud Rate: 2400/4800/9600 bits
    • Power Supply: JEITA type Power Adapter (DC IN 12V)
    • 3G-SDI Interface: BNC - 75 Ohm, Female
    • USB 2.0 Interface: Future Use

      Physical
    • Power Supply: 12W (Max)
    • Input Voltage: 12V DC (10.8 - 13.0V DC) or PoE 802.3af
    • Dimension (in.): 5.6 W x 6.5 H x 6.7 D (7.8H max w/ Tilt)
    • Dimensions (mm): 142 W x 164 H x 169 D (198H max w/ Tilt)
    • Box Dimensions: 9 inch x 9 inch x 10 inch (229 mm x 254 mm x 229 mm)
    • Camera Weight: 3.10 lbs. (1.41 kg)
    • Boxed Weight: 5.4 lbs. (2.45 kg)


  • Item Includes:

    • 30X Zoom 3G-SDI Camera
    • Power Adapter + Cord
    • IR Remote Control
    • RS-232C Cable
    • User Manual


  • Warranty:

    • 5 Years


  • GTIN:

    0737993161059
