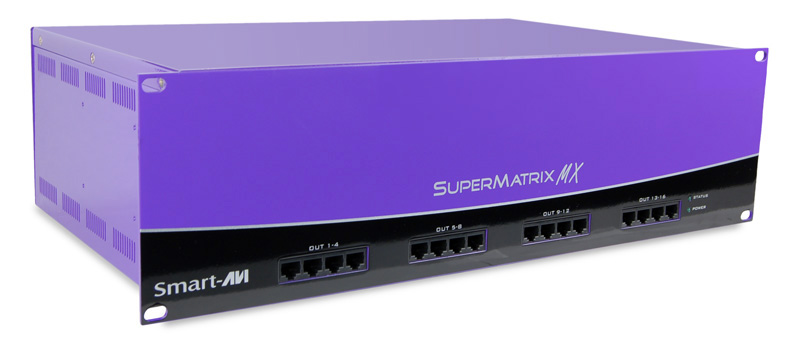

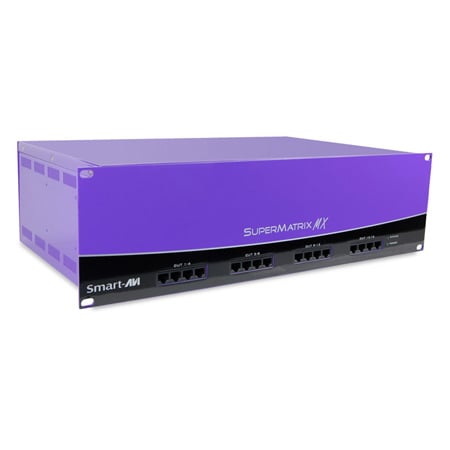

Smart AVI SMX-AVD1616S Component/UXGA/Audio & RS-232/IR Over CAT5 16x16 Matrix

SMX-AVD1616S - Overview

• Features:

  • Switches 16 inputs to any 16 outputs for unmatched design flexibility.
  • SuperMatrix is a full non-blocking switching matrix.
  • Integrated RS-232 and Infrared matrix offers unparalleled control.
  • Switch signals from devices located up to 1,000 feet apart.
  • HD compatible (720p, 1080i, 1080p).
  • Supports high resolution video up to 1920x1200.
  • Sends crystal clear stereo audio.
  • Sends high-resolution VGA, stereo audio, RS232 or IR over a single twisted pair cable.
  • Compatible with Video Composite, S-Video, Component and XVGA interface.
  • Increases productivity by providing access to 16 computers from 16 workstations.
  • Can be controlled via software interface, remote control, Internet or RS/232.
  • Full RS-232 Matrix
  • One of the key features of the SuperMatrix is the integrated RS-232 matrix. With RS-232 you can;
  • Remotely power on and off all of the connected display devices.
  • Send commands such as video schedules or input source.
  • Reporting.
  • Enable touch-screen displays to send and receive data.
  • Interrupt displays with Alerts and urgent messages.
  • Controlling the Matrix
  • Another key feature is its capacity to support multiple control interfaces;
  • Control via RS-232 using SmartControl; our Windows based Software included with the system.
  • SuperMatrix also allows multiple users to access the matrix from anywhere in the world using our http interface.
  • You can also use a remote control through an Infrared connection


• Specifications:

  • Bandwidth: 400 MHz
  • Input Signal Level: 1 Volt pk-pk into 75R
  • Output Impedance: 100 Ohms
  • Input Impedance: 75 Ohms
  • Connector: 16 x HD15 socket female
  • Format: VGA/SVGA/XGA/RGBHV/RGsB/CVBS/YC/YUV/RGBS
  • Syncs: TTL5VDC
  • Bandwidth: Horizontal Sync up to 85KHz
  • Infrared: 16 x IR 3.5mm Jack to IR emitter
  • Front Panel: 16 x RJ45 with video, audio and data modulated within single UTP
  • Signal: 15KHz 0dB unbalanced 100 Ohms impedance
  • Connector: RCA or 3.5 Stereo Jack
  • IR: 3.5mm connector with 38khz
  • DB9: female RS232 or RS422 @ 9600bps
  • Power: Voltage 90-230V IEC 1A A/S 56/60 Hz
  • Height: 3.46 in. (88 mm.)
  • Width: 19 in. (482 mm.)
  • Depth: 17 in. (450 mm.)
  • Weight: 9 lbs. (4 kg.)
  • Rack Units: 1U
