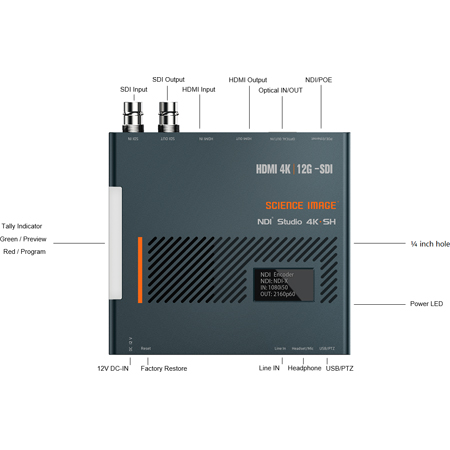

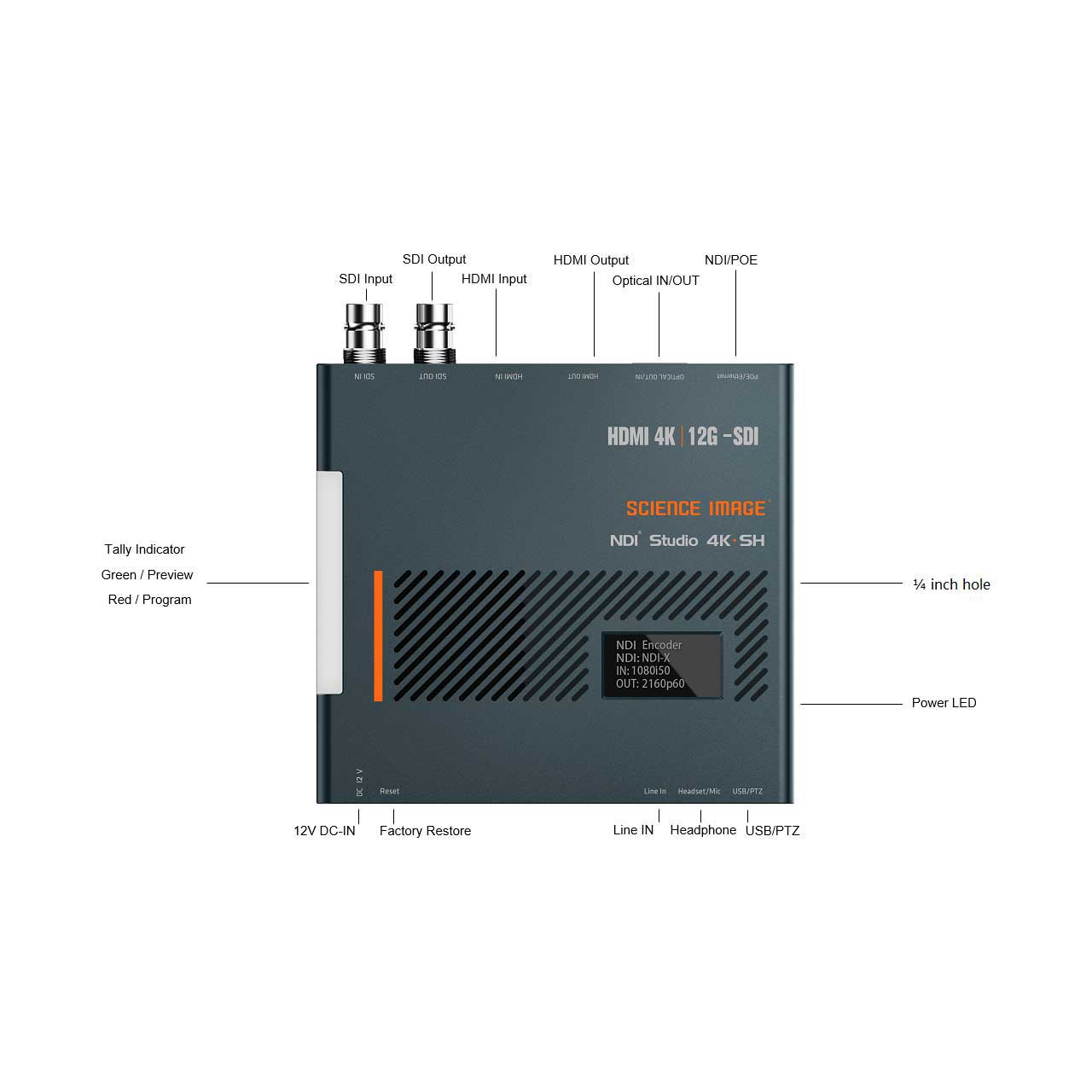

NDI Studio 4K.SH
Switch Full NDI encoding and decoding with one key; Support 12G-SDI and HDMI 4K60 or below any SMPTE standard format input; Full NDI encodes and decodes exact original image color and sharpness, low latency, broadcast-grade metrics, flexible UDP features, integrated TALLY, audio embed/unembed and call capabilities, flexible live applications and networking, enabling your team to quickly build an IP broadcast-grade studio with high efficiency and low cost.
UpdownCross Convertion
NDI® Studio 4K.SH is also both 12G-SDI/HDMI2.0 Interface Up/Down/Cross converter. The conversion function and NDI codec function work at the same time and it supports at least 27 SMPTE standard formats, special formats customized by users can also be accepted.

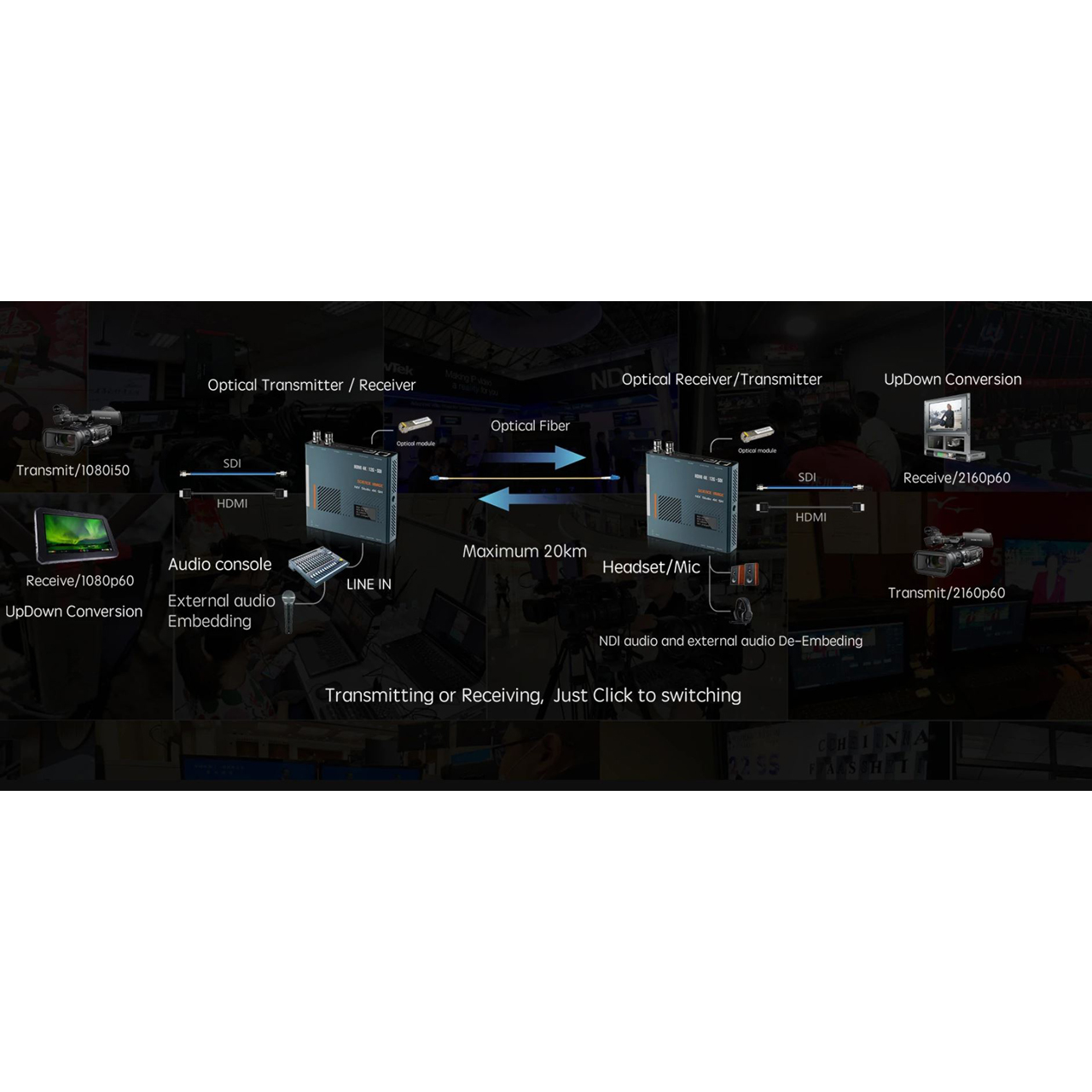

UHD Optical Transceiver
Built-in 12G-SDI and HDMI 4K60 optical transceiver function, optical transceiver integrated, when using NDI in the field, can be used as a two-way optical transceiver, it can receive, also can send; Users can switch the Transmitting or Receiving function with one click according to the actual situation, automatic signal recognition, up to 20KM transmission; Optical terminal machine and NDI encoding and format up and down frequency conversion can work at the same time, one machine and three uses, you can set up flexible transmission mode anytime and anywhere according to the requirements of the field environment;
Complete and Overall
Large size and Three sides Tally light
1.3" OLED will display all working status, such as Encoding or Decoding, Signal, Format, Network, Input/Output, Optical Transmit or Receive and more other info in your live.
Flexible Deployment, Convenient and Practical
Built-in 12G-SDI and HDMI 4K60 optical transceiver function, optical transceiver integrated, when using NDI in the field, can be used as a two-way optical transceiver, it can receive, also can send; Users can switch the receiving or sending function with one key according to the actual situation, namely plug and play, support hot plug and plug, automatic signal recognition, up to 40 km transmission;
Please Note! SFP Module Sold Separately
