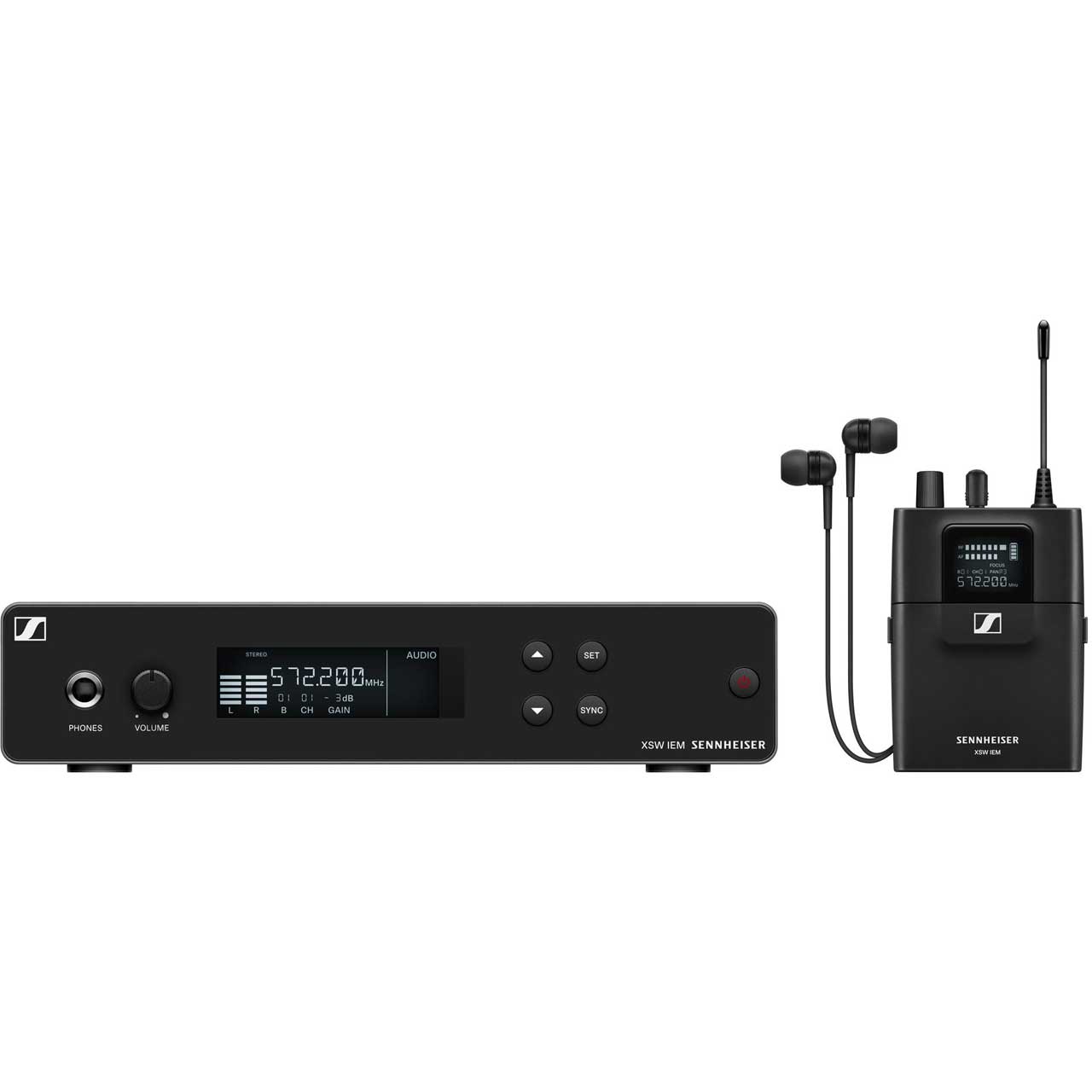

Sennheiser XSW IEM SET (A) Complete Starter Set for In-Ear Monitoring - Frequency Range: A - 476 - 500 MHz

XSW IEM SET (A) - Overview

• Features:

  • Complete starter set for in-ear monitoring
  • Reliable, easy-to-manage wireless connection in the professional UHF range
  • Full control with flexible audio modes
  • Focus mode to balance your personal mix
  • Advanced features like EQ and limiter
  • Easy frequency presets or detailed manual control
  • Infrared sensor to sync multiple receivers easily to one transmitter


• Specifications:

  • RF Characteristics
  • Modulation: FM stereo
  • Frequency Ranges (max. RF output power): 476 - 500 MHz (30 mW)
  • Switching Bandwidth: up to 24 MHz
  • Nominal/Peak Deviation: ±15 kHz / ±24 kHz
  • Antenna Output: BNC socket, 50Ω

    AF Characteristics
  • AF Frequency Response: 45 Hz to 15 kHz
  • AF Input BAL AF IN L (I) + MONO/: jack BAL AF IN R (II): 2x XLR-3/¼" (6.3 mm) combo socket, electronically balanced
  • Total Harmonic Distortion (THD): <0.9 %
  • Signal-to-Noise Ratio (at Nominal Load and Peak Deviation): =88 dB

    Overall device
  • Temperature range: 32° to 104°F (0° to +40°C)
  • Input Rating: +12 V DC
  • Current Consumption: Approx. 400mA (depending on volume level)
  • Dimensions Approx.: 7.87 x 5.03 x 1.65" (200 x 128 x 42mm)
  • Weight Approx.: 1.54Lbs (700g)


• Item Includes:

  • 1x XSW IEM EK Stereo Receiver
  • 1x XSW IEM SR Stereo Transmitter
  • 1x XSW BNC Antenna
  • 1x IE 4 In-ear headphones
  • 1x 2 AA batteries
  • 1x XSW Rack Mount Kit
  • 1x NT 12-5CW Power Supply + Country Adapter
  • 1x Quick Guide, Safety Guide, Compliance Sheet, Frequency Table


• GTIN:

  0615104356207
