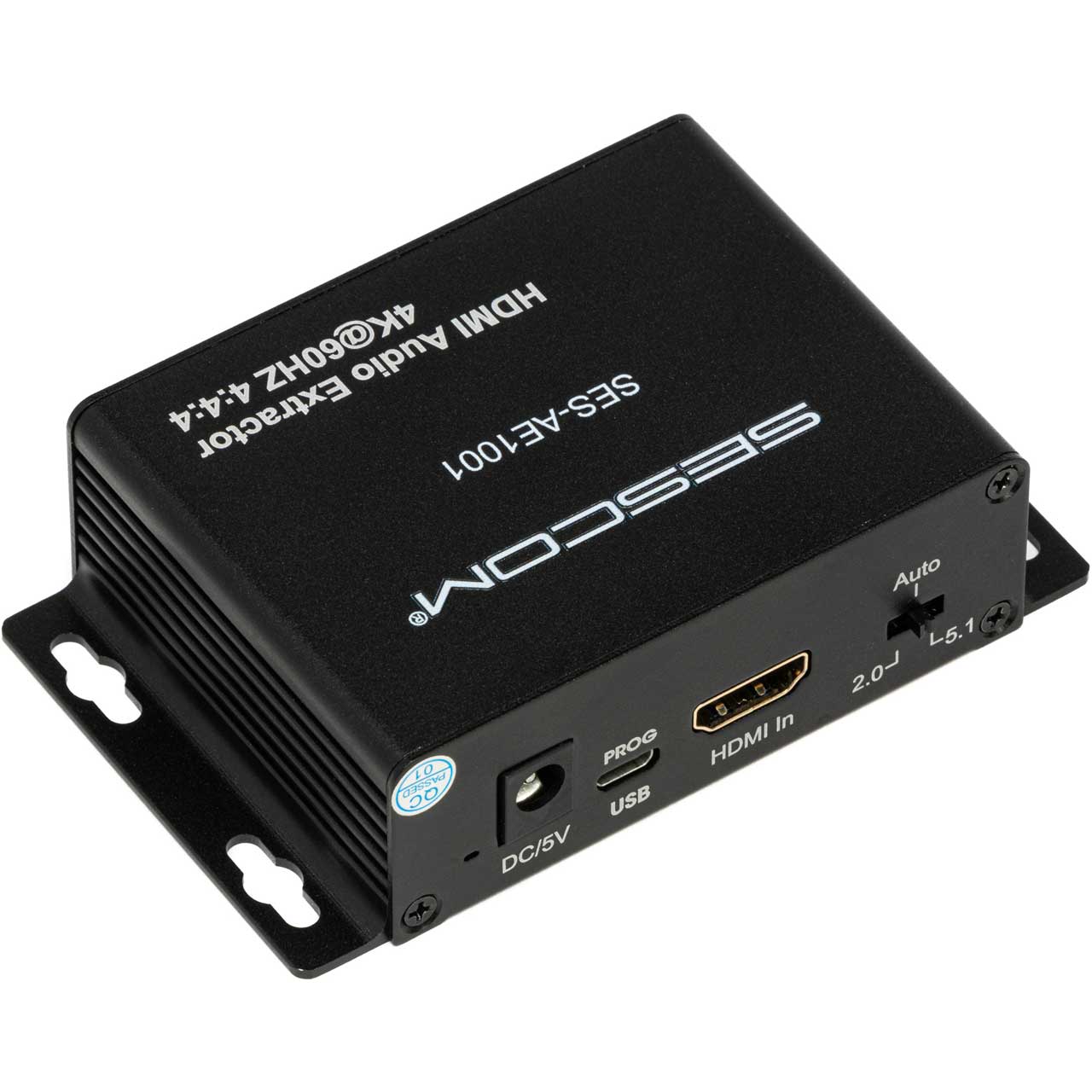

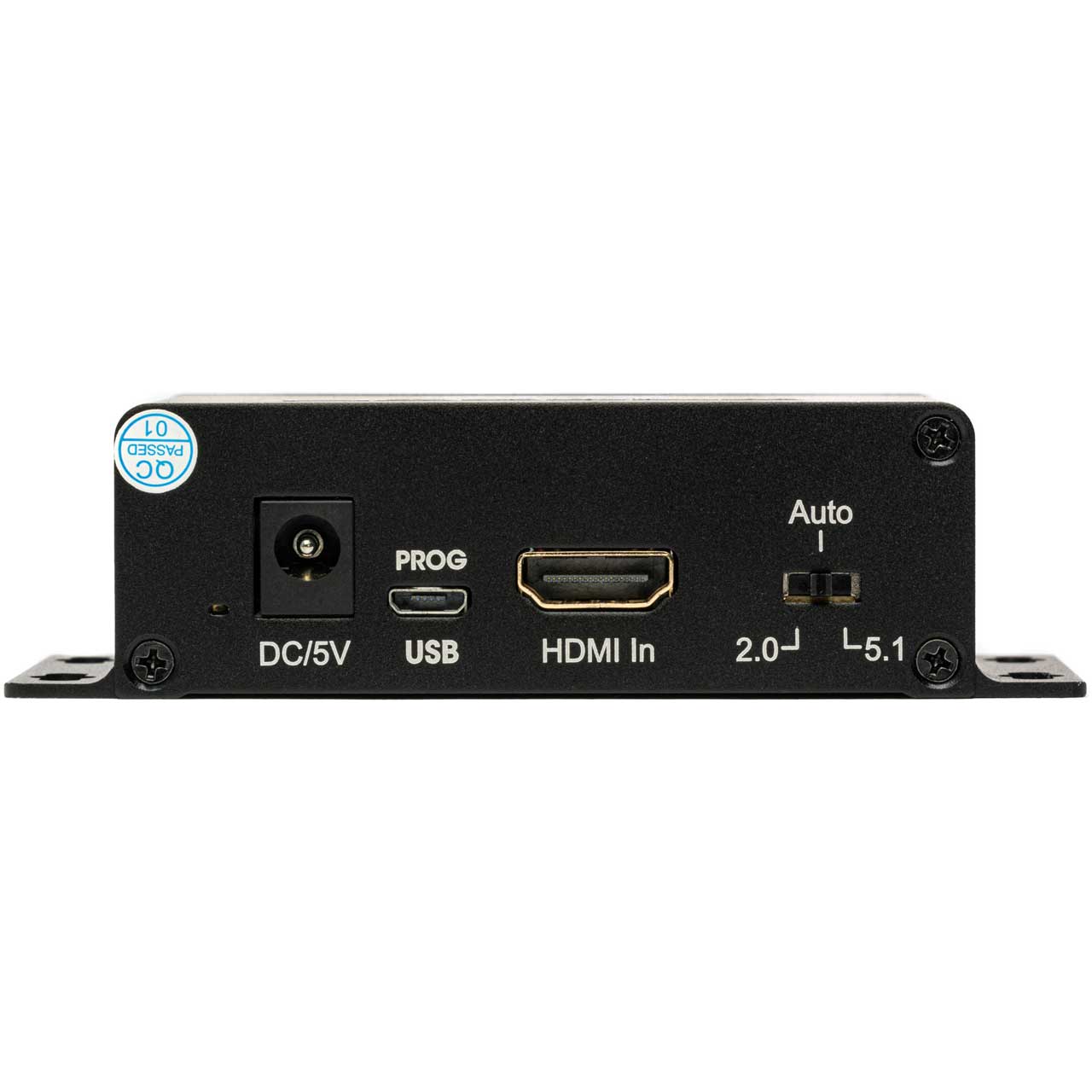

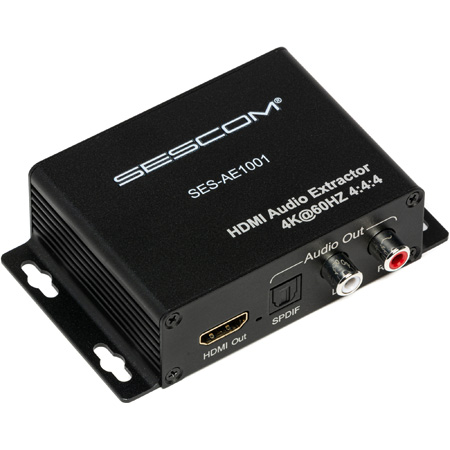

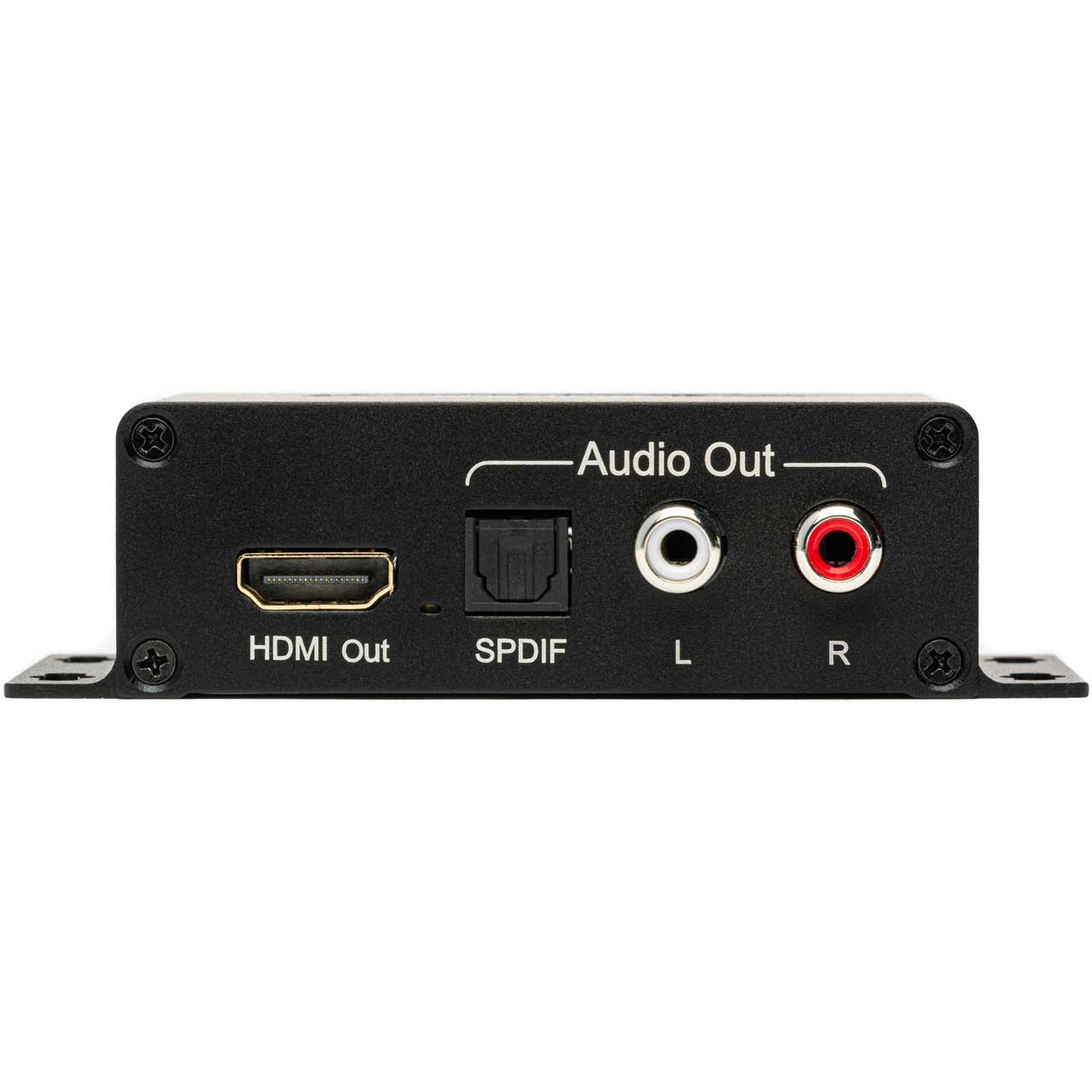

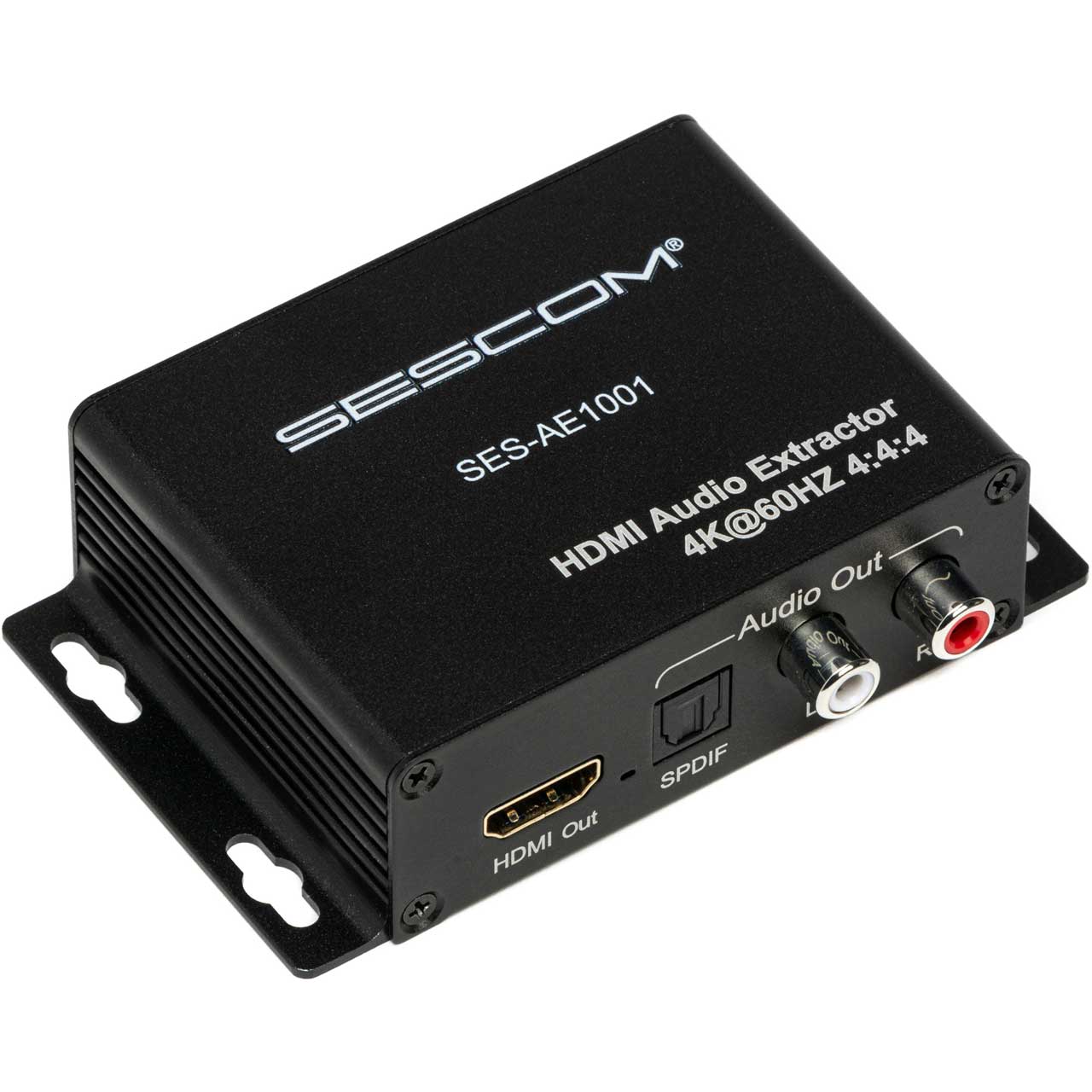

Sescom HDMI 4K@60Hz YUV 4:4:4 Audio Extractor with EDID Support

ITEM #: SES-AE1001 MFG #: SES-AE1001

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Sescom
Free Shipping with $49 Minimum Order

List Price:

$89.49

Our Price:

$81.49

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SES-AE1001 - Overview

The Sescom AE1001 is a low cost 4K HDMI 2.0 audio extractor allowing you to extract the digital HDMI audio signal from HDMI inputs and break it out to analog 2-Channel RCA stereo audio output or SPDIF 5.1 channel audio out. It supports video resolutions up to 4K@60Hz YCbCr 4:4:4 as well as PCM and Dolby DTS audio formats.

The Sescom AE1001 is a great add-on tool for XBOX Series X when needing an HDMI audio extractor.

  • Features:

    • 3 Audio EDID Settings: Bypass/2.0 CH/5.1CH
    • S/PDIF TOSLINK Interface
    • HDCP 2.2/1.4 Compliant
    • Black Powder-Coated Aluminum Cabinet
    • FCC, CE Certified


  • Specifications:

    • Transmission Distance: Input up to 26.25 Ft / Output up to 49.21 Ft
    • Input Video Signal: 0.5-1.0 Volts P-P
    • Input DDC Signal: 5 volts p-p(TTL)
    • Video Formats: 4Kx2K/1080P/1080i/720P/576P/576i/480P/480i, 3D Video
    • Video Resolutions: up to 4K@60Hz YUV 4:4:4
    • Video Color Format: xv-YCC/deep color 36bit
    • Bandwidth Frequency: 4.95Gbps
    • Audio Formats: PCM, DTS-HD Master Audio, Dolby True-HD
    • Data Transfer Rate: 18Gbps
    • Power Consumption: 2W
    • Dimensions Each Unit: 4 1/8 x 2 1/2 x 1 1/8 Inches
    • Weight: 4.1 oz


  • Item Includes:

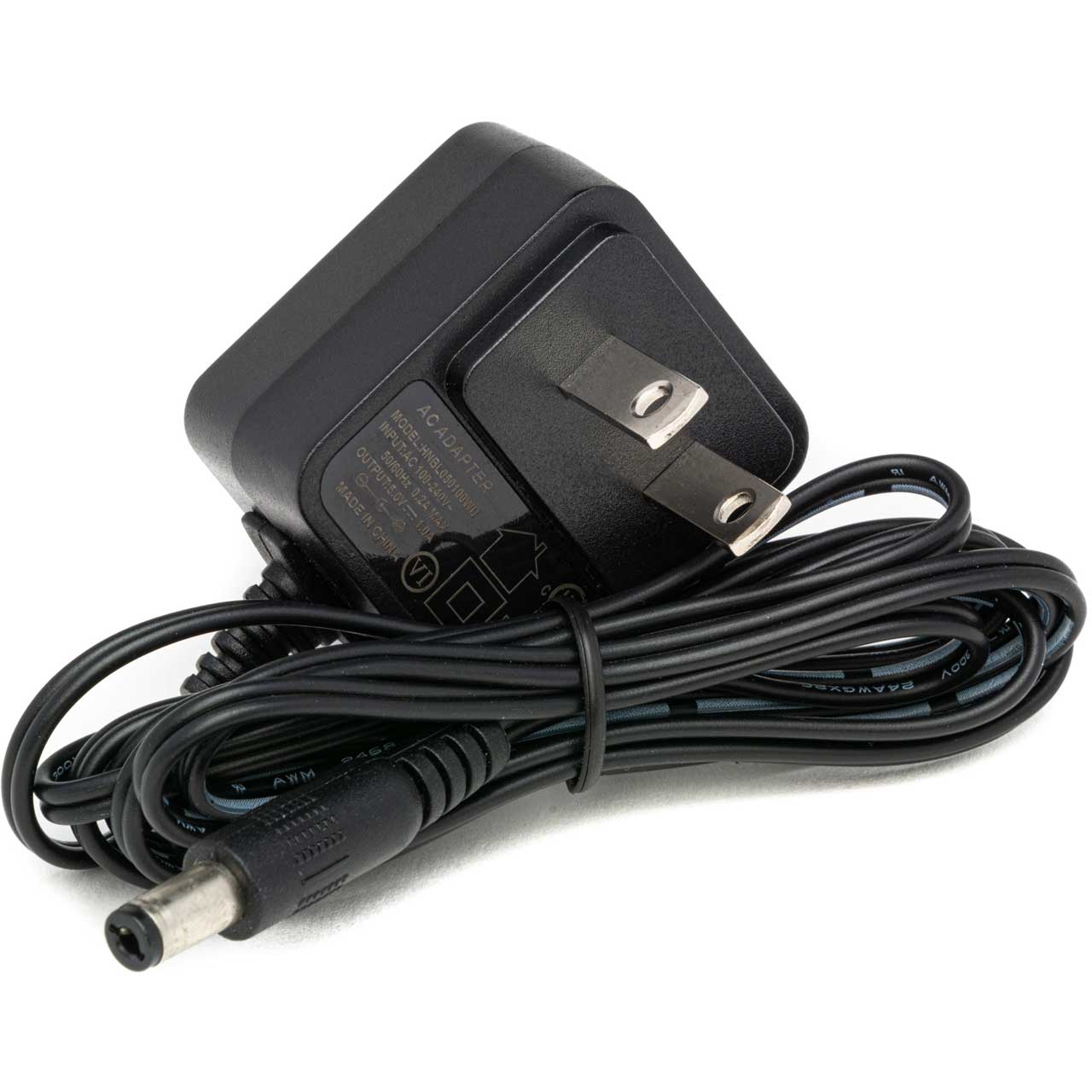

    • 1-5VDC/1.0A Power Supply


  • Warranty:

    • 1 Year
