Boundary microphone delivers exceptional sound pickup and a low-profile design in a variety of colors and pickup patterns to suit any meeting room.

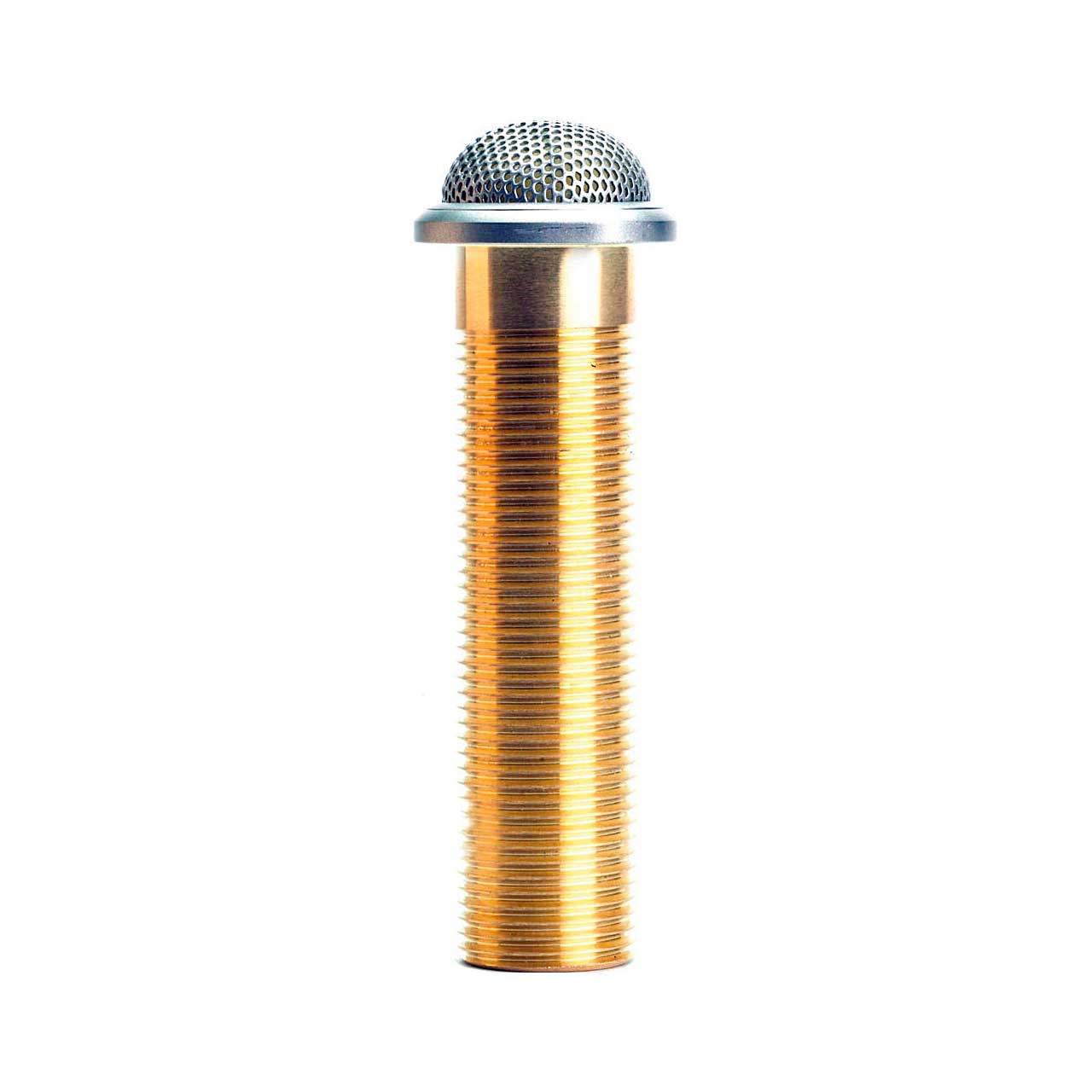

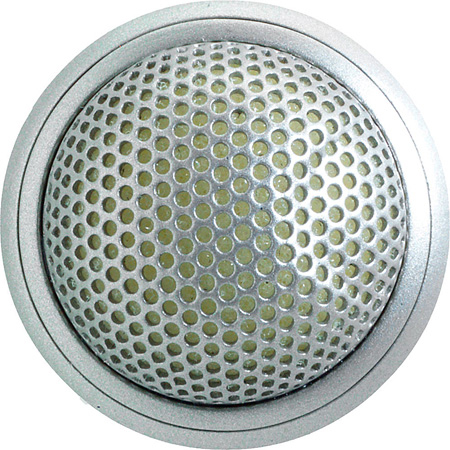

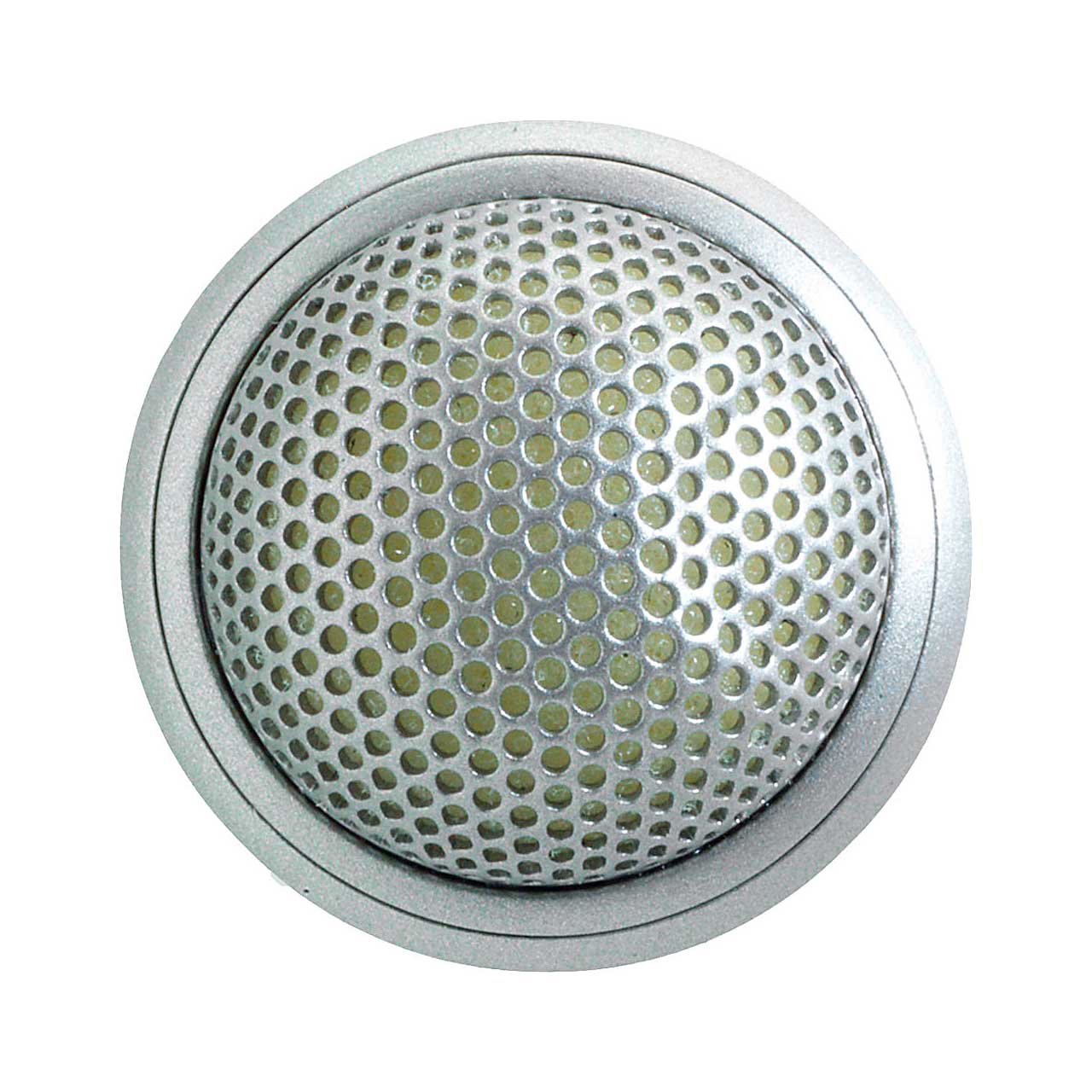

The Microflex Low Profile Boundary microphone is an ideal table microphone when minimal presence is of high priority. Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed. Choose from a selection of colors and pickup patterns for customized table installations.
-
- Only 1.25 inch (3.8 cm) in diameter
- Cardioid polar pattern
- Wide dynamic range and smooth frequency response
- Aluminum
- Bi-color status indicator available with -LED models
- Logic input for remote LED control
- CommShield Technology
-
- Type: Condenser (electret bias).
- Frequency Response: 50-17000 Hz.
- Polar Pattern (at 1 kHz): MX395/O: Omnidirectional, MX395/C: Cardioid, MX395/BI: Bidirectional.
- Output Impedance: EIA Rated at 150 Ohm (170 Ohm actual).
- Output Configuration: Active Balanced.
- Sensitivity: (at 1 kHz , open circuit voltage) 1 Pascal=94 dB SPL: Cardioid: -35 dBV/Pa (18 mV), Omnidirectional: -28 dBV/Pa (42 mV), Bidirectional: -37 dBV/Pa (14 mV).
- Maximum SPL (1 kHz at 1% THD, 1 k Ohm load): Cardioid: 121 dB, Omnidirectional: 114 dB, Bidirectional: 123 dB.
- Equivalent Output Noise (A-weighted): Cardioid: 28 dB,SPL, Omnidirectional: 21 dB SPL, Bidirectional: 29 dB.
- Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): Cardioid: 66 dB, Omnidirectional: 75 dB, Bidirectional: 65 dB.
- Dynamic Range (1 k Ohm load at 1 kHz): Cardioid: 93 dB, Omnidirectional: 93 dB, Bidirectional: 94 dB.
- Common Mode Rejection: 45 dB minimum (10 Hz to 100 kHz)
- Preamplifier Output Clipping Level: -8 dBV (0.4 V) (1% THD)
- Polarity: 3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector, 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.
- Weight: Net: .136 kg (.30 lb) Packaged: 0.374 kg (0.825 lbs).
- Logic Connections: LED IN: Active low (=1.0V), TTL compatible, Absolute maximum voltage: -0.7V to 50V.
- Environmental Conditions: Operating Temperature: -18-57 °C (0-135 °F), Storage Temperature: -29-74 °C (-20-165 °F), Relative Humidity: 0-95%.
- Power Requirements: MX395: 11-52 Vdc phantom, 2.0 mA, MX395-LED: 48-52 Vdc phantom, 8.0 mA.
-
