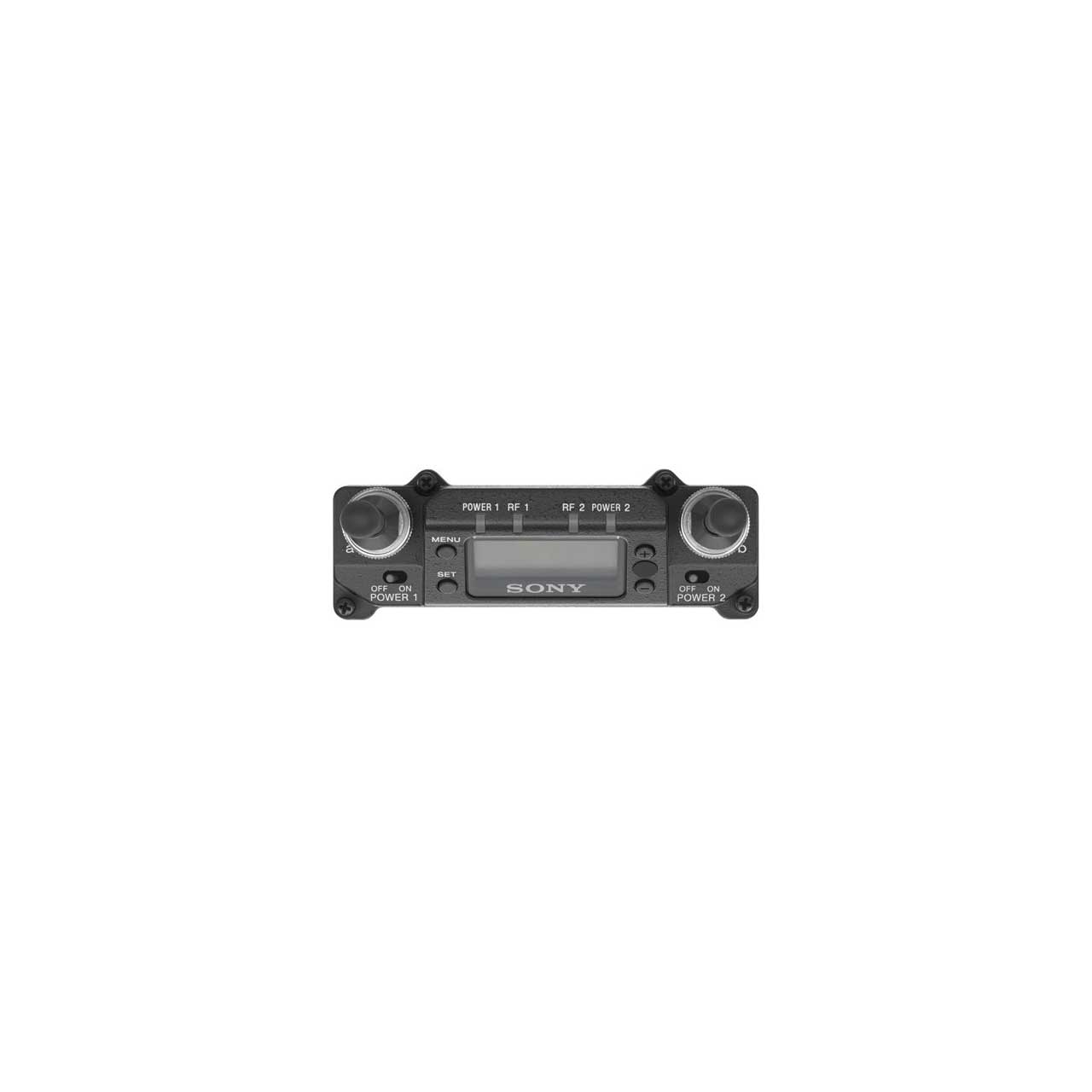

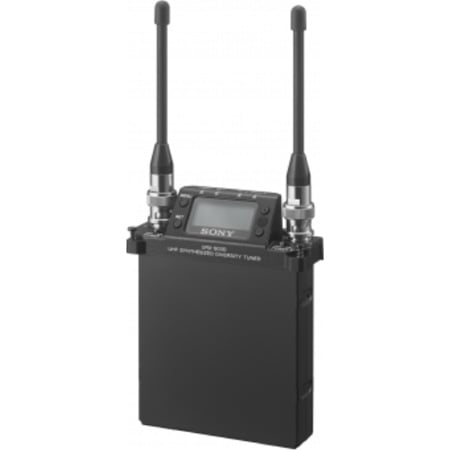

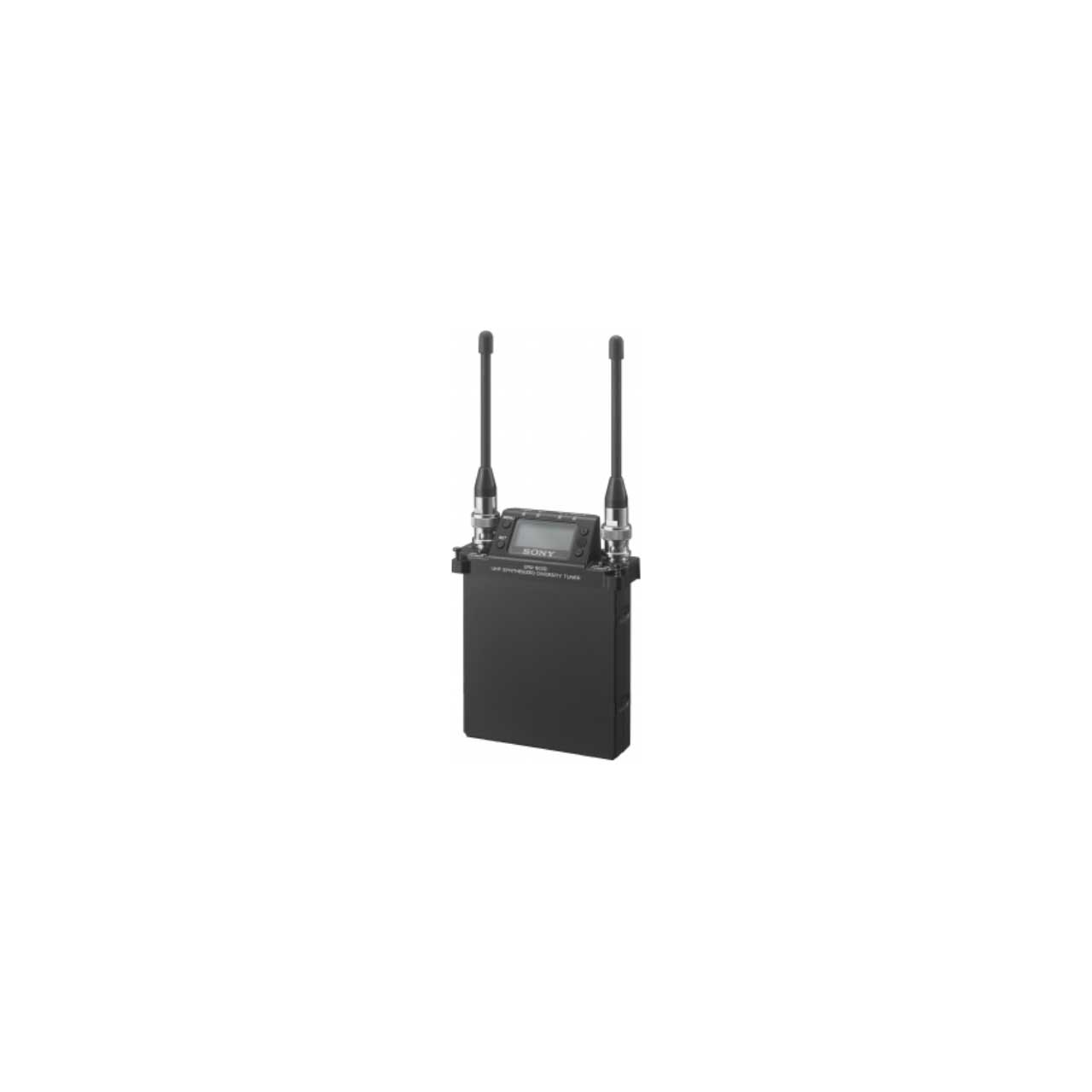

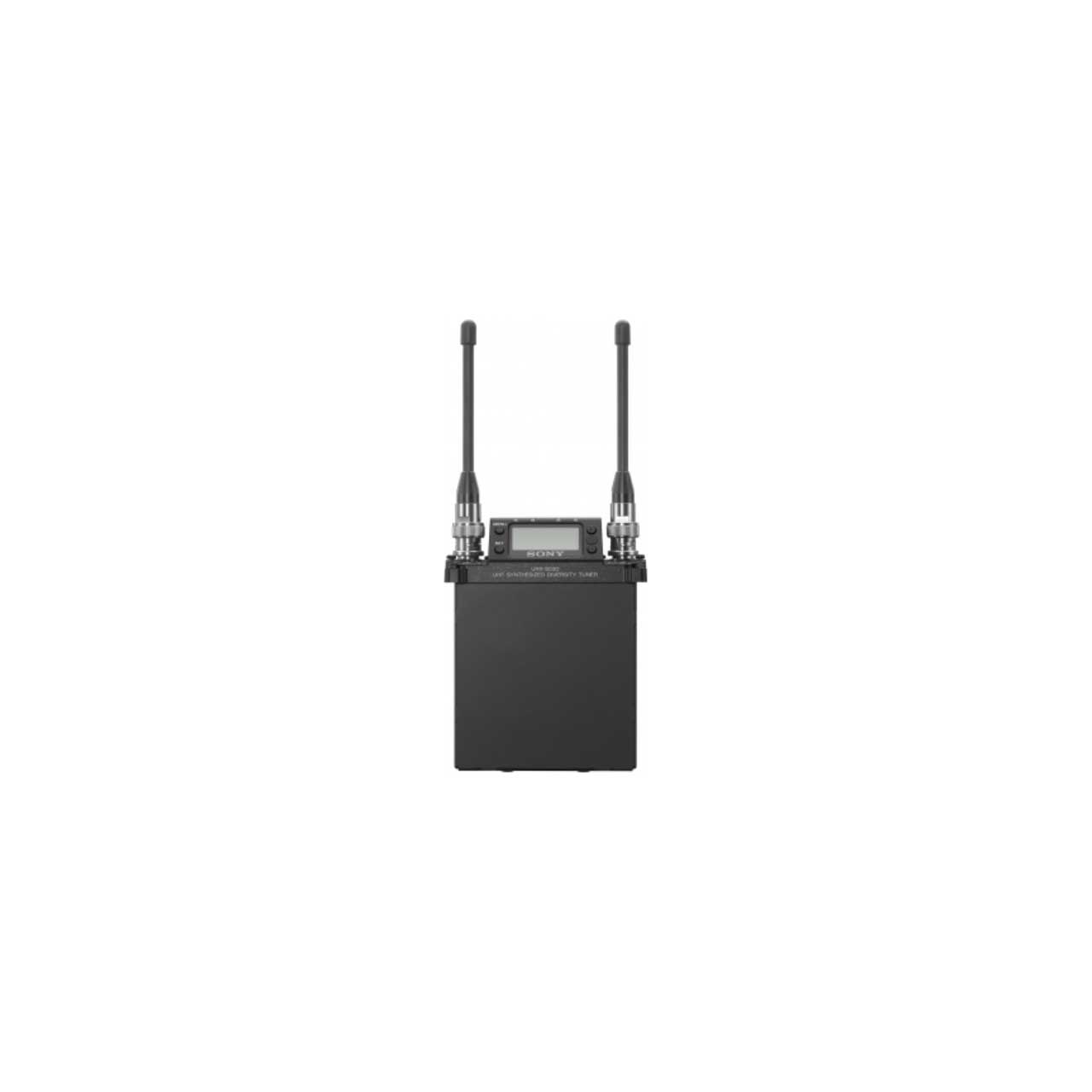

Sony URXS03D/14 2 Channel Slot-In UWP-D Receiver

ITEM #: SNY-URXS03D-14 MFG #: URXS03D/14

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,699.99

Our Price:

$1,169.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


URXS03D/14 - Overview

The Sony URX-S03D-14 is the first two-channel portable receiver in the UWP-D Series that fits directly in the slot of Sony XDCAM and HDCAM camcorders. Working with the UTX-B03HR belt-pack transmitter, the system features easy channel setting functions, advanced functionality for stable RF transmission and Digital Audio Processing technology ensures high-quality sound. With advanced usability with Sony XDCAM and HDCAM camcorders, it also works seamlessly with Sony 800 and UWP Series transmitters.

For customers in North America
The URX-P03D/30 and URX-P03D/42 models operate in portions of the 617-652 MHz or 663-698 MHz frequencies. As of 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of these models must cease operating on these frequencies no later than July 13, 2020. In addition, users may be required to cease operations before that date if their operations could cause harmful interference to a 600 MHz service licensee's wireless operations on these frequencies. For more information, contact the FCC.

For customers in Canada, please consult ISED's Spectrum Advisory Bulletin for recent information related to the 600 MHz band transition.

  • Features:

    • True diversity reception system for stable reception
    • Sony Digital Audio Processing for high quality sound
    • Direct digital connection to camcorders
    • Automatic channel setting mode
    • Fast and easy channel scan
    • Compatibility with Sony 800 and UWP Series
    • Wide frequency coverage

  • Specifications:

    • Oscillator Type: Crystal-controlled PLL Synthesizer
    • Reception Type: True diversity
    • Antenna Type: Detachable
    • Carrier Frequencies: 25UC: 536.125 MHz to 607.875 MHz (UHF-TV Ch 25 to 36)
    • Frequency Response: 23Hz to 18kHz (typical)
    • Signal-to-Noise Ratio: 96dB (max deviation, A-weighted)
    • Distortion (T.H.D): 0.9% or less (-60dBV, 1kHz input)
    • Audio Delay: Approx. 0.375 msec
    • Analog Output: D-sub 15 pin, unbalanced
    • Analog Output Level*: -40 dBu (at ±5 kHz deviation)
    • Pilot Tone Signal: 32 kHz/ 32.382 kHz/ 32.768 kHz
    • Display: LCD
    • Power Requirements: DC 7.0 V
    • Operating Temperature: 32°F to 122°F (0°C to 50°C)
    • Storage/Transport Temperature: -4°F to 131°F (-20°C to 55°C)
    • Dimensions (WxHxD): 3.46 × 4.57 × 1.23" (88 x 116.2 x 31.2mm) (excluding the antennas)
    • Mass: Approx. 0.67Lbs (303g) (with supplied antennas attached)

  • Item Includes:

    • 1x Sony URX-S03D/14 2-Channel Slot-In Receiver
    • 2x Whip Antenna
    • 1x Before Use Guide
    • 1x CD-ROM
    • 1x Warranty Card

  • GTIN:

    0027242897007
