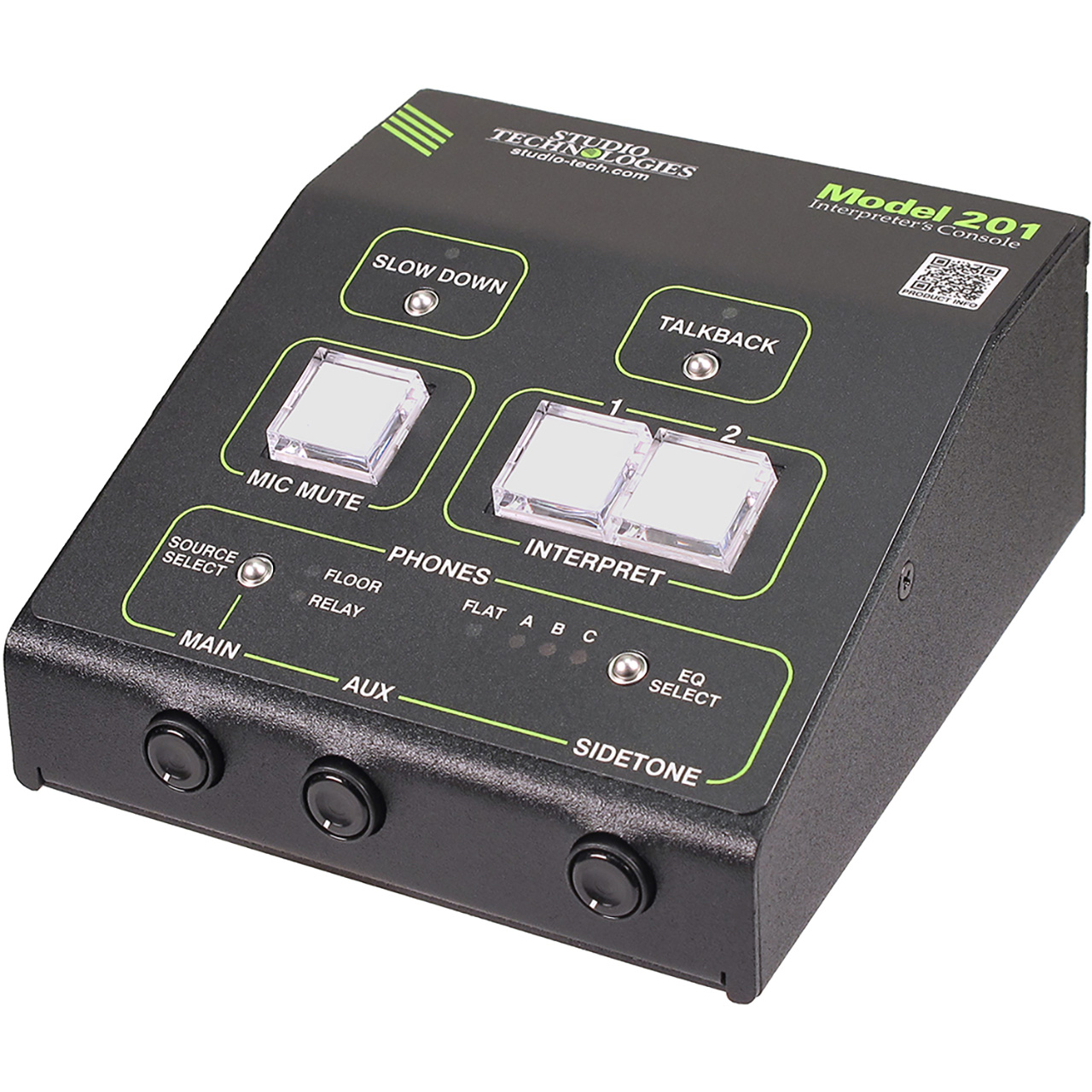

The Studio Techonologies Model 201 Interpreter's Console is a complete solution for supporting applications that utilize specialized personnel who perform simultaneous language interpretation. Suitable for use in single or multi-language situations, the Dante® audio-over-Ethernet-enabled unit includes a range of features not typically provided by "off-the-shelf" interpretation equipment. The Model 201 provides both the standard and advanced features required for successful deployment in local and off-site/remote applications.
The Model 201 includes the ability to create two independent interpretation audio channels. Configuration choices allow a variety of audio content to be included in the interpretation audio; content that can be automatically muted or dimmed (reduced in level) when interpretation is active. This is especially important for off-site or Internet streaming applications. A dual-channel (stereo) headphone output can be configured to meet the needs of the interpreter. This includes selecting the audio sources, channel routing, and sidetone (confidence) signal operation. A set of pushbutton switches and rotary controls allow the user to establish the operating condition they desire.
A "mic mute" pushbutton switch allows the connected microphone to be momentarily muted.
The frequency response of the headphone output can be selected from four equalization (EQ) settings. A talkback function allows a separate audio path to be established from the interpreter to production personnel. A slow down function allows the interpreter to signal to the presenter (the "floor" source) that speaking more slowly is warranted.
The Model 201 is extremely simple to deploy, is "pro" quality throughout, and provides an intuitive user experience. The unit's audio quality is excellent, with low distortion, low noise, and ample headroom. Careful circuit design and rugged components ensure long, reliable operation. Only a Power-over-Ethernet (PoE) connection and a headset with attached microphone is required for operation. The Model 201 supports both professional intercom-style headsets that use a 5-pin XLR connector as well as "gaming" headsets that use a 4-conductor 3.5 mm TRRS plug.
Applications: Dante-based simultaneous interpretation; two independent channels provided
