Switchcraft PXC 1/4 Inch XLR Combo Jack Connector with Solder Lugs

ITEM #: SW-PXC MFG #: PXC

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$9.00

Our Price:

$7.96

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


PXC - Overview

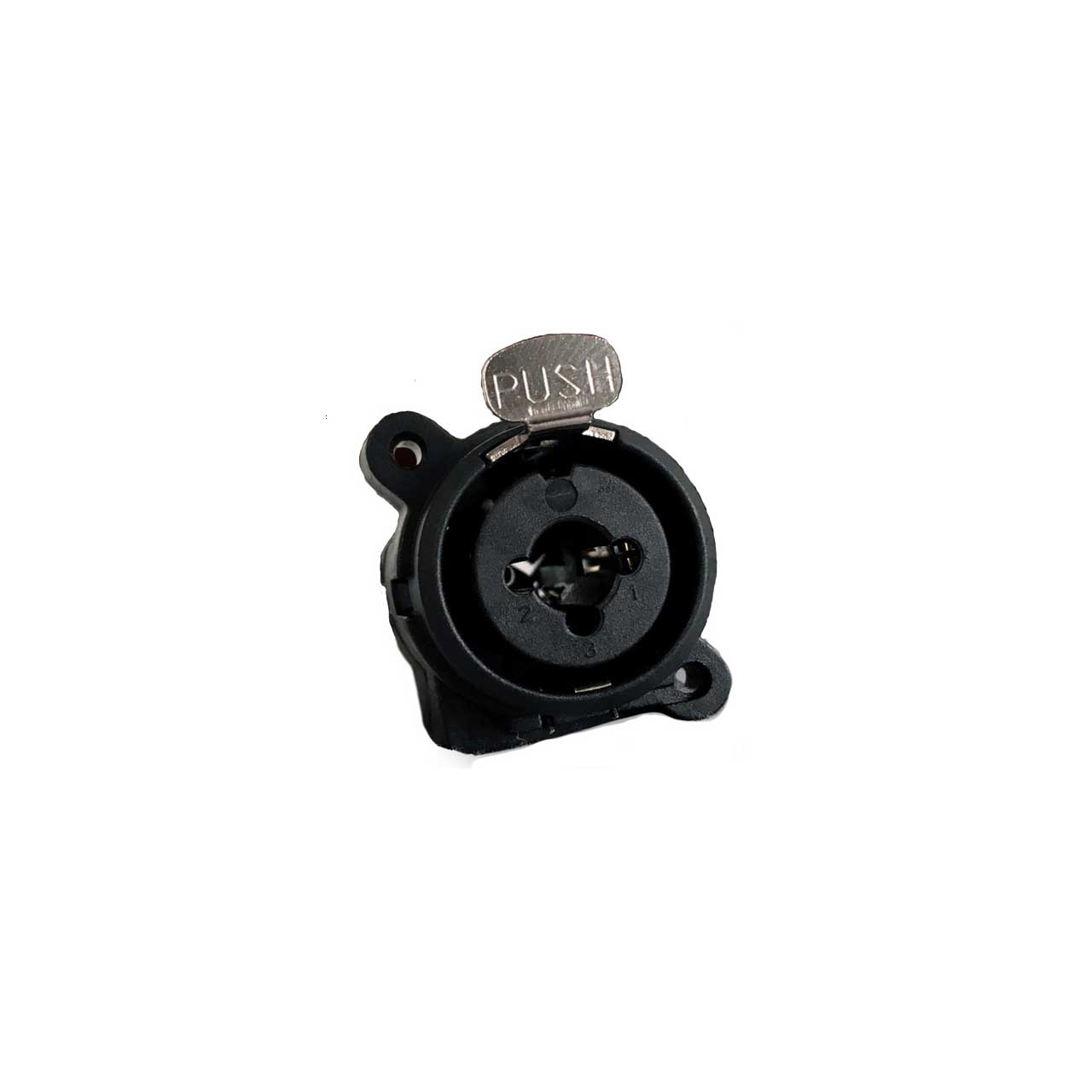

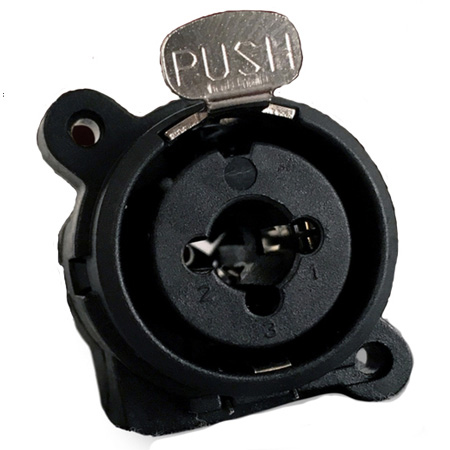

The PXC jacks from Switchcraft combine two of the most common audio connectors into a standard "D size" package, making it an excellent space saving option for any compact electronic design. A variety of mounting options are available for maximum flexibility, including solder and PC contacts.

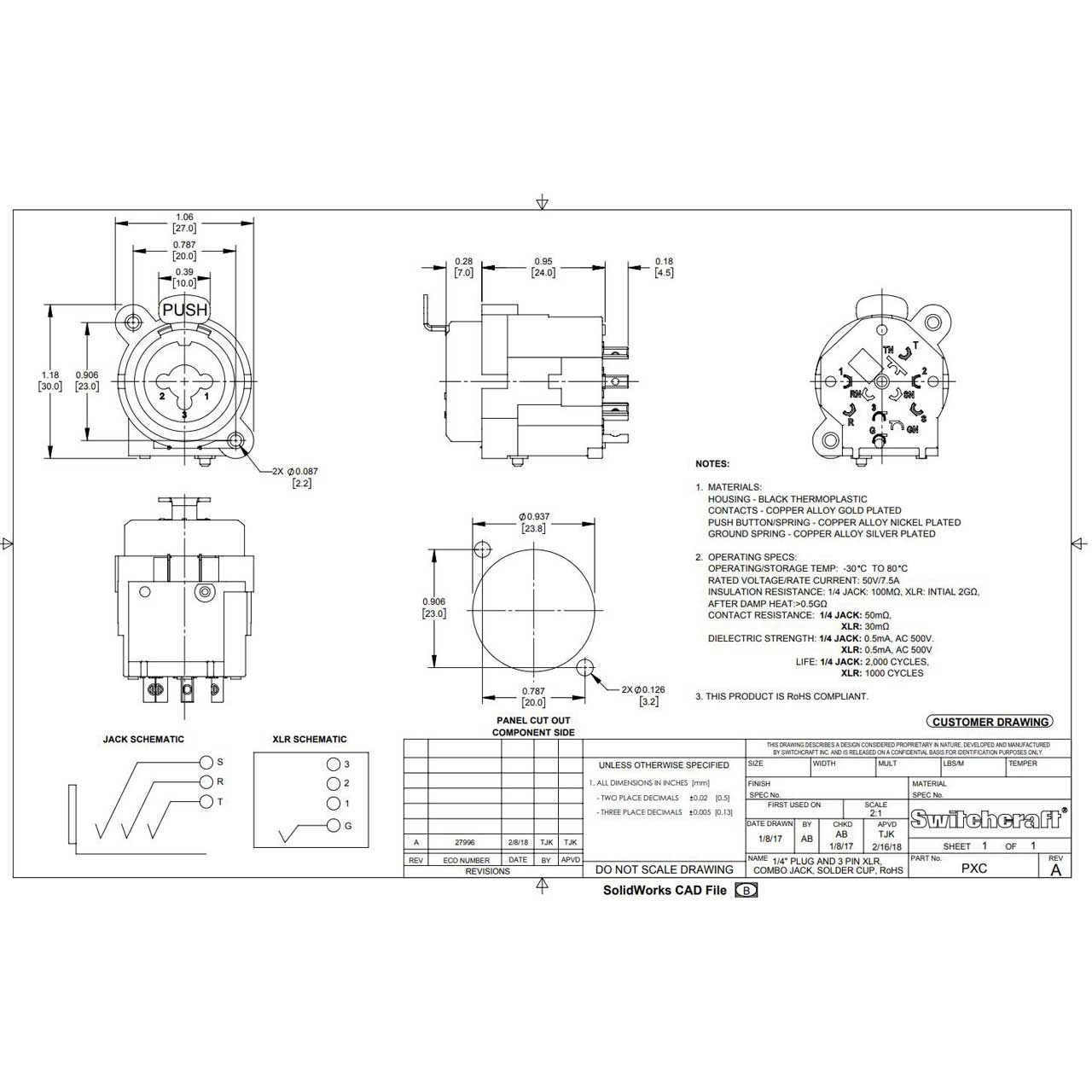

A stereo 1/4" [6.35mm] jack and a female XLR are combined into the same package, with separate contacts for each. Three part numbers are available for design flexibility: vertical PCB mount, horizontal PCB mount, and solder contacts.

These jacks feature gold plated contacts, a silver plated ground spring, and a rugged thermoplastic housing.

  • Features:

    • Two-in-one design
    • Three mounting options
    • Quality materials

  • Specifications:

    • Contact Resistance:
    • 1/4" [6.35mm] Jack: 50 mΩ
    • XLR Connector: 30 mΩ

      Dielectric Strength:
    • 1/4" [6.35mm] Jack: 0.5A, AC 500V
    • XLR Connector: 0.5A, AC 500V

      Life:
    • 1/4" [6.35mm] Jack: 2,000 Cycles
    • XLR Connector: 1,000 Cycles
    • RoHS Compliant

      Physical Characteristics
    • Operating Temperature: -30°C to 80°C
    • Storage Temperature: -30°C to 80°C
    • Current Rating: 7.5A (current carry only)
    • Voltage Rating: 50V
