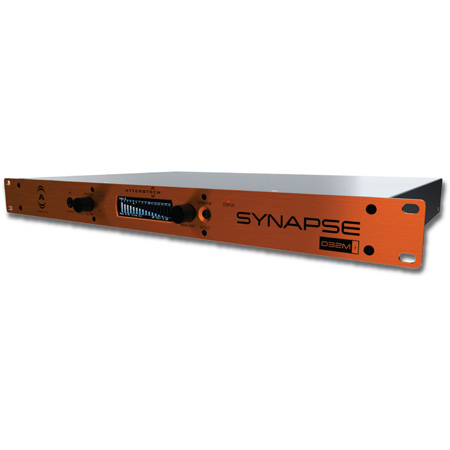

Attero Tech SYNAPSE D32MI 32 Channel Mic/Line Break-In Interface 1RU with Phoenix Terminal Block Inputs

SYNAPSE D32MI - Overview

• Features:

  • 32 balanced mic/line level inputs (studio-grade mic preamps) - either DB-25 or 3-Pin Phoenix
  • Redundant (primary/secondary or daisy chain) RJ-45 connectors and SFP (fiber) connectors

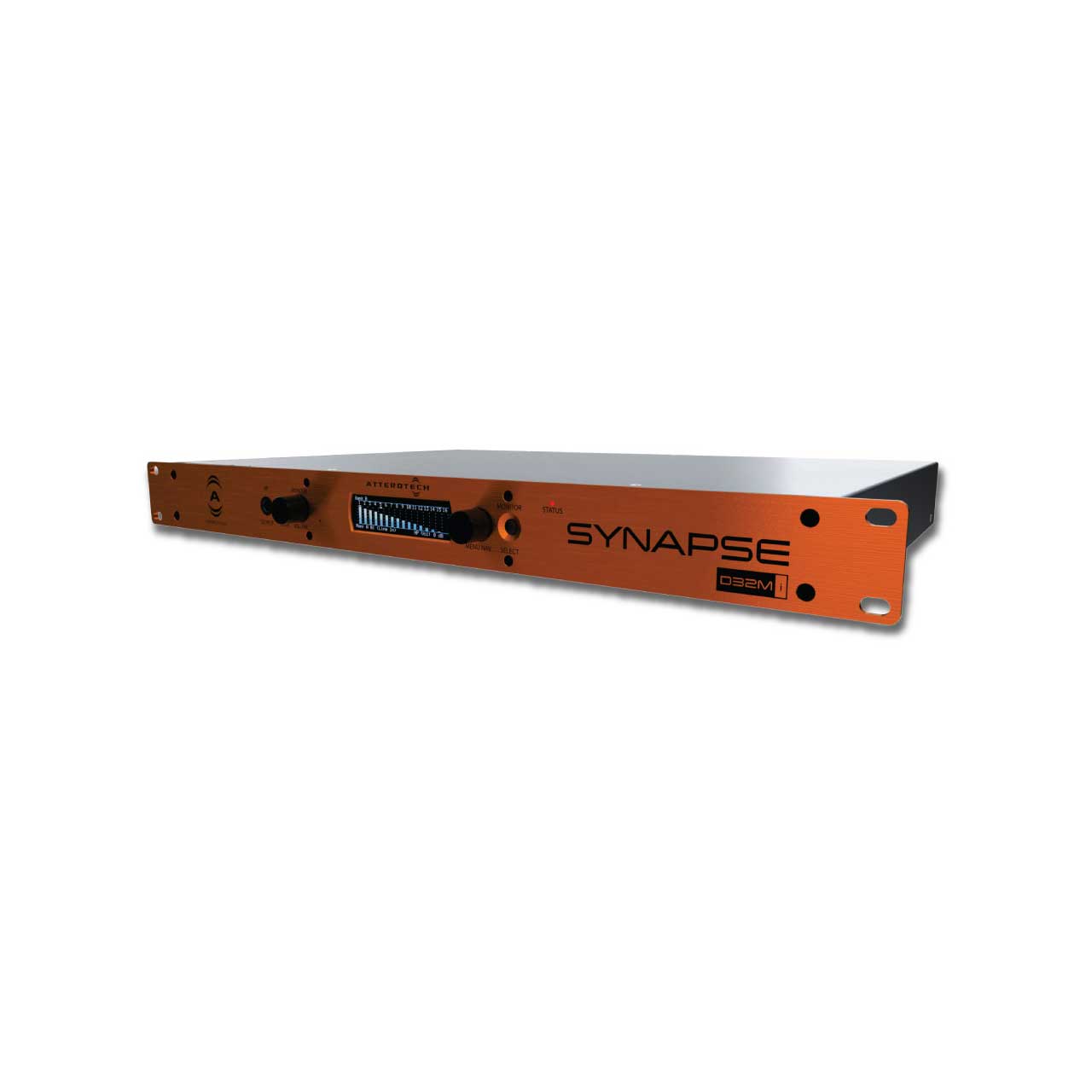

  • Individual channel selection and monitoring using the front panel headphone jack
  • Level metering on the front panel OLED display
  • Supports Dante and AES67


• Specifications:

  • Analog Audio Inputs
  • Input Type:

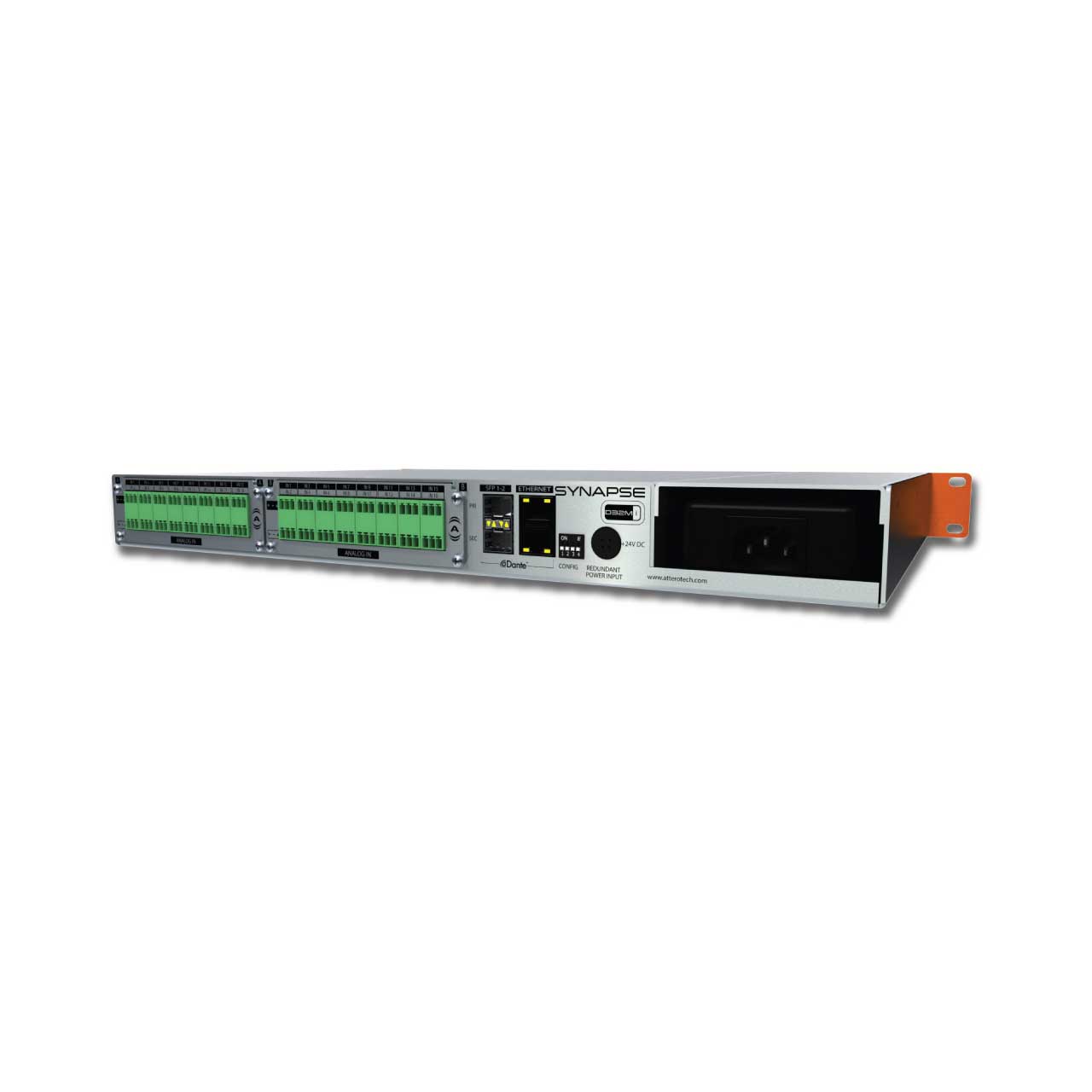

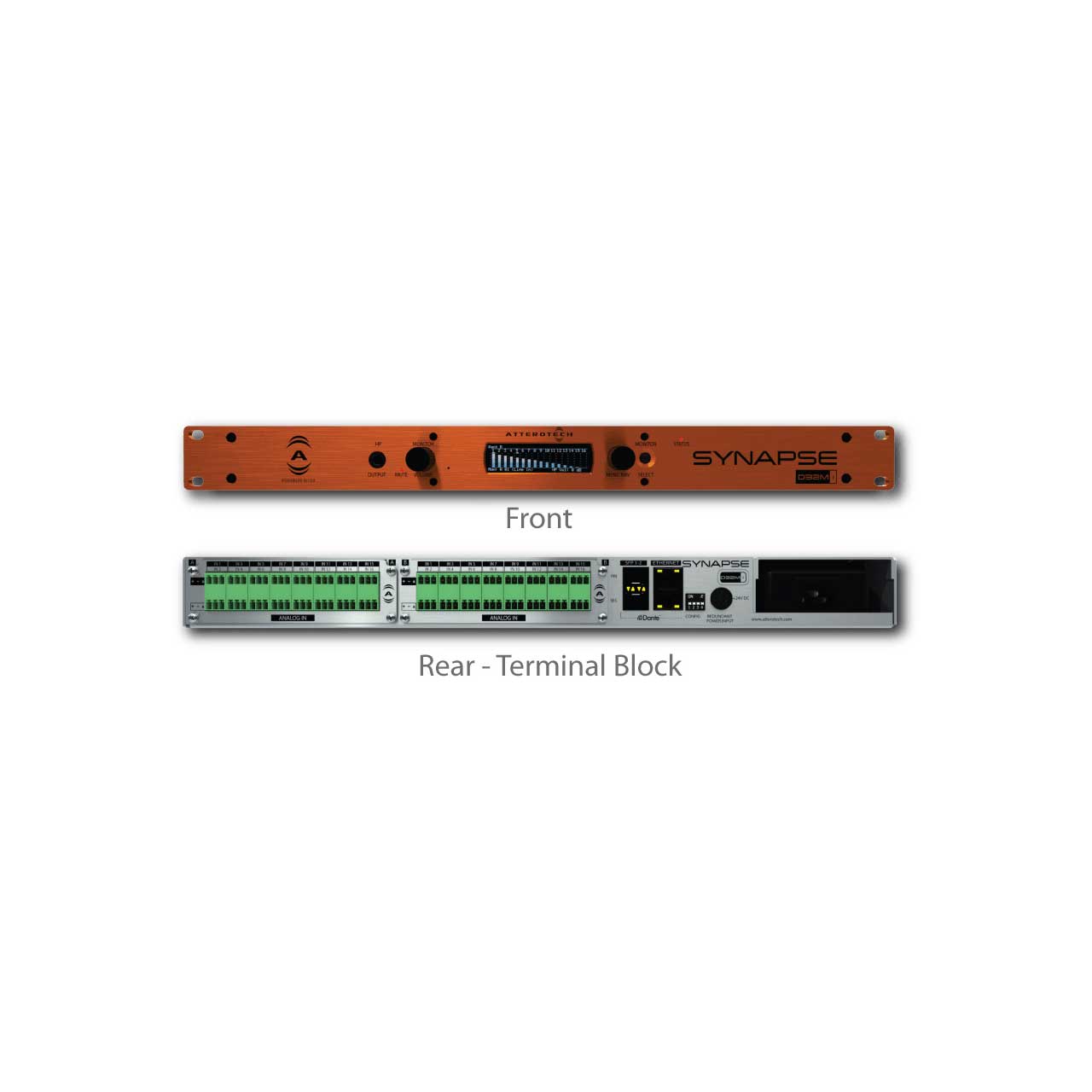

    32: Balanced 3-pin line level (Terminal Block option)
    4: TASCAM-pinout compatible DB25 balanced analog (DB-25 option)
  • Input Impedance: 10 kΩ - Line Mode
  • Maximum Input Levels: +24 dBu (Pad Active - Line Mode) ±0.005%
  • THD+N: < 0.005% at -3 dBFS
  • Dynamic Range: > 105 dB
  • Frequency Response: 20-20kHz, +/- 0.5dB

    Headphone Output
  • Output Type Stereo headphone on +” TRS
  • Maximum output level 25mW into 32 Ω
  • THD+N < 0.01 % @ 25mW

    Dante Network
  • Physical Layer Ethernet
  • Connector (s) Dual RJ-45 / Dual SFP Slots
  • Cable Quality CAT-5e or better (Copper) / Fiber
  • Transmission Speed All interfaces 1 Gbps
  • Supported Sample Rates 44.1kHz /48kHz / 88.2 kHz / 96 kHz
  • Minimum Dante Network Latency 250 us
  • Supported Modes Redundant / Switched
  • AES67 Support Dante™ - AES67 Mode

    Power Specifications
  • AC Power 120V AC
  • Power Consumption < 20W Max
  • Cable Quality CAT-5e or better

    Regulatory Compliance
  • Certifications FCC CFR 47 Parts 15B Class A, EN55011, ICES-003
  • CE (EN55022 / EN55024), RoHS, REACH

    General
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Dimensions (WxHxD): 19 x 1.75 (1 RU Form Factor) x 12.5"


• Item Includes:

  • 1x Synpase D32Mi
  • 1x Phoenix Connectors
  • 1x Power Cord


• Warranty:

  • 5 Year
