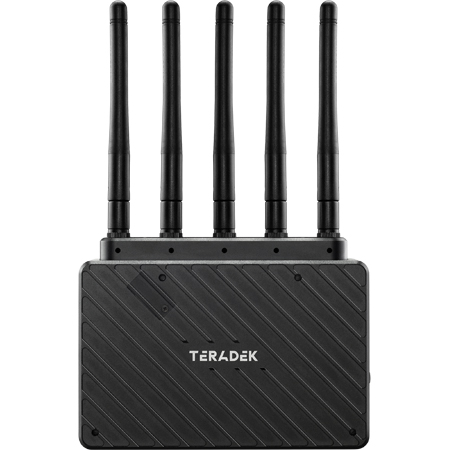

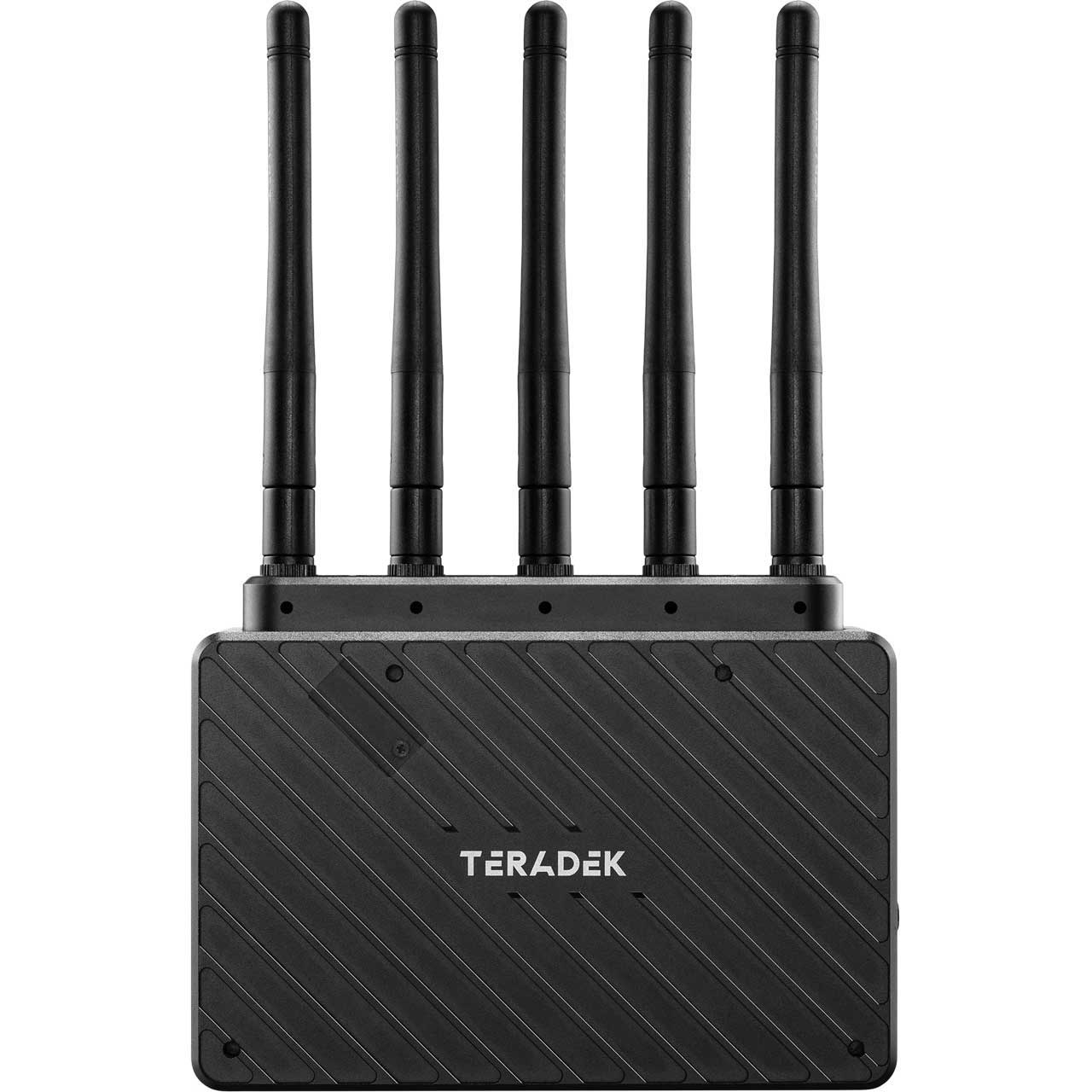

Teradek Bolt 6 LT 750 Wireless Video Receiver with No Battery Mount

ITEM #: TER-BLT6LT750RX MFG #: 10-2262

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,640.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


10-2262 - Overview

Teradek Bolt 6 LT 750 is a Wireless Video Receiver with No Battery Mount. The Bolt 6 LT RX is a real-time wireless video receiver that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 LT can receive color-accurate, True-HDR videos in under 0.001 seconds.

Bolt 6 also offers new tools for high-end users, including better visibility over connections and signals, adding confidence to the workflow no matter how challenging the environment. It additionally gives you access to their new Long Range Mode, offering better video quality at longer distances. A 5-pin USB adapter, sold separately, allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors.

The Receiver is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Bolt 6 LT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates. And while the Bolt 6 LT Set has both 4K HDMI and 1080p SDI input and outputs, you can also select the Bolt 6 LT HDMI model if your production needs require HDMI only.

  • Features:

    • Zero Delay
    • 6GHz Wireless Frequency Access
    • Bolt 4K Cross-Compatibility
    • Improved Long Range Mode
    • Outputs: HDMI, 3G-SDI

  • Specifications:

    • Video
    • Video Outputs: 3G-SDI SMPTE 424M standard/75Ω (BNC x1) 1x HDMI 1.4b Type-A receptacle
    • SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
    • Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
    • Output Video Scaling: No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output

      Supported Resolutions
    • 4Kp23.98/24/25/29.97/30 (HDMI only)
    • 1080p23.98/24/25/29.97/30/50/59.94/60
    • 1080psf23.98/24/25/29.97/30
    • 1080i50/59.94/60
    • 720p50/59.94/60
    • 480p59.94 576p50
    • 480i(NTSC)/576i(PAL)

      Video Processing
    • Video Compression: Visually Lossless
    • Test Pattern Generator Support: Yes
    • Spectrum Analyzer: Yes
    • Color Correction: 17x17x17 3D LUT (supports 10-bit color)

      Audio Processing
    • Audio Compression: 48kHz 24-bit PCM

      Outputs
    • Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)

      Physical
    • Dimensions: 4.80 x 3.70 x 1.06"
    • Weight: 292g (10.3oz)
    • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

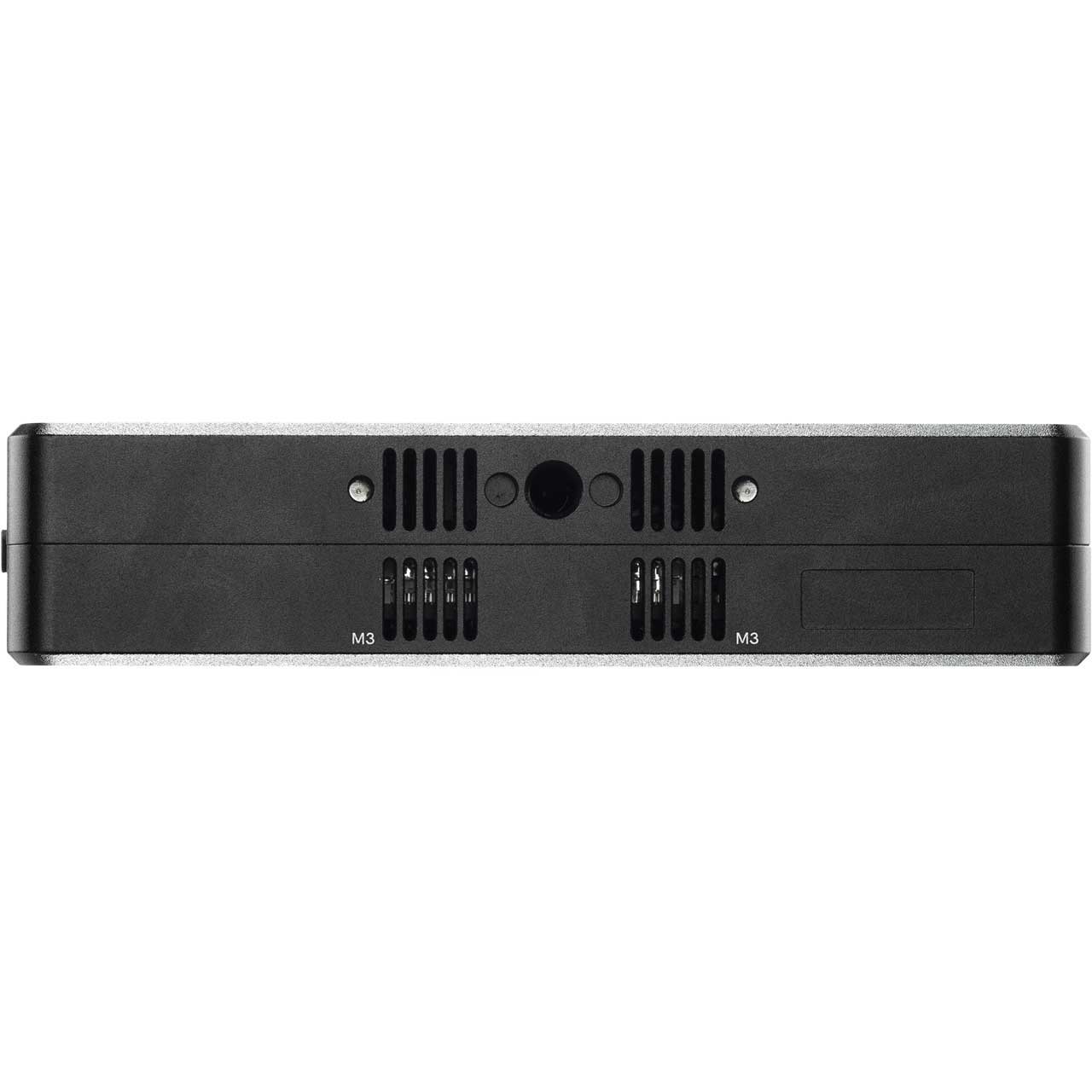

    • Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes

      Interfaces
    • Configuration Interfaces: OSD with Menu, Joystick Navigation
    • Switches: On/Off Switch
    • Mobile App: Bolt App
    • Desktop App: Bolt Manager application for OSX & Windows
    • USB Interface Functionality: Upgrade via Micro-USB
    • Bluetooth: 2.4 GHz

      Network

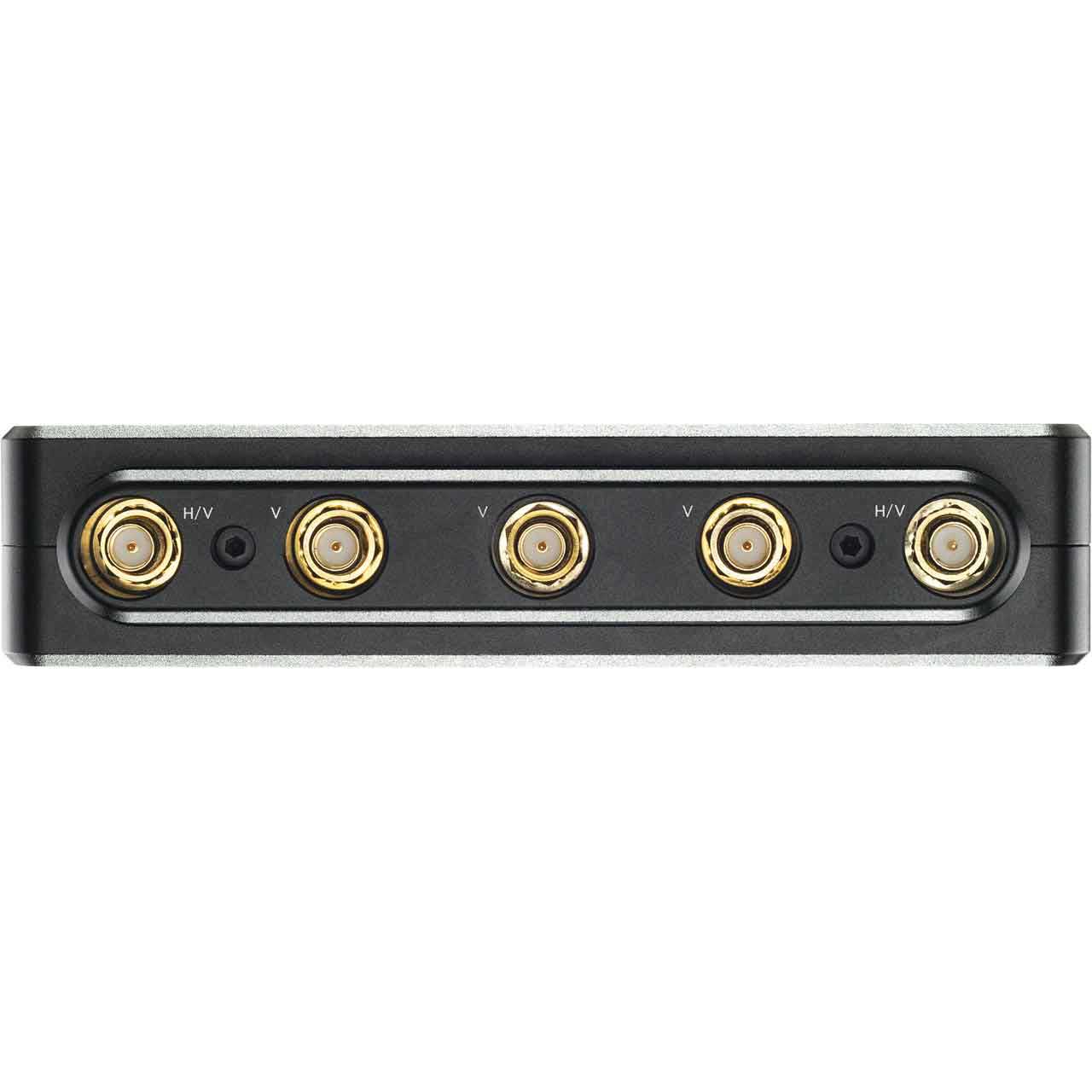

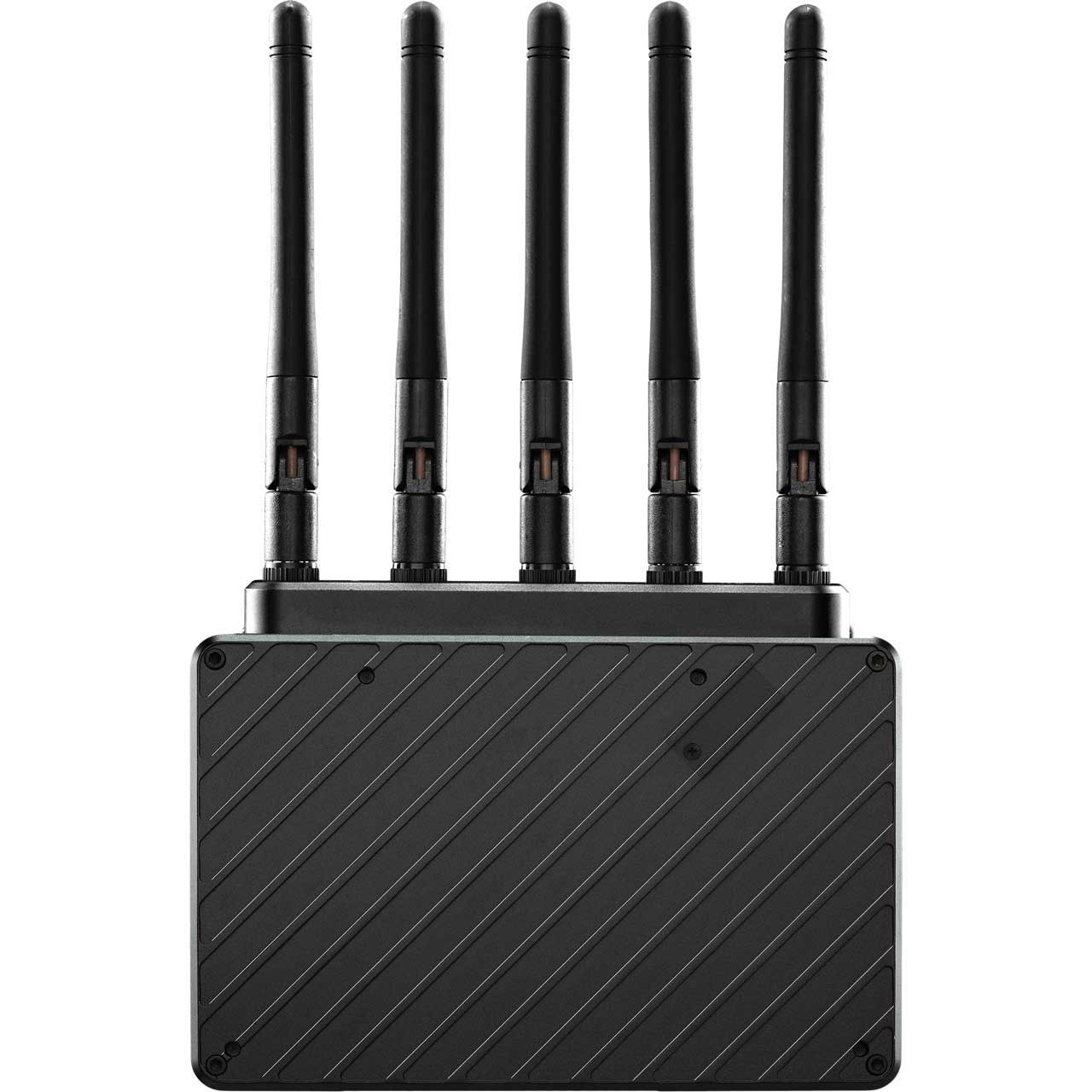

    • Antennas: 5 External 2 dBi antennas (included)
    • Wireless
    • Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
    • DFS Frequencies: 5.270 ~ 5.670 GHz
    • Rf Channel Selection: Auto, Manual
    • Encryption: AES-256, RSA-1024 key exchange
    • Rf Power: 21 dbm EIRP
    • Range: Up to 750 ft, line of sight
    • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
    • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones. Can operate up to 6 sets in same location
    • Interoperability: Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)

      Power
    • Power Input: 2-Pin Circular locking Connector 6-28 VDC
    • Battery: None, optional Gold or V mount battery plate
    • Nominal Power Consumption: 11 Watts

      Environmental
    • Operating Temperature: 32° to 104°F

  • Item Includes:

    • 1x Bolt 6 LT 750 RX
    • 1x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable
    • 1x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
    • 1x SDI - BNC to BNC Cable, 10in
    • 1x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
    • 1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable

  • GTIN:

    0818264028278
