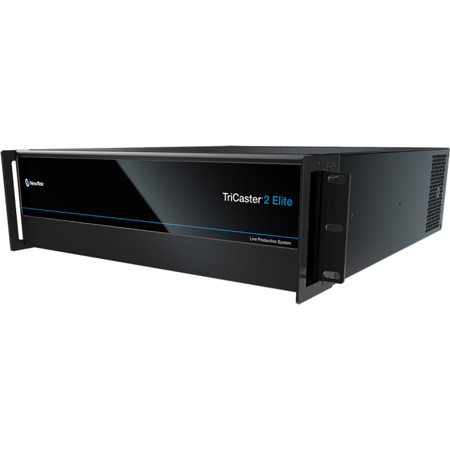

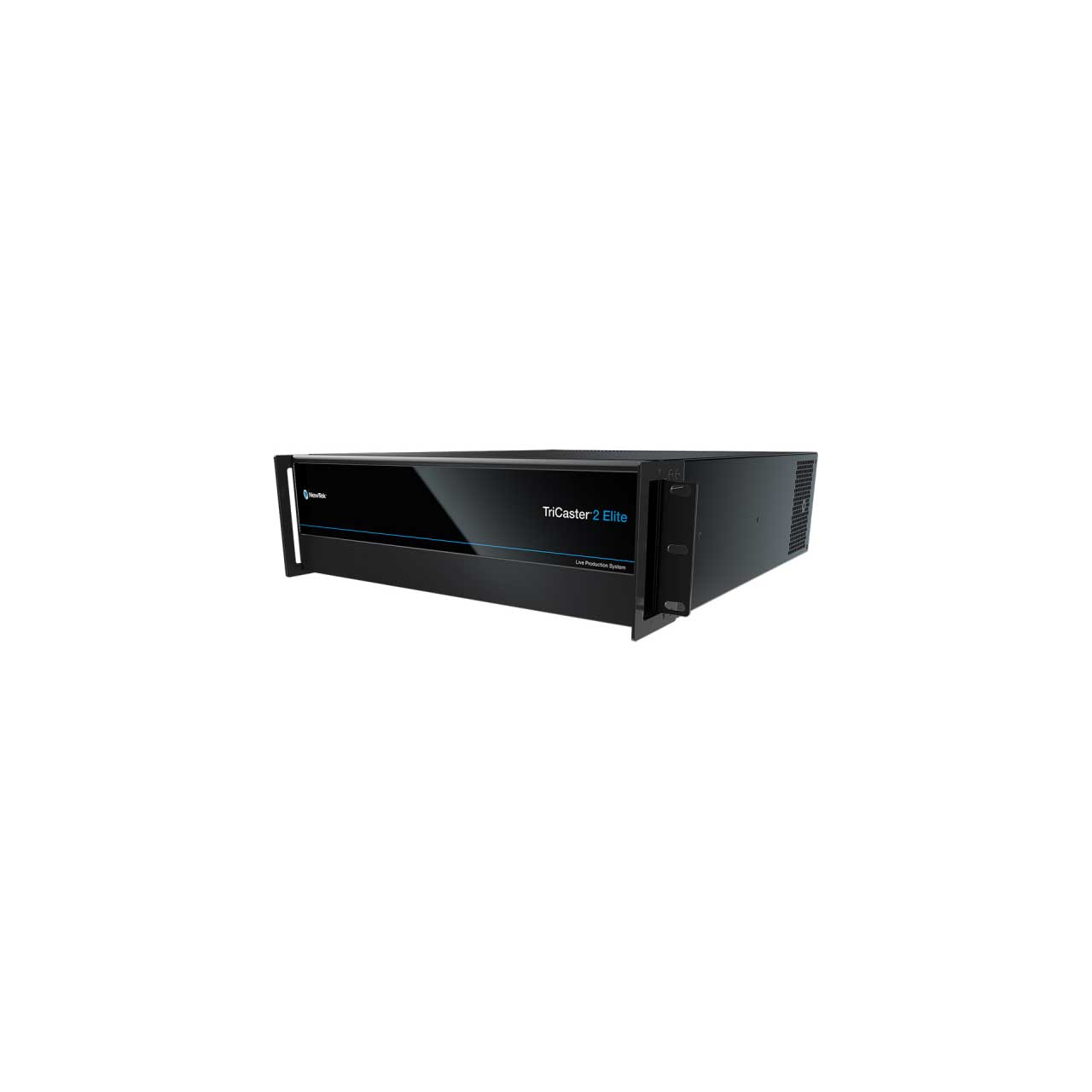

VIZRT TC2E3RU TriCaster 2 Elite Live 3RU Video Production System with Limitless NDI IP Processing

ITEM #: TRI-TC2E3RU MFG #: TC2E3RU

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$24,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


TC2E3RU - Overview

VIZRT TC2E3RU TriCaster 2 Elite is a more flexible approach to digital media production. With TriCaster 2 Elite, content creators can integrate current and future resources into digital media production models that employ standard network infrastructures. TriCaster 2 Elite supports distributed operation with access to more media formats, enablement of more workflow possibilities, and providing more business opportunities.

TriCaster 2 Elite is the most transformative digital media production solution in the industry. Designed for content creators that require a future-ready production ecosystem that grows with their business, TriCaster 2 Elite provides media input-output flexibility to address the needs of media content producers beyond just broadcast video.

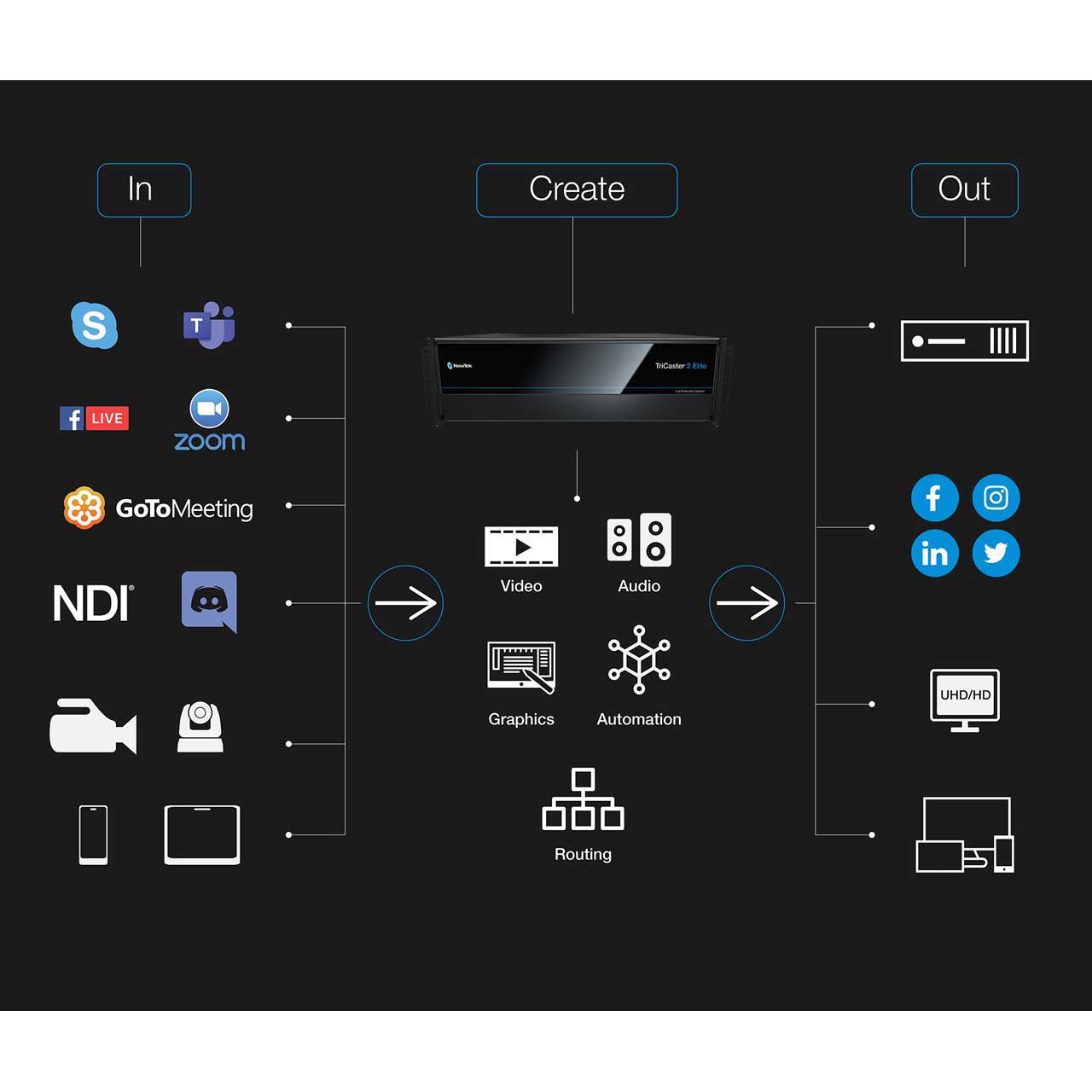

Complete Digital Media Production
Produce digital media content with multi-channel recording, multi-channel remote guest conferencing, upload of clips, multi-angle instant replay functionality, packaging of media content including multi-cam acquisition, compositing of sophisticated static and animated graphics, multimedia and visual effects, advanced audio processing, input and output of video in non-standard aspect ratios, frame rates, and resolutions for any platform and destination. Deliver with up to 8 3G or 2 UHD configurable mix outputs.

Limitless IP Processing
NDI® video, audio and data transmission over IP with near-zero latency and instant access to and seamless interchange with essentially unlimited IP sources from anywhere across the network in real time. Linking of multiple locations over IP to create sophisticated multi-system, multi-site workflows. Support for up to 32 video input sources and up to 48 output signals over IP, all independently configurable through software.

Interconnected Production
Inputs, outputs, and media assets are readily available and accessible by any user in any location on the network. Unrivaled, scalable capabilities include multi-source video processing, advanced audio, multimedia and visual effects, graphics integration, and multi-platform delivery output. Run shows using VIZRT Live Story Creator production automation based on Microsoft Word® documents using teleprompter control with TriCaster 2 Elite mixing and effects together with LiveGraphics.

  • Specifications:

    • Video Input: 32x simultaneous external video inputs
    • Network Video Input: 32x IP inputs via NDI®, resolution-independent, with support for key and fill

      SDI Video Input
    • 18x 3G/HD/SD-SDI connections
    • 1080p: 59.94, 50, 29.97, 25
    • 1080i: 59.94, 50
    • 720p: 59.94, 29.97, 25
    • 576i 50
    • 480i 59.94

      Network Video Output
    • 48x IP outputs via NDI® (HD and SD sessions only)
    • 8x video mix outputs in resolutions up to 1080p at frame rates up to 60fps
    • 8x direct IP source outputs via NDI®
    • 4x direct IP source outputs via NDI®
    • 15x direct IP source outputs via NDI®
    • 3x Multiviewer outputs
    • 4K support on 2x Multiviewer outputs while the 3rd outputs in HD
    • 1x User Interface with dedicated multiviewer
    • 1x teleprompter output
    • 8x selectable IP outputs via internal NDI® matrix router

      SDI Video Output
    • 8x independent 3G/HD/SD video mix outputs
    • 2x UHD video mix output via 3G-SDI quad-link grouping

      Stream Output
    • 2x resolution-independent streaming video outputs, independently configurable

      Multiviewer Output
    • 4x multiviewer outputs supporting standard display resolutions
    • 2x DisplayPorts
    • 1x HDMI
    • 3x DisplayPort

      Media
    • 5x media players
    • 4x DDR
    • 1x Sound
    • 15x media buffers
    • 10x animation buffers with GIF support
    • 5x graphic buffers

      Recording
    • 32x total video recording channels
    • 8x configurable M/E channels for HD or 2x for UHD
    • 8x physical SDI inputs
    • 4x DDR's
    • 2x streaming encoders
    • Support for growing file playback from DDR's
    • Instant Replay capability on each input
    • 32x total configurable inputs

      Storage
    • 1x 4TB SSD internal storage
    • Quantity varies by format, resolution and file specification
    • Supports 7 USB 3.2 type A, and 1 USB 3.2 type C, 1 USB 2.0 2(Gen2, Type A)

      Audio
    • 16 channels of audio passthrough
    • Integrated multi-channel audio mixer with support for 8-channel audio, DSPs and 4x8x8 audio input routing

      Local Audio Input
    • 8x SDI embedded
    • 1x Balanced XLR stereo pair (Line)
    • 3x Balanced 1/4" stereo pairs (Line)

      Local Audio Output
    • 8x SDI Embedded
    • 1x Balanced XLR stereo pair
    • 1x Balanced 1/4" stereo pair
    • 1x Stereo 1/4" (phones)

      Network Audio
    • Native support for network audio input and output via NDI®
    • Embedded audio supported for all NDI®input and output video signals
    • Integrated support5 for Dante™ networking protocol from Audinate®
    • Support for AES67 protocol via compatible WDM audio drivers6
    • 5 Requires Dante Virtual Soundcard license from Audinate (sold separately)
    • 6 Requires third-party virtual sound card license (sold separately)

      Supported Media File Formats
    • Import, store, and play back multimedia files, with optional transcoding, including:
    • Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
    • Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
    • Audio: AIFF, MP3, WAV, and more
    • Monitoring: Support for up to 4 multiviewer displays with configurable workspaces and viewports. Support for 4K on 2 multiviewers while the other 2 multiviewers output in HD.
    • Signal Monitoring: Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709

      Processing
    • Video: Floating Point YCbCr +A 4:4:4:4
    • Audio: Floating Point, 96 kHz
    • Throughput Latency: ~1.0-1.5 frames

      System Drive
    • 250GB SSD

      NIC
    • 1x 10 Gigabit SFP NIC 7 Intel® Ethernet Converged Network Adapter X520 10Gbps PCI Express
    • 1x 1 Gigabit NIC
    • 7 Requires customer-supplied copper or optical SFP's

      System Physical
    • 3RU chassis with 650W redundant PSU and multi-tiered hardware and software fail-safe
    • 19.0x 5.25x 19.57 in (48.3x 13.34x 49.7 cm) with rack ears attached

  • Item Includes:

    • 1x TC2E3RU TriCaster 2 Elite Live Video Production System
