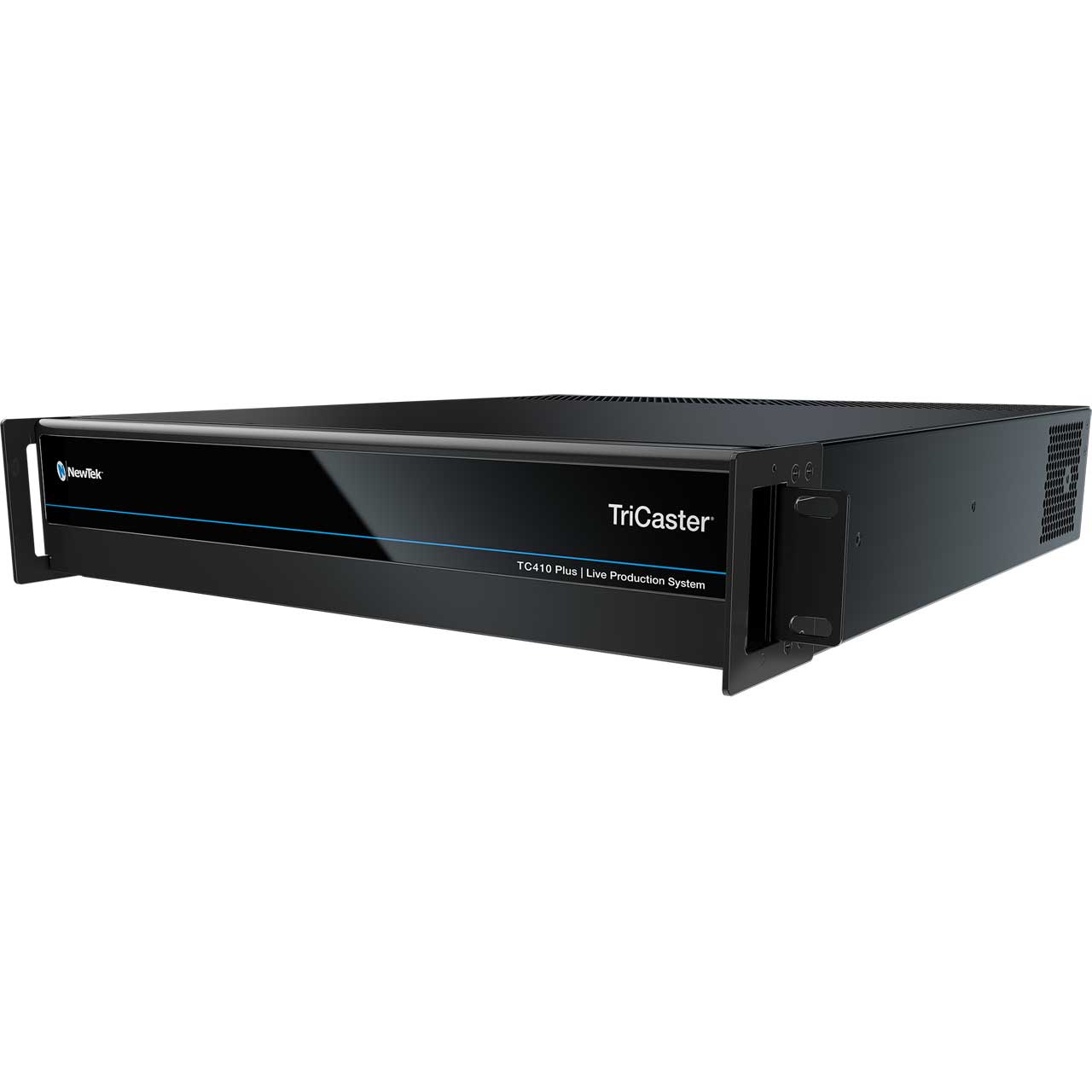

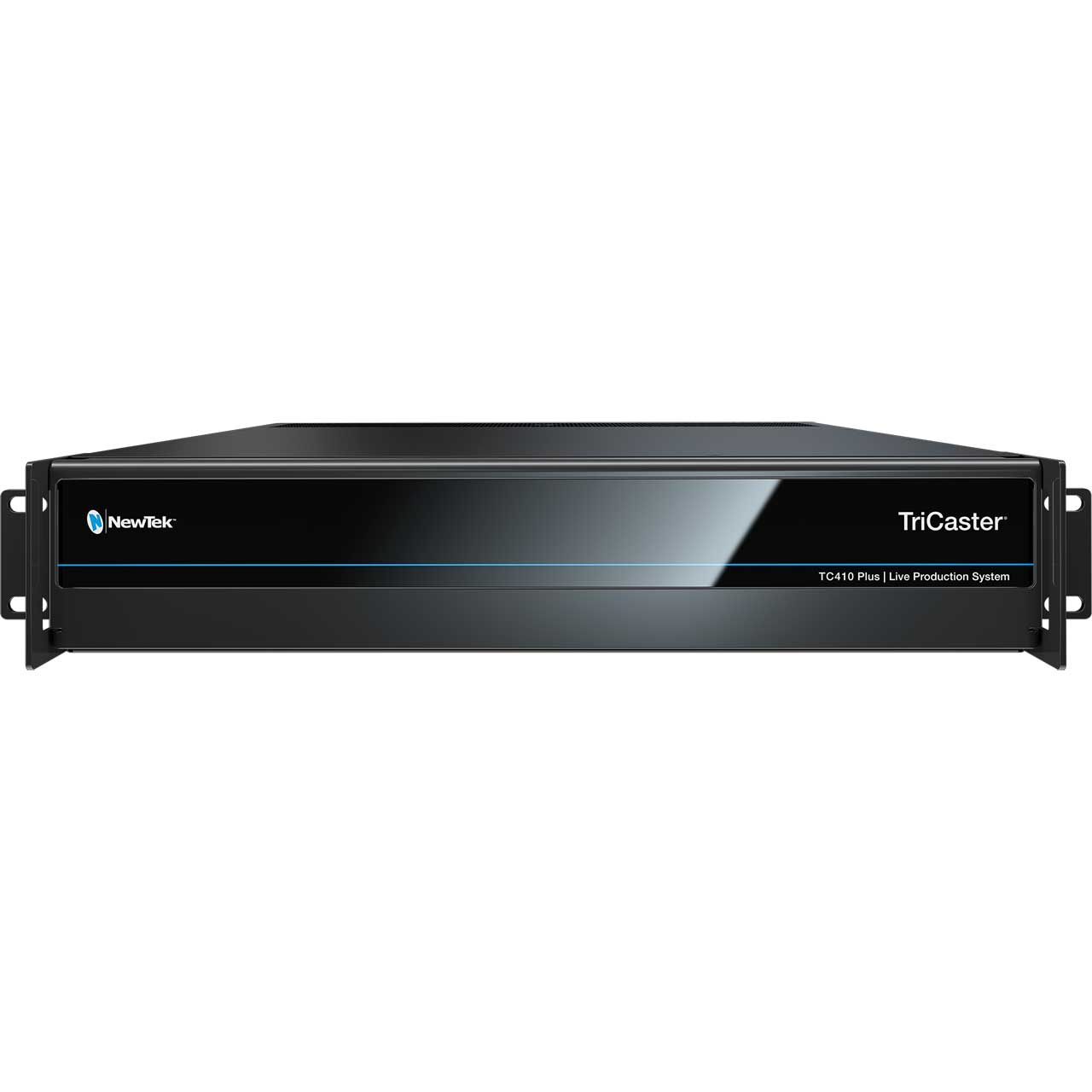

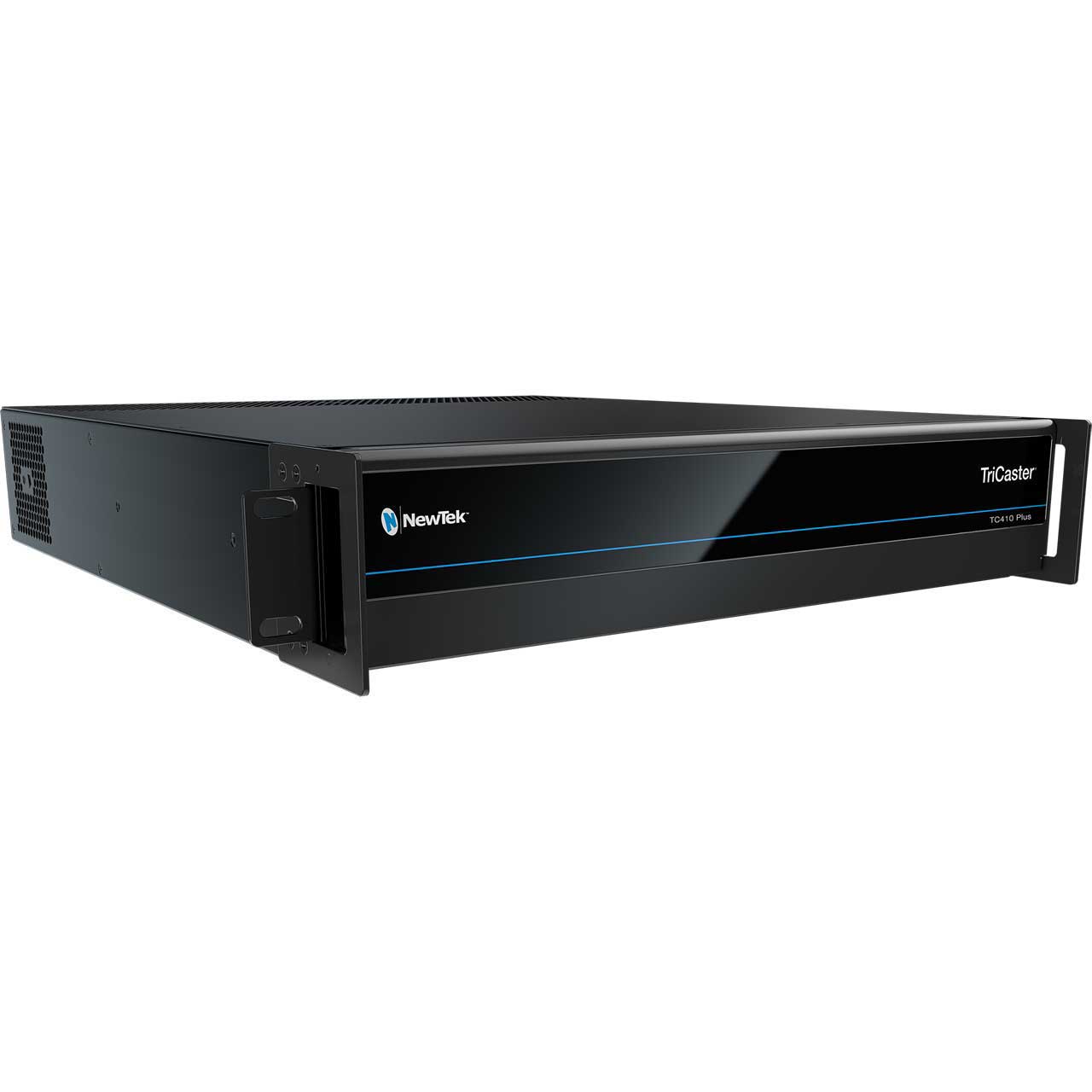

VIZRT TriCaster TC410 PLUS Intergrated Video Production System

TC410 PLUS - Overview

• Features:

  • Mid-size production power including 4 M/E mixing, up to 8 external inputs, and 4 mix outputs
  • NDI® integration for video, audio, and data transmission over IP
  • Real-time social media publishing
  • Streaming to Facebook Live, Twitch, and more
  • Multi-channel recording and internal storage
  • Video playback without any additional hardware
  • Integrated multiviewers for monitoring
  • Multi-channel audio mixing
  • Built-in video playback, data-driven graphics, compositing, effects, and more.


• Specifications:

  • Video Input: 8x simultaneous external video inputs, supporting any combination of compatible sources
  • Network Video Input: 8x IP video inputs via NDI, resolution-independent, with support for key and fill
  • SDI Video Input: 4x HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates*Available frame rates determined by session video standard (NTSC or PAL)
  • 1080p: 59.94, 50, 29.97, 25, 24, 23.976; 1080i: 59.94, 50; 720p: 59.94, 50, 29.97, 25; 576i 25; 480i 59.94
  • PTZ: Support for Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
  • Skype TX: Native support for Skype® video call input via Skype TX software integration
  • Network Video Output: 4x independent IP video mix outputs via NDI®
  • SDI Video Output: 2x independently configurable HD/SD video outputs, with support for up to 4 simultaneous external connections
  • Stream Output: 2x resolution-independent streaming video output, independently configurable, with simultaneous stream archive
  • Multiviewer Output:
  • 1x DVI user interface with multiviewer
  • 1x HDMI multiviewer
  • 1x DisplayPort multiviewer
  • Mix/Effect Buses (M/E):
  • 4x M/E buses supporting video re-entry
  • 1x Mix/Effect channel per bus with support for up to 2 sources
  • 2x KEY layers per bus
  • 1x PREVIZ configuration and preview bus
  • DSK Channels: 2x DSK channels
  • Media:
  • 5x media players
  • 2x DDR
  • 2x GFX
  • 1x Sound
  • Media Buffers:
  • 15x media buffers
  • 5x animation buffers
  • 10x graphic buffers
  • Keyers:
  • Integrated Live: Matte® chroma and luma keying technology on all source channels and M/E buses
  • 8x input keyers
  • 4x media player keyers
  • 4x M/E keyers
  • 1x PREVIZ keyer
  • 15x buffer keyers
  • Virtual Sets: Integrated LiveSet® technology with 30+ live virtual sets and box effects included
  • DataLink: Integrated DataLink® technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
  • Macros: Record, store, edit, and automate commands and user-configured operation sequences
  • Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI, and X-keys® buttons or GPI triggers
  • Attach to internal events and state changes, including audio, media playback, tally, and specific switcher actions
  • Supports control via web-based interface
  • Recording:
  • 6x configurable video recording channels via IsoCorder® technology
  • 4x QuickTime® archival video recorders (SHQ2 quicktime codec, 4:2:2 encoding, 24-bit audio, with timecode)2
  • 2x H.264 local video recorder (multiple profiles)
  • Ability to trigger up to 6 additional recordings on select NDI-enabled devices
  • 1x MP3 audio recorder
  • 2 QuickTime Player not required for playback in common NLE applications
  • Storage:
  • 1x 3TB internal drive
  • Capacity varies by format, resolution, and file specification
  • Supports recording to external storage via USB 3.0
  • Supports shared storage integration and third-party partner solutions
  • Grab: full-resolution, deinterlaced still images from external video sources and outputs
  • Export: video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
  • Audio Mixer: Integrated multi-channel audio mixer with support for quad-channel audio, DSPs, 4x 4x 4 audio input channel routing
