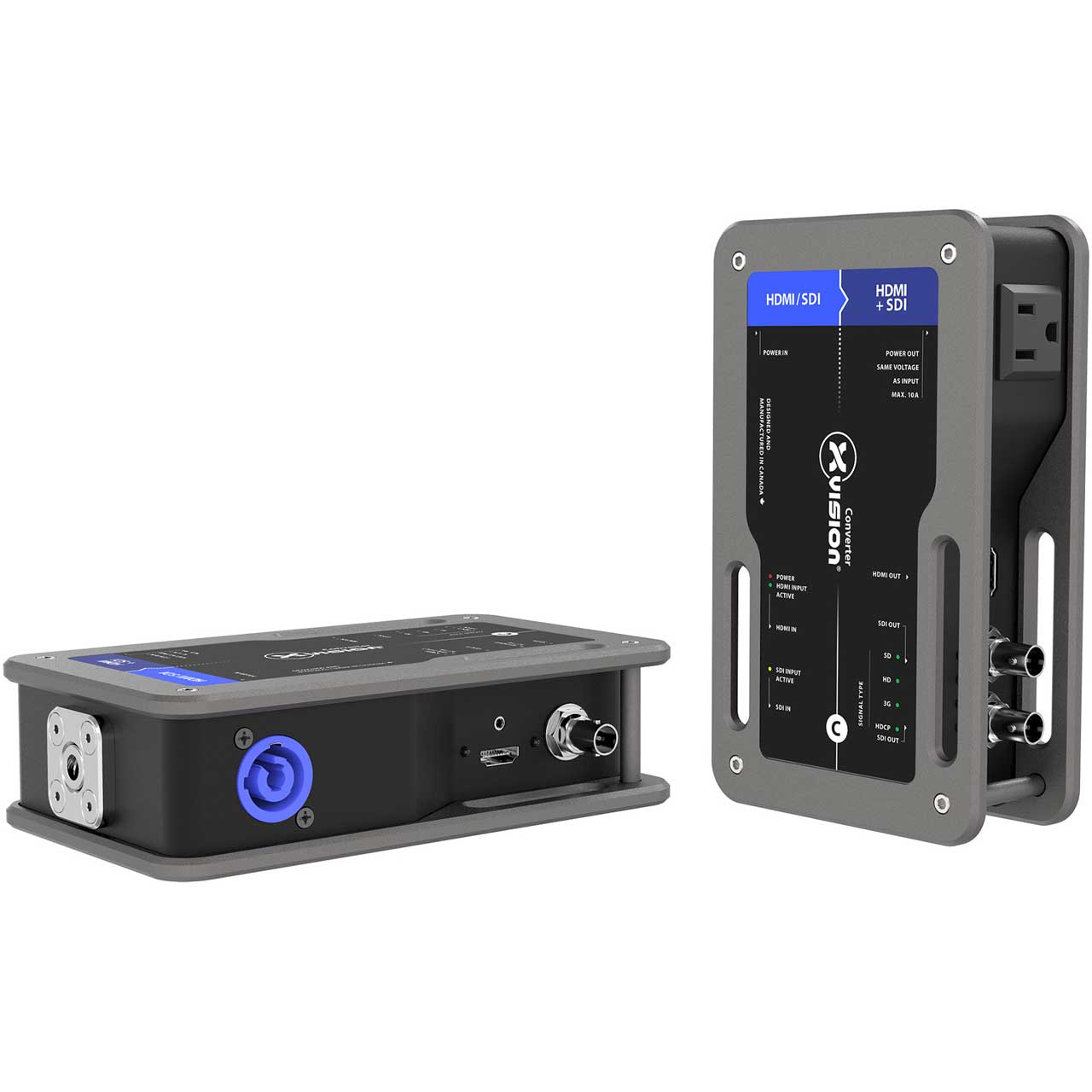

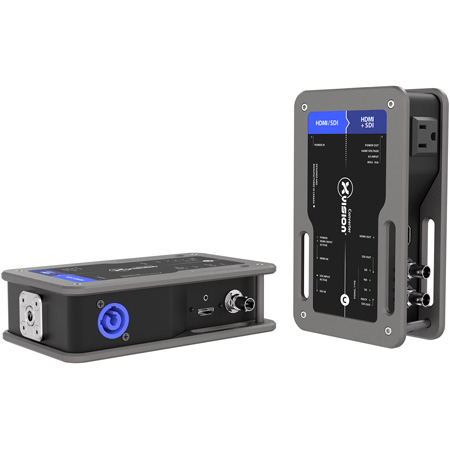

XVVSDIXHDMI - Overview

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the world's first video converters truly designed for the road.

Video converters nowadays are used everywhere on profesional A/V events, presentations, live shows and tours and often have a critical role, yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the XVVSDIXHDM xVision Video Converter.

  • Features:

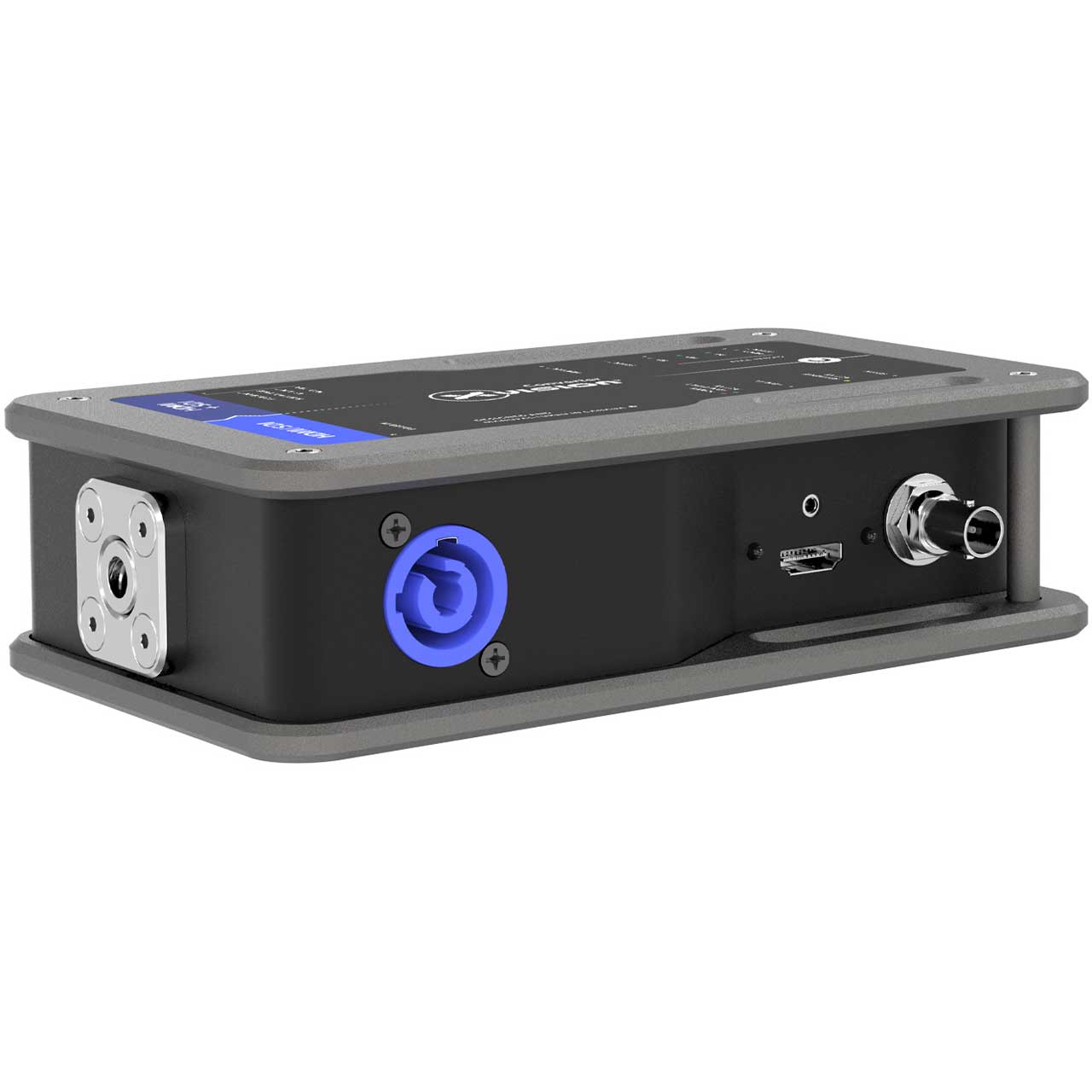

    • Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
    • Built-in convenience 120 V outlet to power nearby projector, TV, laptop, small video projector (Power bar to power both the converter and device not required anymore.)

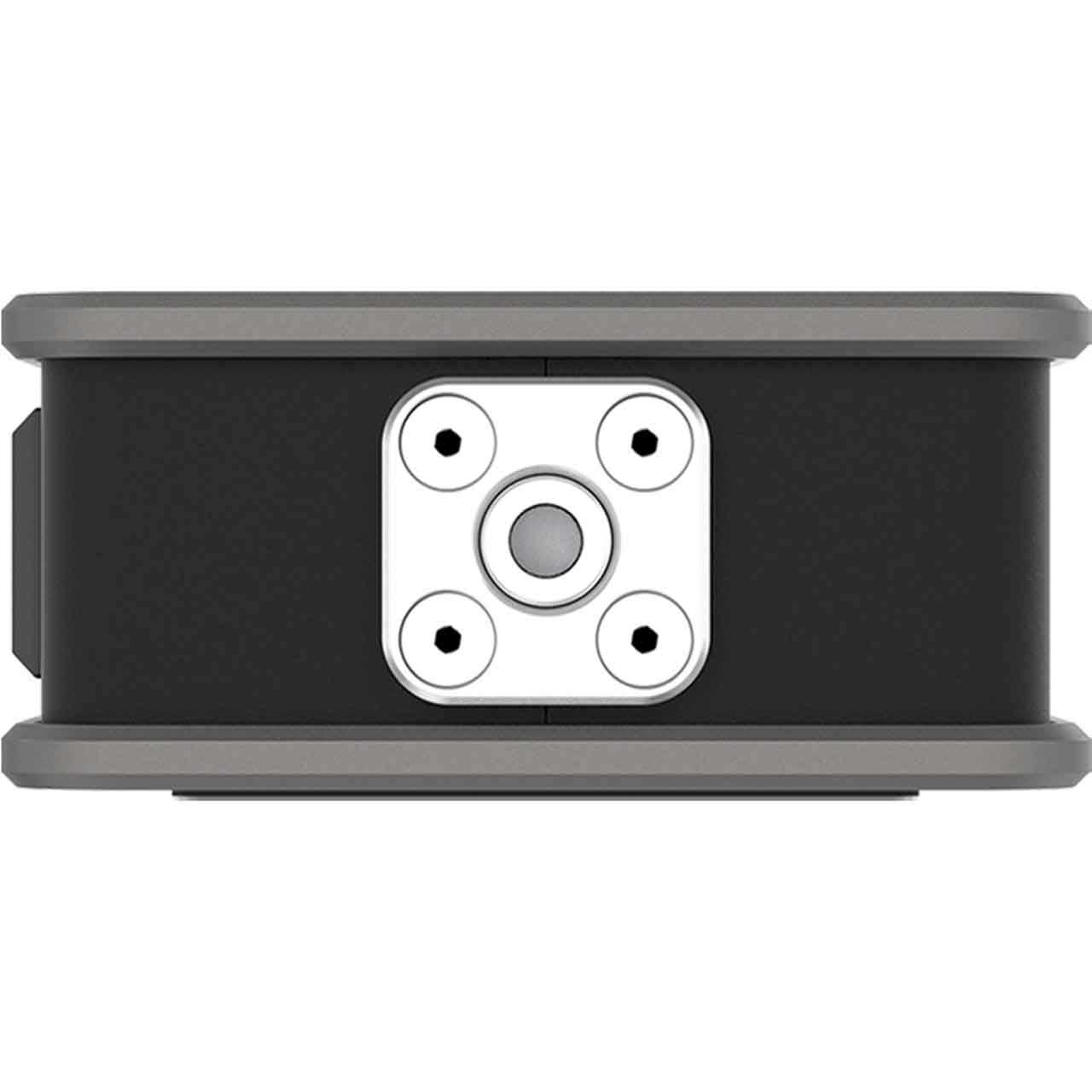

    • Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.
    • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
    • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
    • Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works.
    • Clear and ample status LED indicators for quick troubleshooting.
    • Easy on-the-field identification with unique color and alphabetic coding system.
    • Locking HDMI ports prevent accidental disconnection.
    • Reclocked and amplified SDI outputs.
    • Proudly designed and assembled in Canada.
    • The only converter you'll need: SDI to HDMI or HDMI to SDI with automatic incoming signal type detection.

  • Specifications:

    • Connections

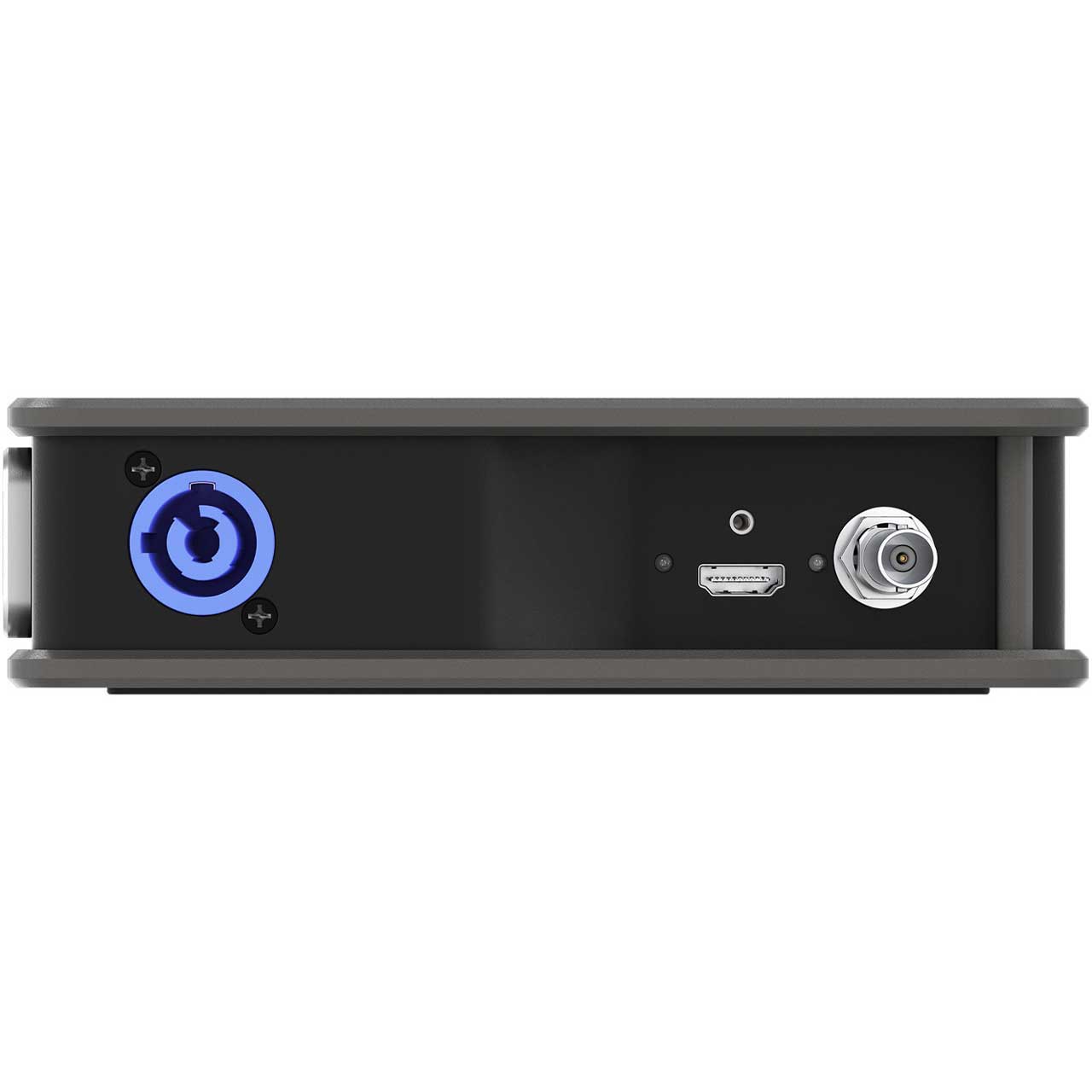

    • Video Input: Auto switching between 3G/HD/SD SDI BNC & HDMI 1.2 type A with lock system

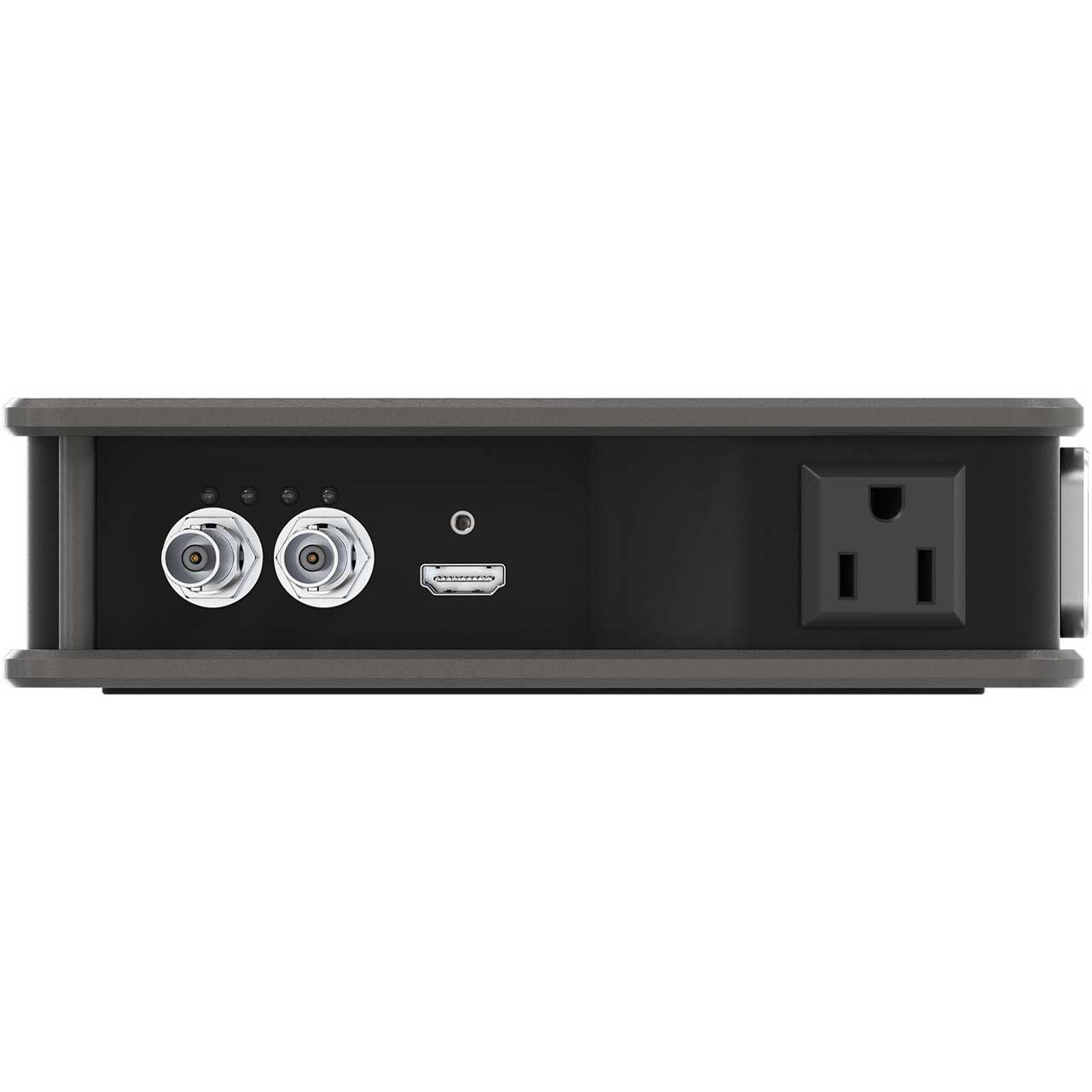

    • Video Output: HDMI 1.2 type A with lock system: 2 x 3G/HD/SD SDI BNC

      Supported Signals
    • 3G Format Support: 1080p50, 1080p59.94, 1080p60.
    • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
    • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
    • SDI Video Sampling: 4:2:2 and 4:4:4
    • SDI Audio Sampling: Sample rate of 48 kHz and 24 bit
    • SDI Color Space: YUV and RGB
    • SDI Auto Switching: Automatically detects incoming signal format
    • SMPTE Standards: 425M Level A & B, 424M Level A, 292M, 259M

      Physical
    • Height: 50 mm (1.97 in)
    • Depth: 180 mm (7.08 in)
    • Width: 107 mm (4.21 in)
    • Weight: 1 kg (2.2 lbs)

      Environmental
    • Relative Humidity: 0 % to 90 % non-condensing

      Power Requirements
    • Built-in power supply: PowerCON input, Edison Nema 5-15 output
    • Power Consumption: 15W
    • Operational Voltage Range: 100-120 V 50-60 Hz. 100-240V also available (with PowerCON True1).
    • Courtesy Outlet: Max 10A, same voltage as input

  • Item Includes:

    • 1x xVision converter SDI/HDMI Bidirectional
    • 1x Locking HDMI male to DVI male (1m)
    • 1x Edison to PowerCON (1.5 m)
