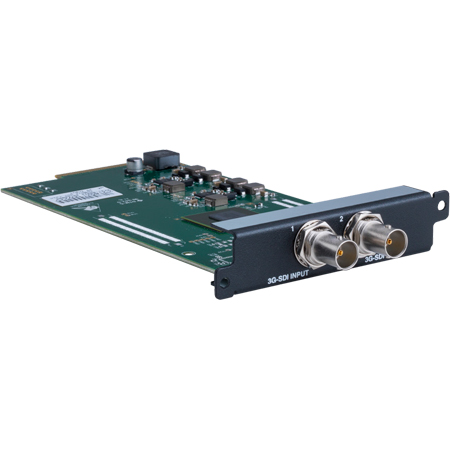

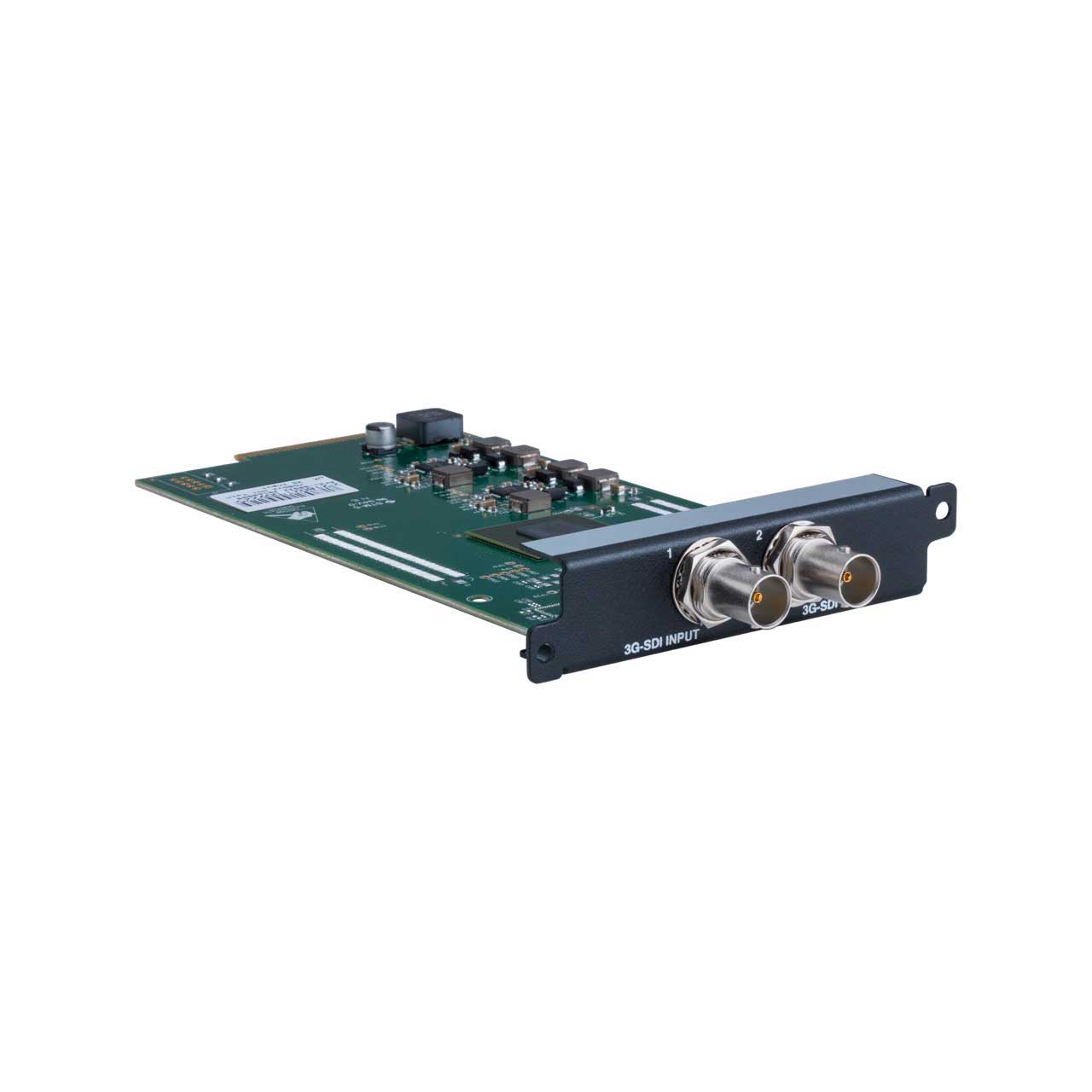

tvONE CM-3GSDI-X-2IN CORIOmodule 3G SDI 2 Input for CORIOmatrix Only

CM-3GSDI-X-2IN - Overview

• Features:

  • Dual 3G/HD/SD SDi
  • Full size BNC connectors


• Specifications:

  • Designed for: C3-540 CORIOmatrix, C3-510 CORIOmatrix Mini (Module installs in to any of the input slots)
  • Max Installable:
  • CORIOmatrix, C3-340: 14
  • CORIOmatrix Mini, C3-310: 5
  • Constraints: None: Can be installed with other types modules in the same system
  • Input Connectors: 2x BNC
  • 3G-SDI: 720p, 1035i, 1080i (reduced quality with this because quad input is 4:2:0), 1080p SMPTE292M 1.485/1.4835Gbps < 0.2 UI jitter
  • SD-SDI: (526/625 lines) SMPTE259M-C 270Mbps < 0.1 UI jitter
  • Color Format Support: SDI 4:2:2
  • Color Depth: 20-bit
  • Resolution Support: 720x487i (59.94Hz), 720x576i (50Hz), 1280x720p (23.98, 24, 5, 29.97, 30, 50, 59.94, 60Hz), 1920x1080i (50, 59.94, 60Hz), 1920x1080p (23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz)
  • Supported Sampling Rate: 48KHz
  • Sample Size: 24 bits
  • Supported Channels: 1 Stereo pair on each input


• Item Includes:

  • 1x Dual 3G-SDI Broadcast Input Module for CORIO®matrix
