CSA121-B - Overview

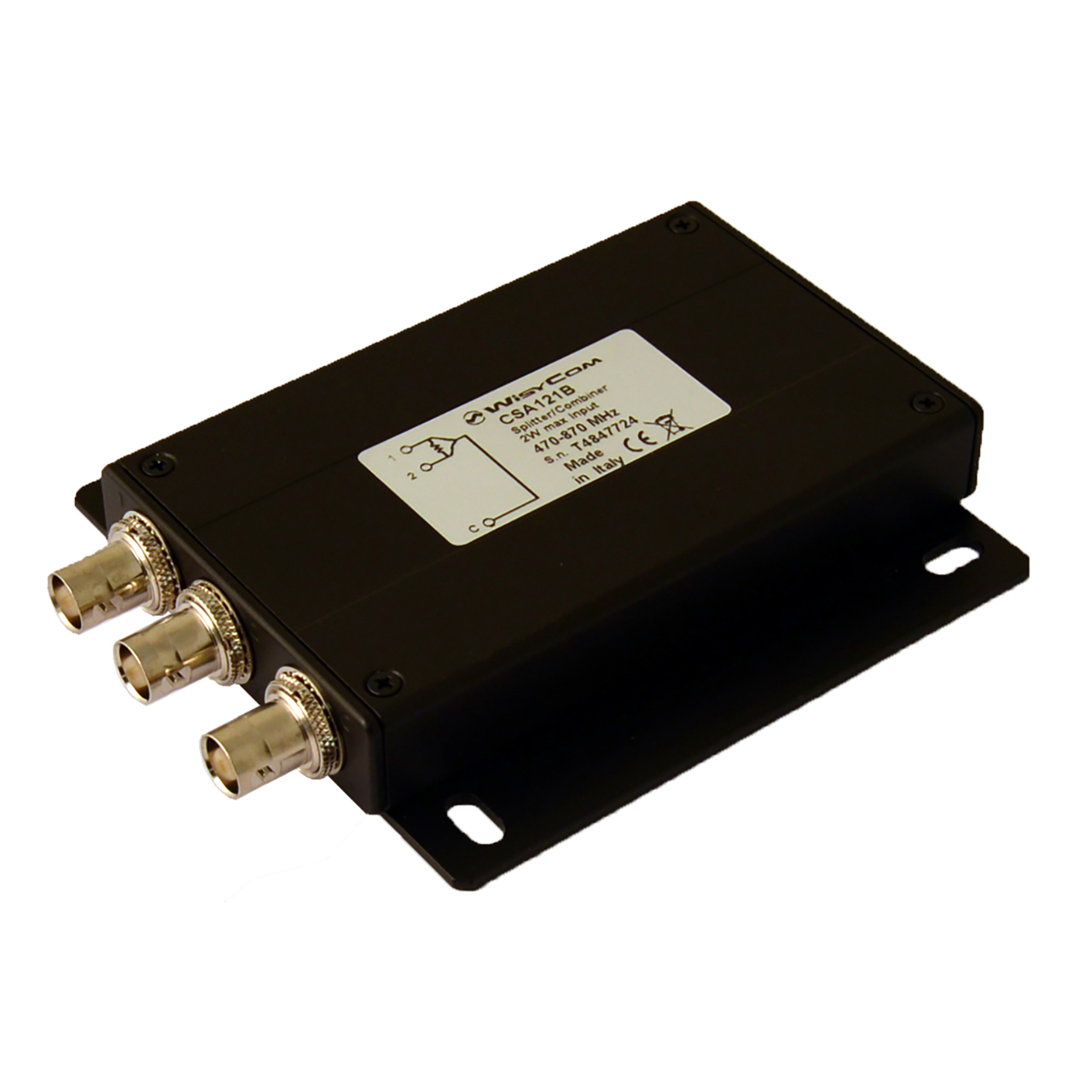

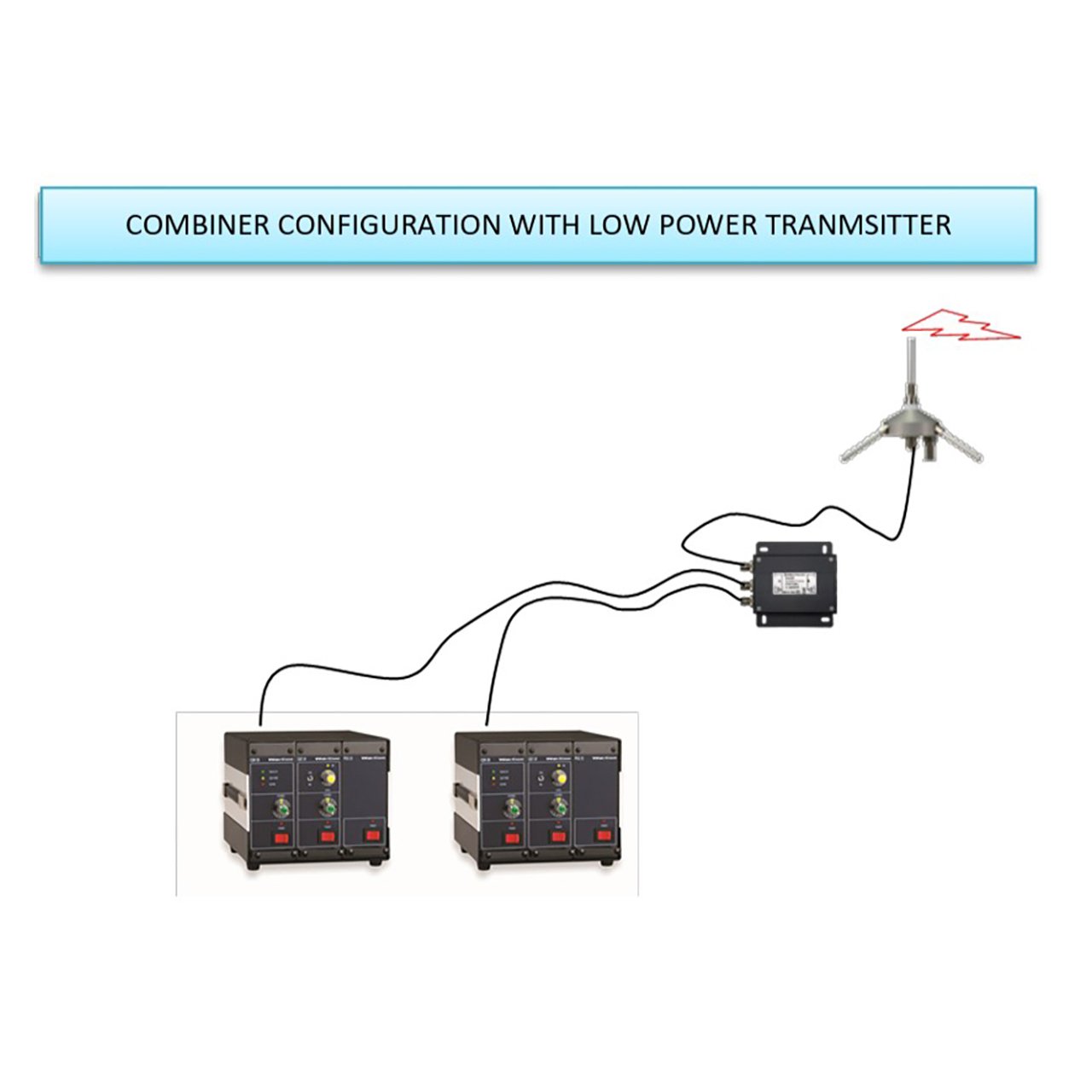

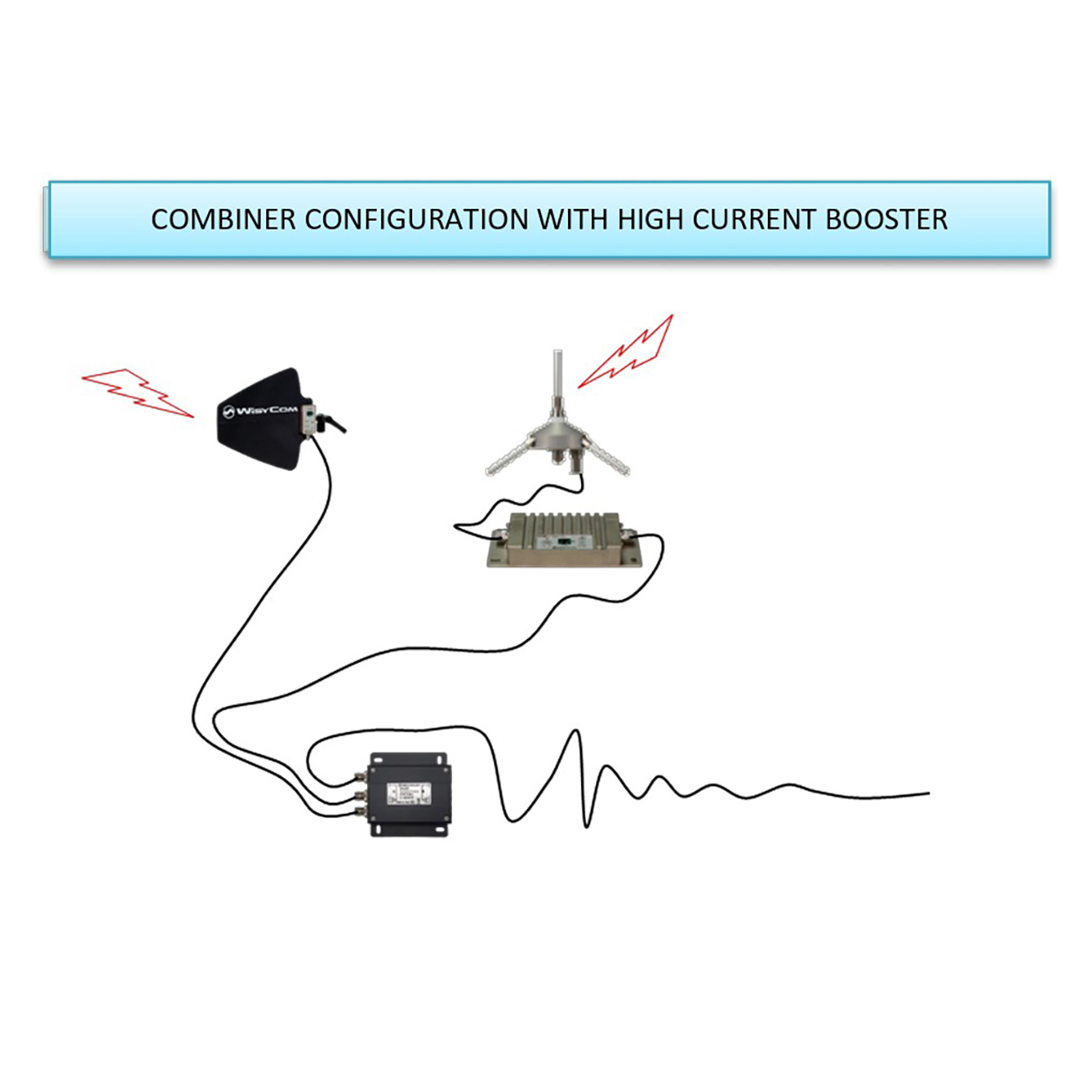

The Wisycom CSA121-B is a passive splitter/combiner for UHF microphone applications. The CSA121B can be used as a splitter, or combiner for receive antennas.

  • Features:

    • Small and compact splitter/combiner, stripline construction
    • Wide band operation
    • High input power up to 2W


  • Specifications:

    • Frequency Ranges: 470 - 870MHz (CSA121B and CSA121T)
    • Splitter/Combiner Loss: 4dB
    • Max Input Power: 2W
    • Connector: 3x BNC-F
    • Material: Aluminum
    • Finishing: Black Varnish
    • Mounting: Mounting plate holes (M5 screw type)
    • Dimensions (HxWxD): 0.78" x 3.93" x 4.92" (20mm x 100mm x 125mm)
    • Weight: 0.48lbs (220g)


  • Item Includes:

    • 1x Wisycom CSA121-B Passive Wideband Combiner/Splitter - 2W Version


  • Warranty:

    • 1 Year Limited Warranty
