Wisycom SPL2216 Wideband Active Antenna 16x2 Combiner/Splitter - 170 to 1260 MHz

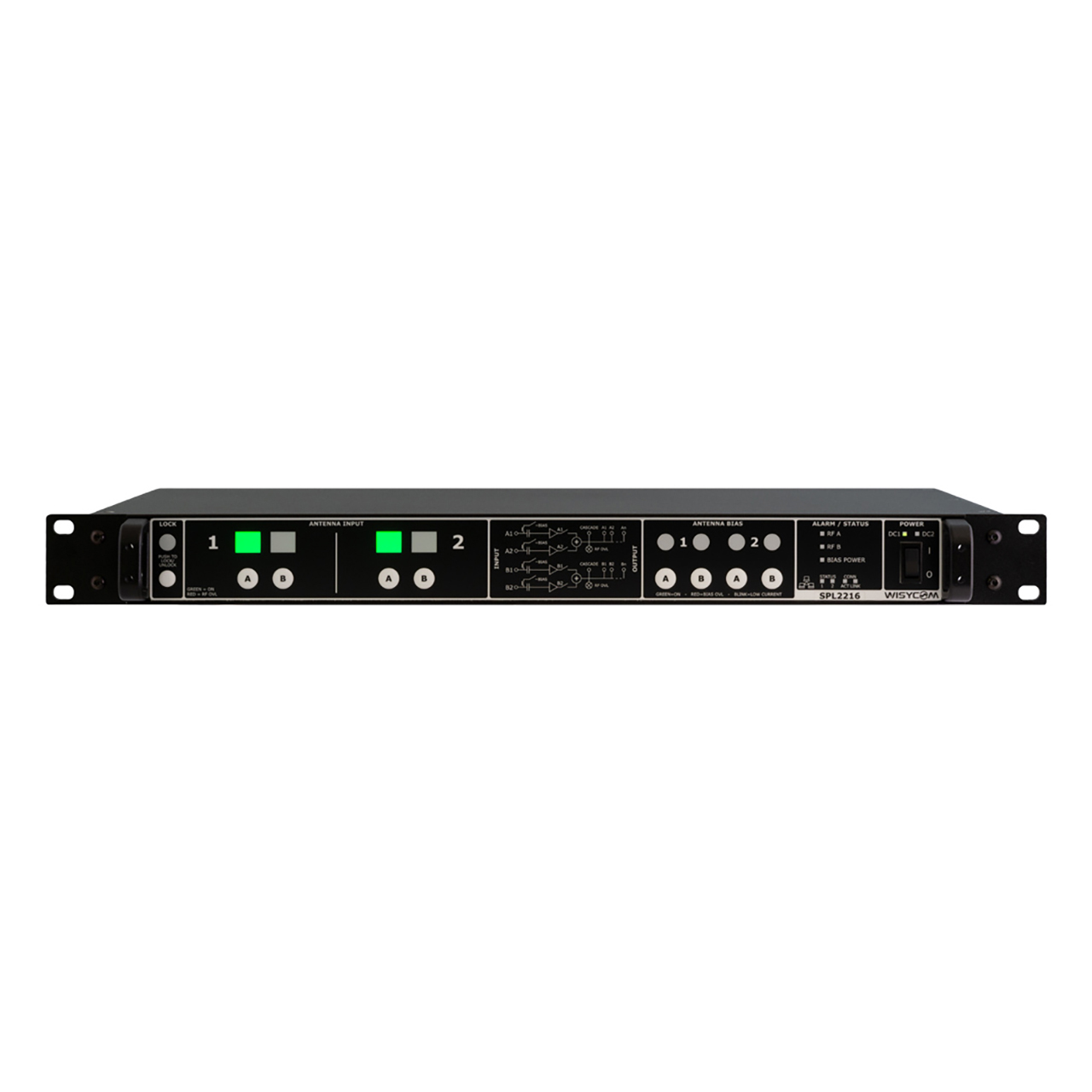

SPL2216 - Overview

• Features:

  • Wideband: 170-1260 MHz
  • High Rf robustness and linearity: for high density/equally spaced frequencies operations (i.e. with MTP60s Linear)
  • Able to feed 16 diversity receivers
  • Combine/Select signal from 4 antenna inputs
  • Redundant DC supply and antennas diagnostic features
  • Wisycom Remote Antenna Protocol to control antennas/booster remotely thru coax
  • Ethernet interface to access all of feature with a PC, making presets and real time monitoring
  • Cascade output to connect another SPL22xx or monitor devices


• Specifications:

  • Frequency Ranges: 170 - 1260 MHz
  • Input/output Gain: +5dB approx.
  • OIP3Input/cascade gain: +1.5dB approx.
  • Amplifier Linearity: ± 1 dB (typical)
  • Noise Figure: 7.5 dB
  • Antenna Booster Powering: +12Vcc / 500mA MAX (for each BNC-female input connector A & B)

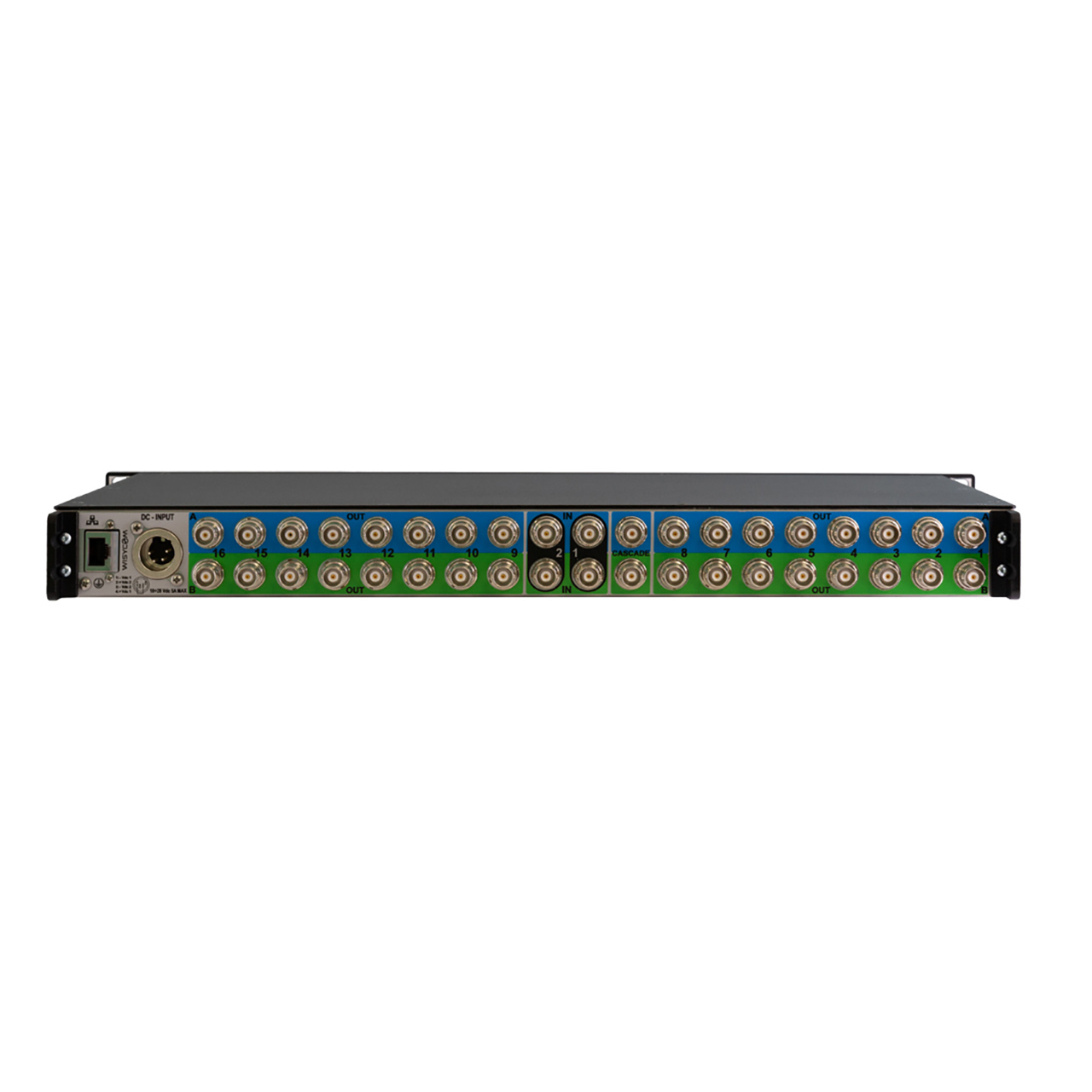

  • Connector:
    - Input: 2+2 BNC-F
    - Output: 16+16 BNC-F
    - Cascade: 2 BNC-F
  • Impedance: 50Ω
  • Managing Interface: 10/100 Base TX Ethernet port and thru frontal tactile buttons
  • Power Supply:
    - 10÷ 28 Vdc, 5A max, redundant DC Vdc1 and Vdc2 on XLR M-4pin
    - 1: -Vdc1, 2: +Vdc2, 3: -Vdc2, 4:+Vdc1
  • Power Consumption: 40W max
  • Temperature Range: -13°F - 131°F(-25°C ÷ 55°C)
  • Material: Aluminum
  • Finishing: Black Varnish
  • Dimensions: 1.73" x 19.01" x 13.81" (44mm x 483mm x 351mm)
  • Weight: 6.61 lbs (3kg)


• Item Includes:

  • 1x Wisycom SPL2216 Wideband Active Antenna 16x2 Combiner/Splitter
    1xWisycom PSP15V4A0-X Power Supply for DC-Redundant-Enabled Devices


• Warranty:

  • 1-Year Limited Warranty
