Cobalt Digital 9905-MPx 3G/HD/SD Quad Up/Down/Cross Converter Advanced Scaler/Frame Sync with 2110-DC-01/SMPTE ST 2110

9905-MPX-INDIGO2110DC01 - Overview

• Features:

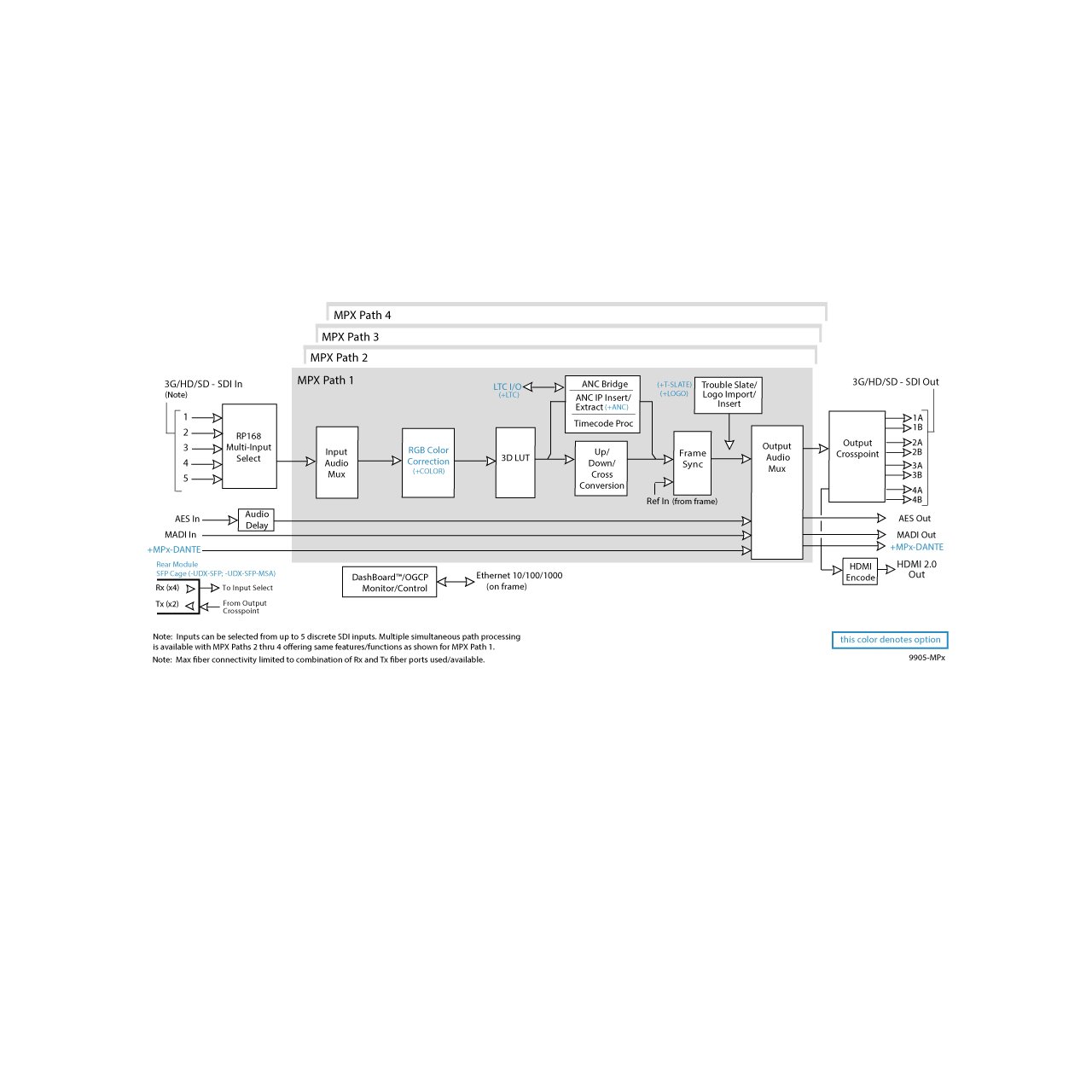

  • Multi-Path design offers four independent UDX / frame sync paths (channels) per card
  • Flexible AES and MADI embed/de-embed for each path
  • Multi-input RP168 clean switch, with manual selection or GPI controlled input selection
  • Up/Down/Cross Conversion with user ARC control. 3D-LUT is standard feature for all paths.
  • Supports all popular formats: 480i, 576i, 720p, 1080i, 1080PsF, 1080p
  • Independent four-path ANC bridging, including closed-captioning processing
  • Noise Reduction and Detail Enhancement provide image quality optimization
  • Remote control/monitoring via DashboardT software, OGCP-9000 remote control panels or Cobalt's RESTful-based Reflex protocol
  • Highly integrated ST 2110 companion for the Cobalt 9904-UDX-4K and 9905-MPx audio/video processors
  • Offers multiple 25G Ethernet interfaces to support 4K signals without the need for any type of compression and to support ST 2022-7 seamless redundancy switching for improved network reliability
  • Built-in NMOS support offers straightforward interface to an existing network, with auto-discovery by the network management
  • High-density, compact openGear card-based solution, with multiple devices able to be combined into a single frame for multi-channel operation, as well as offering the standard features of redundant hot-swappable power supplies and hot-swappable cards


• Specifications:

  • 3G/HD/SD-SDI Input/Outputs
  • (4) 75Ω inputs (max); (4) inputs can be simultaneously routed to the four UDX/FS paths.
  • (2x4) 75Ω outputs (max)
  • SDI Formats Supported: SMPTE 424M, 292M, SMPTE 259M
  • Return Loss:
    > 15 dB up to 1.485 GHz
    > 10 dB up to 3 GHz
  • Input Cable Length:
    120m Belden 1694A cable at 2.97 Gbps
    240m Belden 1694A cable at 1.485 Gbps
    400m Belden 1694A cable at 270 Mbps
  • Output Signal Level: 800 mV ±10%
  • DC Offset: 0 V ± 50 mV
  • Alignment Jitter (3G/HD/SD): < 0.3/0.2/0.2 UI

    Frame Sync Audio/VIdeo Delay
  • Max offset: 20 frames
  • Latency (min): 1 frame

    User Audio Delay Offset from Video
  • Bulk delay control: -33 msec to +3000 msec.
  • Per-channel delay controls: -800 msec to +800 msec

    AES Audio Inputs/Outputs
  • (8) AES-3id 75Ω coaxial ports (max); port direction assignable as inputs or outputs in groups of 4 ports.

    MADI Audio Inputs/Outputs
  • (2) 75Ω coaxial ports (max)
    Note: Not all rear modules support full MADI I/O. MADI I/O is a function of Rear Module Used. See Rear Module illustrations for specific information.

    MPx-DANTE-64x64 Audio Inputs/Outputs
    (64) Input Channels
    (64) Output Channels
    Note: This is an optional feature.

    HDMI Output
  • HDMI 2.0 Output; type A standard connector

    GPIO
  • 6 GPI (max); 2 GPO (max)
    Note: GPIO max capacity is a function of Rear Module used. See Rear Module Options tab for specific information.

    Frame Reference Input
  • (2) reference from frame bus. SMPTE 170M/318M "Black Burst", SMPTE 274M/296M "Tri-Level"

    Frame Loading (Max. recommended number of 9905 cards supported per Frame Model)
    -OG3 Frame: (5) cards
    -HPF-9000 Frame: (5) cards
    -oGx Frame: (7) cards
    Note: In all cases, it is recommended to leave a 1RU gap above the frame and set frame Network Controller Card to run the frame cooling fans at full (max.) speed.


• Item Includes:

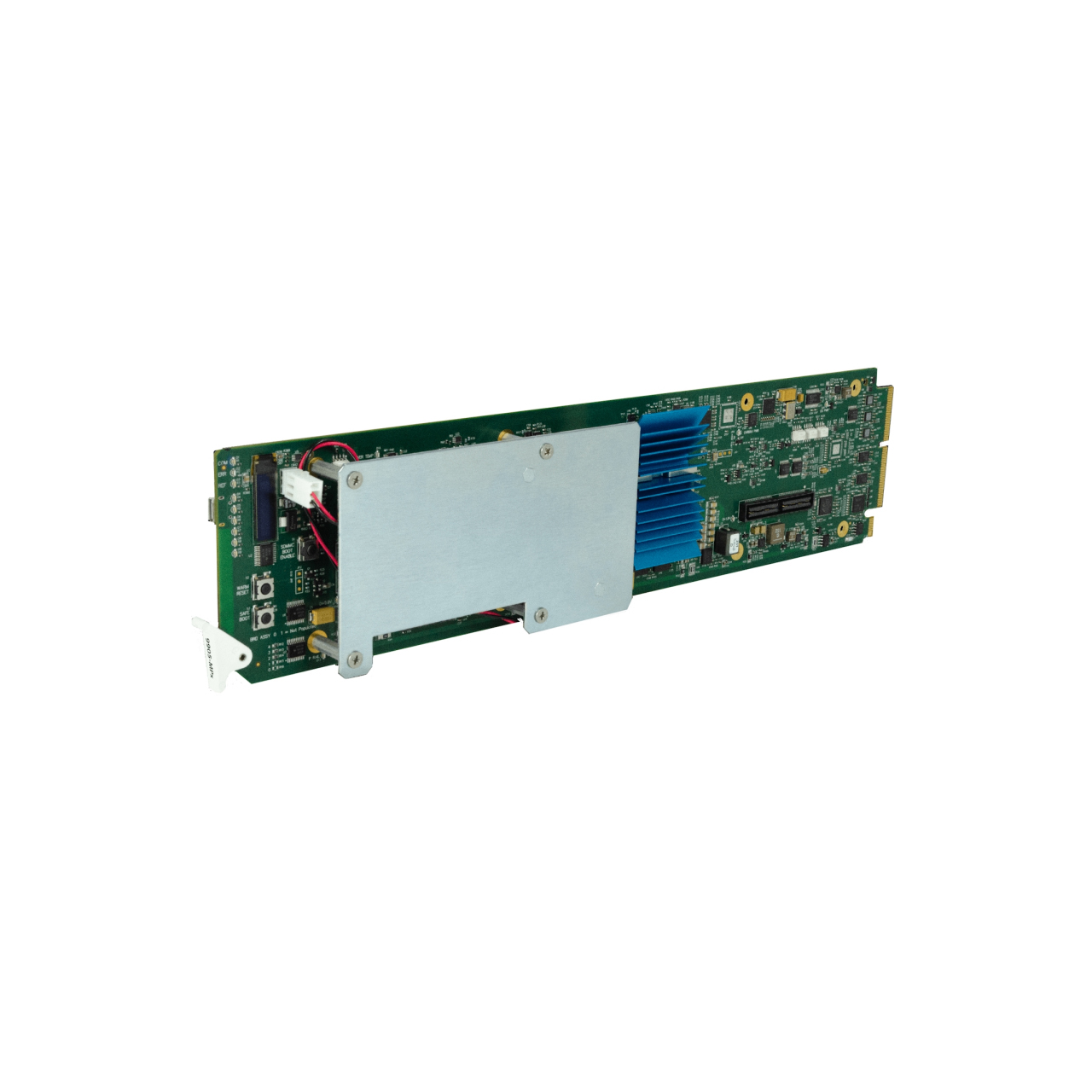

  • 1x Cobalt Digital 9905-MPx 3G/HD/SD Quad-Path Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor
  • 1x Cobalt INDIGO 2110-DC-01 factory add-on


• Warranty:

  • Five year warranty
