Apantac OG-DA-8HD-II-SET-1 Triple-Rate 1 x 8 SDI Distribution Amplifier with Passive Loop-Output

ITEM #: APA-OGDA8HDIIST1 MFG #: OG-DA-8HD-II-SET-1

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Apantac
Free Shipping with $49 Minimum Order

List Price:

$515.00

Our Price:

$450.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

OG-DA-8HD-II-SET-1 - Overview

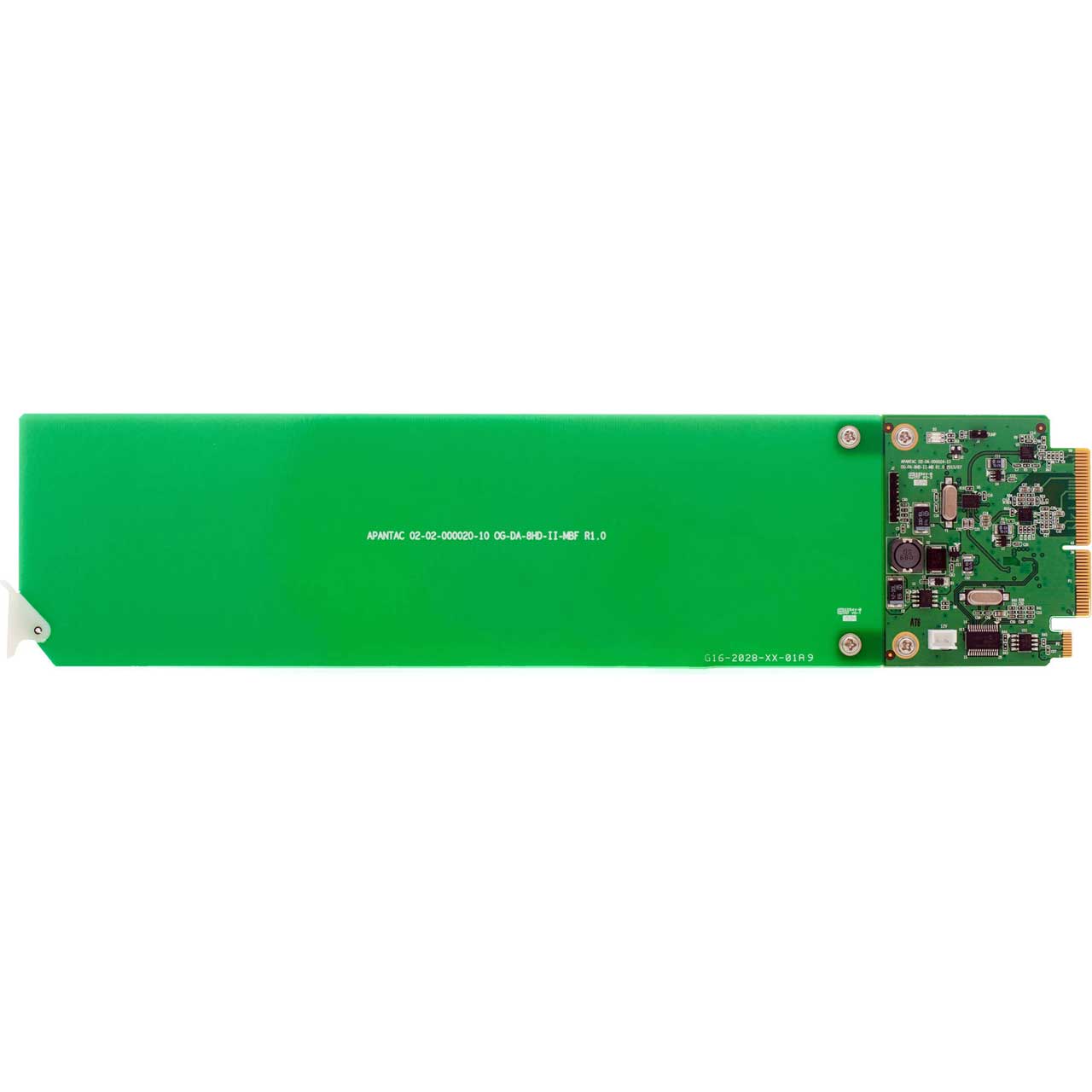

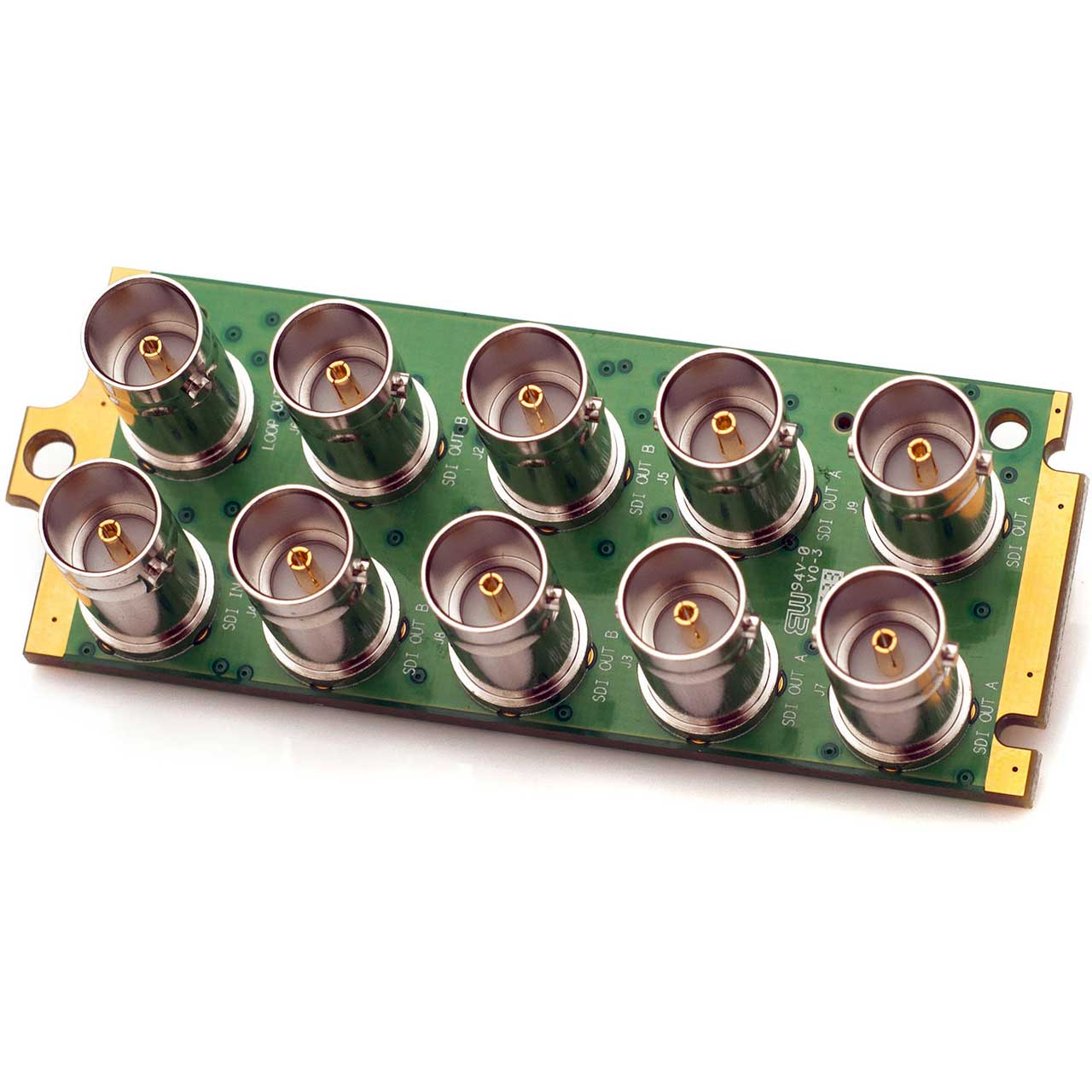

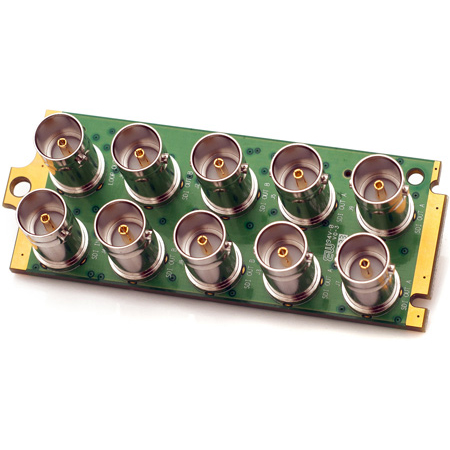

Apantac OG-DA-8HD-II-SET-1 is a triple-rate 1 X 8 SDI distribution amplifier with passive loop output. This unit is an openGear card with a rear module.Occupies 2 Slots

  • Features:

    • openGear 3.0 card-based form factor
    • 1 x 8 triple rate reclocking SDI distribution amplifier with a passive loop out
    • Reclocker can be turn on/off via openGear Dashboard
    • SMPTE 424M/292M/344M/259M complian
    • Data rates: 125 Mbps to 2.97 Gbps
    • Signal Level: 800mVP-P±10%
    • Equalizes up to 120 meters of Belden 1694A at 2.97 Gbps up to 140 meters of Belden 1694A at 1.485 Gbps, or up to 400 meters of Belden 1694A at 270 Mbp
    • Supports DVB-ASI at 270 Mbps for output 1, 3, 5 and 7
