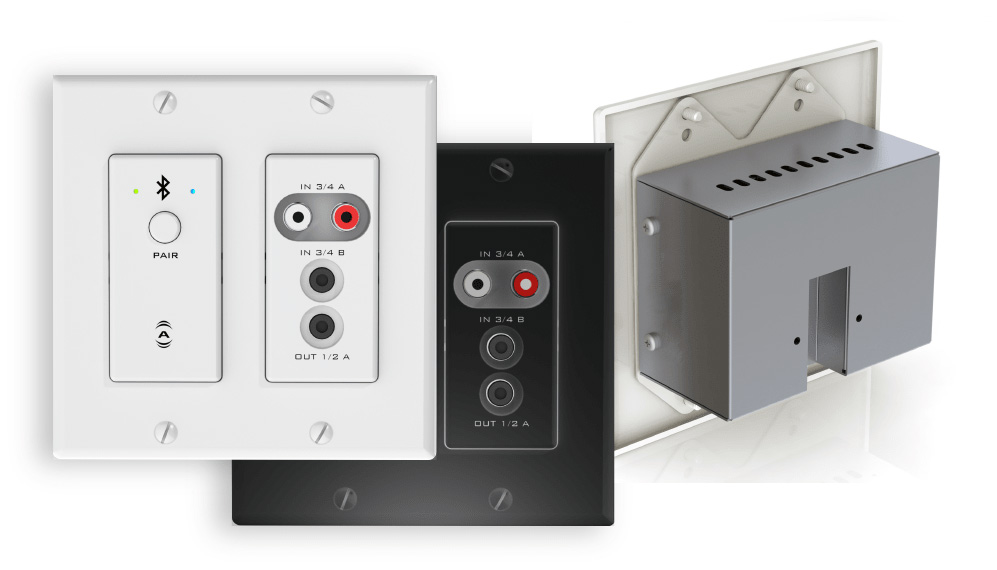

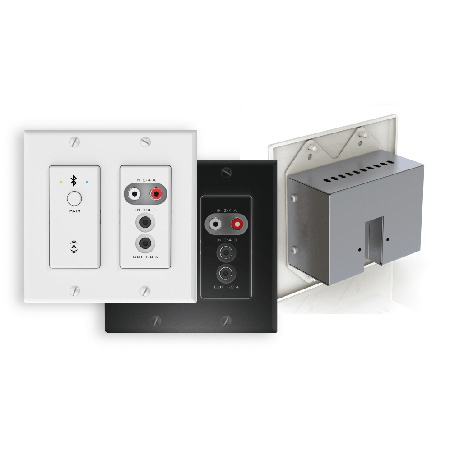

Attero Tech UNA6IO-BT AES67 Networked Audio Wall Plate - 4x2 Multi I/O with Bluetooth - Black Version

UNA6IO-BT - Overview

• Features:

  • Simple pairing one button pairing/connect process for standalone operation with LED indication of connection status
  • Defeatable pairing button for restricted use applications with 3rd party control systems
  • Customizable Bluetooth friendly name in applications with co-located unA6IO-BTs
  • Compatible with most smartphones, Apple iPads, and Android tablets
  • Two RCA and one 3.5mm stereo input
  • One 3.5mm stereo output on the front. All outputs feature software controlled volume
  • 802.3af compliant PoE powered to work with any compliant PoE network switch

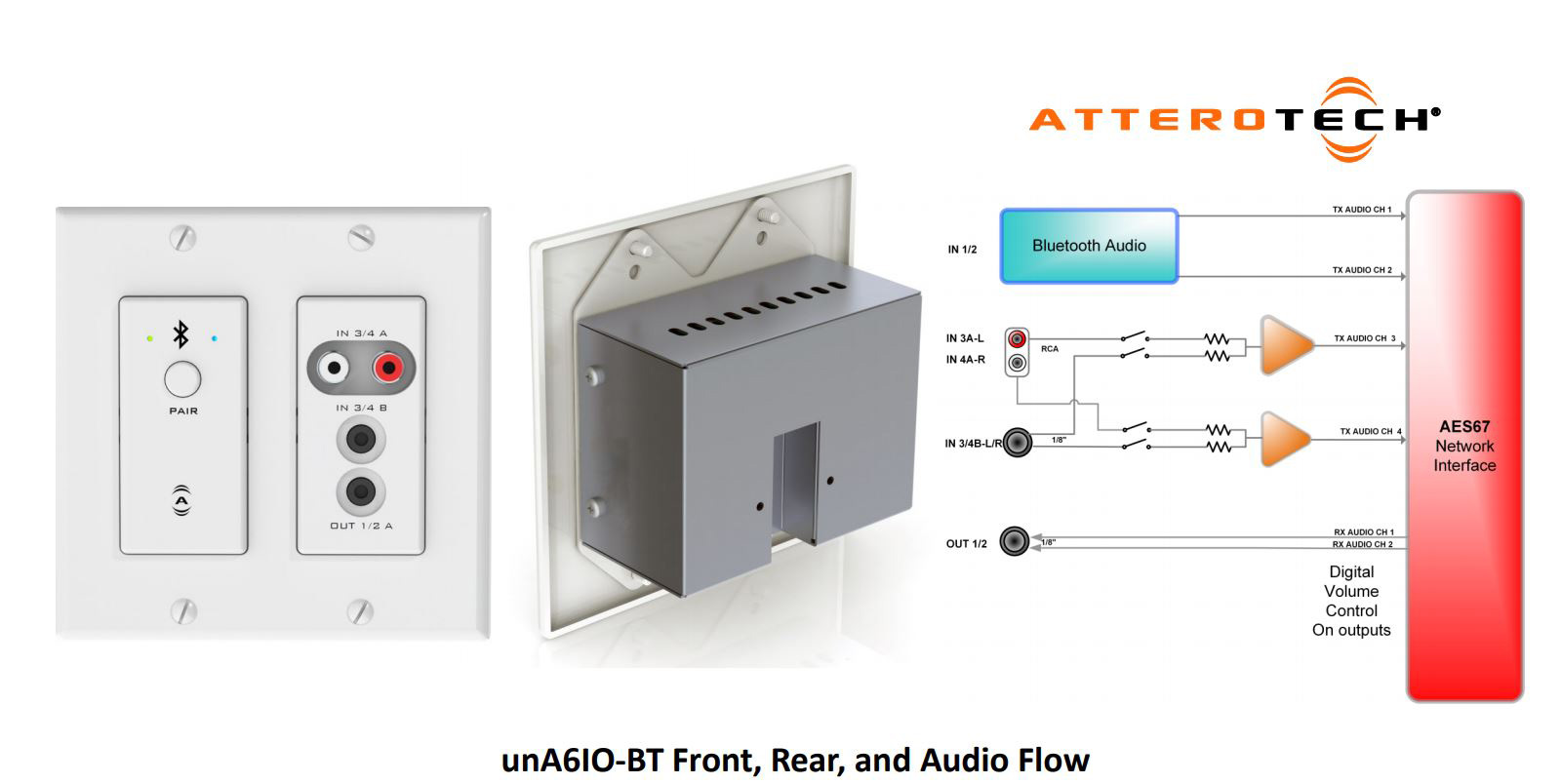

  • RCA inputs and 3.5mm input (carried as stereo) can be selected via software, individually or in combination, as an audio flow
  • Bluetooth audio is carried as stereo onto the AES67 network
  • AES67 is compatible with all QSC Core DSPs


• Specifications:

  • Bluetooth Profile: A2DP - Stereo audio is streamed from a Bluetooth device and onto the AES67 network
  • RCA and 3.5mm Inputs: RF filtered line level, input source software selectable
  • Color: Black
  • Maximum Input Levels (3.5mm/RCA): +12dBu
  • Output Volume Range: 0dB to -60dB in 1dB steps, software selectable
  • Output Noise:
  • 3.5mm Output: RF filtered line level
  • Maximum Output Level(3.5mm): +12dBu
  • System THD: <.02% at any gain, input signal 3dB below maximum (wired I/O only)
  • Certifications: FCC 47CFR Parts 15B and 18 (Class A), EN 55011, ICES-003, CE (EN55022 Class A and EN55024 Class A)
  • Dimensions (W x H x D): 3.54" x 4.2" x 2.0"
  • Operating Temperature: 0°C - 40°C
