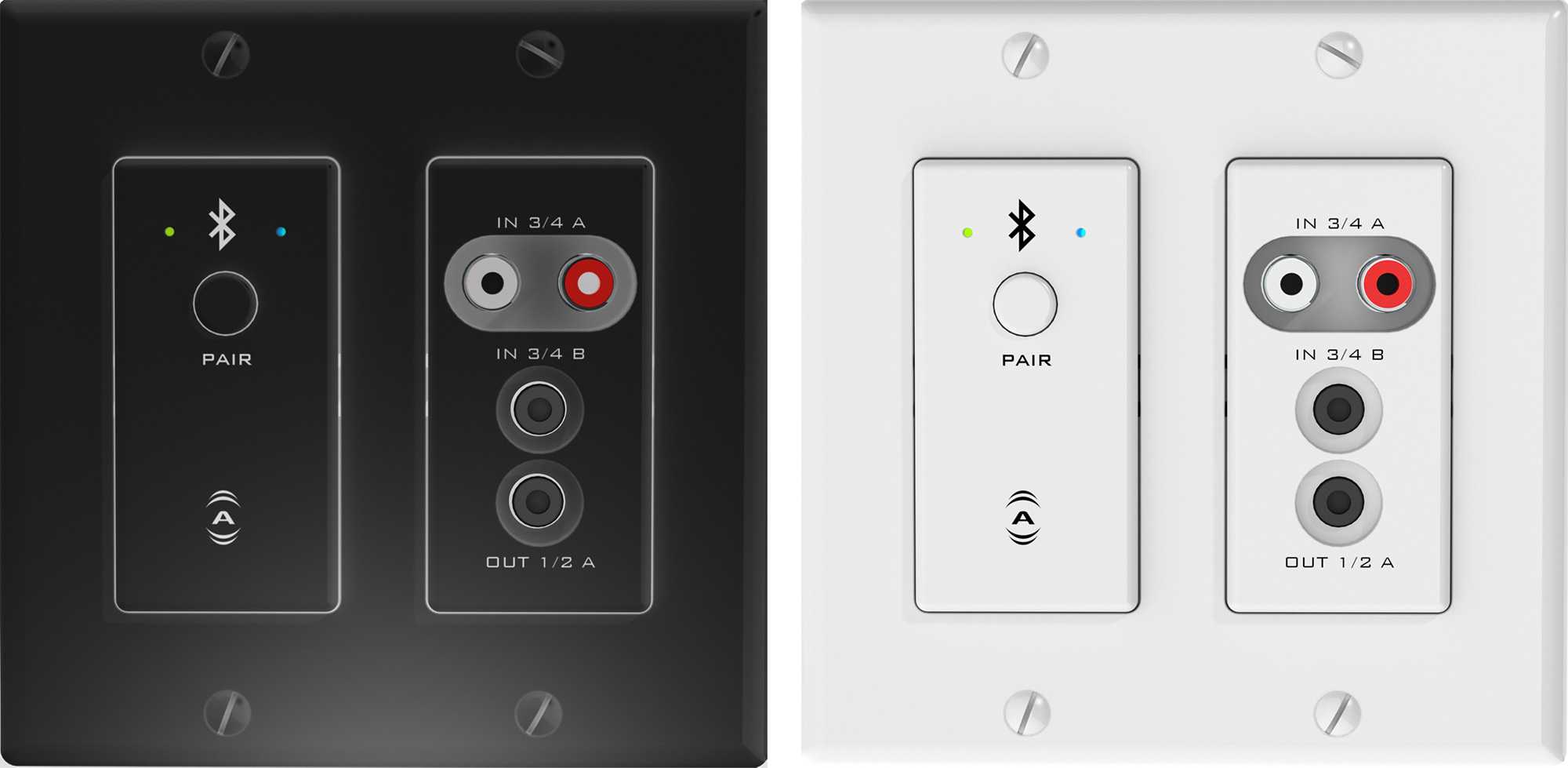

Attero Tech UND6IO-BT-C 4x2 Channel 2-Gang US Wall Plate with Bluetooth - RCA - 3.5mm I/O - PoE - White & Black inserts

UND6IO-BT-C - Overview

• Features:

  • Stereo Bluetooth audio streaming from a BT device onto a Dante network
  • Simple device pairing
  • 2 RCA and 1 stereo 3.5mm inputs
  • 1 3.5mm stereo output
  • Output gain controllable via software over the network
  • Powered by IEEE 802.3af PoE

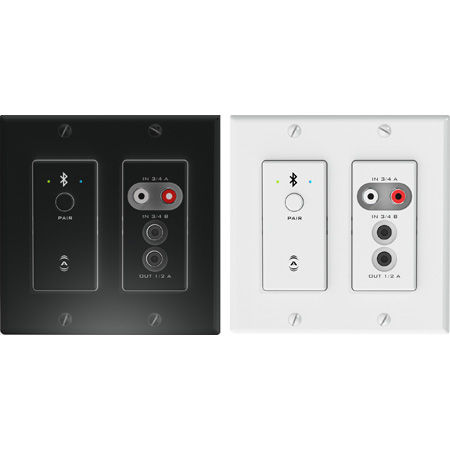

  • Black and white inserts and Decora plates included


• Specifications:

  Audio Inputs
  • Input Types: Stereo Bluetooth® v3.0 audio receiver
  • Stereo Unbalanced Inputs on RCA (Inputs 3/4 A)
  • Stereo Unbalanced Inputs on 3.5mm TRS (Inputs 3/4 B)
  • Bluetooth Range 10m (30ft) minimum
  • Input Switching: Software selectable line level input source on In 3 and In 4
  • RCA: L/R
  • 3.5mm: L/R
  • RCA + 3.5mm: L (3) and RCA + 3.5mm R (4)
  • Input Impedance: >10k Ohms (Input 3/4 A & B)
  • Maximum Input Levels: +12 dBu (Input 3/4 A & B)
  • Phantom Power: +48V, software selectable (Inputs 1/2 only)

    Audio Input Performance
  • THD+N: < 0.1% Bluetooth® Input @ -3dBFS <0.01% Line Inputs 3/4 @ -3dBFS
  • Frequency Response
  20Hz - 20kHz, +/- 3dB (Bluetooth® Input)
  20Hz - 20kHz, +/- 1dB (Inputs 3/4 A & B)
  • Dynamic Range: >95 dB (Inputs 3/4 A & B)

    Product Compliance
  • FCC CFR 47 Parts 15B Class A, ICES-003, CE (EN55022), RoHS, REACH

    Bluetooth® Profiles
  • A2DP Media Audio Bridging (100-150ms latency)
  • HFP Hands-Free Call Bridging(30ms latency)
  • AVRCP A/V Remote Control

    Audio Outputs
  • Output Type: Stereo Bluetooth® v3.0 audio transmitter
  • Two unbalanced line level outputs on stereo 3.5mm TRS
  • Attenuation Range: Software controlled volume (0 to -60dB, 1dB increments)
  • Output Impedance: 100 Ohms (unbalanced)
  • Maximum Output Levels: +12 dBu at 0dB attenuation (Output 1/2 A)

    Audio Output Performance
  • Dynamic Range: >80 dB
  • THD+N: <0.01% @ 1kHz, input signal 3dB below maximum
  • Frequency Response: 20Hz - 20kHz, +/- 1dB (Outputs 1/2 A & B)

    Environmental Conditions
  • Temperature: 0 - 40° C

    Dante™ Network
  • Physical Level: Standard Ethernet
  • Connector: Single RJ-45
  • Cable Quality: CAT-5e or better
  • Transmission Speed: 100 Mbps
  • Supported Sample Rates: 44.1kHz, 48kHz
  • Minimum Dante™ Network Latency: 1ms

    Power Requirements
  • PoE 802.3af PoE PD compliant
  • Power Consumption 5.5W Max
  • Cable Quality: CAT-5e or better

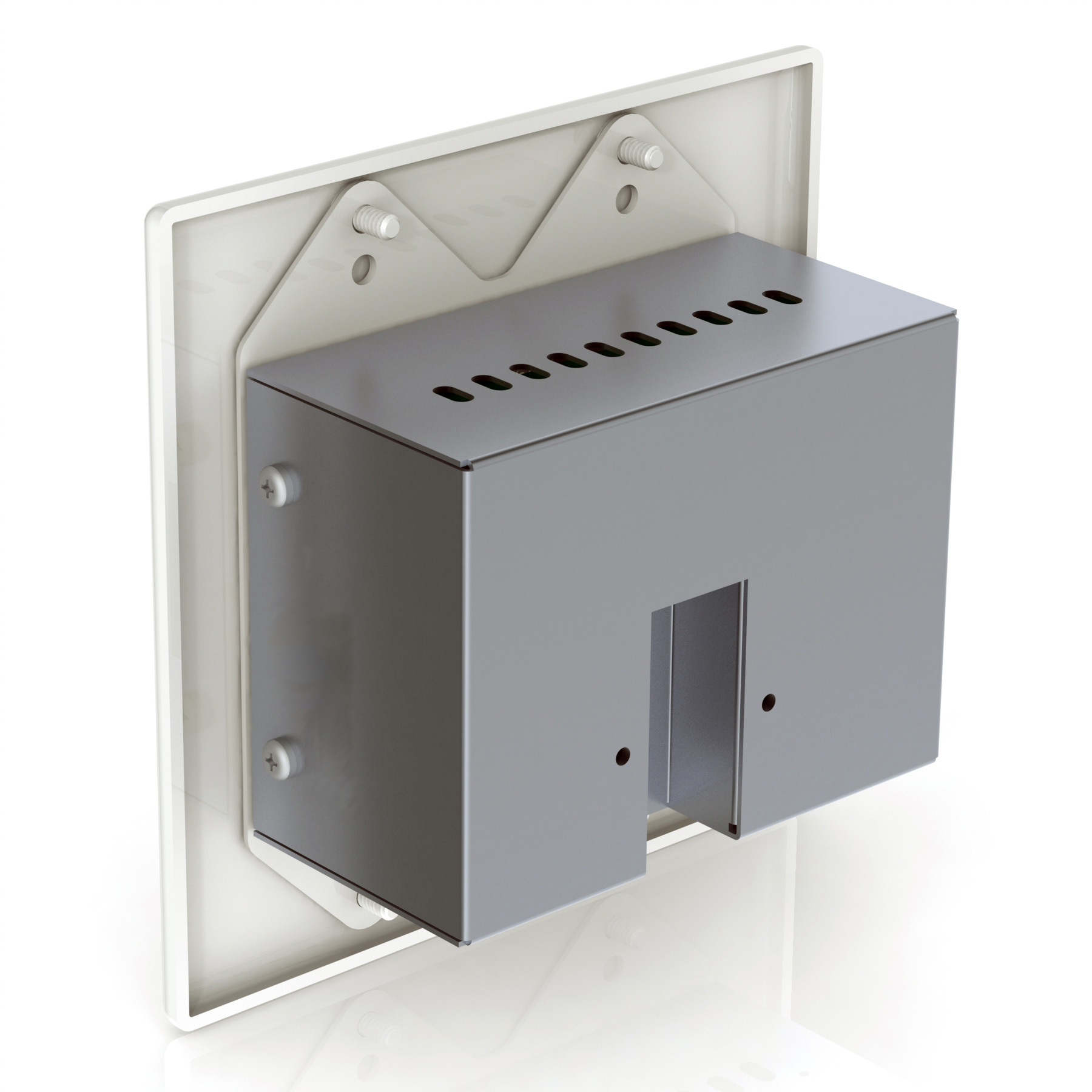

    Physical Dimensions
  • Width: 3.54"
  • Height: 4.2"
  • Depth: 2"
  • Weight: 0.8 lbs.


• Warranty:

  • 5 Year
