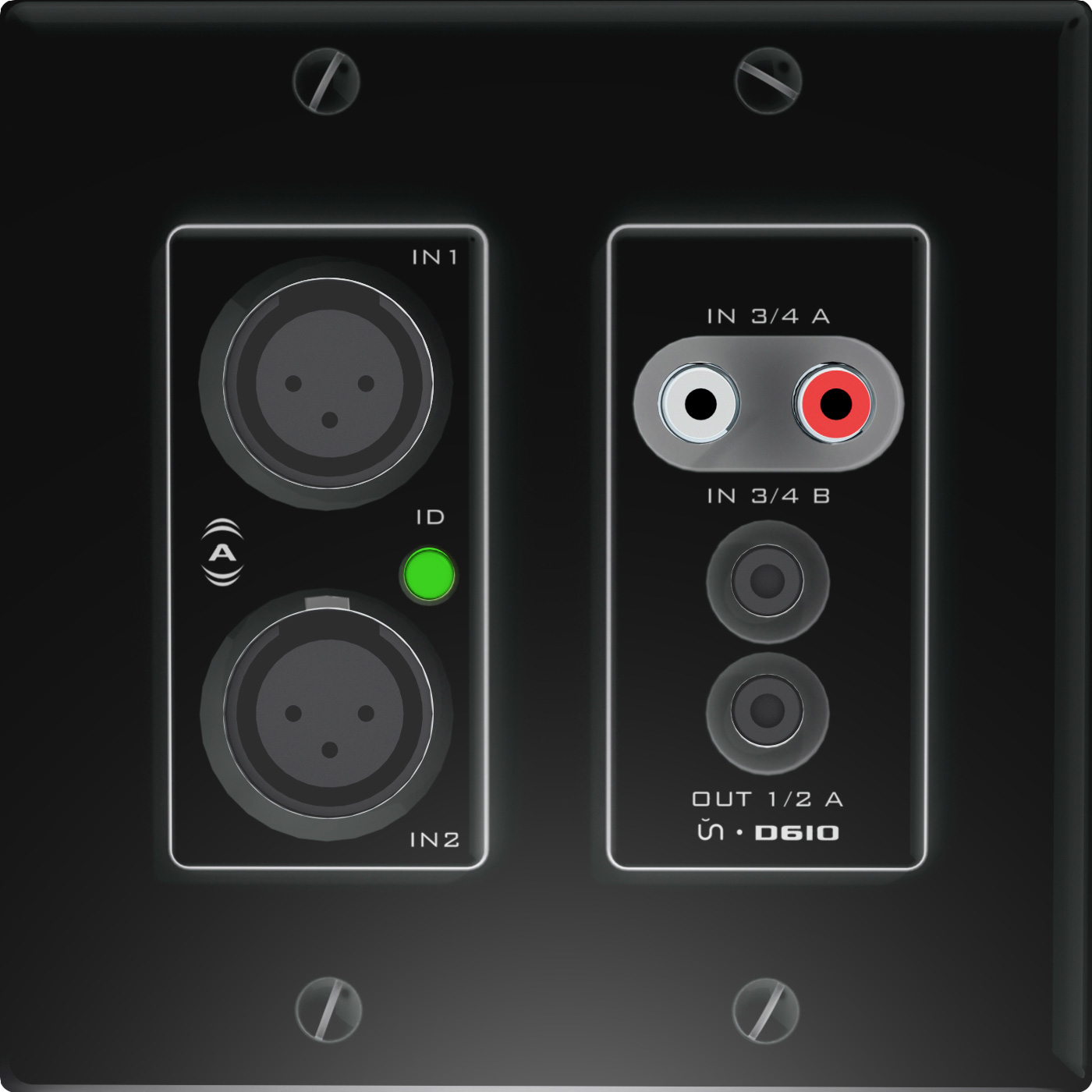

Attero Tech UND6IO-U 4x2 Ch 2 Gang US Wall Plate 2 Mic/Line In (XLR) - RCA - 3.5mm I/O - PoE - White & Black inserts

ITEM #: ATEC-UND6IO-U MFG #: UND6IO-U

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ATEC-UND6IO-U

UND6IO-U - Overview

The Attero Tech unD6IO Dante™ Audio Interface is a cost effective multi-I/O wall box. The unD6IO features two balanced mic/line XLR inputs, and two balanced outputs on side panel de-pluggable connectors. Two RCA line level inputs and a 3.5mm TRS line level input complete the available inputs. A 3.5mm TRS line level output is also included. The unD6IO is designed to fit into most dual gang US junction boxes and is PoE enabled, so all connectivity (power, control and audio data) is provided by a single CAT-5e/6 cable. The unD6IO’s size and I/O density make it easy to put Dante™ connectivity wherever it’s needed - near the audio source or sink ‐ thereby eliminating costly and interference prone analog wiring.

  • Features:

    • 2 Mic/Line balanced analog inputs supporting 0dB, +25dB, and +40dB gain
    • 2 side mounted line level balanced analog outputs on depluggable connectors
    • 2 RCA and 1 stereo 3.5mm inputs
    • 1 3.5mm stereo output
    • Input gain, output gain, and +48V phantom power controllable via software over the network
    • Powered by IEEE 802.3af PoE
    • Black and white inserts and Decora plates included


  • Specifications:

      Audio Inputs
    • Input Types: Two Balanced and RF filtered inputs on XLR (Inputs 1/2)
    • Stereo Unbalanced Inputs on RCA (Inputs 3/4 A)
    • Stereo Unbalanced Inputs on 3.5mm TRS (Inputs 3/4 B)
    • Gain: -18dB, -3dB, +25dB and +40dB, software selectable (Inputs 1/2)
    • Input Impedance: >1.8K Ohms at any gain (Inputs 1/2) >10k Ohms (Inputs 3/4 A & B)
    • Maximum Input Levels
      • +20dBu @ -18dB gain
      +6dBu @ - 3 dB gain
      -23dBu @ +25dB gain
      -38dBu @ +40dB gain
      (Inputs 1/2) +12 dBu ( Inputs 3/4 A & B)
    • Phantom Power: +48V, software selectable (Inputs 1/2 only)

      Audio Input Performance
    • EIN: -115 dBu (Mic Inputs 1/2)
    • THD+N: < 0.02% @ 1kHz for all gain settings, input signal 3dB below maximum. (Mic Inputs 1/2) <0.01% (Line Inputs 3/4)
    • Frequency Response
      • 20Hz - 20kHz, +/- 1dB (-18 and - 3 dB gain on Inputs 1/2)
      50Hz - 20kHz +/- 1dB (+25dB and +40dB gain on Inputs 1/2)
      20Hz - 20kHz, +/- 1dB (Inputs 3/4 A & B)

      Audio Outputs
    • Output Type: Two balanced line level with automatic muting on loss of Dante signal on 6-pin Depluggable Phoenix (Outputs 1/2 B)
    • Two unbalanced line level outputs on stereo 3.5mm TRS (Outputs 1/2 A)
    • Attenuation Range: Software controlled volume (0 to -60dB, 1dB increments)
    • Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced
    • Maximum Output Levels: +12 dBu at 0dB attenuation (Output 1/2 A) +20dBu at 0dB attenuation (Output 1/2 B)

      Audio Output Performance
    • Dynamic Range: >97 dB
    • THD+N: <0.01% @ 1kHz, input signal 3dB below maximum
    • Frequency Response
      • 20Hz - 20kHz, +/- 1dB (-18dB and - 3dB gain)
      50Hz - 20kHz +/- 1dB (+25 and +40 dB gain)

      Dante Network
    • Physical Level: Standard Ethernet
    • Connector: Single RJ-45
    • Cable Quality: CAT-5e or better
    • Transmission Speed: 100 Mbps
    • Supported Sample Rates 44.1kHz, 48kHz
    • Minimum Dante Network Latency 1ms

      Power Requirements
    • PoE 802.3af PoE PD compliant
    • Power Consumption 5.5W Max
    • Cable Quality: CAT-5e or better

      Physical Dimensions
    • Width: 3.54"
    • Height: 4.2"
    • Depth: 2"
    • Weight: 0.6 lbs.

      Product Compliance
    • FCC CFR 47 Parts 15B Class A, ICES-003 CE (EN55022), RoHS, REACH


  • Warranty:

    • 5 Year
