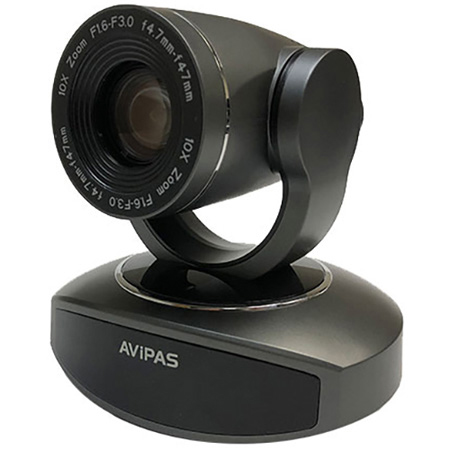

AViPAS AV-1082G USB 2.0 Full HD 1080p PTZ Camera with 10X Optical Zoom and 5X Digital Zoom - Gray

AV-1082G - Overview

• Features:

  • Elegant, compact design; super quiet and smooth pan/tilt mechanism
  • 1920 x 1080 high resolution output with a frame rate up to 60fps
  • 83.7° wide-angle high-quality lens
  • High SNR of CMOS sensor combined with 2D&3D noise reduction algorithm
  • H.264/H.265 video compression
  • Low-power sleep function, lower than 0.4W
  • IP streaming & USB2.0 output
  • RS-232 (VISCA/ Pelco-D/ Pelco-P) and IR remote control


• Specifications:

  • Sensor: 1/2.8 inch, CMOS, Effective Pixel: 2.07M, 16:9
  • Scanning Mode: Progressive
  • Lens: 10x, f4.7mm ~ 47mm, F1.6 ~ F3.0
  • Digital Zoom: 5x
  • Minimal Illumination: 0.5 Lux (@F1.8, AGC ON)
  • White Balance: Auto/Manual/One Push/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
  • Backlight Compensation: Support
  • Digital Noise Reduction: 2D&3D Digital Noise Reduction
  • Focus: Auto / Manual/ One Push
  • Electronic Shutter: Auto / Manual
  • WDR: OFF/ Dynamic Level Adjustment
  • Video Adjustment: Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve
  • Video S/N: ≥55dB
  • View Angle: 6.43°(Tele)60.9°(Wide)
  • Horizontal Rotation Range: ±170°
  • Vertical Rotation Range: -30° ~ +30°
  • Pan Speed Range: 0.1° ~ 60°/s
  • Tilt Speed Range : 0.1° ~ 30°/s
  • H & V Flip: Support
  • Image Freeze: Support
  • Number of Preset: 255 (10 by Remote Controller)

    IPC Features
  • Video coding standard: H.265/H.264
  • Video Stream: First stream, Second stream
  • First stream resolution: 1920x1080, 1280x720,640x480
  • Second stream resolution: 320x180,320x240,640x360,640x480,1280x720,1920x1080
  • Bit Rate Type: Variable rate, Fixed rate
  • Frame Rate: 5~60F/S
  • Audio encode standard: AAC/MP3/G.711A

    Input / Output Interface
  • HD Output: 1xUSB2.0
  • Network Interface: 1xRJ45: 100M (10/100BASE-TX)
  • Audio Interface: 1-ch 3.5mm audio interface, Line In
  • Communication Interface: 1xRS-232 (Circuit)
  • Protocol: VISCA/Pelco-D/Pelco-P
  • Baud Rate: 115200/9600/4800/2400bps
  • Power Jack: Input AC110V-AC220V; Output DC12V/1.5A

    Generic Specification
  • Input Voltage: DC12V±10%
  • Current Consumption: 1A (Max)
  • Operating Temperature: -10°C ~ 50°C (20% ~ 80%)
  • Storage Temperature: -10°C ~ 60°C (20% ~ 95%)
  • Size: 151.2mmX152.5mmX126.7mm (6" x 6" x 5")
  • Net Weight: 1.4kg (3lb)
  • Color: Gray


• GTIN:

  0858738005381
