Barix 2020.9299P IP Former TPA400 InformaCast IP Audio Decoder w/Syn-Apps - PoE Powered - 6W Amplified - Plenum Rated

ITEM #: BARIX-2020-9299P MFG #: 2020.9299P

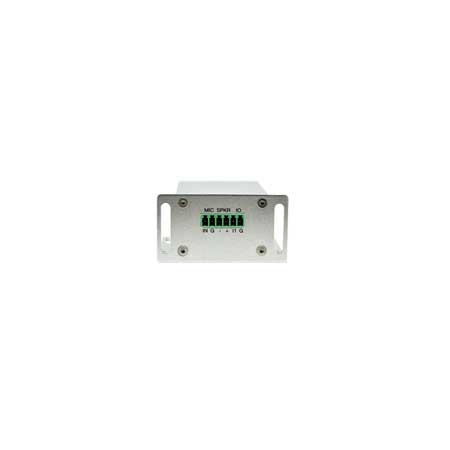

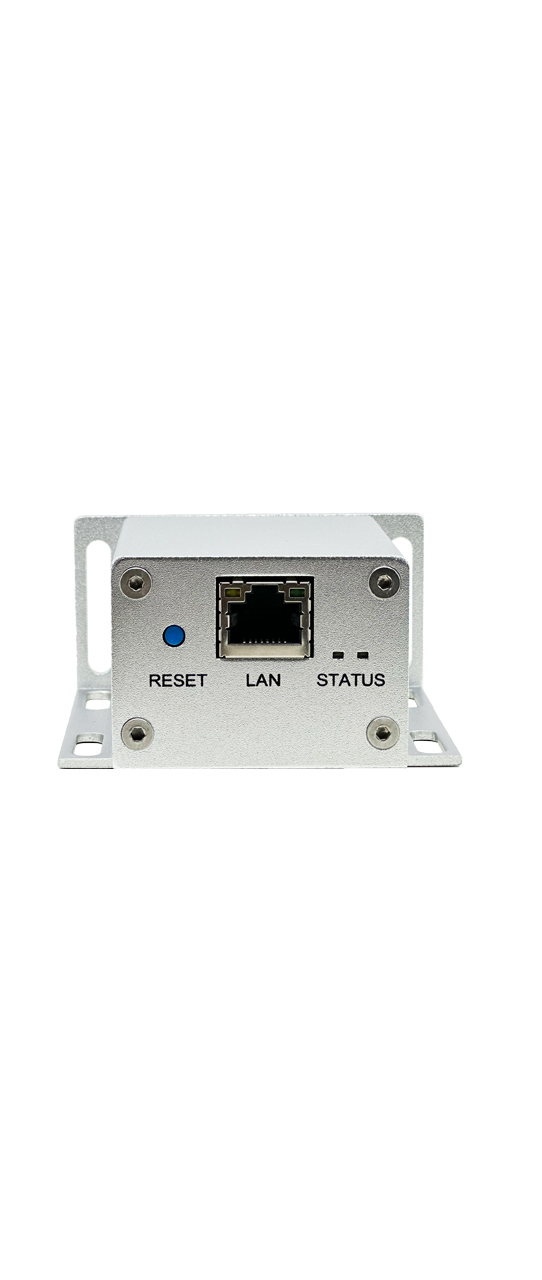

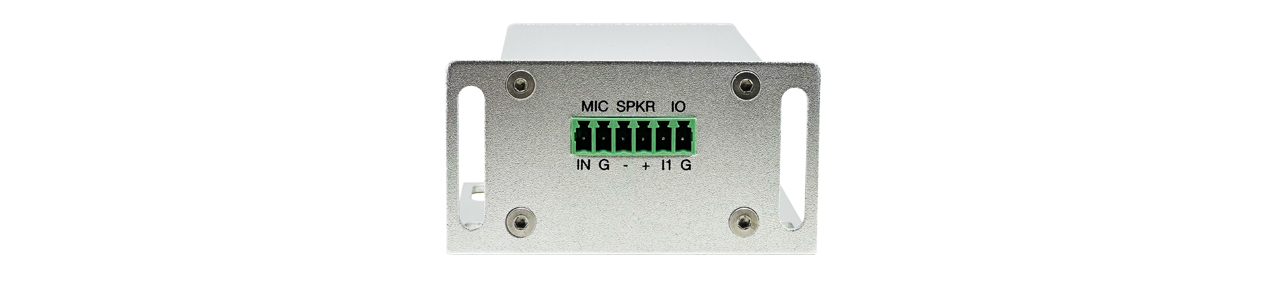

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$220.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    2020.9299P - Overview

    The Barix IP Former 2020.9299P is a POE powered IP Audio Decoder with an amplified output of up to 6 Watts on screw terminal block to drive loudspeakers. The IP Former can be attached to any loudspeaker either while in production or in existing installations. It enables audio-streaming over the internet with a reliable, fast-reactive connection, storing capabilities and VoIP/SIP negotiation. Installers can just sell an upgrade to existing installations and setups.

    Producers can offer an IP speaker without additional R&D. Powered by PoE, it is as easy to install as any clever IP speaker. As a decoder it streams audio from radio stations, telephones and paging stations. It is ideal for speakers to play background music, live announcements in schools, retail, offices, for emergency warning systems or triggered message playback and announcements over SIP. For management and advanced functions, the IP former is ready for (optional) sound detection of the surrounding. Barix is offering adaptation to your business needs to grow together.

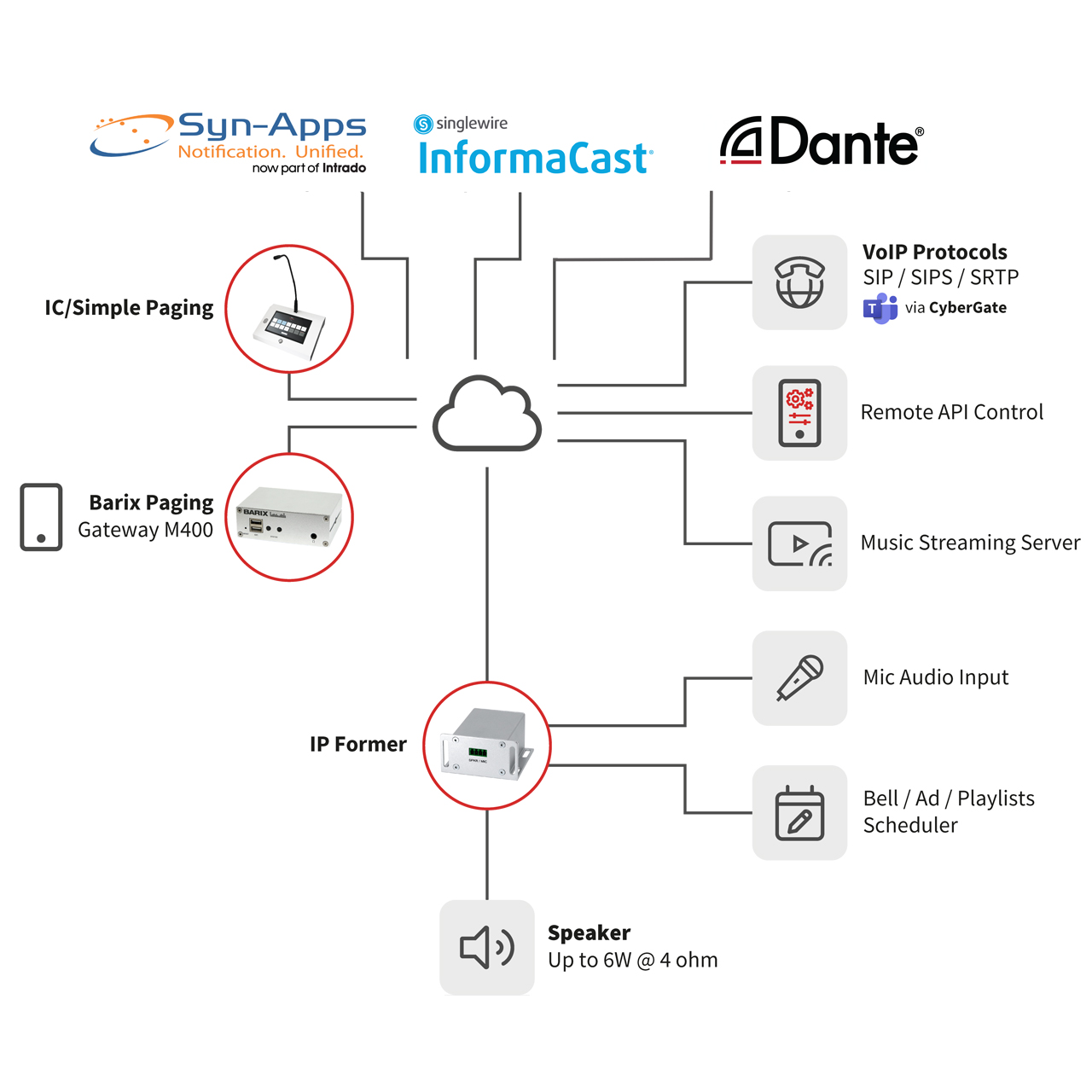

    Applications
    SIP and IP Paging / Notification
    Background music
    Emergency evacuation
    Singlewire InformaCast integration
    Syn-Apps Revolution integration
    MS Teams endpoint via CyberGate service
    Dante® support - requires extra license sold separately

    • Features:

      • 6.5W RMS @ 4 Ohm Speaker Output
      • Plenum Rated per UL Standard 2043
      • IEEE 802.3af PoE
      • Syn-App certified
      • Singlewire certified
      • Multi-level message priority
      • AACplus, MP3, G.711, G.722 over RTP
      • SIP VoIP endpoint support

    • Specifications:

      • Operation System
      • Embedded Linux based on Yocto

        Network Interfaces
      • 1 x Ethernet (RJ45) Interface
      • IPv4, IPv6 capable
      • 10/100 fdx/hdx, auto negotiation
      • Protocols supported: TCP/IP, UDP, RTP, SRTP SIP, SIPS, HTTP, HTTPS, DHCP, mDNS/DNS-SD (Avahi), NTP
      • Dante® compatibility
      • Singlewire InformaCast compatibility (license required)
      • SynApps Revolution compatibility CPU / Memory
      • Barix IPAM400 Processor Module
      • Quad-Core ARM Cortex™ -A7
      • 256MB DDR3 L3
      • 16MB SPI Flash
      • 8GB SD-Card Flash

        Audio Formats
      • MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
      • AAC-HE (AAC, AAC plus, AAC plus V2)
      • PCM linear 16bit @44.1 kHz
      • G.711
      • G.722
      • GSM
      • Opus, WAV, OGG Vorbis

        Audio Interface
      • 6.5W RMS @ 4 Ohm on Screw Connector
      • 4 - 8 Ohm Speaker Impedance
      • Microphone Input 3.3VDC Bias on Screw Conn

        User Interface
      • Web interface for configuration
      • 2 x Multicolor LED Status indicators
      • Reset & Factory Defaults Button

        Power Requirements
      • IEEE 802.3af PoE

        MTBF
      • > 200'000h

        Measurement / Mechanics
      • 2.4" x 2.4" x 1.25" / 72mm x 72mm x 38mm
      • Mounting ears interaxis: 60mm (for 70/100V Transformer compatibility)

        Weight
      • 110g

        Please Note Some IP Former modules were observed to have issues when connected to few industrial switches, namely the Moxa EDS-P510A-8PoE and the Phoenix Contact 1000. When connected to these switches SOME modules enter in a power loop. If possible please try to avoid using those switches or any other switch providing a Voltage at PD (powered device) less than 46VDC

    • Item Includes:

      • 1x IP Former TPA400
      • 1x Speaker Connector
      • 1x Quick Install Guide

    • Warranty:

      • 2 Year
