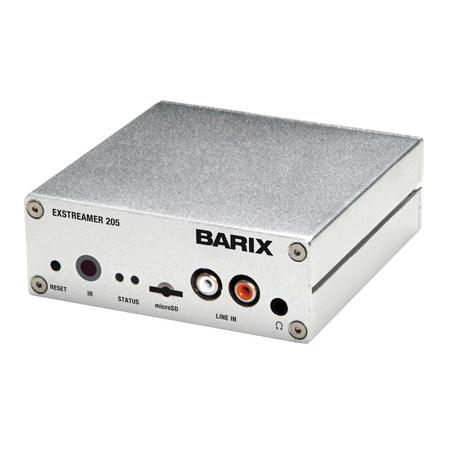

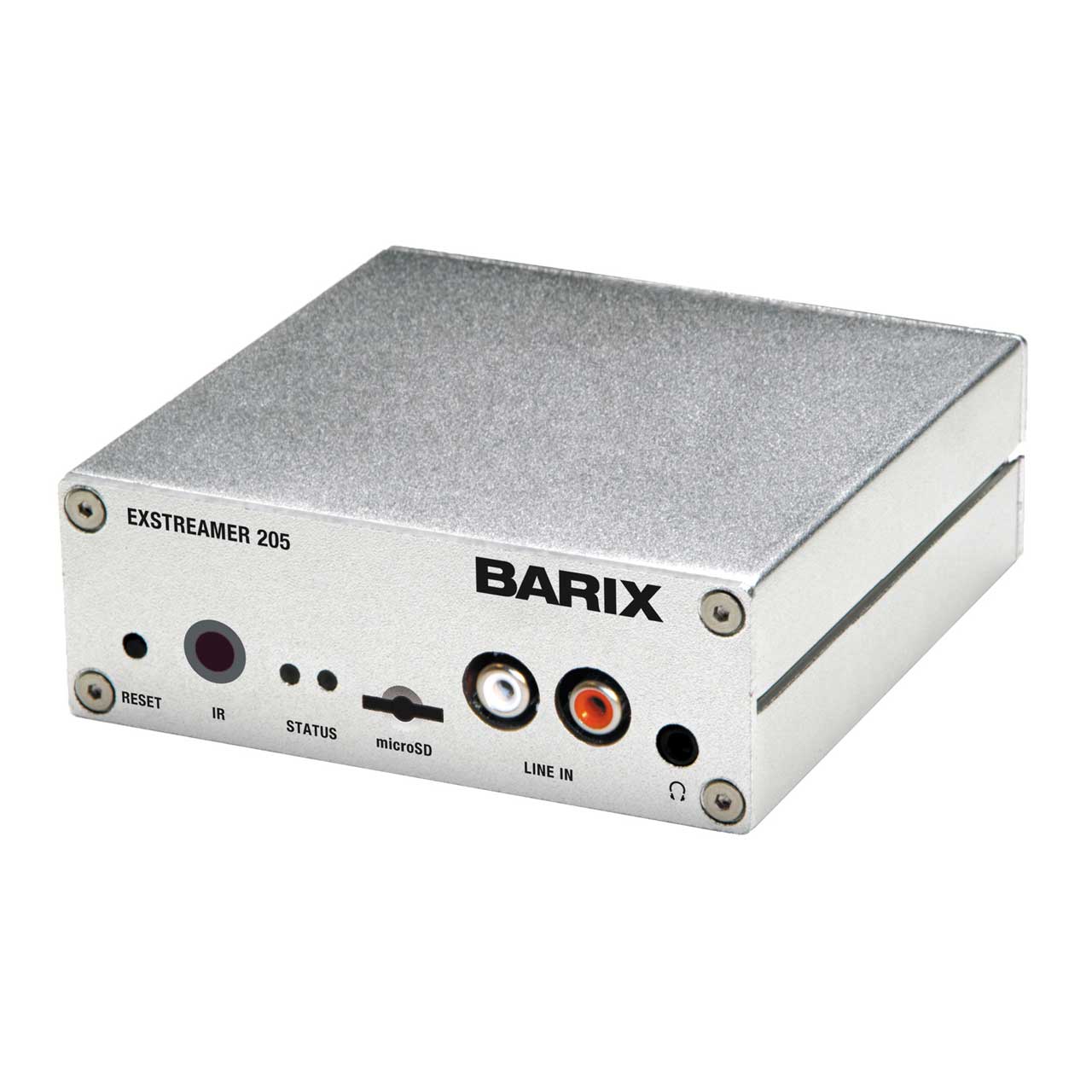

Barix Exstreamer 205 IP Audio Stream Decoder

2011.9113 - Overview

• Features:

  • AACplus, MP3, Ogg Vorbis, G.711, PCM Decoding
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Ampli? ed Output 2x25W (8 Ohm)
  • Stereo headphone mini jack
  • Digital Optical Out (S/P DIF)
  • RS-232 Serial Port
  • microSD Flash Memory Interface
  • IR Interface
  • Supply Voltage 24 VDC


• Specifications:

  • Electrical
  • Supply Voltage 24 VDC, 70 Watt max.
  • 2.1mm barrel connector
    Ethernet
  • 10/100Mbps Auto-negotiation
  • RJ-45 connector with integrated Link/Activity LED
  • Protocols: TCP/IP, UDP, RTP, SIP, DHCP, Multicast
  • capable, webserver for control, status and configuration
    Analog Output
  • 2 x 25 W (RMS @ 8 Ohm) speaker outputs
  • Headphone mini jack (3.5 mm, 1/8 inch)
  • S/P DIF out (optical)
  • Output level software controllable
  • Frequency response (-3 dB) 19 Hz .. 20 kHz *
  • Signal to Noise Ratio 94 dB *, THD <0.05% *
  • * depends on used codec, best results @48kHz PCM
    Audio formats
  • MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
  • AAC-HE (AAC, AAC plus, AAC plus V2)
  • Ogg Vorbis
  • WMA (up to version 9)
  • PCM (L16, uLaw, aLaw), 8..48 kHz sample freq.
  • G.711, G.722
    IR Interface
  • Built-in IR receiver, IR remote control included
  • Optional external IR receiver via serial port (IR Kit)


• Item Includes:

  • Exstreamer 205, Power supply, IR remote control and batteries (2 x AAA), Speaker screw terminal banana jackes( 2 red, 2 black), quick install guide


• GTIN:

  7640113551131
