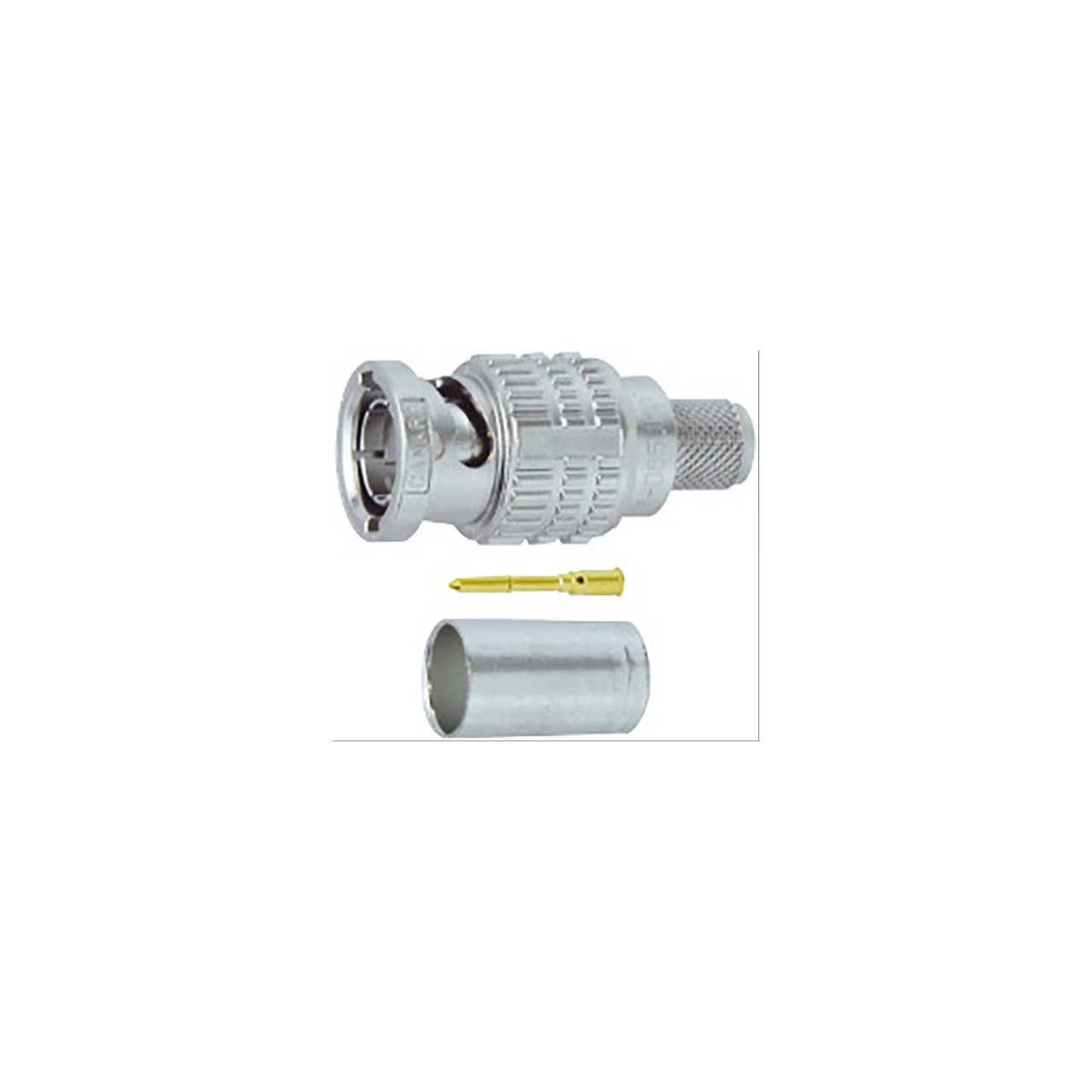

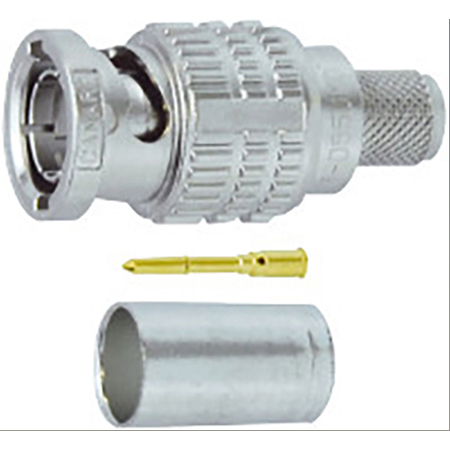

The Canare BCP-D8UHD is a 75 Ohm BNC crimp plug that is specifically engineered for the L-8CUHD coax 12G-SDI cable. The BCP-D8UHD features the reliable 3-piece crimp you are familiar with and a Return Loss (RL) performance well within the SMPTE 2082-1 specification ( > 15dB @12GHz ). Canare crimp design ensures quick and reliable installation. With gold plated "snap lock" center pin and beryllium copper outer contact and an elongated body design for better grip. This is sold as a pack of 100.
Part of the Canare BCP-D Series of high quality 75 Ohm BNC crimp plug connectors, the Canare BCP-D8UHD is rated for all SMPTE ST-2082-1, 424M & 292M applications to confidently transmit 12G-SDI bit-rates in 4K video production. Canare BCP-D BNC connectors feature an elongated body for better finger grip and a unique position mark on the body allows the connector bayonet fit to be checked easily.
The BCP-D8UHD BNC connector is designed for Canare L-8CUHD coaxial to deliver a combination of superior cable pull strength you won't find with other connectors. Its gold plated center pins 'snaps' into place to ensure perfect alignment with connected video gear and patch panels. Easy assembly can be achieved using Canare Strip & Crimp Tools to make a perfect fit everytime.
Please Note: Crimp plugs require a crimping tool and a suitable die set. See TC-2 Crimp Tool and the TCD-8HD Die set.
