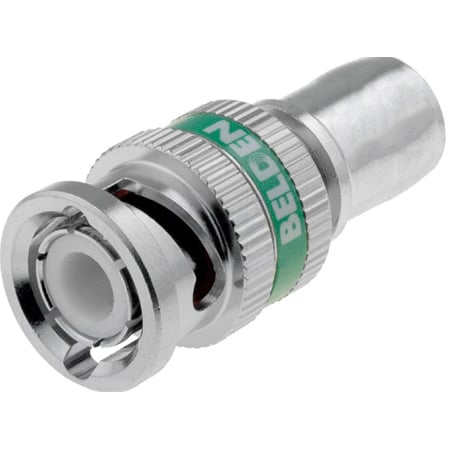

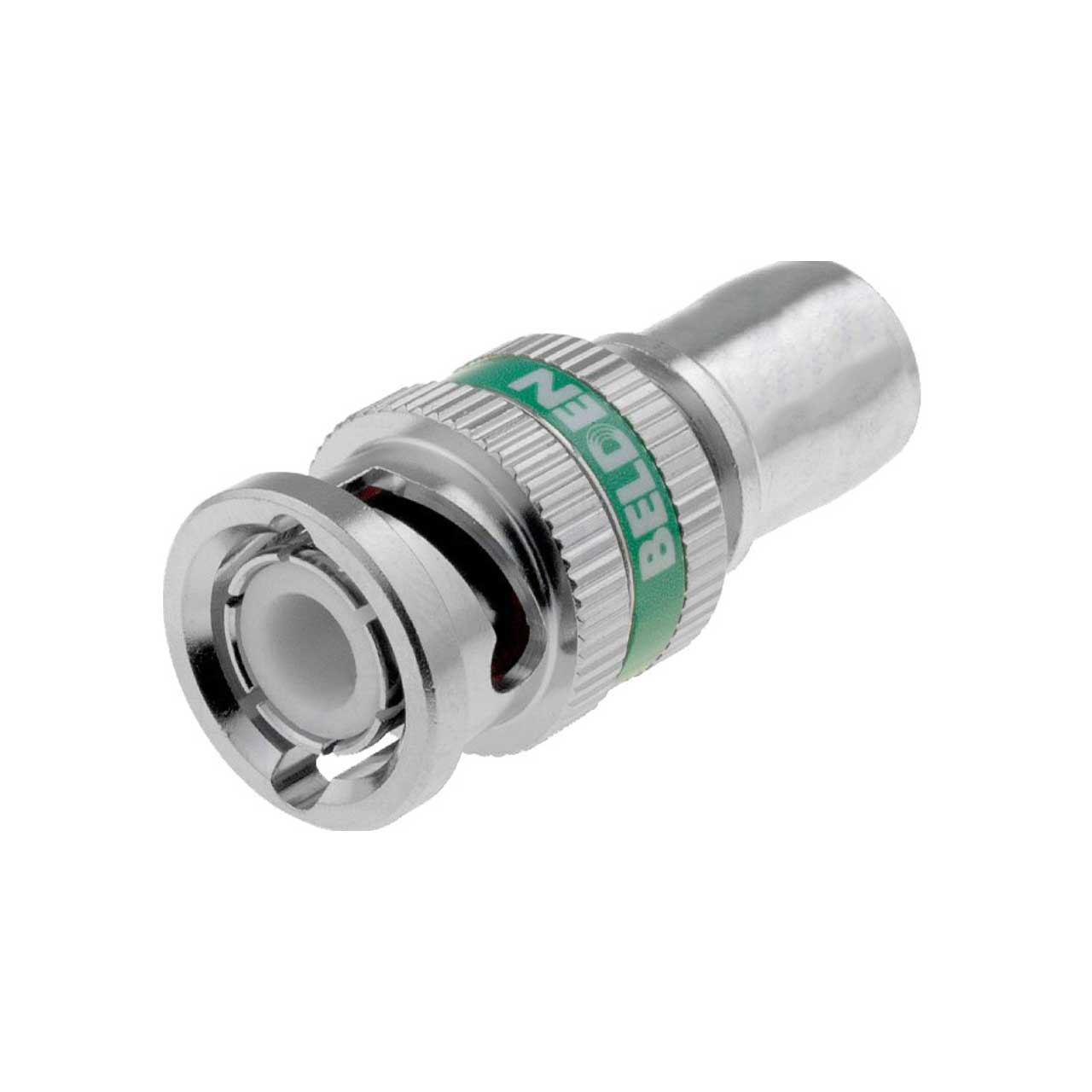

The Belden 1694ABHDL is a 50 pack of 6GHz, 1-Piece, Locking BNC Compression Connector for 1694A/RG6 Cable. Designed specifically for Belden Brilliance Broadcast and Professional A/V Coaxial Cables, HD Brilliance Connectors maximize broadcast signal integrity, quality, performance and durability.
Locking 1-Piece HD Brilliance BNC Compression Connectors
The Locking Connector features a patent-pending locking design feature, a screw-lock collar to physically "lock" the bayonet nut of the BNC in position. This limits movement of the BNC head and creates coaxial alignment from the cable through the BNC center pin, delivering superior return loss performance.
The 1-piece design simplifies and speeds the installation by eliminating loose pins and sleeves. This allows for repeatable and consistent installations every time while delivering return loss performance on par with more time consuming, traditional 3-piece designs. Connectors should not hinder signal performance, and Belden delivers this with unsurpassed return loss performance, faster, easier installations, excellent durability and innovative features.
Applications
HD-SDI
Video
Digital Video
SMPTE 2081-1 6 Gb/s UHDTV
SMPTE 424M 3 Gb/s HD-SDI 1080P
