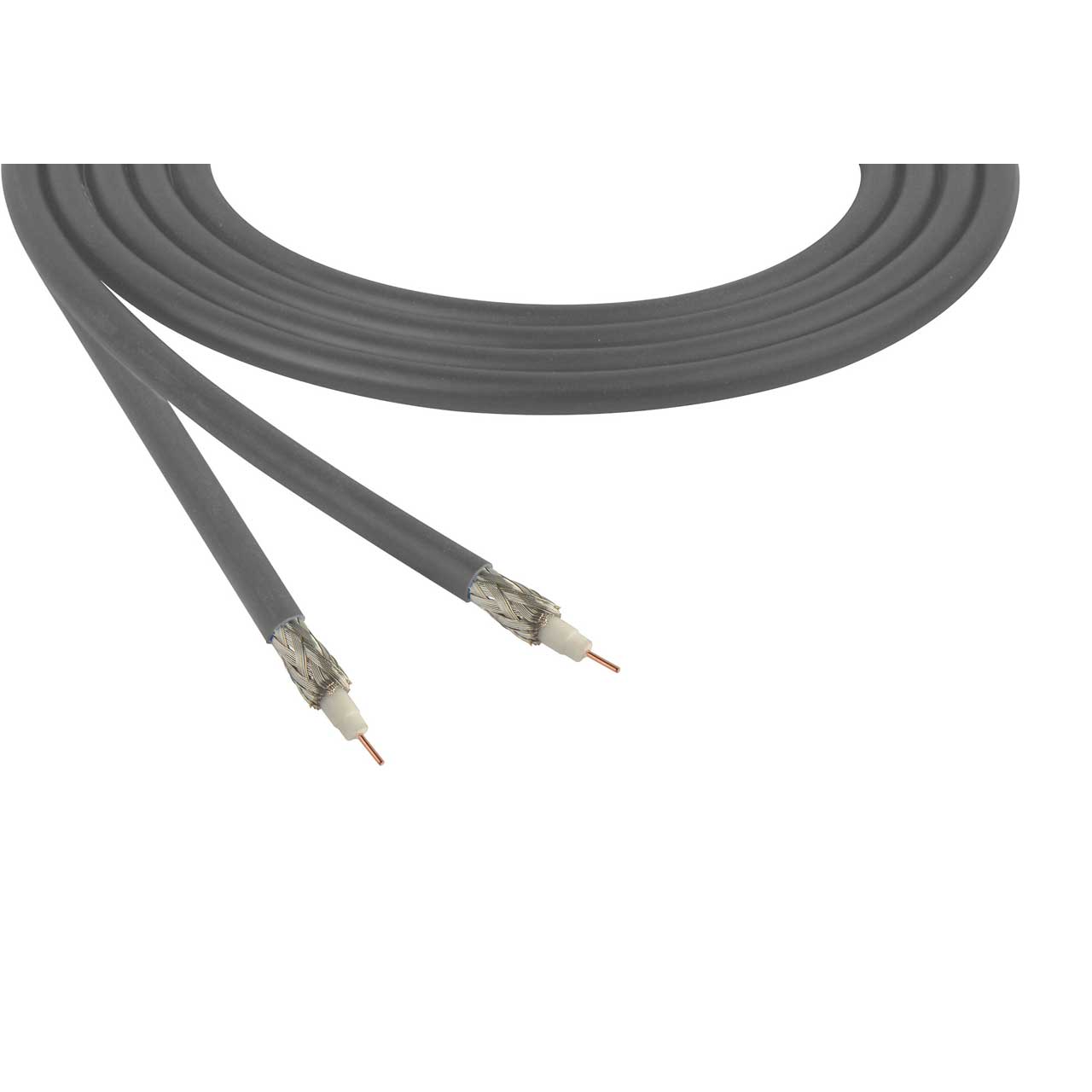

Belden 1855A CMR Rated 6G-SDI Mini-RG59 Digital Coax Video Cable 23 AWG - Gray - Per Foot

ITEM #: BL-1855A-FT-GY MFG #: BL-1855A-FT-GY

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.04

Our Price:

$0.79

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

BL-1855A-FT-GY - Overview

Belden 1855A is a 75 Ohm, 23 AWG Mini RG-59, 6G-SDI Precision Broadcast Video Coax Cable with a Solid Bare Copper Conductor, PE Insulation, Foil plus 95% Tinned Copper Braid Shield in a PVC Jacket that is CMR rated.

Belden’s premium multi-channel 6G-SDI coax cable meets the SMPTE ST-2081 6G-SDI Standards to support 6 Gbps and maximum resolutions for 4K video & audio applications up to 30Hz. This cable supports: 1080P (All formats to YUV 4:4:4), 10/12-bit 4Kx2K RAW, 10-bit 4Kx2K YUV 4:2:2.

Applications
Analog and Digital Video
6 Gb/s UHDTV
HD-SDI 1080p
Test Equipment
Satellite Headend
Telecom

  • Features:

    • Convenient Installation: Only one cable can be installed to send 10 Bit 4:2:2 4K at 30p or 24p & support 6 Gb/s of bandwidth for 6G-SDI
    • Durable Materials: The flexible cable sleeve provides abrasion resistance & its high quality connectors provide strain relief
    • High Quality Signal Transmission: Professional quality 4K, 75 ohm BNC connectors for proper 6G performance


  • Specifications:

    • RG Type Mini RG59
    • AWG: 23
    • Conductor Stranding: Solid
    • Conductor Material: Bare Copper
    • Conductor Nominal Diameter: 0.023 in
    • No. of Coax: 1
    • Overall Cable Diameter (Nominal) 0.159 in (4.04 mm)
    • Outer Jacket Material PVC - Polyvinyl Chloride
    • Outer Jacket Overall Diameter 0.159 in (4.04 mm)
    • Operating Temp Range: -30°C To +75°C
    • Environmental Suitability: Indoor/Outdoor, Indoor, UV Resistance
    • NEC / UL Compliance: CMR
    • CEC / C(UL) Compliance: CMG


  • Item Includes:

    • Belden 1855A Digital Coax Video Cable 23 AWG - Gray - Per Foot


  • Warranty:

    • Limited 10 Year Warranty
