Blustream HEX70CS-RX HDBaseT HDMI 18G Extender RX - 40m (1080p 70m)

ITEM #: BLU-HEX70CS-RX MFG #: HEX70CS-RX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Blustream
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$433.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

HEX70CS-RX - Overview

The Blustream HEX70CS-RX HDMI2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ Receiver offers market leading features and outstanding value utilizing CSC technology.

The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoH (PoE) up to lengths of 70m (4K 40m). The Receiver features simultaneous analog stereo and digital coax audio breakout.

  • Features:

    • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
    • Advanced Color Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
    • Supports 4K @ 60Hz 4:4:4 UHD video up to 40m
    • Extends HDMI 1080p video up to 70m
    • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
    • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
    • HDMI re-clocking to help solve HDMI, HDCP, compatibility and handshaking issues
    • HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently
    • Supports bi-directional RS-232 pass through
    • Supports bi-directional IR pass through
    • Advanced EDID management
    • HDCP2.2 compliant


  • Specifications:

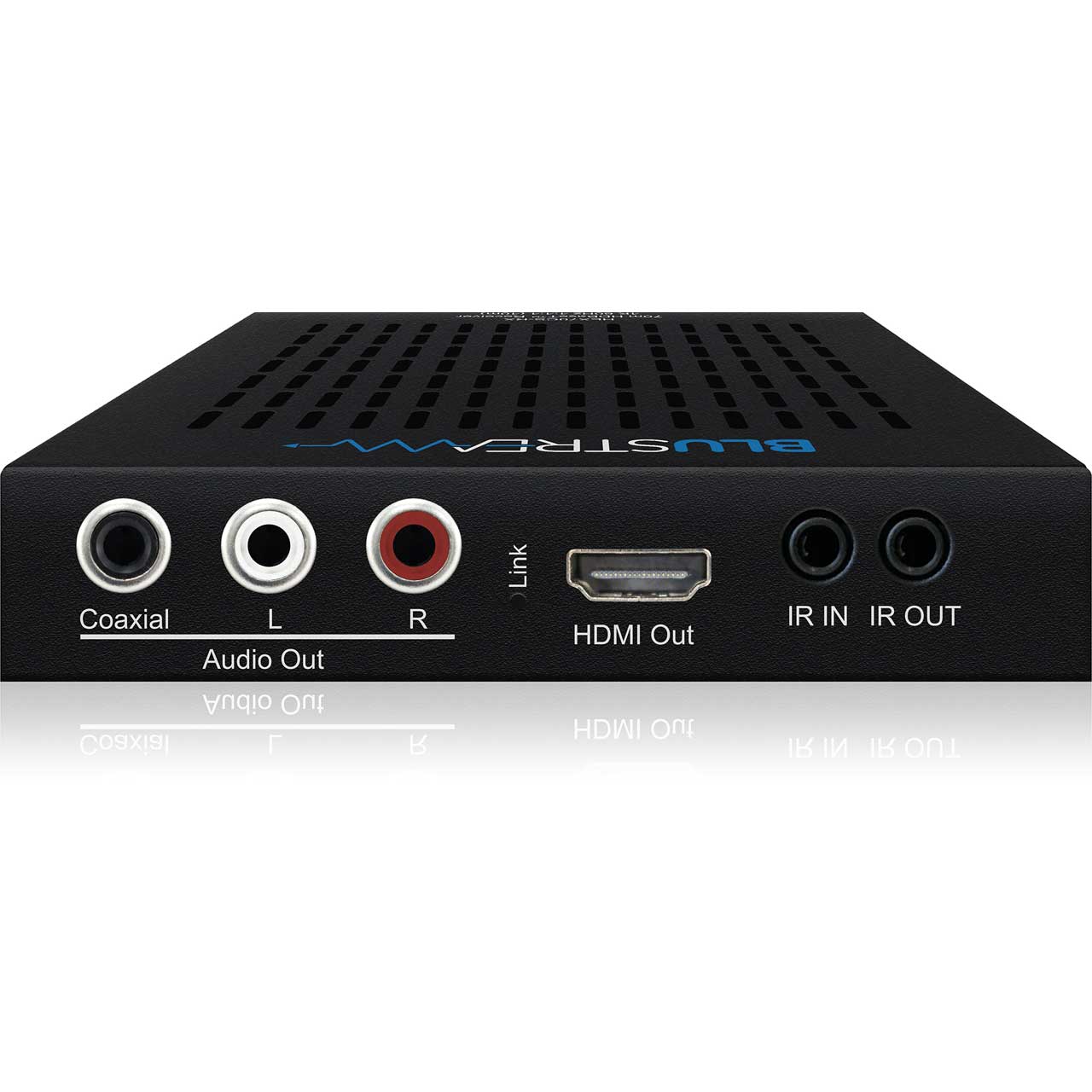

    • Audio Output Connectors: 1 x RCA (S/PDIF) & 2 x Analog RCA (Left / Right)
    • IR Output ports: 1 x 3.5mm mono jack
    • IR Input ports: 1 x 3.5mm stereo jack
    • RS-232 serial port: 1 x DB-9 female
    • Video Output Connectors: 1 x HDMI Type A, female

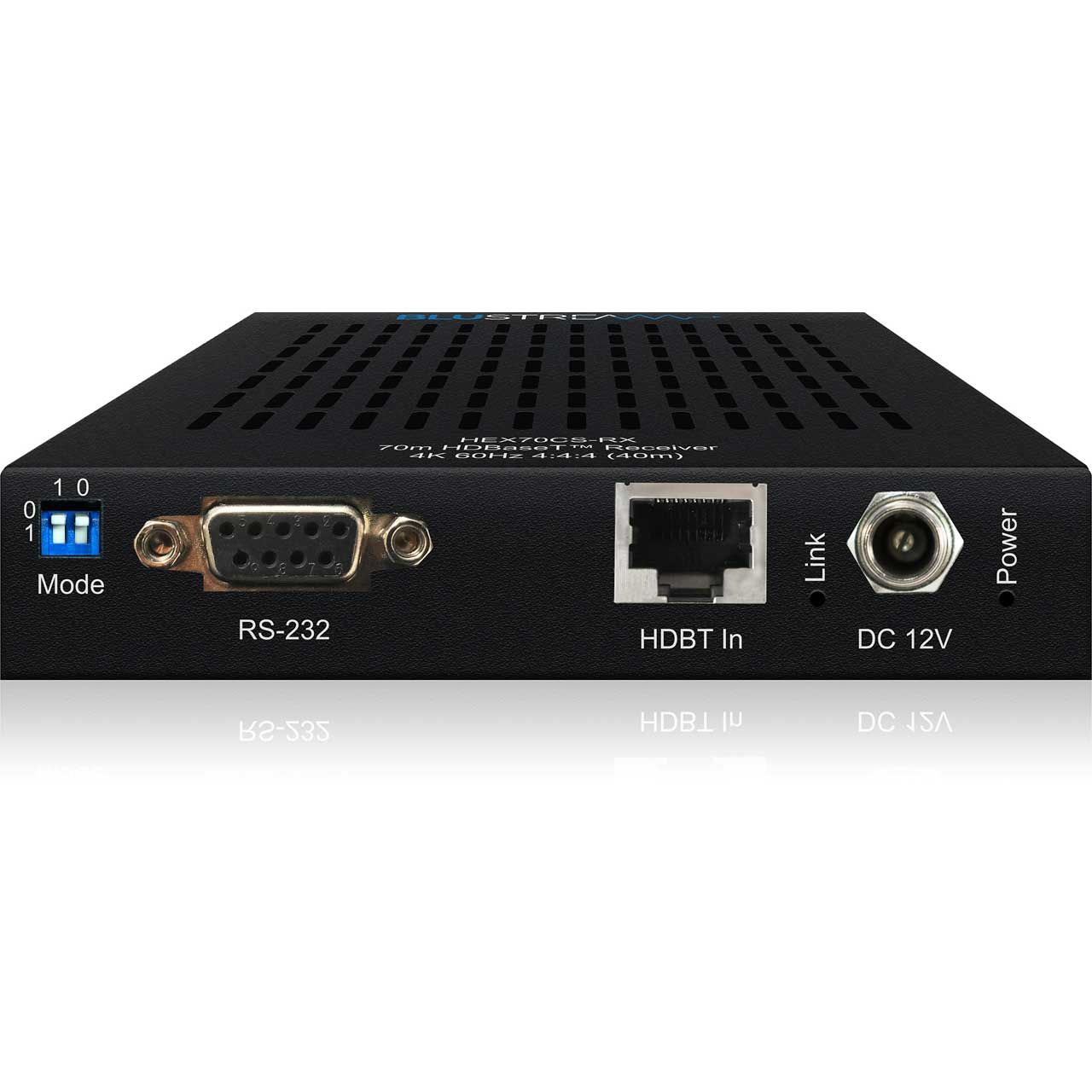

    • Video Input Connectors: 1 x HDBaseT™ RJ45 connector
    • Power Supply: 12V/2A DC, screw type connector (not supplied)
    • Power Consumption: 5.6W
    • Unit Dimensions (W x D x H): 113 x 124 x 22mm (without connections)
    • Unit Dimensions (W x D x H): 113 x 138 x 22mm (with connections)
    • Unit Weight: 0.35kg (excluding accessories)
    • Carton / Box Dimensions (W x D x H): TBD
    • Shipping Weight: 0.5kg
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Storage Temperature: -4°F to 140°F (-20°C to 60°C)


  • Item Includes:

    • 1x HEX70CS-RX
    • 1x Mounting kit


  • Warranty:

    • 3 Year Warranty


  • GTIN:

    9340242002693
