Blustream HEX70CS-TX HDBaseT HDMI 18G Extender TX - 40m (1080p 70m)

HEX70CS-TX - Overview

• Features:

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Color Space Conversion (CSC)
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Supports 4K @ 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
  • Supports bi-directional RS-232 pass through
  • Supports bi-directional IR pass through
  • Supports bi-directional IR pass through with switchable
  • 5V/12V IR hardware support
  • HDCP 2.2 Support


• Specifications:

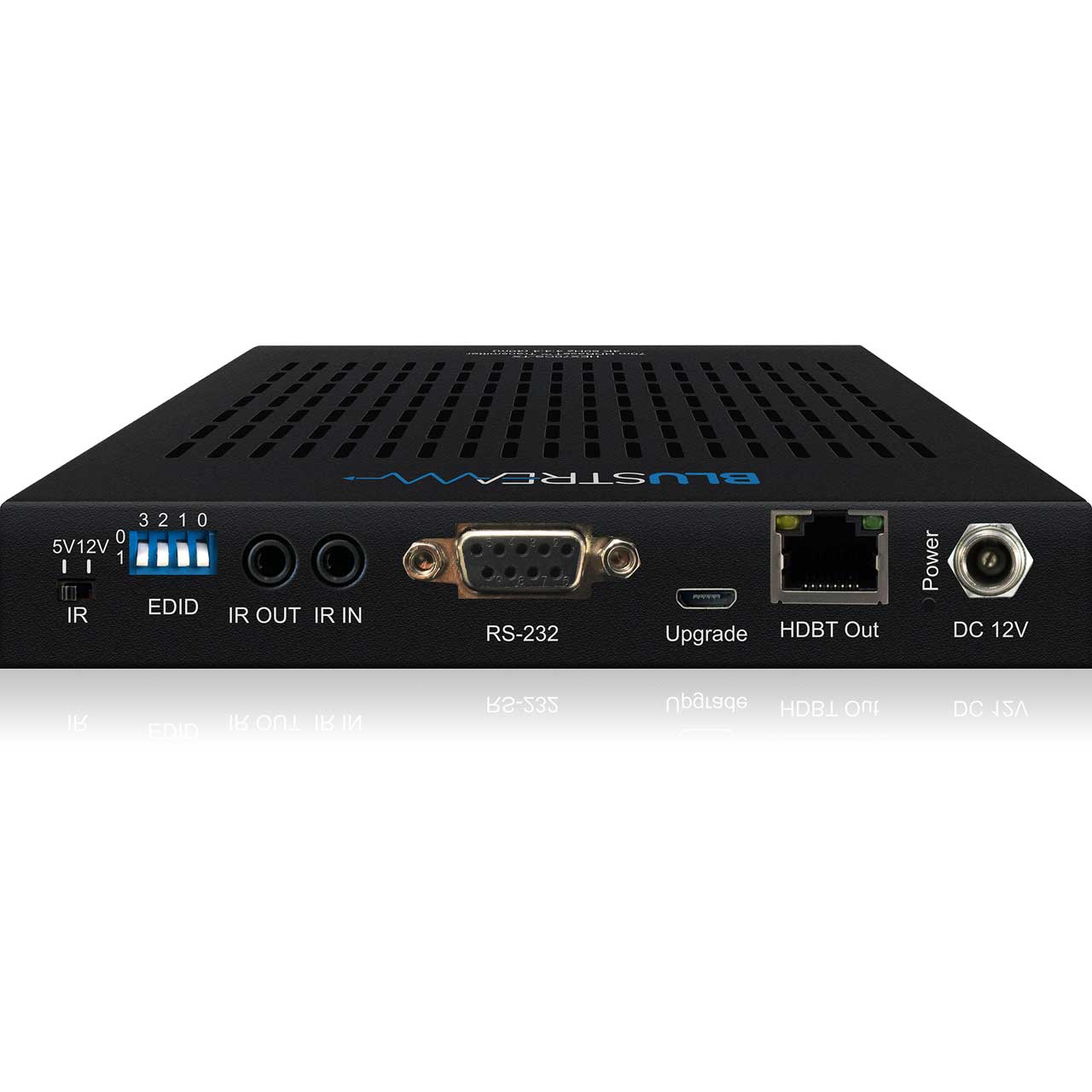

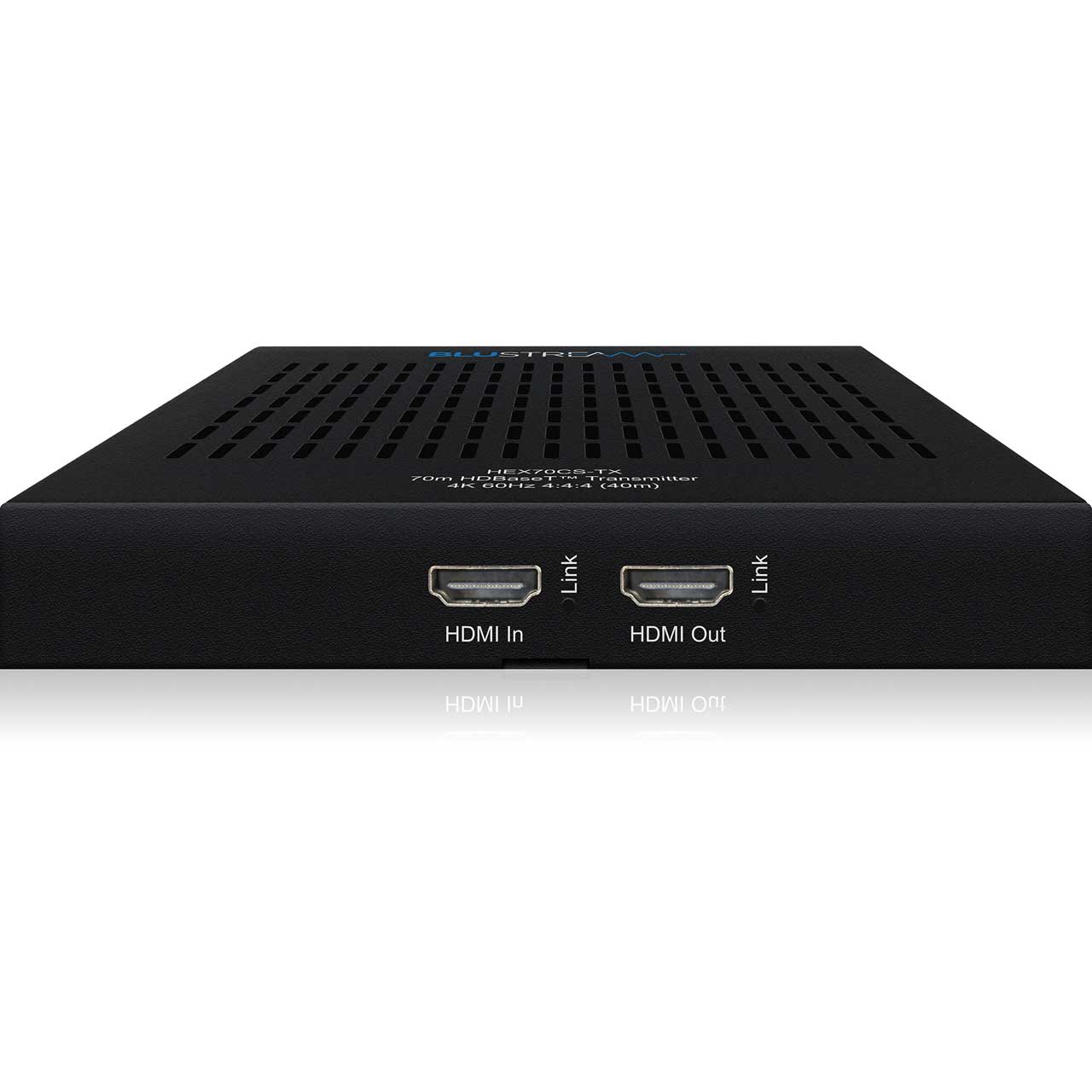

  • HEX70CS-TX transmitter
    Video Input Connectors: 1 x HDMI Type A, female
    Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, female
    RS-232 serial port: 1 x DB-9 female
    IR Input ports: 1 x 3.5mm stereo jack
    IR Output ports: 1 x 3.5mm mono jack
    EDID DIP switch: 4-pin
  • Power Supply: 12V/2A DC, screw type connector
  • Power Consumption: 12.7W
  • Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)
  • Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)
  • Receiver Dimensions (W x D x H): 113 x 124 x 22mm (without connections)
  • Receiver Dimensions (W x D x H): 113 x 138 x 22mm (with connections)
  • Ind. Extender Weight: 0.35kg (excluding accessories)
  • Carton/Box Dimensions (W x D x H):mm
  • Shipping Weight: 1.4kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)


• Item Includes:

  • 1x HEX70CS-TX
  • 1x Mounting Kit


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242003300
