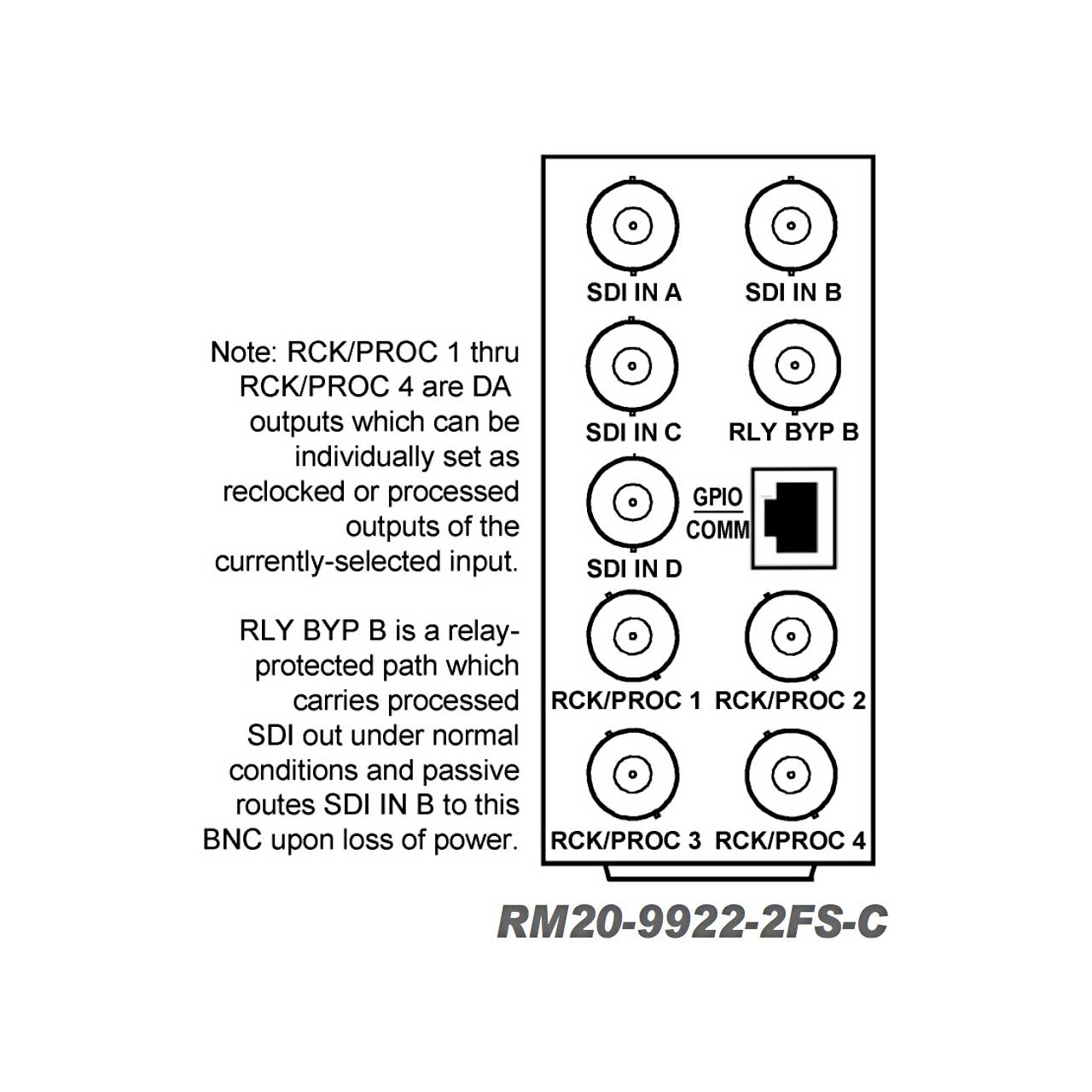

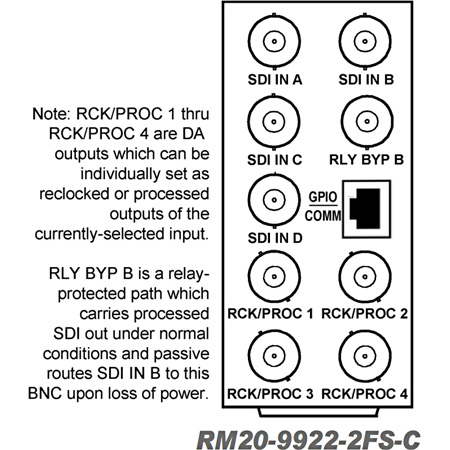

Cobalt Digital RM20-9922-2FS-C 20-Slot Frame Rear I/O Module (Standard Width) (4) 3G/HD/SD-SDI Output BNCs

ITEM #: CB-RM209922-2FSC MFG #: RM20-9922-2FS-C

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Cobalt Digital
Free Shipping with $49 Minimum Order

List Price:

$311.00

Our Price:

$309.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

RM20-9922-2FS-C - Overview

The award-winning Cobalt® 9922-2FS 3G/HD/SD-SDI Dual-Channel Frame Sync with Audio/Video Processing, AES/Analog Audio Embedding/De-Embedding and CVBS I/O offers two independent signal paths of frame sync / audio embedding and de-embedding on a single open-Gear® card. Using our HPF-9000 20-slot frame, this provides up to 40 channels of processing in a single frame. The 9922-2FS represents a new level of openGear packaging density!

Advanced frame sync features include per-channel audio delay, audio/video offset, and output rate conversion to and from 23.98/29.97/29.94 to 24/30/60 frame rates. Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with program video 48 kHz timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair. Bulk and per-channel audio delay controls easily address lip-sync issues.

  • Features:

    • Multi-input RP168 clean switch Path inputs can also be sourced from opposite path output with no external patching
    • Closed-captioning absence detection
    • Auto-Changeover can be set to invoke failover for basic input loss
    • Moving-box insertion serves as a dynamic raster confidence check even in cases where the input video image is static
    • Advanced audio processing allows routing, gain, delay, and flexible mixing as standard features
    • Frame sync with full H/V offset and manual/LOS video pattern generator
    • Per-path dual independent burn-in text string insertion allows condition-based insertion (such as basic ID text for valid input and different text message for failover conditions)
    • Timecode processing can prioritize, filter for, and convert between specific SMPTE embedded-video or audio LTC
    • Option +TTS provides Text-To-Speech synthesis, directly converting EAS text to high-quality digital audio speech with no baseband signal breakouts or add-on units
    • Full audio crosspoint with delay control and 5.1-to-stereo downmix available for all audio outputs
    • CVBS analog video I/O and analog/AES embed / de-embed with 4-line Adaptive Comb Filter
    • Pattern generator for each channel can provide raster / test pattern and patterns for LOS failover insertion
    • Low-power/high-density design - less than 18 Watts per ard
    • Remote control/monitoring via Dashboard™ software or OGCP-9000 remote control panels
