Cobalt Digital RM20-9971-B-HDBNC 20-Slot Frame B Rear I/O Module for 9971 openGear Cards

ITEM #: CB-RM209971BHDBN MFG #: RM20-9971-B-HDBNC

Primary Image
Cobalt Digital
Free Shipping with $49 Minimum Order

List Price:

$479.00

Our Price:

$459.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

RM20-9971-B-HDBNC - Overview

Cobalt Digital RM20-9971-B-HDBNC Rear I/O Module for 9971 openGear Cards.

Please Note! Rear Module only! Card is required for proper integration.

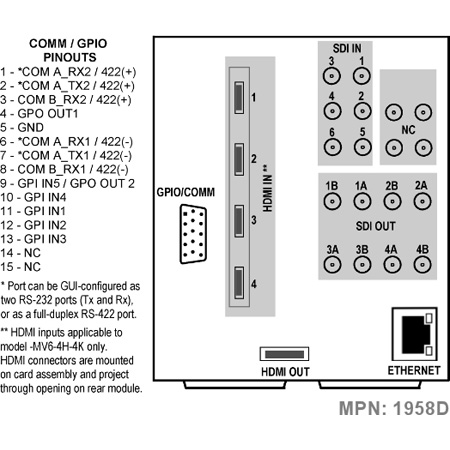

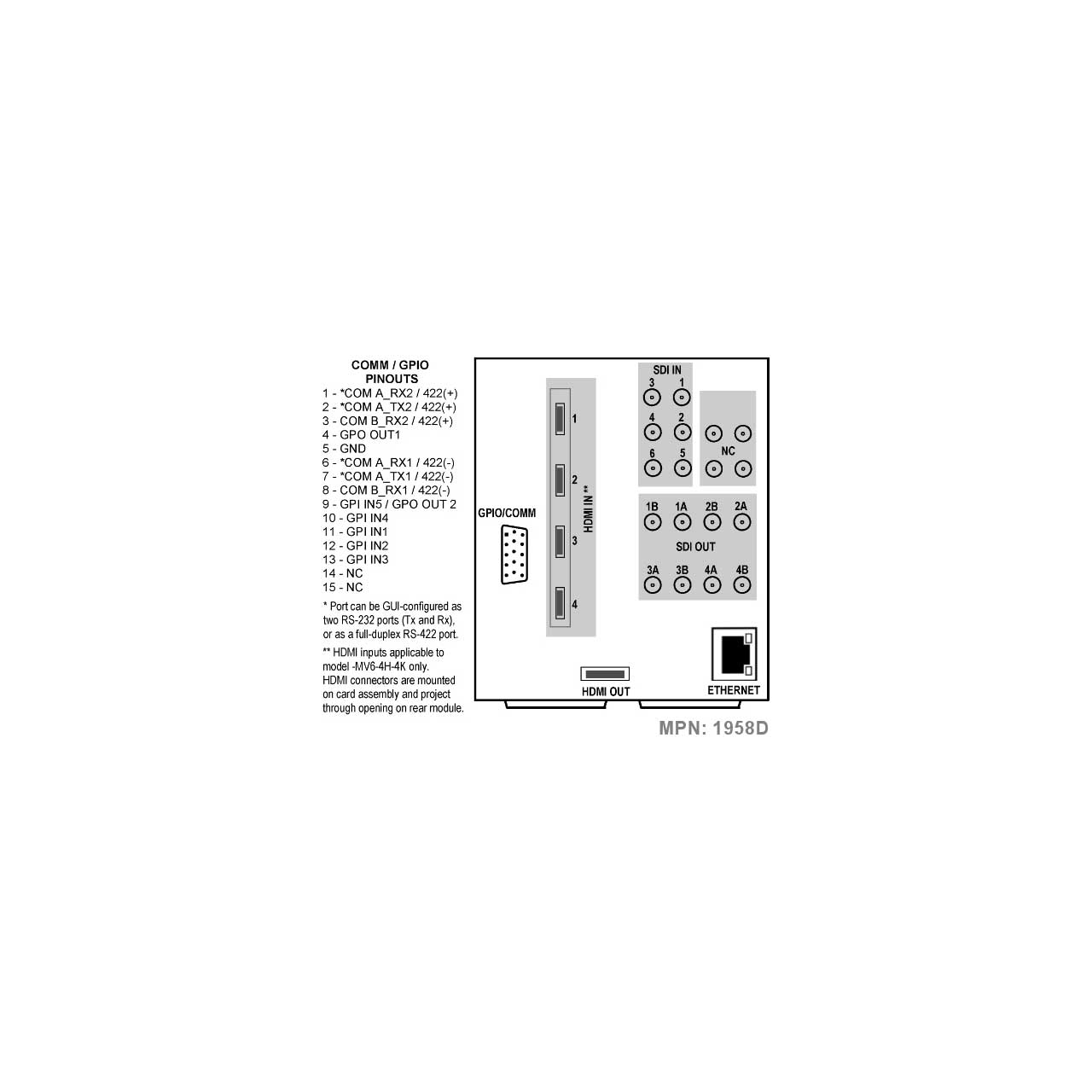

  • Specifications:

    • (6) PiP Video SDI In
    • (8) SDI Out (4x2)
    • (4) HDMI In (Model 9971-MV6-4H-4K only. Note: These inputs
      reside on the card assembly and project through a cutout
      in the rear module. The connectors are not part of
      the rear module assembly. The connectors are shown in image
      here for reference)
    • (1) HDMI Out
    • OMM/GPIO
    • 100/1000 BaseT Ethernet Control Port
    • (All coaxial connectors HD-BNC)


  • Warranty:

    • 5 Year Warranty
