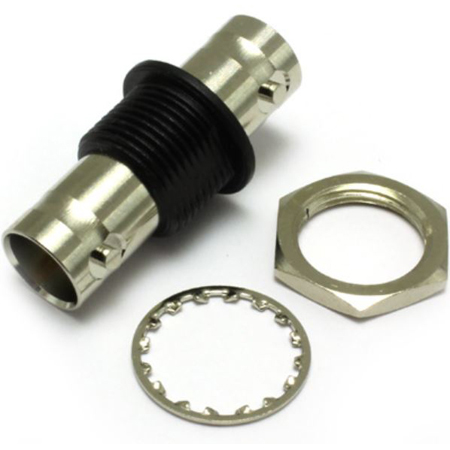

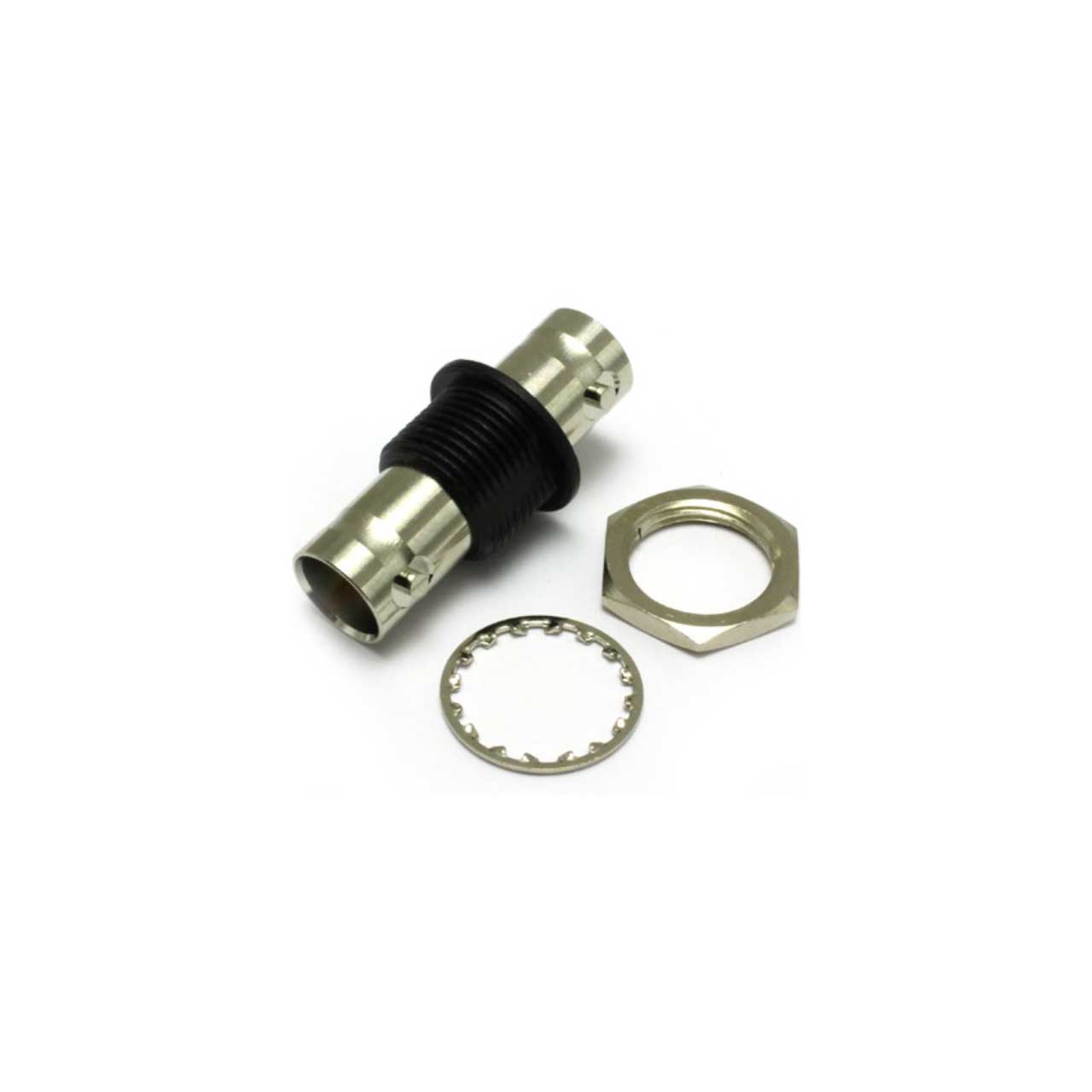

Coax Connectors 10-503-B126-BULK BNC 12G Insulated Bulkhead Jack to Jack Adaptor (Nickel & ID) - 100 Pack

Name: Coax Connectors 10-503-B126-BULK BNC 12G Insulated Bulkhead Jack to Jack Adaptor (Nickel & ID) - 100 Pack
Brand: Coax Connectors Ltd
SKU: COA-10503B126BLK
Price: 460.00 USD
Availability: InStock

ITEM #: COA-10503B126BLK MFG #: 10-503-B126-BULK

Coax Connectors Ltd

List Price:

$539.00

Our Price:

$460.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

10-503-B126-BULK - Overview

Coax Connectors 10-503-B126-BULK are BNC 12G Insulated Bulkhead Jack to Jack Adaptors (Nickel & ID) - 100 Pack.

Performance
-28.0203 dB @ 3.0 GHz
-25.8473 dB @ 4.5 GHz
-24.2132 dB @ 6.0 GHz
-23.3678 dB @ 9.0 GHz
-33.2842 dB @ 12.0 GHz
-12.7172 dB @ 18.0 GHz

Specifications:
- Operating Temp: -35 to +70 Deg C
- IP Rating (Mated): IP 64
- Impedance: 75 Ohm
- Frequency: 0-18 GHz
- Dielectric W/V: 1500 Veff
- Insulation res: 5000 M-Ohm
- Contact Retention: 10 N min
- Cable Retention: N/A
- Mating cycles: 500
- Weight: 14.75 g
Item Includes:
- 1x 10-503-B126-BULK BNC 12G Insulated Bulkhead Jack to Jack Adaptor (Nickel & ID) - 100 Pack
