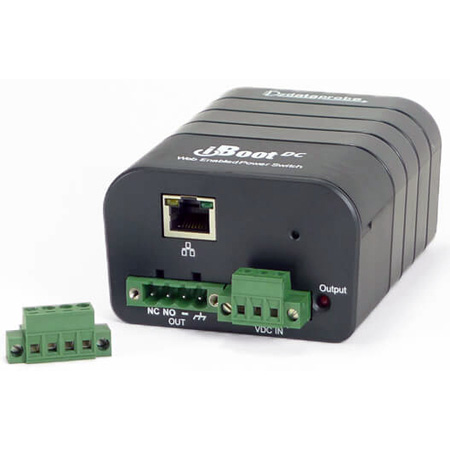

Dataprobe iBoot-DC Network Power Switch - DC

ITEM #: DTPB-IBOOT-DC MFG #: IBOOT-DC

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Dataprobe Inc.
Free Shipping with $49 Minimum Order

Our Price:

$255.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

IBOOT-DC - Overview

Pays for itself with the first service call saved!

Minimize downtime for DC powered systems with the Dataprobe iBoot-DC. iBoot provides automatic and web controlled power switching to quickly get you back online fast. This model supports both +VDC and -VDC systems, which will save you an expensive site visit.

Control one or many iBoots with a single sign-on using the free iBoot Cloud Service. Just log in and you are instantly in control of as many locations as necessary.

If you are looking for a basic AC product with a limited amount of features, please check out the iBoot-G2.

  • Features:

    • 5-48 VD Power Control: Up to 12 Amp Switched.

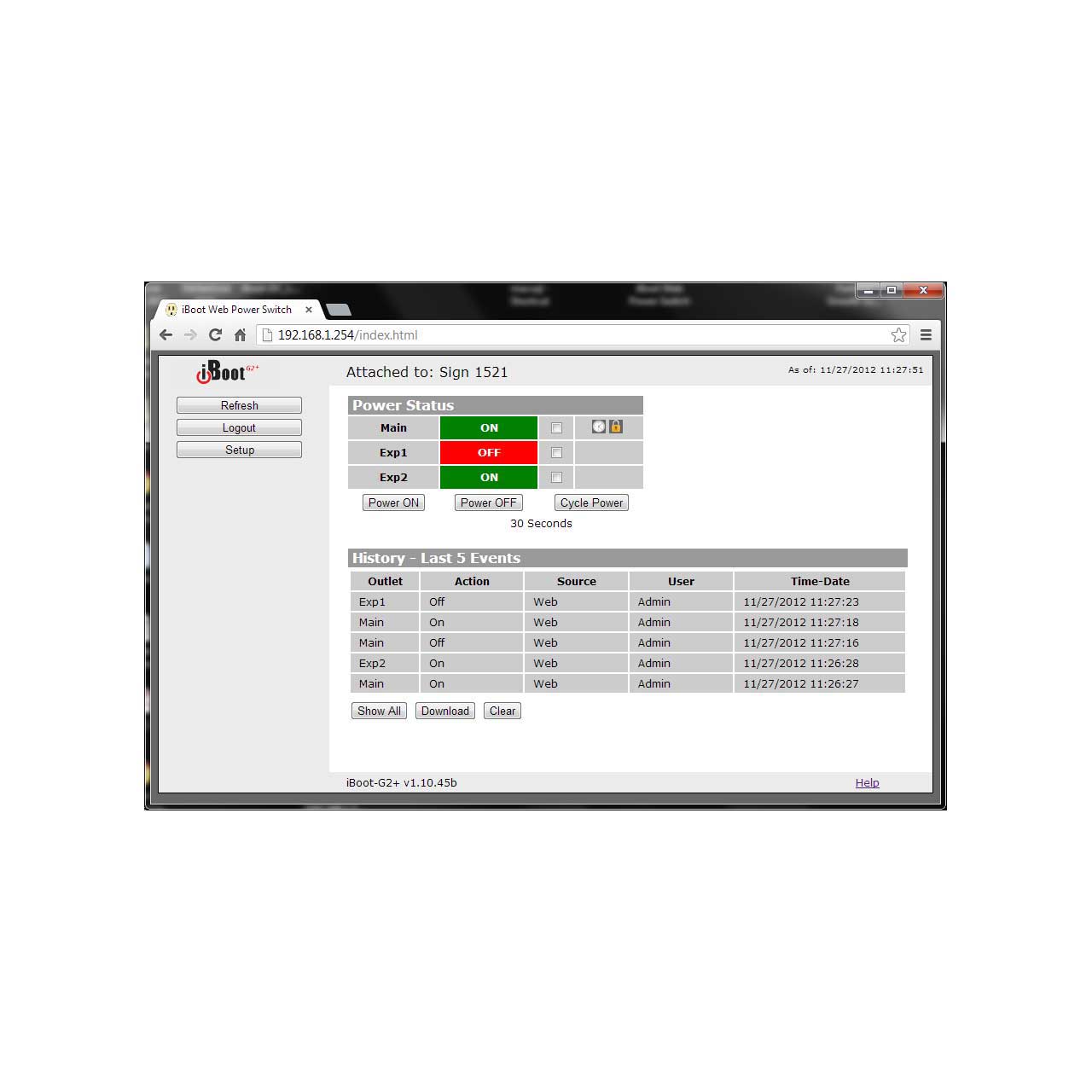

    • Web Browser Power Control: Clean Web page design for immediate status and power control. Auto detects mobile browsers. No special software required.
    • Automatic System Restoral: AutoPing detects network or equipment outage and takes immediate action to restore your network or device. Real time scheduling to have a fresh reboot each morning or minimize power waste at night.
    • Cloud Control: Manage all your iBoots from a single sign-on. Control power worldwide from any web browser, anytime anywhere.
    • UL Listed: We take your safety seriously. Be confident to pass fire marshal and OSHA inspections.
    • Dual Password Protected: Separate user and administrator passwords. Deploy iBoots throughout your organization.
    • IP Addressed, 10/100 Base-T: Use on any Ethernet IP network. Public or private. Supports DHCP and alternate ports for Web Access.
    • Direct TCP and Software Control: Control iBoot-DC directly from your software application for the highest degree of power control integration. Simple protocol is freely available. Use iBoot-DC control program to call power control from any network management system. IPSentry, What’sUp Gold, etc.


  • Specifications:

    • Power: 5 - 48 VDC Auto Ranging; +VDC and -VDC Systems Supported
    • Power Switching: 12 Amps up to -29.9 to 29.9 VDC.
    • Power Switching: 2 Amps -48 to -30 VDC
    • Power Switching: 2 Amps +30 to +48 VDC
    • Power Switching: Positive Terminal Switched.
    • Power Switching: Negative Switched Available on Special Order
    • Power Connectors: Power Inlet: Screw Terminals; Power Outlet: Screw Terminals
    • Network: 10/100base-T, Auto sensing Uplink/Downlink; Cat 5 Cable Included 6ft/2m long
    • Protocols: IP Addressable. DHCP or Static
    • Protocols: HTTP Web Server built-in, Port Assignable
    • Protocols: Telnet Server built-in, Port Assignable
    • Protocols: DxP Messaging Protocol, Port Assignable
    • Protocols: Auto-Ping TCP Protocol
    • Protocols: Heartbeat Detector Protocol
    • Browser: Form Processing Browser Required; Mozilla 3.0 or IE 3.0 or greater
    • Security: Dual Password Protected, User and Admin
    • Physical: H x W x D: 2.0" x 3.2" x 4.2" (60mm x 82mm x 107mm)
    • Operating Temperature: 0 to 50 Deg. C
    • Reliability: MTBF 360,000 Hours; Operating Cycles 10,000,000 Mechanical. 100,000 at Maximum Load
    • Compliance: RoHS; WEEE; FCC Part 15 Class B


  • GTIN:

    0700220864092
