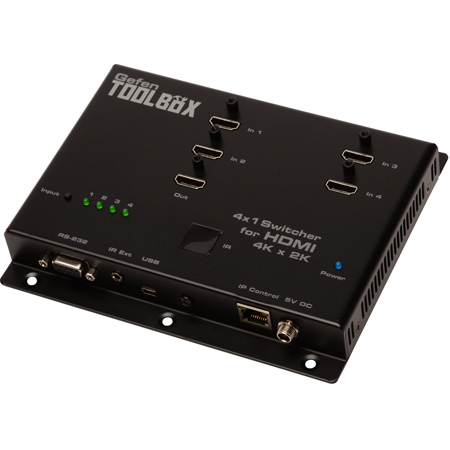

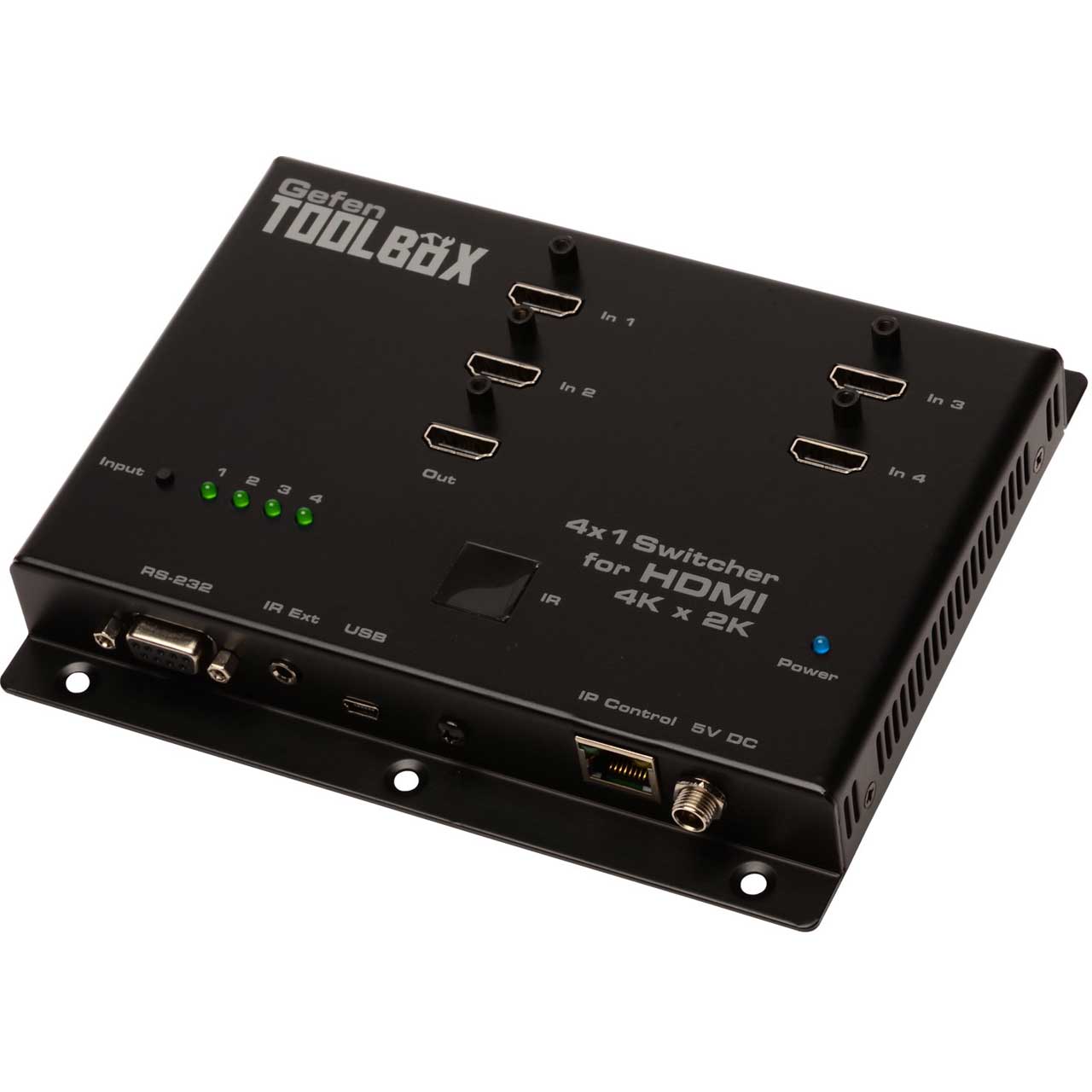

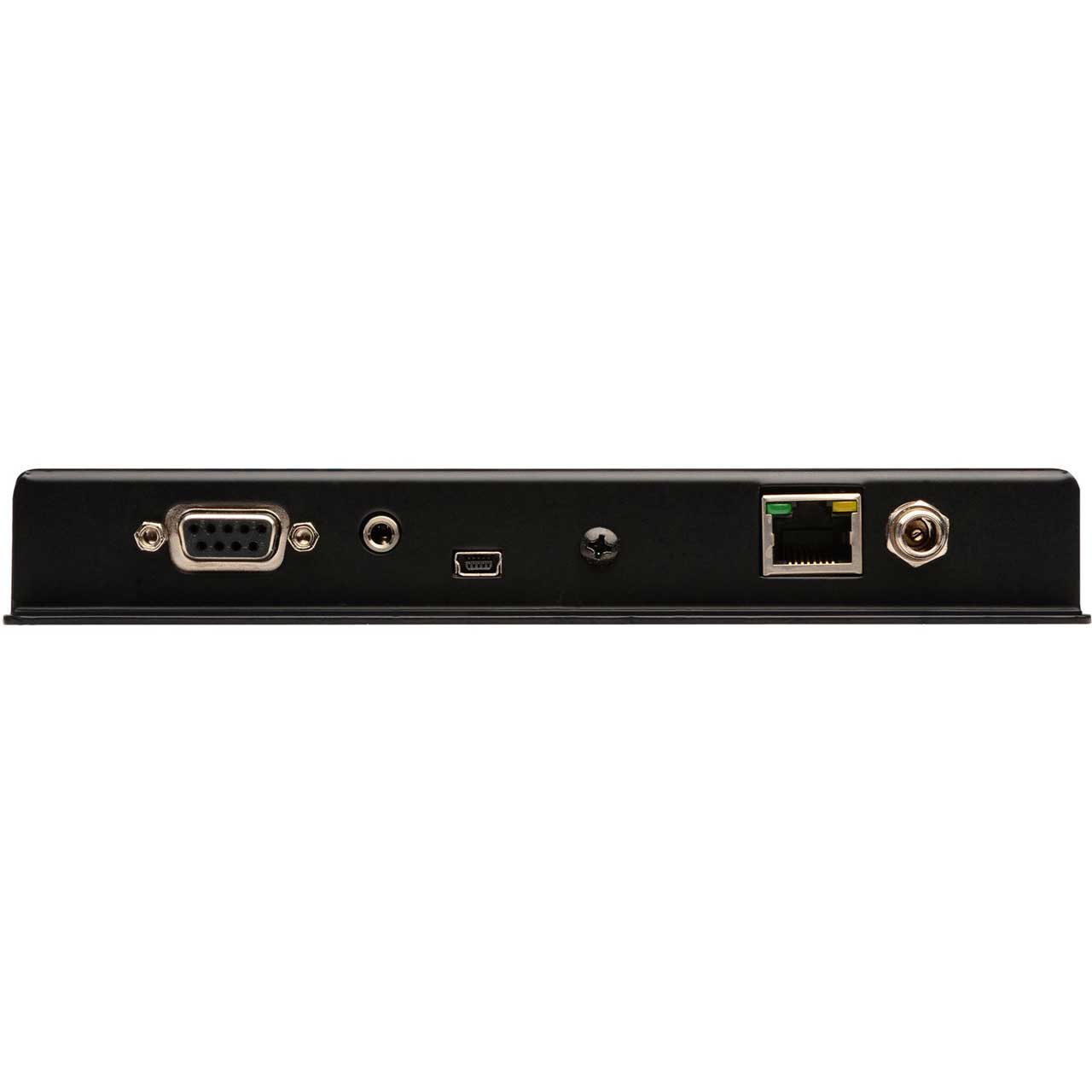

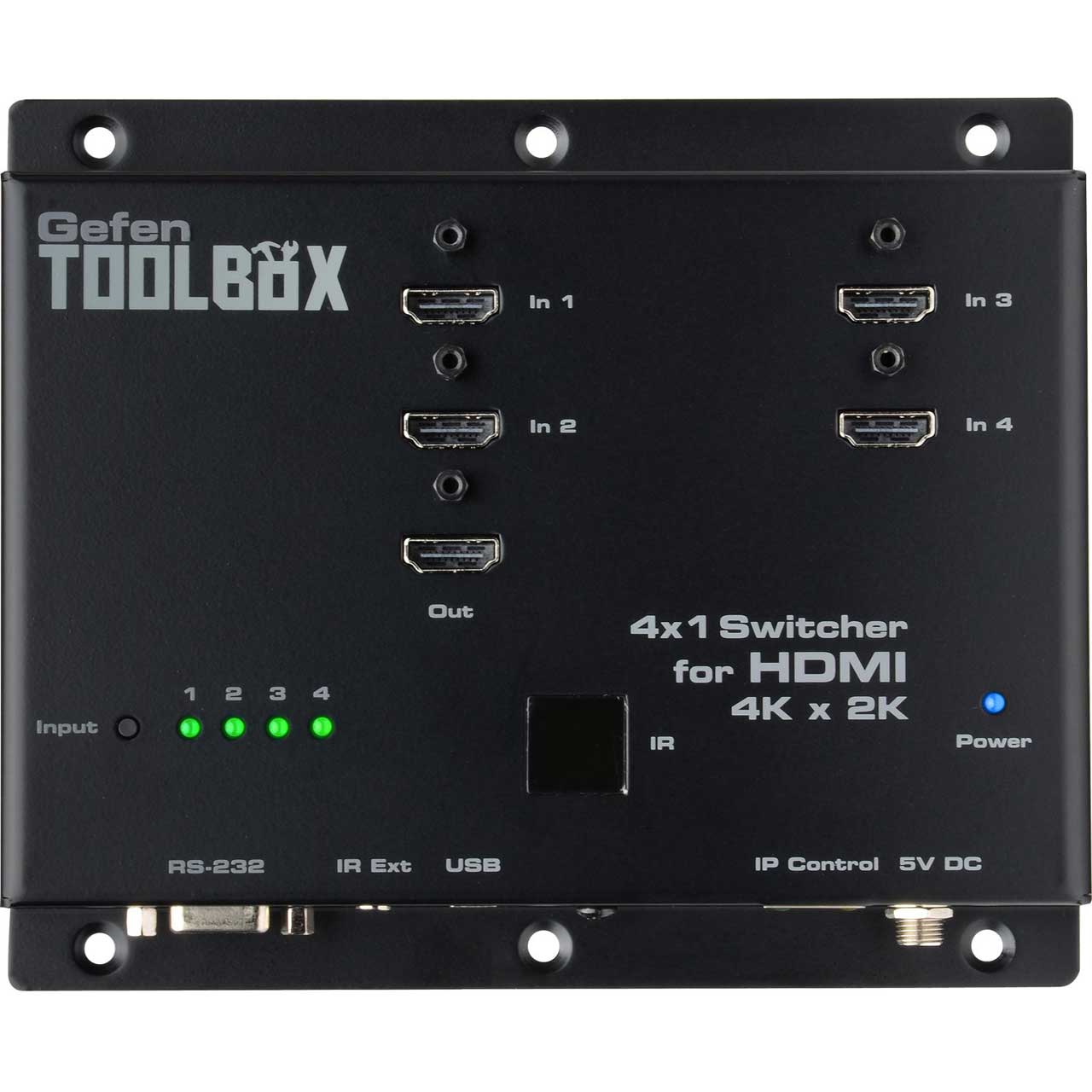

Gefen GTB-HD4K2K-441-BLK Ultra HD 4x1 Switcher for HDMI - Black

GTB-HD4K2K-441-BLK - Overview

• Features:

  • Switches between four Ultra Hi-Def sources to one Ultra HD display
  • Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD
  • Supports 12-bit Deep Color
  • 3DTV pass-through
  • Lip Sync pass-through
  • Push button control for routing sources to display
  • Supports LPCM 7.1, Dolbyr TrueHD, Dolby Digitalr Plus, and
  • DTS-HDr Master AudioT
  • Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters
  • (not included)
  • RS-232 Serial interface for remote control using a computer or automation
  • control system
  • IP control via Telnet, UDP, and the built-in web server interface
  • IR remote control
  • IR Extender port allows the unit to be mounted in a hidden location
  • Field-upgradeable firmware via Mini-USB and IP ports
  • Locking Power Supply
  • Surface-mountable
  • Available in Black or White


• Specifications:

  • Maximum Pixel Clock: 300 MHz
  • HDMI Input Connectors: (4) Type A 19-pin female, locking
  • HDMI Output Connector: (1) Type A 19-pin female, locking
  • USB Port: (1) Mini-B
  • RS-232 serial port: (1) DB-9, female
  • Ethernet (IP Control) port: (1) RJ-45
  • Switching Selector: (1) tact type push-button
  • Switching Indicators: (4) LED, green
  • Power Indicator: (1) LED, blue
  • IR Sensor: (1), on front panel
  • IR Extender Port (Receiver): (1) 3.5mm mini-stereo jack
  • DC Power Connector: (1) Locking type
  • Power Supply: 5V DC
  • Power Consumption: 13 Watts (max.)
  • Operating Temperature: +32 to 104 °F (0 to +40 °C)
  • Dimensions (W x H x D): 6.9" x 5.8" x 1.0" (175mm x 147mm x 26mm)
  • Shipping Weight: 4 lbs. (1.8 kg)


• Item Includes:

  • (1) 4:1 Switcher for HDMI 4Kx2K (GTB-HD4K2K-441/GTB-HD4K2K-441-BLK)
  • (1) 5V DC Power Supply (EXT-PS526AIP-LP)
  • (1) IR Remote Control (RMT-4IRN)
  • (1) Quick-Start Guide (GTB-HD4K2K-441)


• GTIN:

  0845344075280
