ikan VXF7-V2 7-Inch Tally 3G-SDI/4K HDMI LCD Monitor

ITEM #: IKAN-VXF7-V2 MFG #: VXF7-V2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$699.99

Our Price:

$649.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


VXF7-V2 - Overview

The ikan VXF7-V2 features a beautifully sharp, full HD 1920 x 1200 IPS LCD panel. It comes with many features such as waveforms, peaking, false color, zooming, pixel-to-pixel mapping and histogram levels. This type of quality ensures you will capture your desired shot on the first try and makes the VXF7 monitor the ideal workhorse for any production environment.

Tally Light Indicators

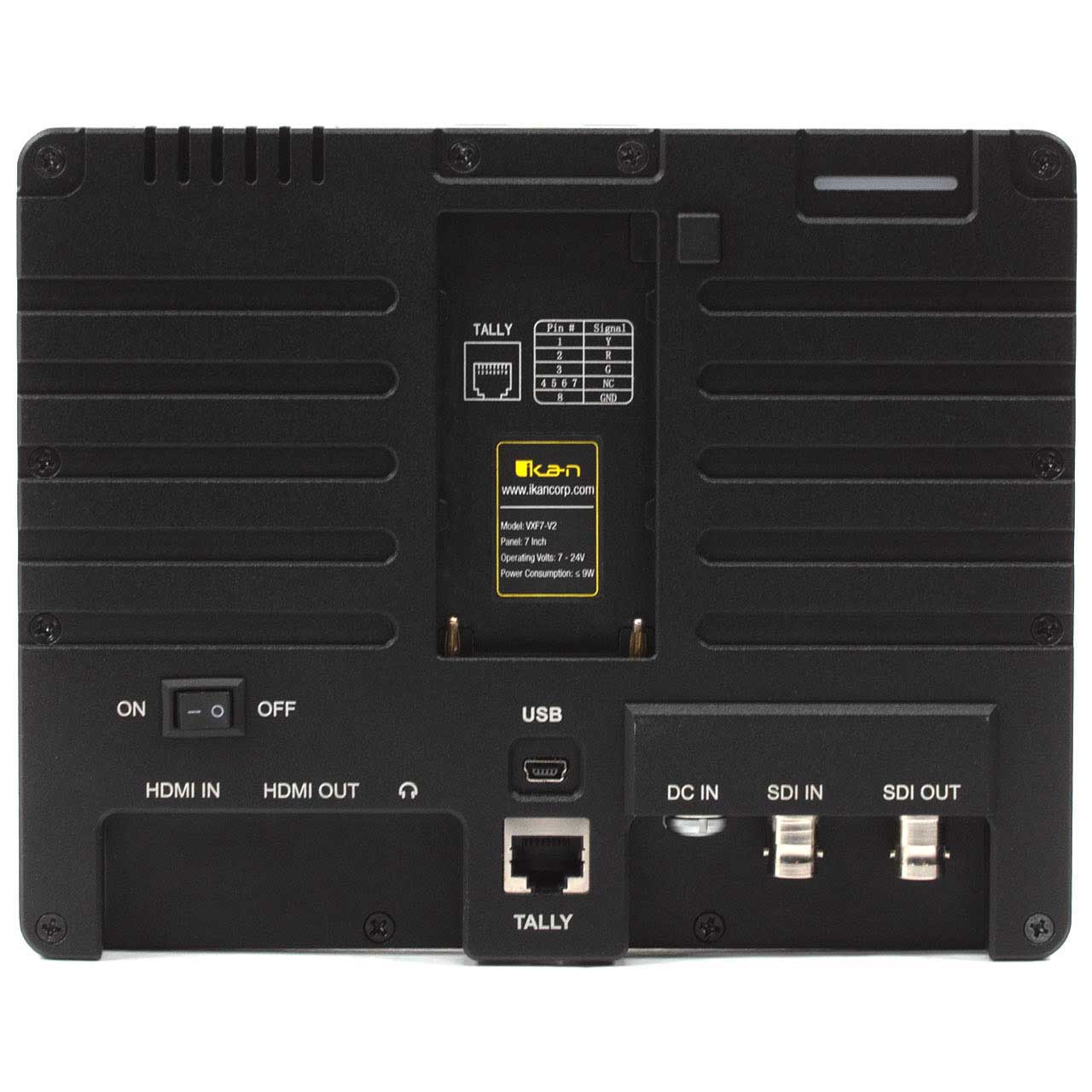

Incorporating a tally connector and three tally lights on the front and back, the monitor fits well into a switched multi-camera production. You can access the tally connector pin key by removing the interchangeable battery plate.

Made for Professionals
The VXF7-V2 is a professional tool designed for the working professional. The ergonomics and button layout provides ease of use in the field. Four knobs on the front make it easy to adjust settings such as brightness, contrast and color. The front and back are equipped with tally lights. A locking power input is also included so you never have to worry about losing power with a loose connection.

Rugged & Strong
The VXF7-V2 updates the classic VXF7 with aluminum to increase durability. All four 1/4-20" threads are also outfitted to work with anti rotation locating pins such as ARRI locating pins.

  • Features:

    • 1920 x 1200 IPS panel
    • Three tally indicator LEDs on the rear and front on-screen display (green, red, yellow)
    • Waveform, false color, peaking, zebra, pixel-to-pixel, zooming, clip guides, audiometer
    • Fully aluminum for durability
    • Supports Anamorphic de-squeeze in real-time with a squeeze of 1.33x.
    • 4K support via HDMI
    • 3G-SDI Input with loop through
    • HDMI Input with loop through
    • Supports L Series type battery
    • Video Inputs: 3G-SDI & HDMI

  • Specifications:

    • Shipping Weight: 5lbs
    • Shipping Dimensions: 15 x 15 x 3"
    • Product Weight: 1.5lbs
    • Product Dimensions: 7.36 x 5.6 x 1.3"
    • Supported Video Signal:
      HDMI:
      720*480i & 720*[email protected], 60Hz
      720*576i & 720*576p@50Hz
      1280*720p@50, 59.94, 60Hz
      1920*1080i@50, 59.94, 60Hz
      1920*1080PsF@24, 25, 29.97, 30Hz
      1920*[email protected], 24, 25, 29.97, 30, 50, 59.94,6 0Hz
      3840*2160p@24, 25, 30Hz
      4096*2160P@24Hz
    • 3G-SDI:
      720*[email protected], 60Hz
      720*576i@50Hz
      1280*720P@ 50, 59.94, 60Hz
      1920*1080i@ 50, 59.94, 60Hz
      1920*1080psf@ 24, 25, 29.97, 30Hz
      1920*1080p @23.93, 24, 25, 29.97, 30, 50, 59.94, 60Hz
    • Aspect Ratio: 16:10
    • Backlight: LED
    • Brightness: 450 cd/m2
    • Build Material: Aluminum
    • Color Depth: 16.7 Million
    • Color System: PAL/NTSC/SECAM (Auto-Detected)
    • Contrast Ratio: 800:1
    • Input Voltage: DC 7V - 24V
    • Inputs: 3G-SDI, HDMI, RJ45 (Tally)
    • Operating Temperature: 32° to 122°F (0° to 50°C)
    • Outputs: 3G-SDI, HDMI, 3.5mm Audio Port
    • Power Consumption: 9W
    • Resolution: 1920 x 1200
    • Screen Size: 7"
    • Viewing Angle: 178° (H)/ 178° (V)

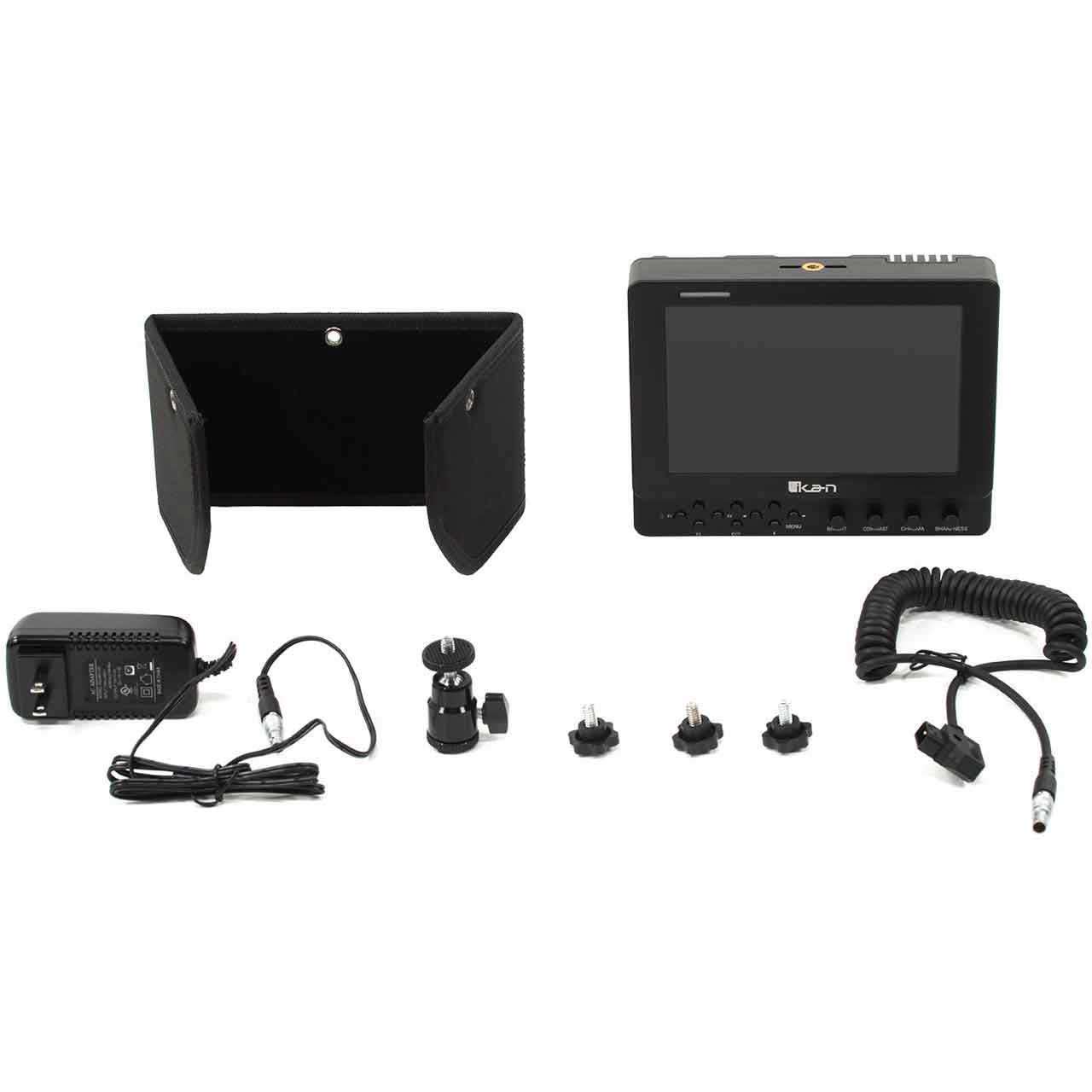

  • Item Includes:

    • 1x VXF7-V2
    • 1x Sunhood
    • 1x Power Adapter
    • 1x D-Tap Cable
    • 1x Shoe Mount

  • GTIN:

    0847983031627
