Kramer SL-240C Compact 16-Port Master Room Controller with PoE For Kramer Control

ITEM #: KR-SL-240C MFG #: SL-240C

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-SL-240C

SL-240C - Overview

Kramer Control brain

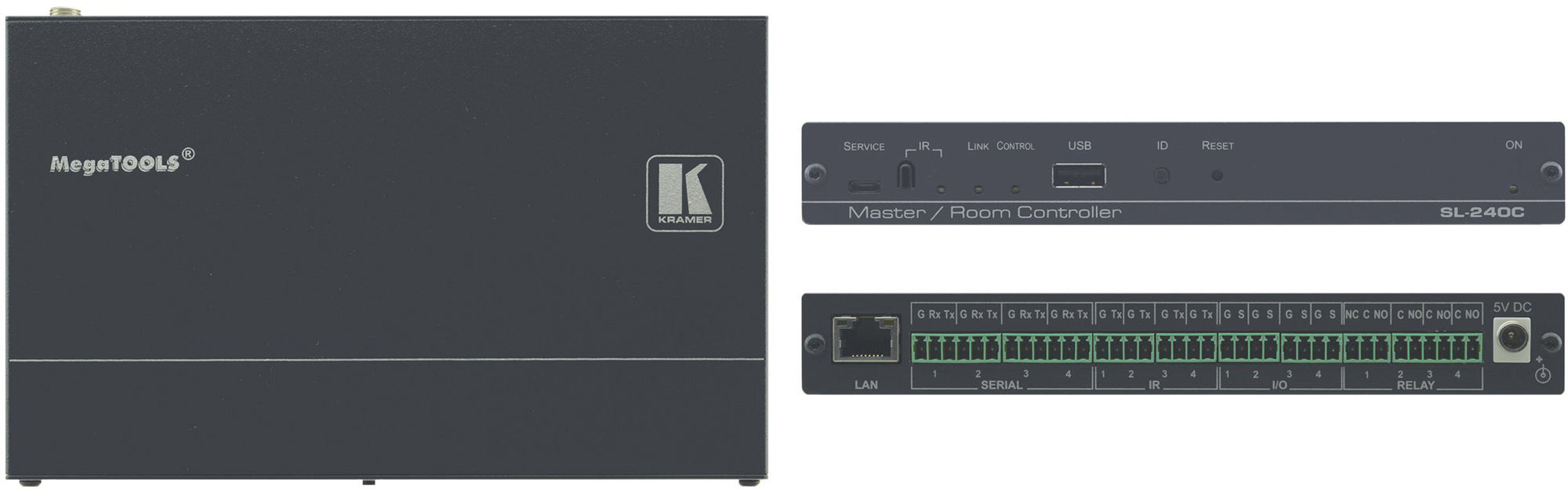

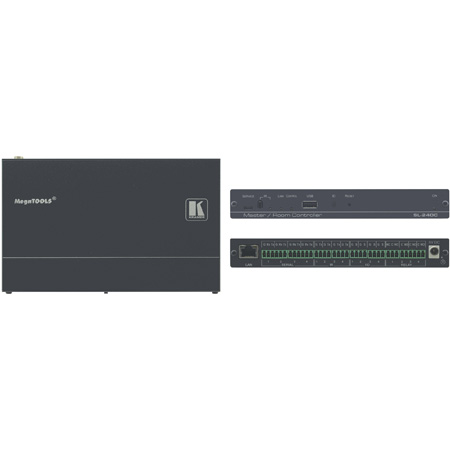

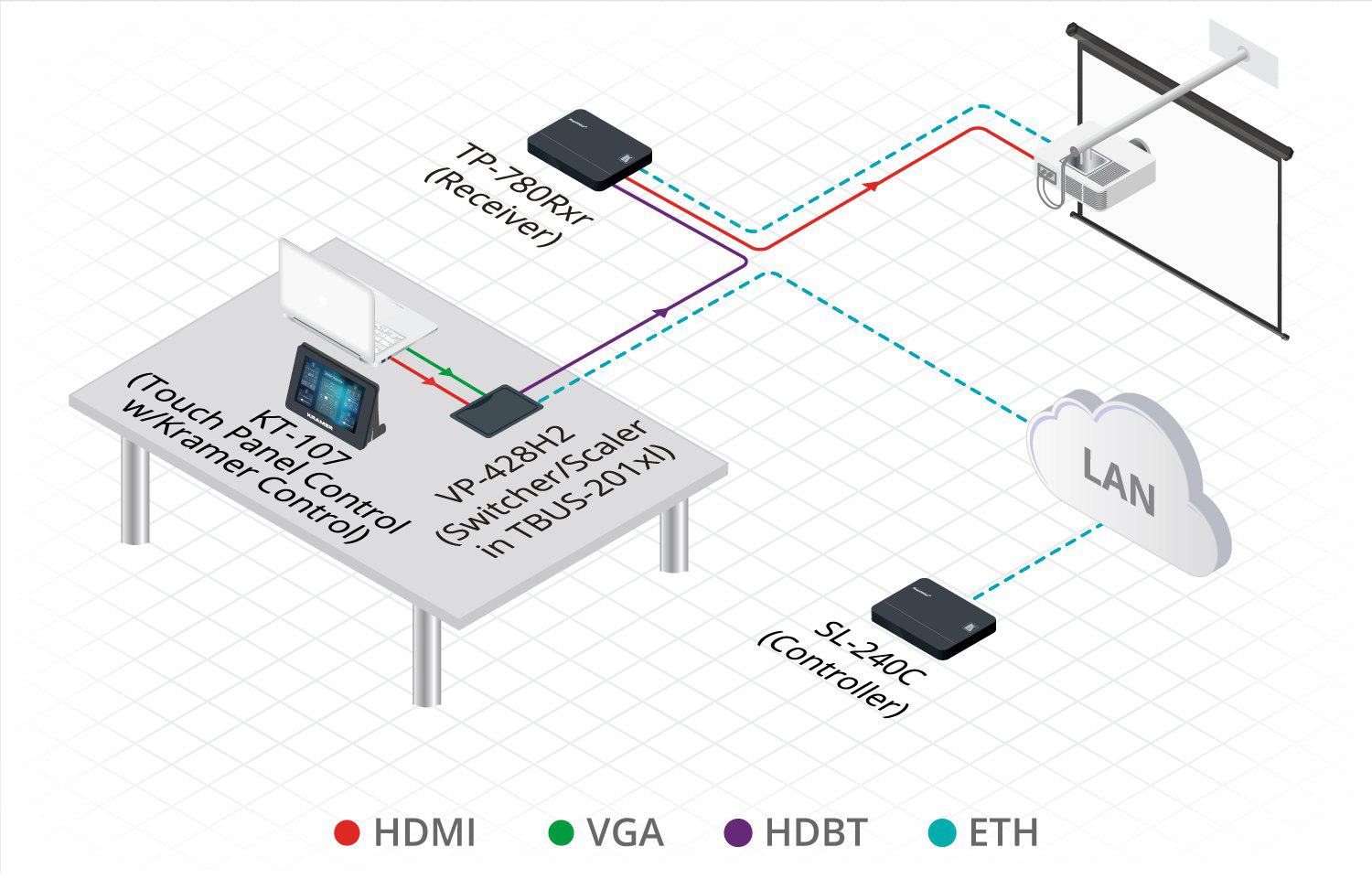

The Kramer SL-240C is a compact master/space controller (Kramer Control brain) with PoE. It can operate over Ethernet with control interfaces that include: four bidirectional RS-232, four IR, four GPI/O, and four relays. It controls devices such as scalers, video displays, audio amplifiers, Blu-ray players, sensors, screens, shades, door locks, and lights. Multiple Kramer Ethernet control gateways can be used to add remote I/O ports.

Perfect for:
Control in small to large spaces for commercial, education and government sectors.

  • Features:

    • Space Controller - Controls any AV device/display with its corresponding logic.
    • High Performance Architecture - Enables a scalable and flexible programming platform.

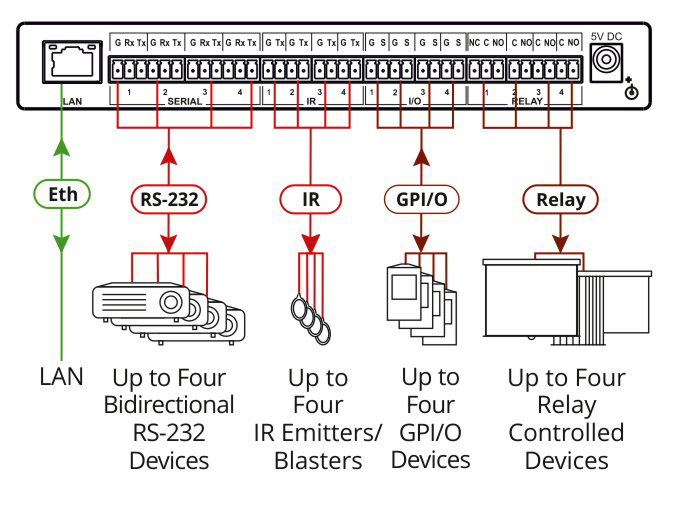

    • 4 RS-232 Bidirectional Control Ports - For controlling devices via bi-directional serial control protocols.
    • 4 IR Emitter & 1 IR Receiver Control Ports - Control devices via IR control protocols and learn commands from IR remotes.
    • 4 GPI/O Control Ports - Control devices via general purpose I/O ports, program configured as digital input, digital output or analog input interface for controlling sensors, door locks, audio volume and lighting control devices.
    • 4 Relay Control Ports - Control devices via relay contact closure, such as opening and closing drapes, shades, blinds, and projection screen scrolling.
    • Resilient powering with PoE and optional PSU (not included).
    • Network Support - 10/100/1000Mbps Ethernet.
    • LED Indicators - I/O port state and system status.
    • Software Management Support - Kramer Control, API.

  • Specifications:

    • BIDIRECTIONAL PORTS
    • 4 RS-232 serial on 3-pin terminal blocks, 4 GPI/O on 2-pin terminal blocks, 1 Ethernet on a RJ-45 connector, 1 mini-USB connector for firmware upgrade

    • INPUTS
    • 1 built-in IR sensor (for learning)

    • OUTPUTS
    • 4 IR out and 4 relays on 2-pin terminal block connectors

    • INDICATORS
    • LED indicator for each port and function

    • PROCESSOR SPEED
    • 1GHz

    • MEMORY
    • 512MB RAM, 4GB Flash

    • POWER CONSUMPTION
    • 5V DC, 2A

    • POWER SOURCE
    • PoE (for extra power resiliency, connect to the optional 5V DC power supply)

  • Item Includes:

    • SL-240C Controller
    • Power cord (5vDC)
    • TOOL Mounting Bracket Set

  • Warranty:

    • Limited 7 Year Warranty

  • GTIN:

    7291063084462
