Kramer VP-553XL HDMI/HDBaseT Boardroom 6x2 Presentation Switcher/Dual Scaler with 4x1 USB Switcher

VP-553XL - Overview

HDTV Compatible & HDCP Compliant

• Features:

  • Pix-PerfectT Scaling Technology - Kramer's precision pixel mapping and high-quality scaling technology. High-quality 3:2 and 2:2 pull down de-interlacing and full up - and down-scaling of video input signals.
  • HDTV Compatible.
  • HDCP Compliant - The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass only to the HDMI outputs.
  • HDBaseT Range - Up to 70m (230ft) using BC-HDKat6a cable.
  • Cable - For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/VP-553xl.
  • Video Inputs - 3 HDMI connectors, 3 HDBaseT on RJ-45 connectors, 2 VGA on 15-pin HD connectors, each with unbalanced stereo audio on 3.5mm connectors; 2 VGA & audio over CAT 5 on RJ-45 connectors; 2 composite video on RCA connectors with unbalanced stereo audio on 3.5mm mini jacks.
  • Scaled Outputs - 2 HDMI & 1 HDBaseT.
  • Output Resolutions - HDTV and computer graphics and 1080p/UXGA with selectable refresh rates.
  • 4x1 USB Switcher - Can be set to follow the switching of the video layer or can be used as an independent switcher. 4 USB-B input connectors, 1 USB-A output connector.
  • OSD (On Screen Display) - For easy setup and adjustment, accessible via the IR remote control and via the front panel buttons.
  • Input and Output Audio Level Adjustment.
  • Selectable Microphone Talkover or Mix Modes.
  • Automatic Audio Detection & Selection - On the HDMI input source, default selection is HDMI. If not present, the unit uses the audio from the analog input. Manual audio selection is also available.
  • Audio Inputs - 3 analog HDMI audio, 2 analog PC audio on 3.5mm mini jacks; 2 stereo CV audio on RCA connectors each with individual level controls.
  • Microphone Input - Dynamic or condenser (with 48V phantom voltage).
  • Audio Outputs - 2 balanced stereo audio on terminal blocks.
  • Multiple Aspect Ratio Selections - Full, overscan, underscan, letterbox & panscan.
  • Built-in ProcAmp - Color, hue, sharpness, noise, contrast & brightness.
  • Front Panel Control - Audio mute, video blanking & freeze frame.
  • Front Panel Lockout.
  • Built-in Web Pages - For easy setup and remote control.
  • Firmware Upgrade - Via Ethernet.
  • Non-Volatile Memory - Saves final settings.
  • Flexible Control Options - Front panel, IR remote with OSD (on-screen display), Ethernet with built-in Web pages & RS-232.
  • Worldwide Power Supply - 100-240V AC.


• Specifications:

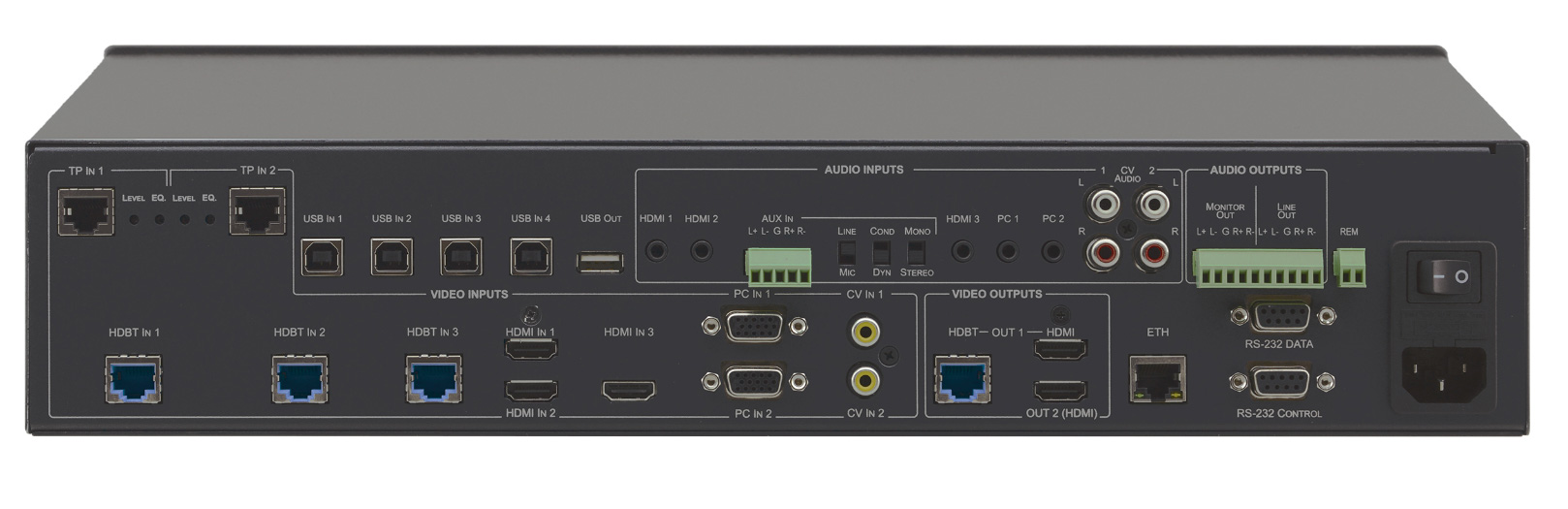

  • Inputs
    - 3x HDMI connectors (HDMI, HDCP)
    - 2x VGA on 15-pin HD connectors
    - 2x composite video on RCA connectors
    - 2x analog TP on RJ-45 connectors
    - 3x HDBT on RJ-45 connectors
    - 4x USB-B ports
    - 3x unbalanced analog audio on 3.5mm mini jacks for HDMI
    - 2x unbalanced analog audio on 3.5mm mini jacks for PC
    - 1x Aux in balanced stereo audio on 5-pin terminal block connectors
    - 2x balanced audio (L and R) RCA connectors for CV
  • Outputs
    - 1x HDBT on RJ-45 connector
    - 2x HDMI connectors (HDMI, HDCP)
    - 1x USB port
    - 1x monitor out balanced stereo on a 5-pin terminal block connector
    - 1x line out balanced stereo on a 5-pin terminal block connector
  • Output Resolutions: NATIVE, 640x480@60, 800x600@60, 1024x768@60, 1280x768@60, 1360x768@60, 1280x720@60, 1280x800@60, 1280x1024@60, 1440x900@60, 1400x1050@60, 1680x1050@60, 1600x1200@60, 1920x1080@60, 1920x1200@60, 720x480p@60, 1280x720p@60, 1920x1080i@60, 1920x1080p@60, 720x576p@60, 1280x720p@50, 1920x1080i@50, 1920x1080p@50

    Controls

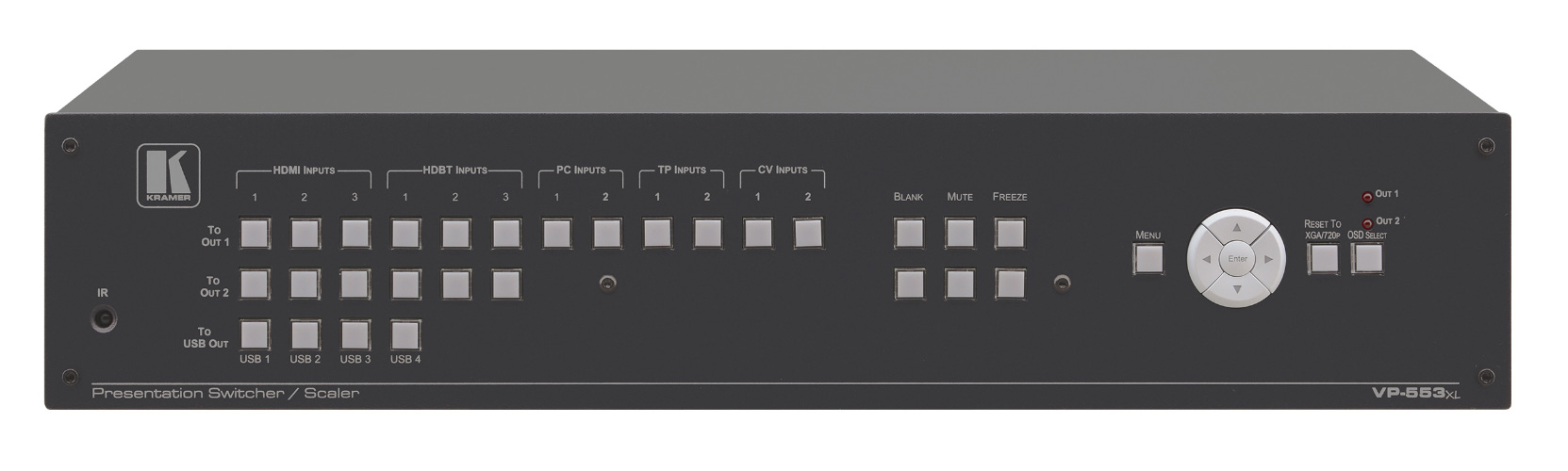

  • TP 1, TP 2, CV 1, CV 2, HDBT 1, HDBT 2, HDBT 3, PC 1, PC 2, HDMI 1, HDMI 2, HDMI 3, USB 1, USB 2, USB 3, USB 4 input selector buttons
  • 2 blank, 2 mute, 2 freeze buttons
  • Menu, Enter, Menu arrows, Reset to XGA/720p, OSD SELECT, 2 RS-232, IR, Ethernet, 2 Level and EQ trimmers, Line/Mic selector switch, Cond/Dyn selector switch, Mono/Stereo selector switch, REM for muting audio


  • Power Consumption: 100-240V AC, 43VA max
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -40°F - 158°F (-40°C - 70°C)
  • Humidity: 10% to 90%, RHL non-condensing


• Item Includes:

  • VP-553xl Switcher
  • Power cord
  • Rack Ears (1 set)
  • IR remote control


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063074425
