Luxul XAP-1240 High Power Wireless 300N Outdoor Access Point

ITEM #: LUXU-XAP-1240 MFG #: XAP-1240

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LUXU-XAP-1240

XAP-1240 - Overview

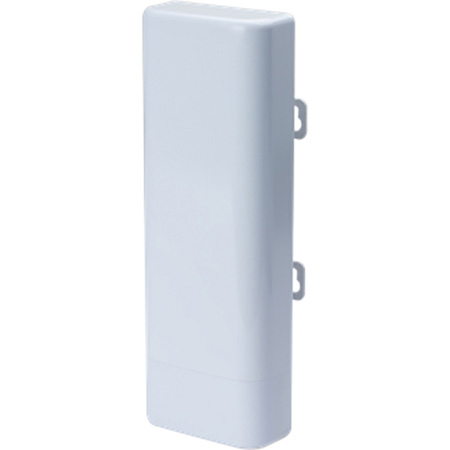

The Luxul XAP-1240 high power wireless 300N outdoor access point is the perfect option for delivering broad Wi-Fi coverage to outdoor areas. Combining Luxul signal enhancement and multi-stream 802.11n wireless technologies, it delivers superior wireless coverage and fantastic data rates. The XAP-1240 is compatible with the XWC-1000 Wireless Controller and can be used standalone or as part of a multi-AP deployment. Installation is simple, requiring only a single Ethernet cable that delivers both power and data through the integrated PoE port. The weather-resistant enclosure is designed to be either surface or pole mounted.

  • Features:

    • High Output Power for Maximum Coverage
    • Compatible with the Luxul XWC-1000 Wireless Controller
    • Patented Signal Propagation Technology
    • VLAN Support for Creating a Secure Guest Network
    • Up to 4 SSIDs

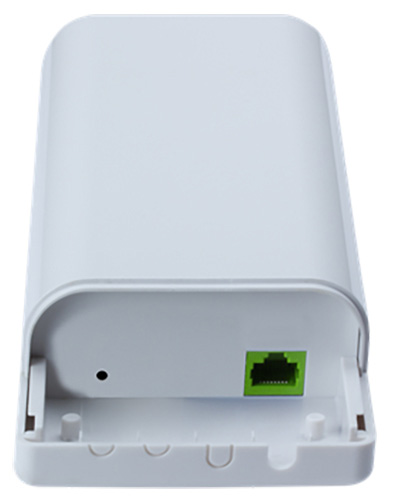

    • Single Cable Installation with PoE (Injector included)

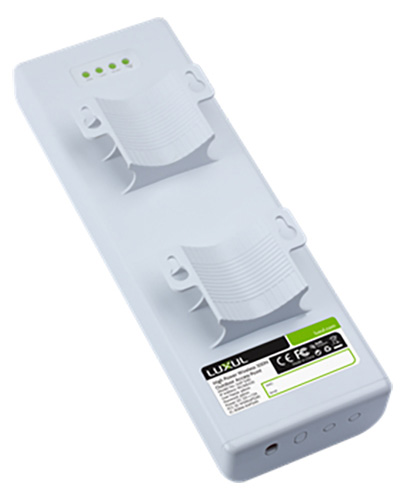

    • Weather Resistant Enclosure
    • Three Year Limited Warrant

  • Specifications:

    • Standards Compliance: 802.11b/g/n
    • Interface: One 10/100/1000M Port
    • Antenna: Two Internal 2.4GHz High Performance Circular Polarized Directional Antennas (7dbi)
    • Button: Reset button
    • Power: 802.3at PoE
    • Power Consumption: 7W on average (Depending on the Wireless activity)
    • Max Power Consumption: 16W
    • Environmental Temperatures: -25c to 50c
    • Frequency: 2.4GHz
    • Wireless Speed: 300Mbps (2x2,802.11n)
    • Output Power: 30dBm
    • Wireless Security: 64/128bit WEP, WPA-PSK, WPA2-PSK, WPA/WPA2/AES
    • Operating Modes: Wireless AP
    • Dimensions WxHxD in. (mm): 3.8"x10.2"x1.8" (96 x259 x45.7)
    • Weight lbs (kg): 3.15 (1.42)
    • Frequency: 2.4GHz
    • Wireless Speed: 300Mbps (2x2,802.11n)
    • Output Power: 30dBm
    • Wireless Security: 64/128bit WEP, WPA-PSK, WPA2-PSK, WPA/WPA2/AES
    • Operating Modes: Wireless AP
    • Certifications: CE, FCC, RoHS

  • Item Includes:

    • High Power Wireless 300N Outdoor AP
    • Mounting kit
    • PoE Injector and Power Adapter
    • Quick Install Guide

  • Warranty:

    • 3-year limited warranty
