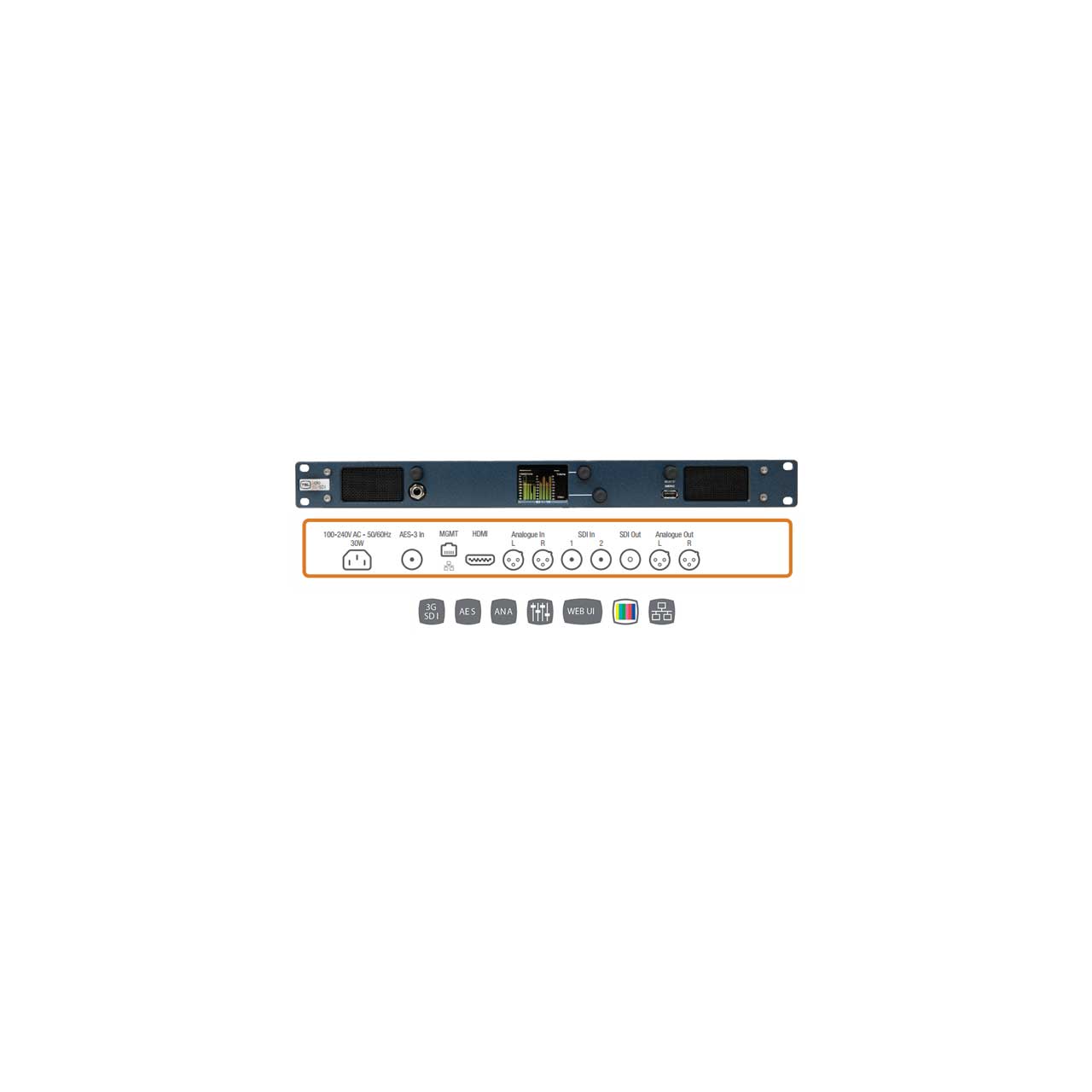

TSL Products MPA1-SOLO-SDI-1 Rackmount Simple Audio Monitor with 3G-SDI / HDMI In and Out and Embedded Audio

MPA1-SOLO-SDI - Overview

• Features:

  • High quality audio monitoring of SDI, AES and Analogue audio sources.
  • Fast and intuitive scroll to listen operation of any chosen audio pair.
  • Audio level meter display showing 16 Audio Channels simultaneously
  • `Zoom View' of any audio pair including Audio Phase Metering
  • Front Panel Video Confidence Display of SDI Sources
  • Source Label Display
  • High quality internal loudspeaker system


• Specifications:

  • Inputs:
  • 2 x Auto-Sensing 3G/HD/SD-SDI Inputs (23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz)
  • 1 x AES 3id Input (BNC)
  • 2 x Balanced Analog Audio Input

    Outputs:
  • 1 x Balanced Audio Output (Switchable 20dB pad)
  • 1 x Headphone Output (Stereo Jack Socket Type A, 50?)
  • 1 x HDMI Output

    Control and Monitoring:
  • 1 x USB for Loading and Saving of Configurations and Software Updates.

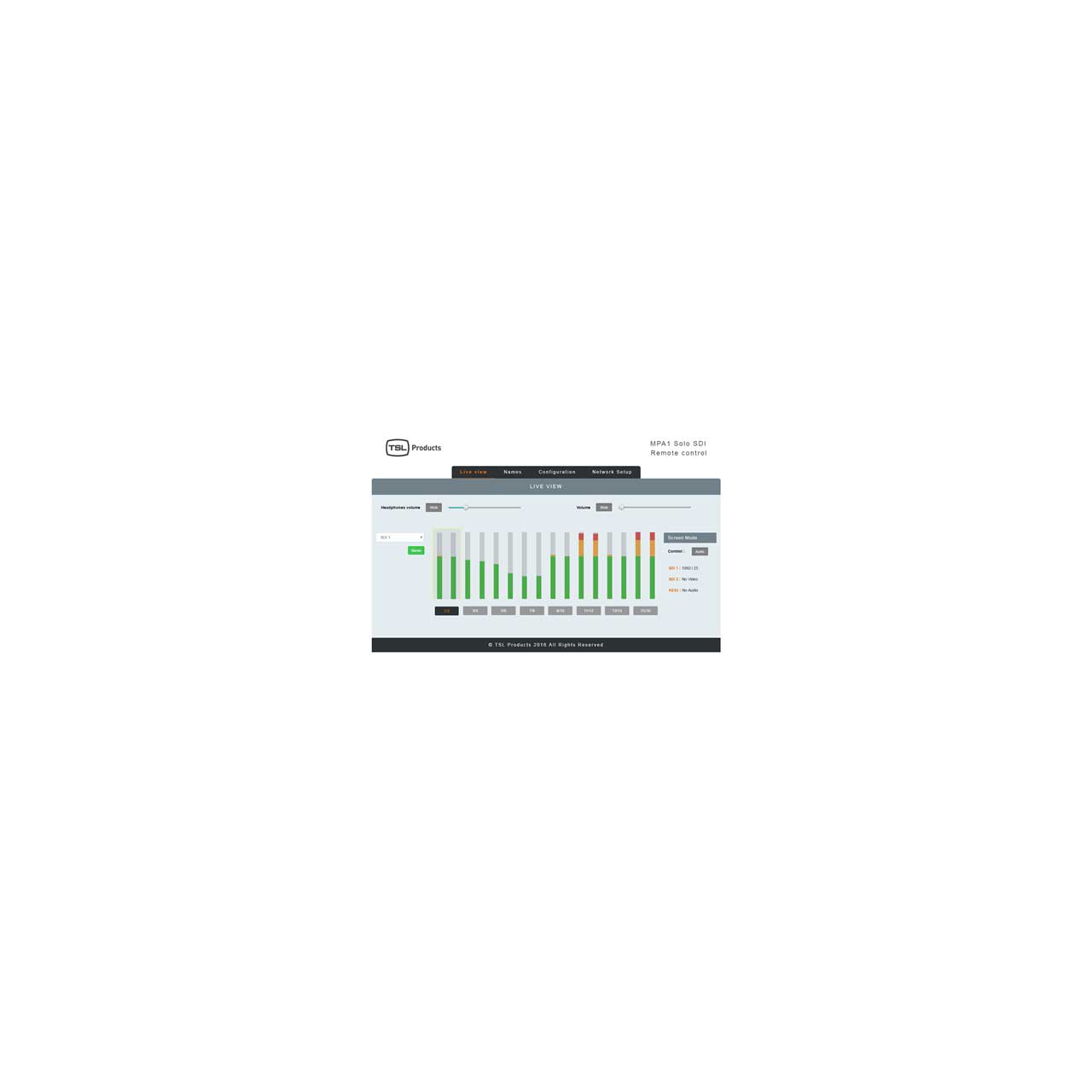

  • 1 x Ethernet Port (RJ45) for Network Monitoring and Control using Web-Browser and for thirdparty control and monitoring using SNMP.

    Power:
  • Supply Voltage: 90-250V AC
  • Power Consumption: 30W
  • Operating Temperature: 5-40°C

    Physical Dimensions:
  • Height: 44mm (1RU)
  • Width: 483mm (19")
  • Depth: 100mm
  • Weight: 1.4kg
