Matrix Switch MSC-FS44FL 4x4 Fiber Optic 3G-SDI Mini Switcher with Button Panel

ITEM #: MSC-FS44FL MFG #: MSC-FS44FL

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MSC-FS44FL

MSC-FS44FL - Overview

Matrix Switch Corporation's Mini SFP SDI video routing switchers provide a powerful and flexible solution for routing SDI signals using pluggable SFP modules. The MSC-FS44FL router provides 4 SFP slots with Fiber Optic Transceivers included. This router offers a compact, powerful, flexible, and low cost SDI SFP solution.

Matrix Switch Corporation routers offer flexible and user friendly control, including a button interface, built in web page, our powerful but easy to use MASCOT protocol, and some common 3rd party protocols.

  • Features:

    • Re-clocks standard SDI rates 3G (2.97 Gbit/s), HD (1.484 Gbit/s), and SD (270 Mbit/s)
    • Auto bypass of non-standard SDI rates from 20 Mbit/s to 3 Gbit/s
    • Passes SDI embedded audio and ancillary data
    • Different SDI rates can be used on different inputs interchangeably and without restriction
    • Inputs can be switched to multiple outputs without restriction
    • Outputs can be individually muted
    • Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
    • Store and recall up to 10 preset salvos

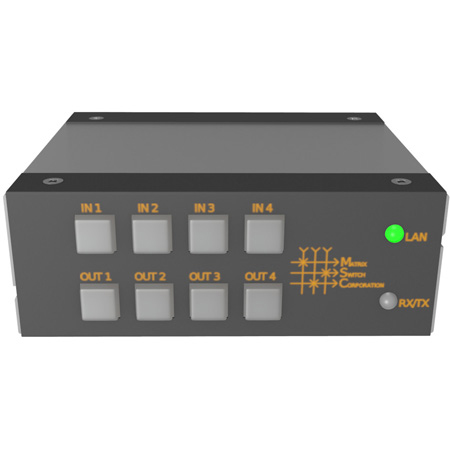

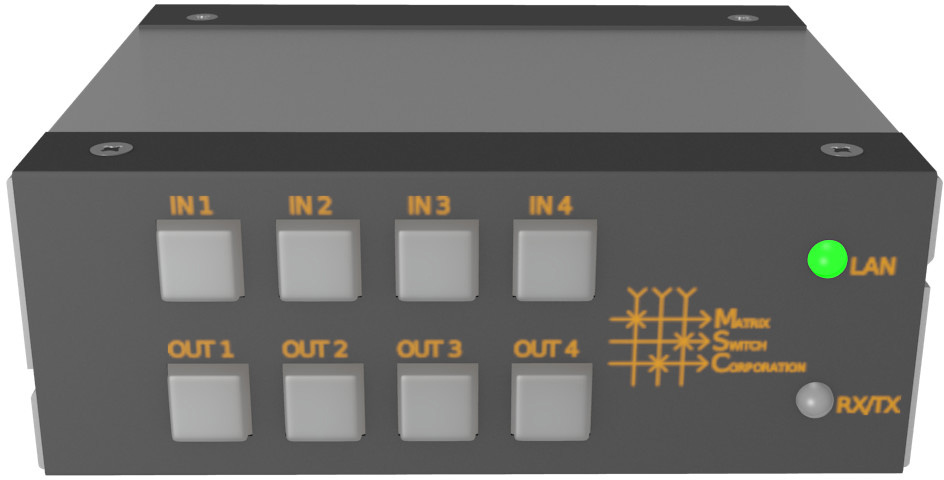

    • Includes button control panel interface
    • Supports Matrix Switch Corporation Remote Panels
    • Ethernet port for control via built in web page interface or TCP/IP ports
    • Interactive web page interface (Interactive Demo)
    • Serial control via RS-232 port
    • Support for some common 3rd party protocols for added integration flexibility
    • System software updates over Ethernet port
    • Compact enclosure design with a depth of only 5 inches
    • Less than 2 pounds
    • External DC power supply
    • Complies with all relevant FCC, U/L, CE, and RoHS requirements
    • Backed by a full 2 year manufacturer parts and labor warranty


  • Specifications:

    • General
    • Inputs: 4
    • Outputs: 4
    • Size: 5 inch x 1.75 inch x 5 inch
    • Weight: 2.0 lbs
    • Power: 5 VDC 4A Adapter
    • Power Connector: 5.5mm OD 2.5mm ID coaxial
    • Panel Type: Buttons
    • Ethernet: 10 Base-T

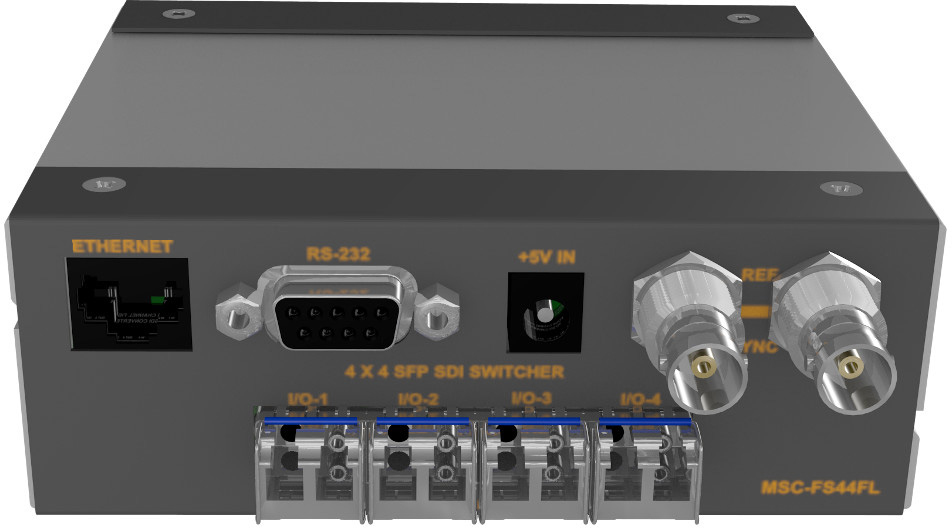

      Fiber Optic SFP Transceiver Modules
    • Product MSC-SFPRXTX-F1310-10KM (included)
    • Connector Type: LC
    • Fiber Type: Single Mode Fiber (SMF)
    • Wavelength: RX: 1200~1610nm (1310nm nominal) TX: 1310nm (DFB laser)
    • Max Distance: 10km
    • Data Rates: 50 Mbit/s to 3 Gbit/s
    • Standard: SFP MSA Compliant
    • Pathological Signals: Supports Pathological Signals for 3G/HD/SD-SDI
    • SMPTE Standard: SMPTE 297-2006 Compatible
    • Digital Diagnostics: MSA DDM Compatible Interface

      SDI Standards
    • SD Formats: 625i25 PAL and 525i29.97 NTSC
    • HD Formats: 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60
    • 3G Formats: 1080p50, 1080p59.94, 1080p60
    • 2K Formats: 2048 x 1556p23.98/24/25
    • Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
    • Video Sampling: 4:2:2 and 4:4:4
    • Audio Sampling: 24 bit @ 48 KHz
    • Color Precision: 4:2:2 and 4:4:4 10 bit
    • Color Space: YUV or RGB
    • Metadata Support: Ancillary data as defined by SMPTE 352M

      Reference Sync
    • Connector Type: Analog BNC with pass-through
    • Format: Tri-Level Sync and NTSC/PAL Black Burst


  • Warranty:

    • 2 year manufacturer parts and labor
