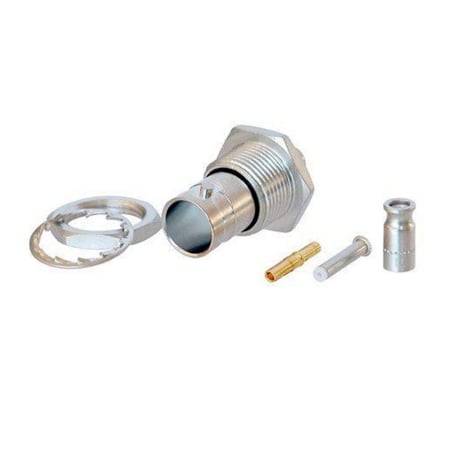

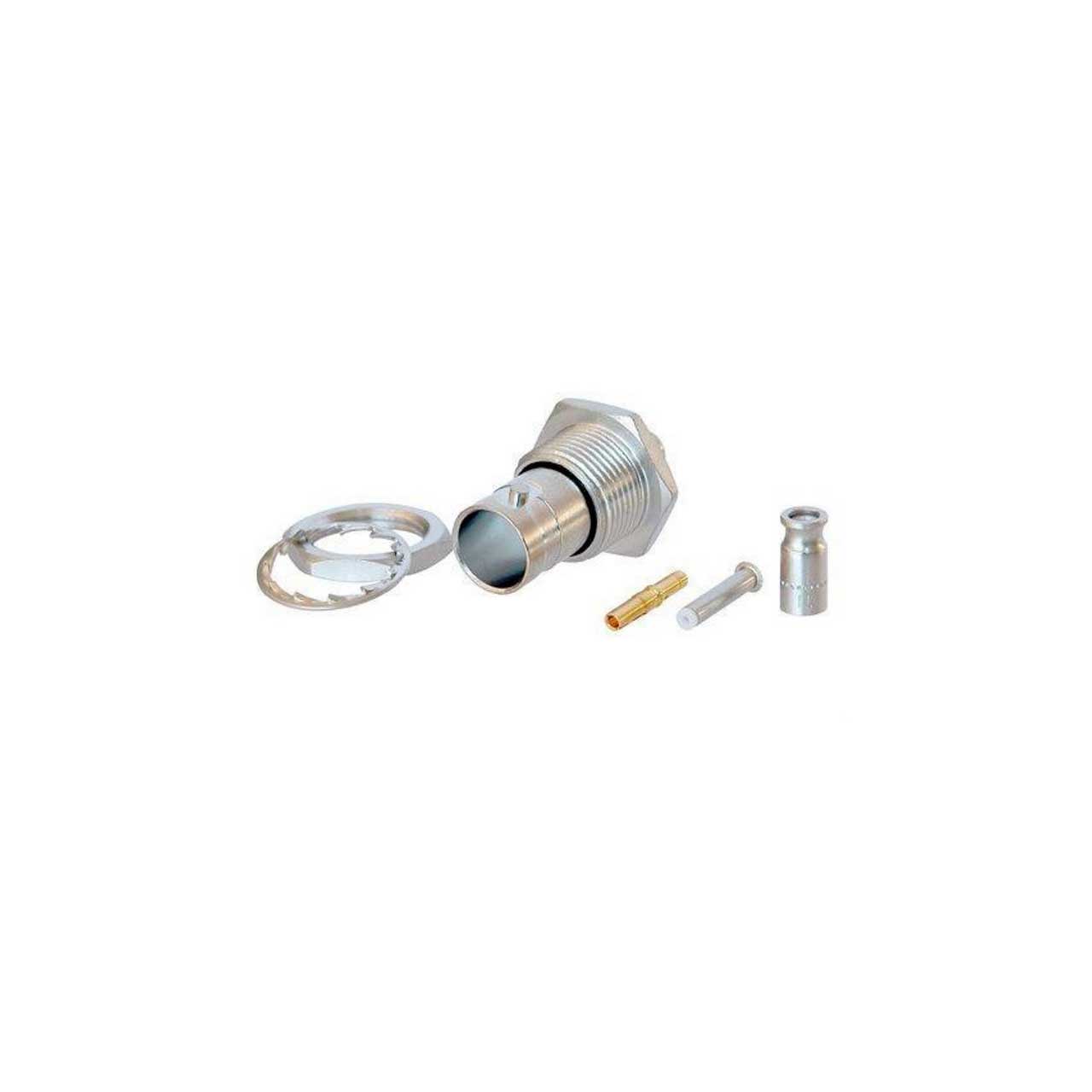

Neutrik NBTB75IFI4 Cable Jack Female BNC Panel Mount Isolated 75 Ohm

NBTB75IFI4 - Overview

• Features:

  • Gold plated center contact and True 75 Ohm design meets stringent HD requirements. Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)


• Specifications:

  • Product
  • Title: NBTB75IFI4
  • Connection Type: BNC 75 Ohm;
  • Gender: female
    Electrical
  • Contact resistance: ≤ 3 mΩ (inner)
  • Contact resistance: ≤ 2 mΩ (outer)
  • Dielectric strength: 0.75 kVdc
  • Impedance: 75 Ω
  • Insulation resistance: > 5 GΩ
  • Rated voltage: <50 V
  • VSWR-
  • ≤1.050/>32 dB up to 1 GHz
  • ≤1.065/>30 dB up to 2 GHz
  • ≤1.100/>26 dB up to 3 Ghz
    Mechanical
  • Cable O.D.: 4.0 - 7.7 mm
  • Cable retention: > 30 N (Center)
  • Crimp size: 4.06 Hex crimp (shield) acc. MIL22520/5-39(B)
  • Crimp size (pin): 1.6 Square crimp (pin) acc. IEC 60803 (die designation 2)
  • Insertion force: < 25 N
  • Lifetime: > 1000 mating cycles
  • Locking device: Bayonett
  • Cable anchoring: Jacket crimping

    Material
  • Contacts: Brass (CuZn35Pb2), 0.2 æm AuCo (Center contact)
  • Insert: PTFE
  • Shell: Brass (CuZn39Pb3)
  • Shell plating: Optalloy

    Environmental
  • Temperature range: -30°C to +85°C
  • Contact crimpability: Complies with IEC 60803 and IEC 60352-2


• GTIN:

  7613187002830
